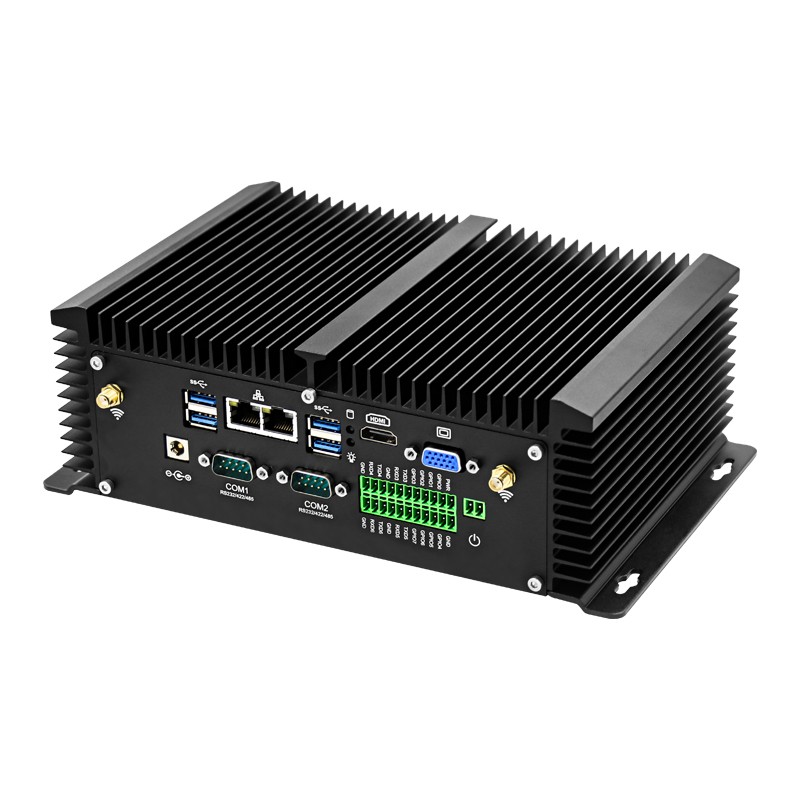

Industrial Mini PC 8 USB GPIO DC 9V to 36V Input

Quick Details:

CPUIntel 7th/8thStorageMSATA, SATA
NetworkIntel i211-ATOSWin7/10,Linux,Ubuntu
MaterialAluminum AlloyPower SupplyAC 100-240V, DC 12V


  1. Optional Intel® 7th/8th Generation Core i5/i7 CPU

  2. 2xDDR4 SODIMM, Max 16GB memory

  3. VGA+HDMI dual display, synchronous/asynchronous mode

  4. Dual storage, 1 2.5" HDD, 1 mSATA

  5. 9~36V wide voltage input

  6. Low power fanless

  7. Industrial grade working temperature -20℃~70℃


Model: SM12
CPUIntel® Core i5-7200U, 2 Cores, 4 Threads, Base 2.5GHz, Turbo 3.1GHz, Fanless
CPU OptionalIntel® Core i7-7500U/7600U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.5GHz, Fanless
CPU OptionalIntel® Core i5-8250U/8350U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 3.4GHz, Fanless
CPU OptionalIntel® Core i7-8550U/8650U, 4 Cores, 8 Threads, Base 1.8GHz, Turbo 4.0GHz, Fanless
Memory2xDDR4 SODIMM, Max 32GB
Storage1x MSATA
Display1x HDMI, 1x VGA
Network2 x GbE RJ45 Intel® i211-AT

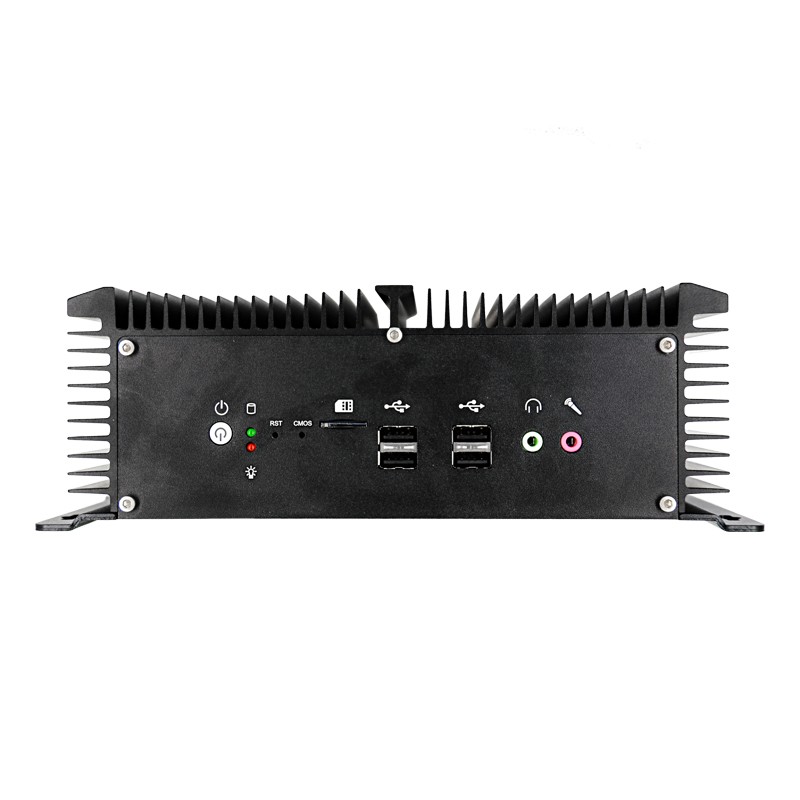

I/O4x USB2.0, 4x USB3.0, 1x HDMI, 1x VGA, 2 x DB-9 COM1&COM2(RS-232/422/485), 1x 8bit GPIO Phoenix Terminal, 1x Audio Line-out, 1x Audio Mic-in, 2x 4Ω 3W amplifier outputs (optional), 1x LVDS (optional), 1x Power Button, 1x Reset Button, 1x Clear CMOS button, 1x Power LED, 1x HDD LED, 1x Power input, 1x SIM card slot, 2x Antenna Ports for WIFI/3G/4G, 1x Phoenix terminal remote switch interface
Expansion Slot1x Mini-PCIe half card, support WIFI Bluetooth
1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth
WDT Support hardware reset (256 level, 0-255 sec)
Operation SystemWindows® 7 /8/10,WES 7,LINUX
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 9-36V
Power consumption≤15W
MaterialAluminum Alloy
Operating Environment
Temperature RangeOperating: -20 to 70°C, Storage: -30 to 80°C,  surface air flow
Relative humidity10%~95% , non-condensing
Packing Details
Net weight1.5 kg
Gross weight2.5 kg
Product Dimension248 x 150 x 83 mm
Packing size30*20*12cm
AccessoriesPower adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Mounting (options)Wall mounting
Embedded mount
Warranty3 years warranty
