Features:
Optional Intel 12th/13th/14th Generation-HX Core i5/i7 CPU
2x DDR5 SODIMM, up to 64GB memory
6x COM RS-232 serial ports (4 of them support RS485/RS442)
2 Intel i226V 2.5G network cards (optional 4x network ports)
4x HDMI 2.0 interfaces (4K@60Hz)
Watchdog, PXE boot
Easy to disassemble, wash, and maintain
Specification
| Model: SM02 | |
| PC | |
| CPU | Intel 12th/13th/14th Generation-HX Core i5/i7 CPU |
| CPU Optional | Intel® Core i5-12450HX/ i5-12600HX, 8 Cores(4 Performance-core, 4 Efficient-core), 12 Threads, Turbo 4.4GHz, 12 MB Intel® Smart Cache, Fan |
| CPU Optional | Intel® Core i7-12650HX/12800HX, 14 Cores(6 Performance-core, 8 Efficient-core), 20 Threads, Turbo 4.7GHz, Fan |
| CPU Optional | Intel® Core i7-13650HX, 14 Cores(6 Performance-core, 8 Efficient-core), 20 Threads, Turbo 4.9GHz, Fan |
| CPU Optional | Intel® Core i5-14450HX, 14 Cores(6 Performance-core, 8 Efficient-core), 20 Threads, Turbo 3.8GHz, Fan |
| Memory | 2x DDR5 SODIMM, up to 64GB memory |
| Storage | 2 x M.2 NVME 2280 (one of which supports SATA protocol) 1 x HDD/SSD |
| Display | 4 x HDMI 2.0(4K@60Hz) |
| Network | 2 x RJ45 Intel i226V (4 x RJ45 Intel i226V Optional) |

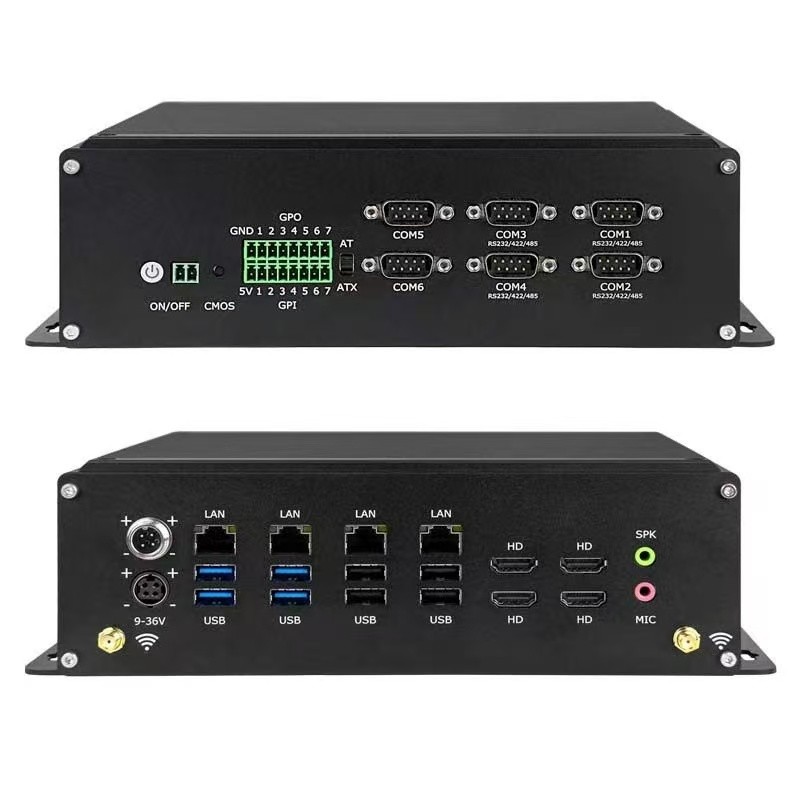

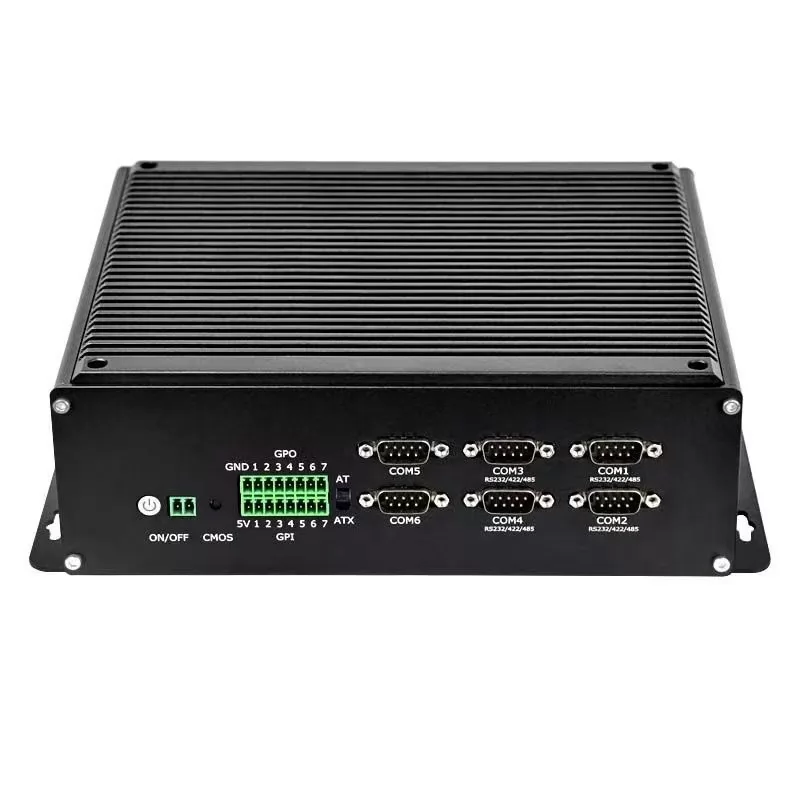

| I/O | 4 x USB3.0, 4 x USB2.0, 6 x DB9 COM (4 of which support RS485/RS422), 4 x HDMI 2.0 (4K@60Hz), 14 x GPIO (7 inputs, 7 outputs), 1 x Power Button, 1 x Power On/Off Extension Cable, 1 x Clear CMOS Button, Dual power interface, 4Pin round pin or 4Pin aviation plug, support 9-36V power input, 1 x headphone interface, 1 x microphone, 1 x ATX/AT |
| Expansion Slot | 1 x M.2 2232 WIFI 1 x M.2 3042 3G/4G module, onboard SIM card slot (optional 3052 5G module) Expansion IO x 1, supports USB, PCIE, SATA |
| BIOS | AMI EFI BIOS |
| Others | Support hardware reset (256 level, 0-255 sec), PXE boot |
| Operation System | Windows® 10/11, WES 10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤60W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 2 kg |
| Gross weight | 3 kg |

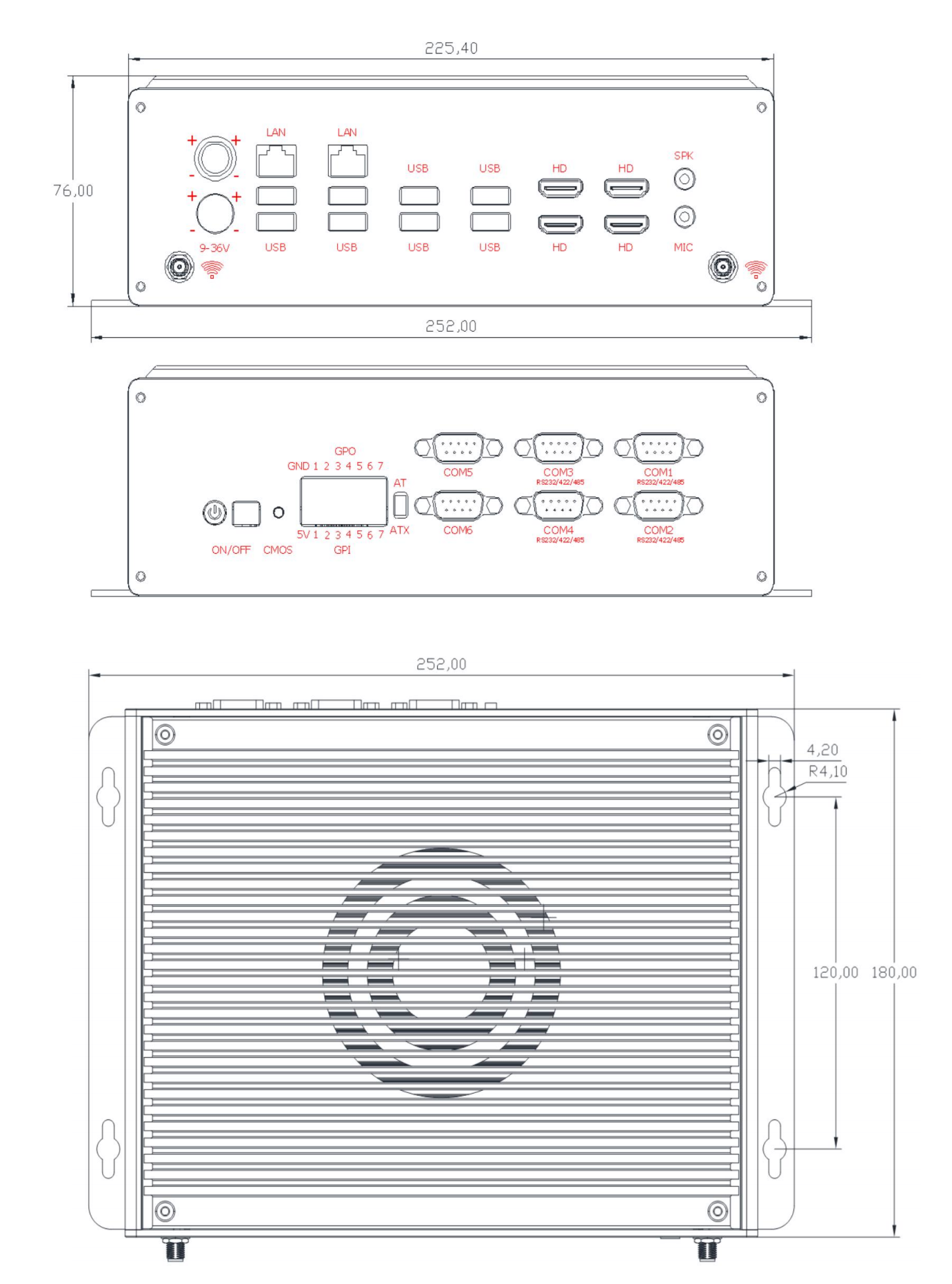

| Product Dimension | 252 x 180 x 76 mm |
| Packing size | 35*25*15cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other | |
| Mounting (options) | Embedded mount |
| Wall mounting | |
| Warranty | 2 years warranty |
