Feature:

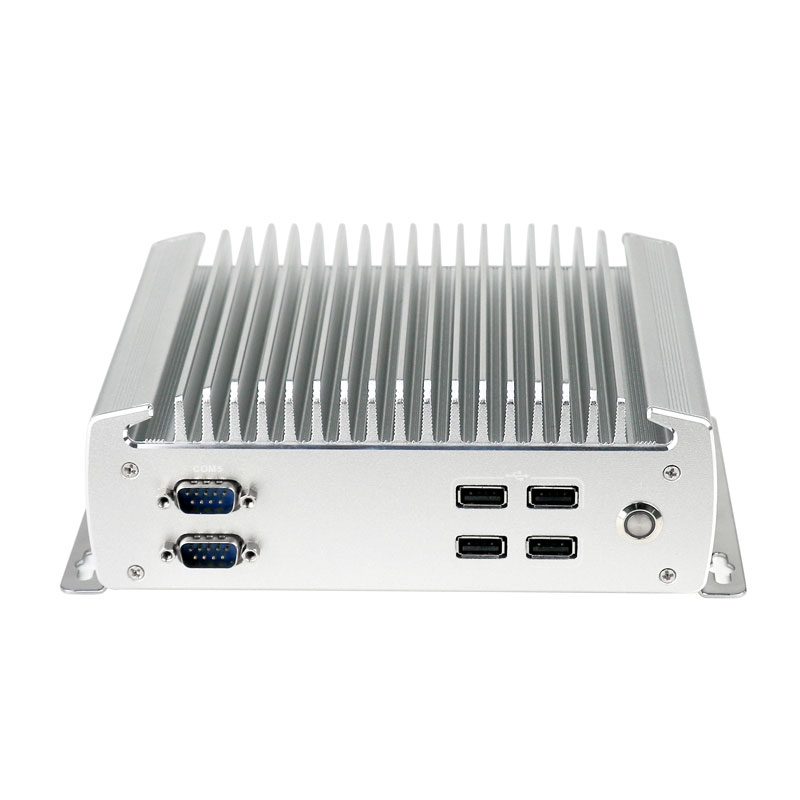

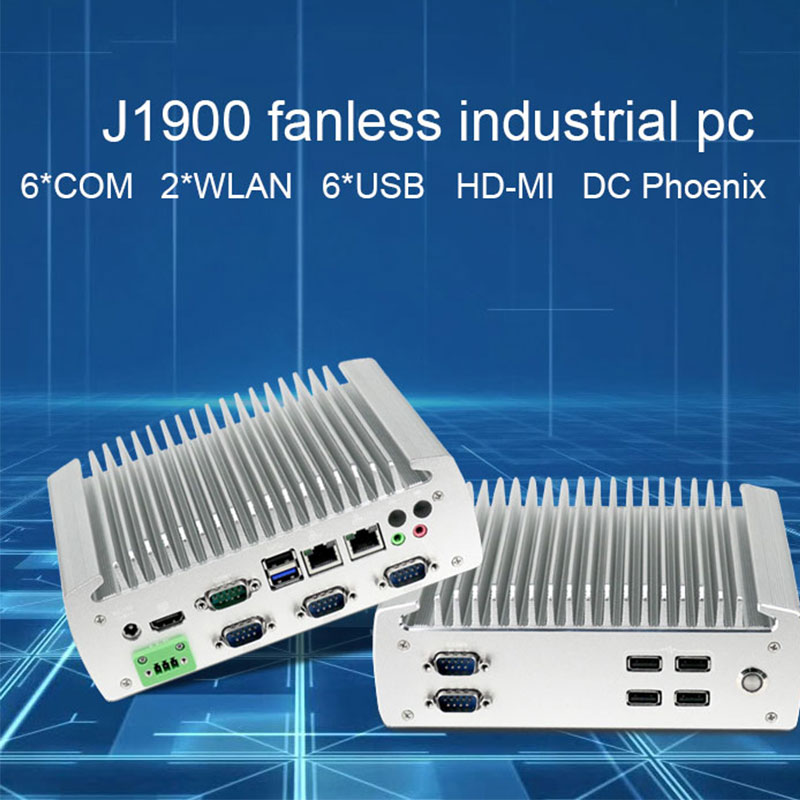

1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Celeron J1900 quad core processor, 2.0GHz
4. 1x HDMI + 2x LAN + 6x COM + 6x USB
5. AMI UEFI BIOS, wake on LAN, electricity boot, WDT;
6. Support wifi and bluetooth optional (Not included in standard quotation)
7. 2x RTL8111E 1000M LAN card, support wake on LAN
8. Compatible Windows 7/8/10, Linux, Ubuntu.
Specification:
| Model: SM101 | |
| PC | |
| CPU | Intel Celeron J1900, quad core, 2.0GHz |
| Memory | 2/4/8 GB |
| Storage | 32/64/128/256/512 GB |
| Expansion | Support 1*Mini-PCIE (support MSATA) Support 1*Mini-PCIE (support WiFi/3G/4G), Embedded SIM Slot |
| Display | 1*HDMI, 1*LVDS (Support synchronous and asynchronous dual display) |
| Display Chip | Integrated Intel HD Graphics |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2*Intel i211-AT 10/100/1000M lan, WiFi/3G/4G (optional) |

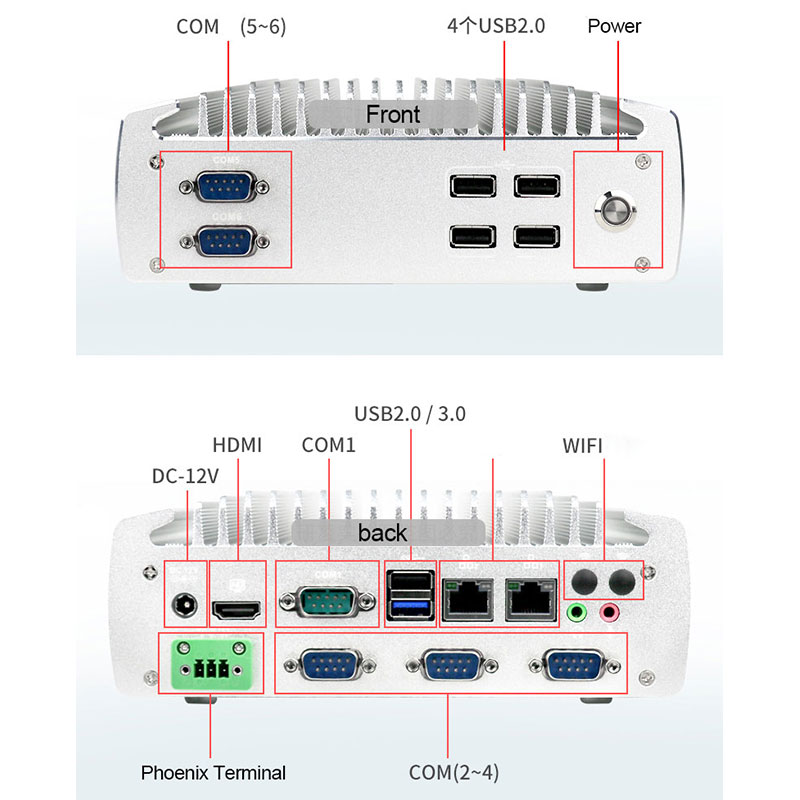

| I/O Interface | 4x USB 2.0, 2x USB 3.0, 1x HDMI, 1x Phoenix Terminal, 1x 2 in 1 Audio, 1x DC 12V port, 6x COM, 2x RJ45 1000M Lan |
| BIOS | AMI UEFI BIOS |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver |
| Operating Environment | |
| Temperature Range | operating: -10 to 50°C, storage: -10 to 60°C |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.6kg |
| Gross weight | 2.0kg |

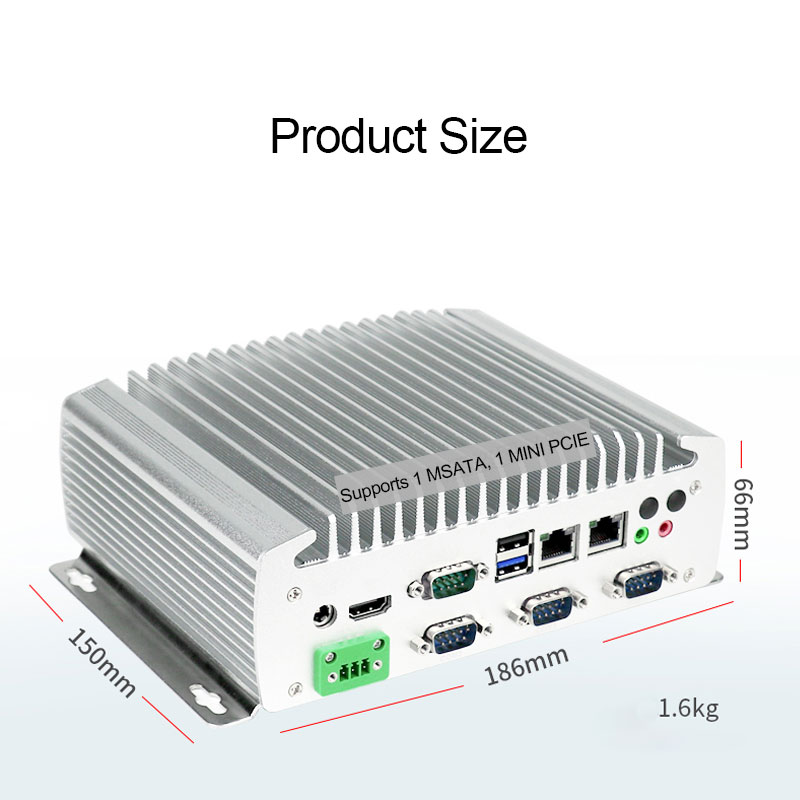

| Product Dimension | 18.6*15*6.6cm |
| Packing size | 28*20*18cm |

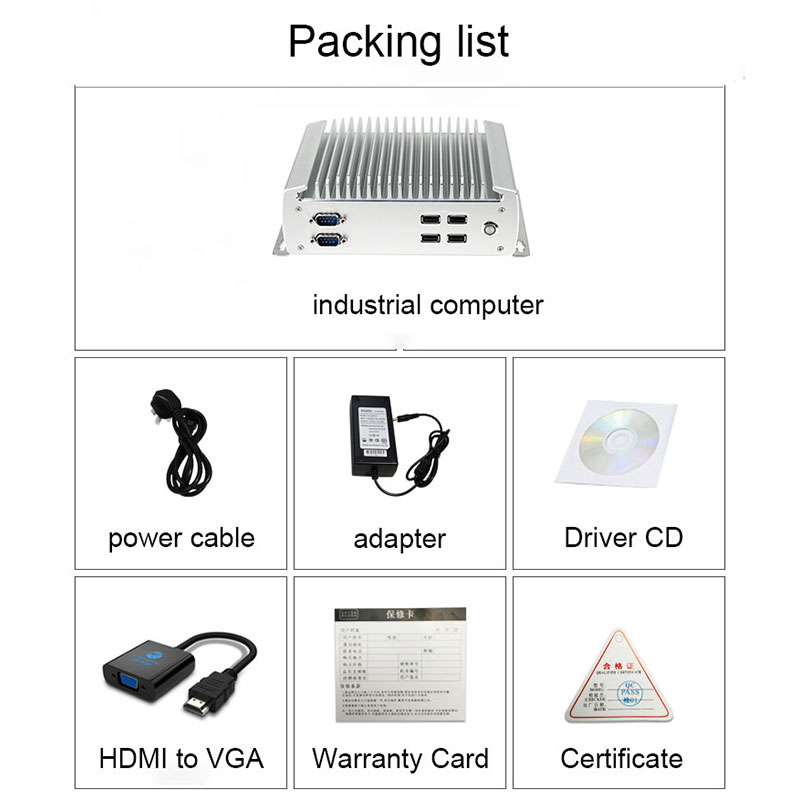

| Accessories | Power adapter, open frame kits, user manual, warranty card |
| Other | |
| Mounting (options) | Wall mounting brackets (optional) |
Warrant | 1 year warranty |
