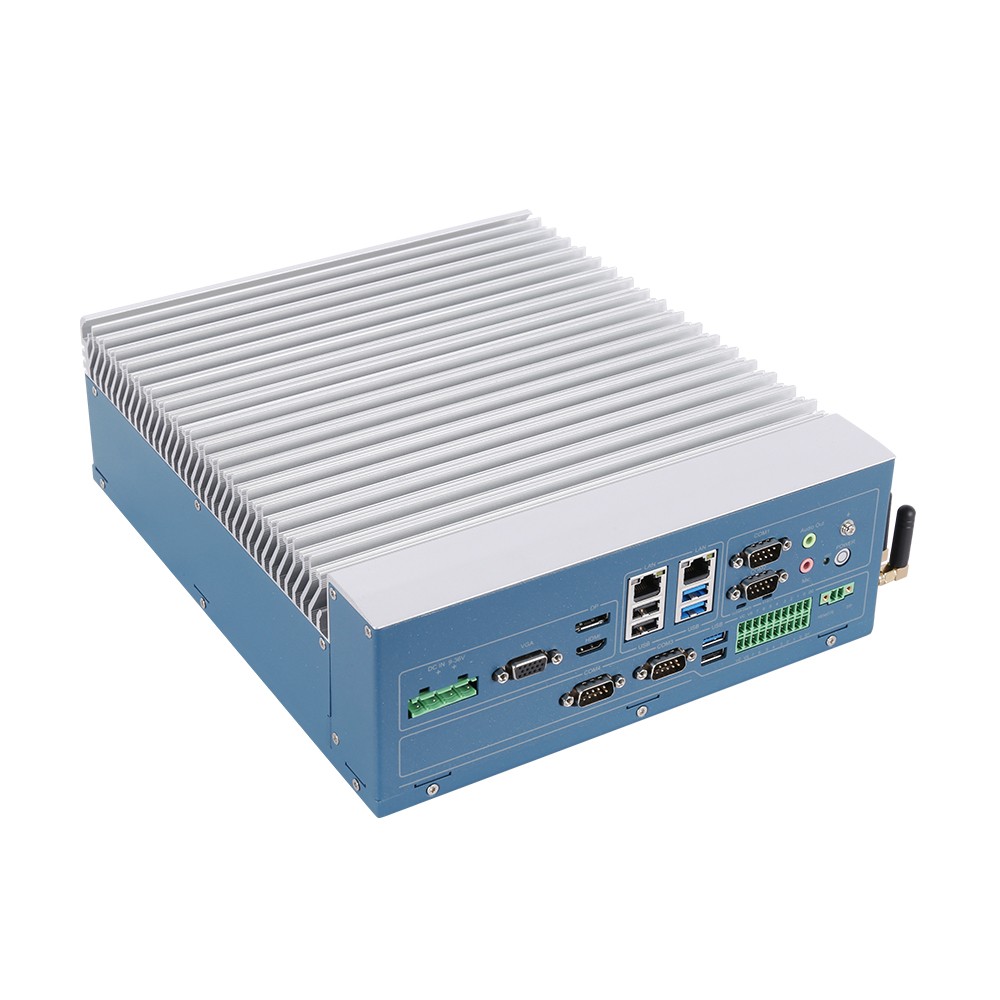

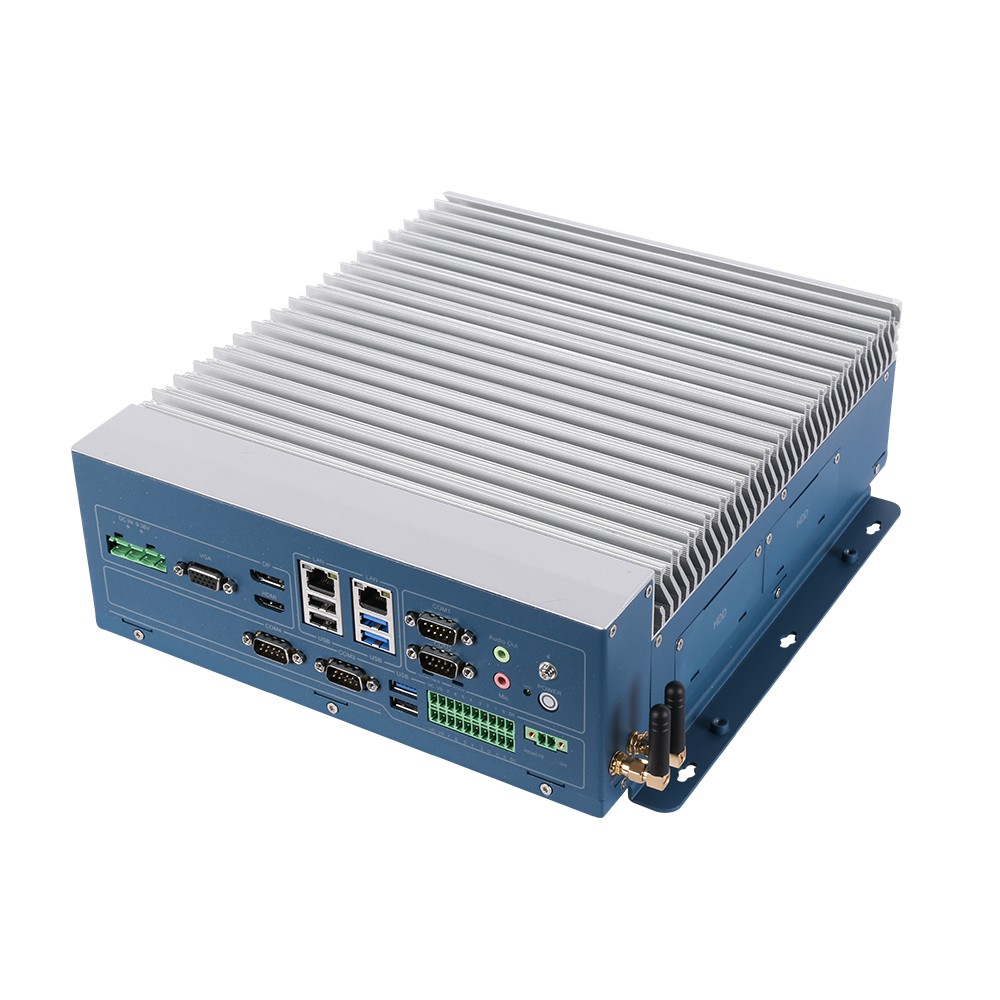

Features:
Independent CPU, supports Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9 processors
Rich I/O interfaces, 6*USB, 4*COM and 16-bit isolated GPIO

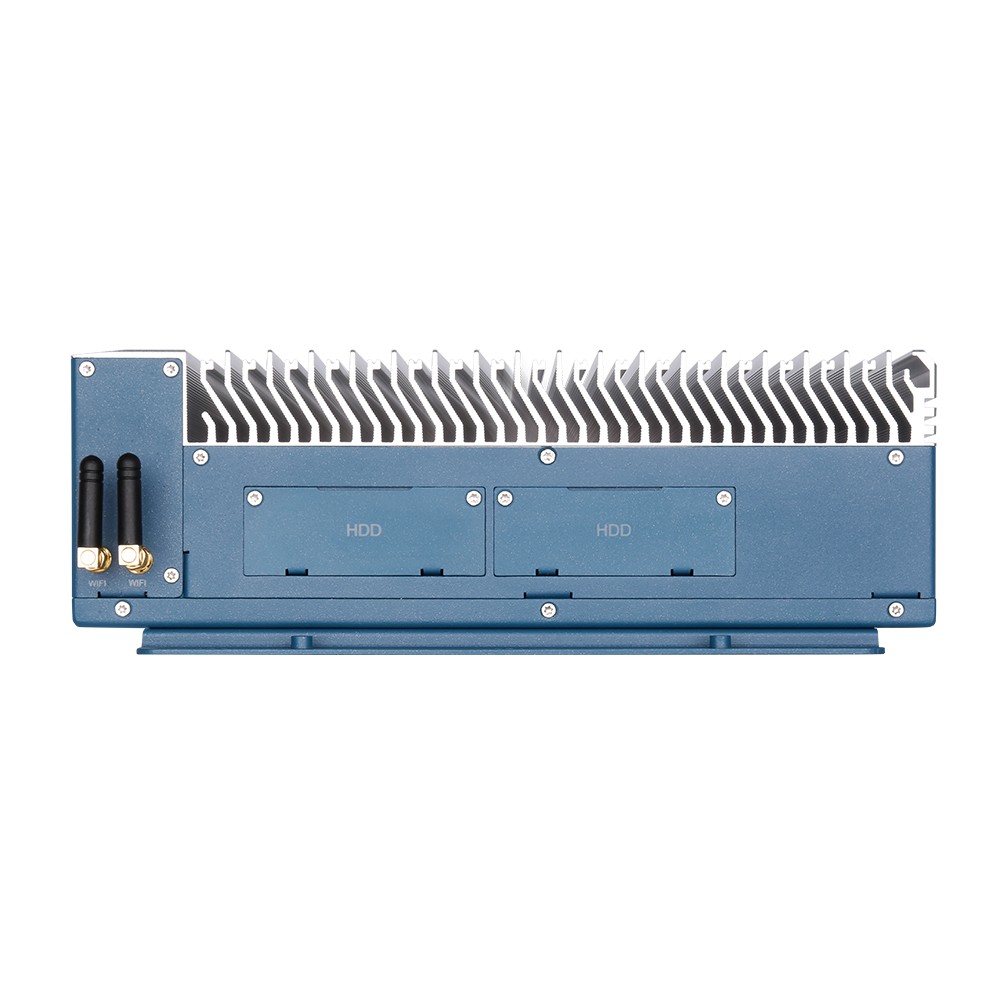

Pull-out hard disk design, easy for storage expansion, maintenance and upgrade
Supports wide temperature (-20 - 70°C)/wide voltage (DC 9-36V) operation
Modular industrial design, neat and beautiful, easier to expand and upgrade
8K+4K three-screen same display/different display, 1*DP+1*HDMI and 1*VGA
Application:

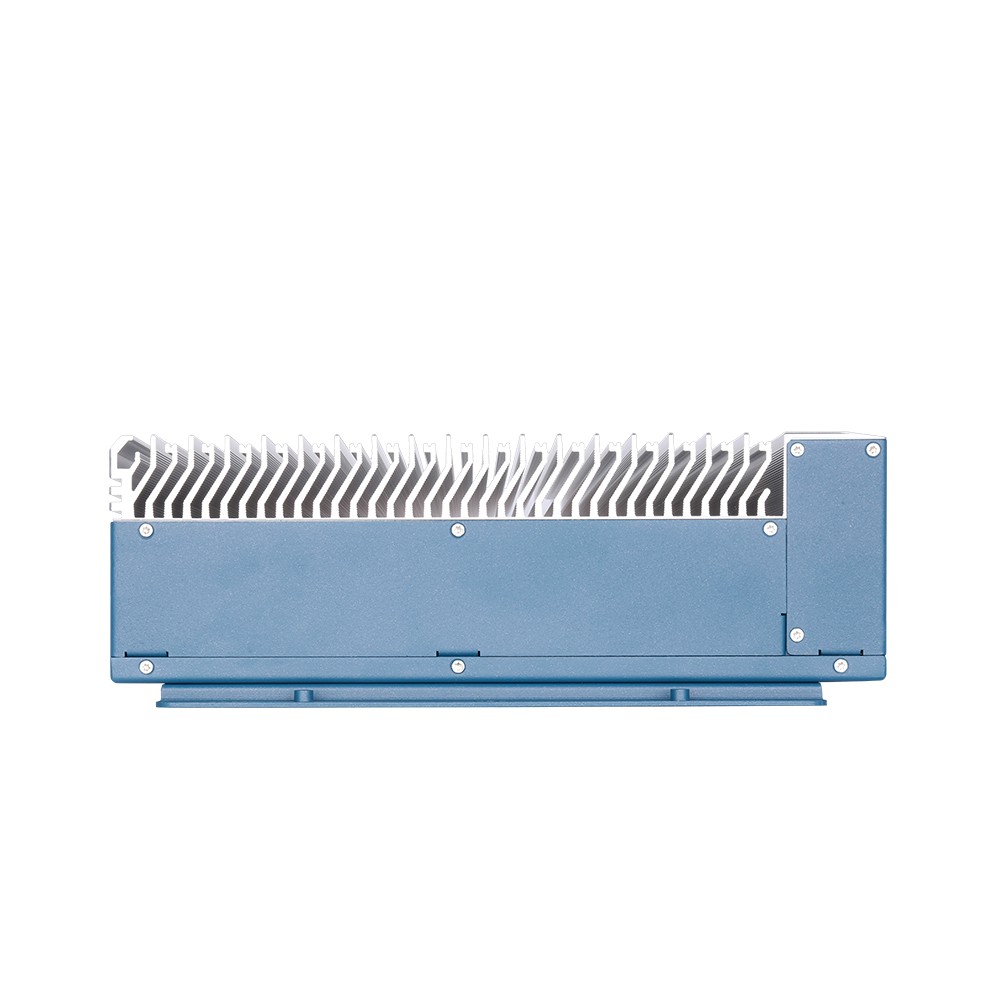

It adopts high-strength aluminum fin heat dissipation shell + precision sheet metal box structure, with stable performance and strong impact resistance. Modular industrial design, built-in H610 chipset, equipped with Intel's 12th generation Alder
lake-S series independent CPU, supports multi-tasking and high-load computing. Rich I/O expansion, widely used in industrial automation, machine vision, power communication, rail transportation, smart medical
and other fields.
Specification
| PC | |
| CPU Optional | Intel® Core i3-12100, 4 Cores, 8 Threads, Turbo 4.3GHz, 12 MB Cache, Fanless |
| CPU Optional | Intel® Core i5-12400, 6 Cores, 12 Threads, Turbo 4.4GHz, 18 MB Cache, Fanless |
| CPU Optional | Intel® Core i7-12700, 12 Cores(8 Performance-core, 4 Efficient-core), 20 Threads, Turbo 4.9GHz, 25 MB Cache, Fanless |
| CPU Optional | Intel® Core i9-12900, 16 Cores(8 Performance-core, 8 Efficient-core), 24 Threads, Turbo 5.1GHz, 30 MB Cache, Fanless |
| Memory | Standard pre-install 16G DDR5 Supports 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, maximum 64GB |
| Storage | Standard Pre-install 512GB SSD 2*2.5 SATA3 easy-swappable hard disk rack, large capacity 15mm thick HDD, supports up to 6Gbps transmission speed 1*full-length mSATA, with SATA3.0, supports up to 6Gbps transmission speed |
| Operating System | Supports Win10/11, Linux/Ubuntu/Redhat/Debian |
| Cooling System | Fanless copper tube cooling |

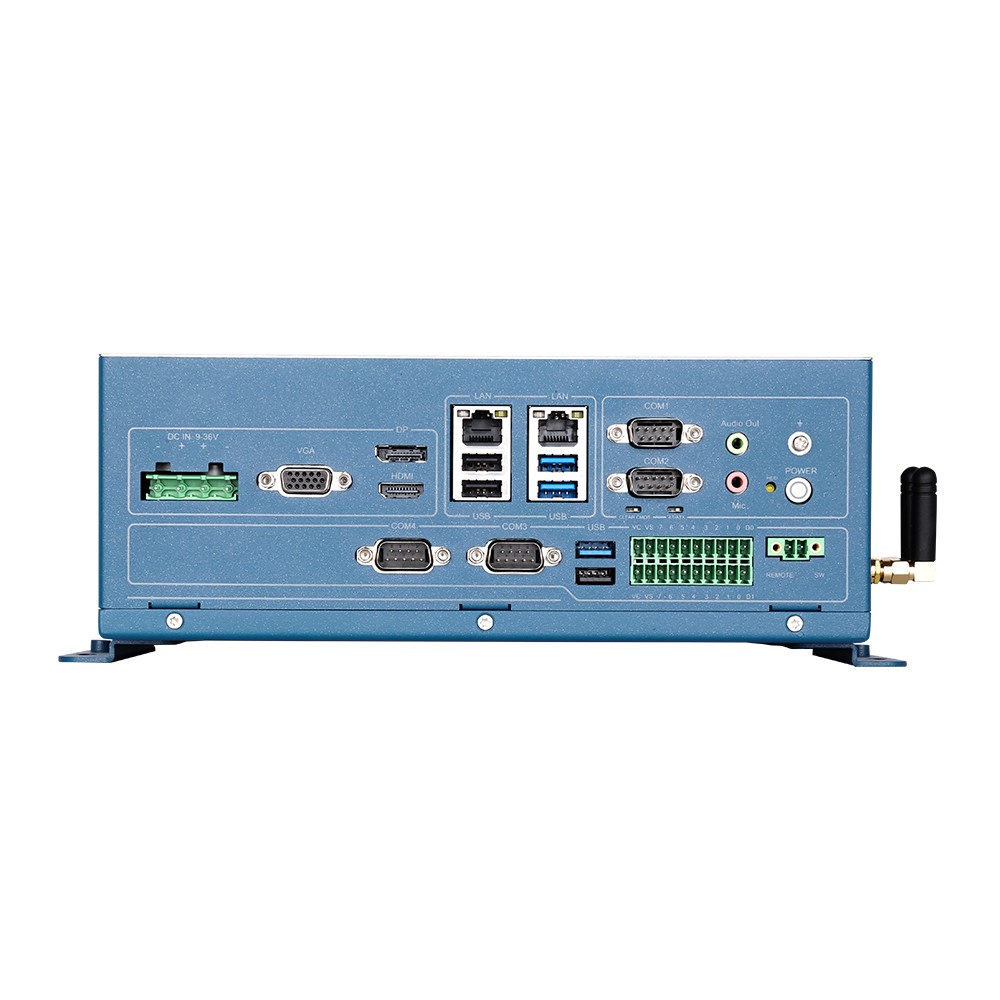

| I/O | |
| USB | 3*USB3.0, 3*USB2.0, 4*USB2.0 pins (built-in) |
| Ethernet | 2* RJ45 Ethernet (1000 Mbps+2500Mbps) |
| COM | 4*COM, upgradeable to 6*COM (2*232/422/485 COM1, COM2 switchable via BIOS settings 4*232/485 switchable via jumper cap) |
| Signal output | 1* DP, 1* HDMI, 1* VGA |
| GPIO | 16-channel opto-isolated GPIO (can be upgraded to 16-channel non-isolated GPIO) |
| WIFI&Bluetooth | 1*M.2 supports Key-E interface WiFi/Bluetooth module |
| 4G/5G | 1*M.2 supports Key-B interface M.2, 5G (3052/3042) module or M.2, 4G (3042) module |
| Audio | Realtek ALC897 audio, 1*Line out and 1*MIC high-fidelity audio, support 5.1 channels |
| Buttons/Indicator Lights | 1* Power button w/LED, 2-pin Phoenix terminal remote switch, AT-ATX dip switch, Clear Cmos dip switch |
| Other | |
| Working voltage | DC IN 9-36V, 4-pin 7.62 pitch Phoenix terminal block, with short circuit, reverse connection, overvoltage and overcurrent protection, power consumption 300W. (Can be upgraded to 20~60V wide voltage power supply) |
| Power consumption | ≤150W |
| External Power Supply | DC 24V adapter, AC 100-240V(Optional, can be upgraded to AC 110-240V built-in switching power supply) |
| Operating temperature | -20℃～70℃ |
| Storage temperature | -30°C~80°C |
| Reliability Test | Anti-static design, anti-surge design |
| Net weight | 6.34KG |
| Product Dimension | 250mm*294mm*102mm |
| Material | SGCC galvanized sheet, aluminum alloy |
| Color | Silver+dark blue |
| Installation | Wall-mounted, desktop, rack-mounted |
