Embedded Computer

Home > Products > BOX PC > Embedded Computer

  • Dual HDMI Box PC WIFI
  • Dual HDMI Box PC WIFI
  • Dual HDMI Box PC WIFI
  • Dual HDMI Box PC WIFI

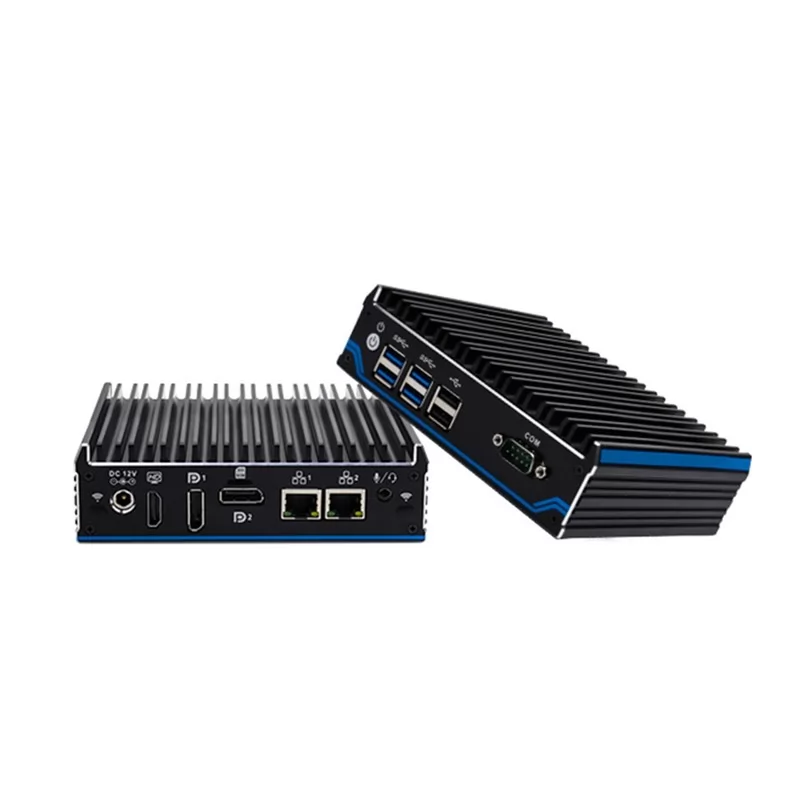

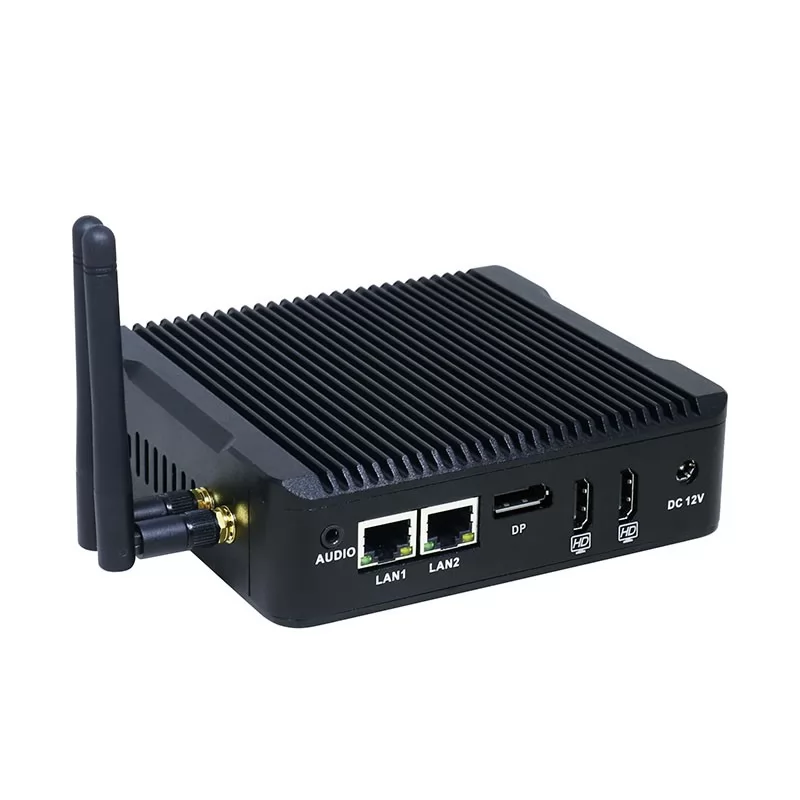

Dual HDMI Box PC WIFI

Quick Details:

CPUIntel J1900Hard Drive32/64/128GB ssd
RAM2/4GBBIOSAMI UEFI BIOS
Network2*RTL8111EOSWin7/10,Linux,Ubuntu
MaterialAluminum AlloyPower SupplyAC 100-240V, DC 12V

Features

  1. Full Aluminum alloy enclosure, fanless design.

  2. High performance motherboard, 7x24 continuous operation.

  3. Intel Celeron J3160 quad core processor, 1.6GHz.

  4. Support 1xMSATA slot, 1x 2.5" HDD port.

  5. Support WIFI/Bluetooth/3G/4G (optional).

  6. Support sync/async three displays, support 4K resolution.

  7. Compatible Windows 7/8/10, Linux.


Specification


                                                                        Model: SM05
PC
CPUIntel Celeron J3160, quad core, fanless 1.6GHz, Burst Frequency 2.42 GHz
Memory2GB  (Support 1xDDR3L 1333/1600MHz SODIMM slot, up to 8GB)
Storage32G SSD (1xMSATA slot, 1x2.5" HDD port)
BIOSAMI UEFI BIOS
Display ChipIntegrated Intel HD Graphics card
Display ports1xDP,2XHDMI (Support  sync/async three displays , Max resolution 3840*2160 @30Hz)
Front panel I/O ports1xPower switch, 2xUSB3.0, 4xUSB2.0, 1xRS232
Rear panel I/O ports1xAudio,2xRJ45,1xDP,2xHDMI,1xDC
Expansion interface1xMINI PCIE(support MSATA); 1xMINI PCIE(WIFI/3G/4G optional),with SIM slot
Network2x 10/100/1000M RTL8111E gigabit ethernet interface
Storage interface1xMSATA slot, 1x2.5" HDD port
Other functions Boot when power is applied, Timing boot,Wake on LAN, PXE boot,WDT(0-255)
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤40W
Enclosure
MaterialAluminum Alloy
ColorBlack (Color is customized)
Operating Environment
Working temperatureindustrial SSD: -20 to 50°C; commercial HDD: 0 to 50°C
Relative humidity5%~95% , non-condensing
Packing Details
Net weight0.7kg
Gross weight1.25kg
Product Dimension13.4*12.6*3.85cm
Packing size19*15*15cm
AccessoriesPower adapter, VESA brackets, screws, user manual, warranty card
Other
Mounting (options)VESA brackets (free)
open frame mounting (optional)
Warranty2 year warranty
CertificatesCE,FCC,ROHS




Drawing of SM05.jpg
