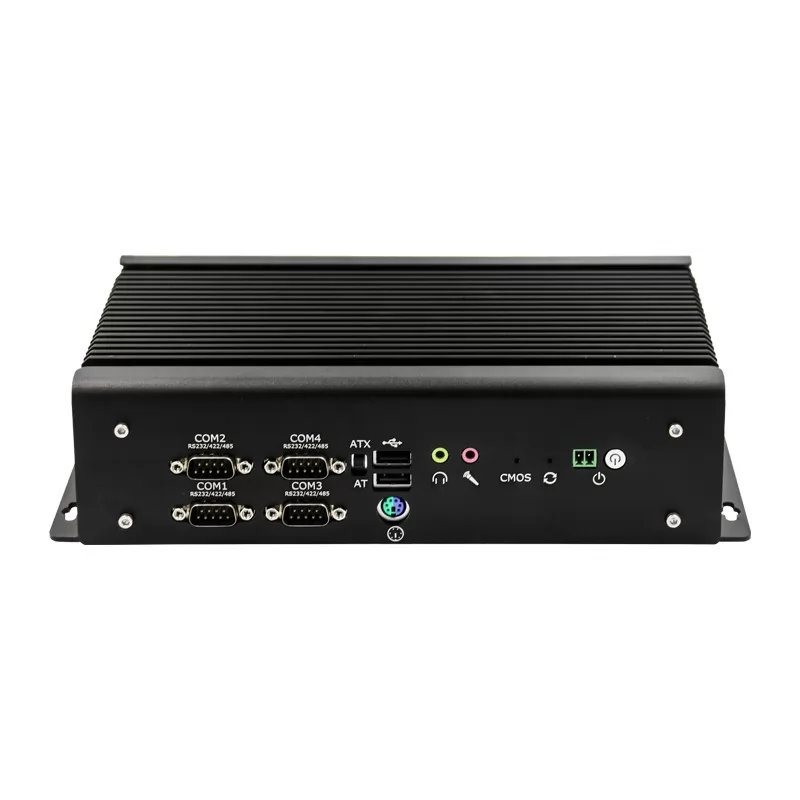

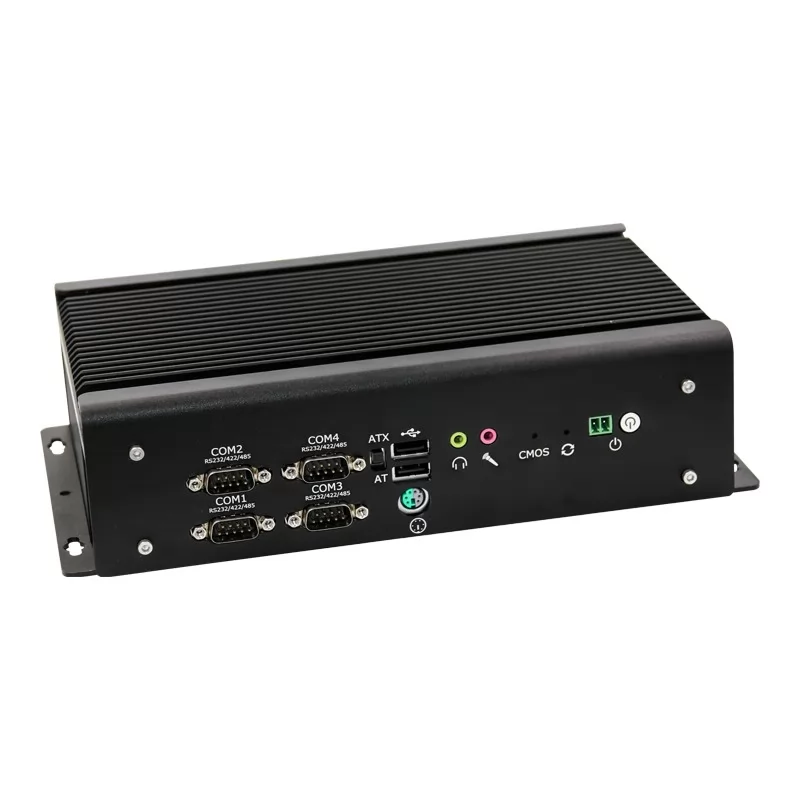

Industrial grade rugged pc wide voltage 9V to 36V PS2 GPIO

Quick Details:

CPUIntel Core i3 i5 i7StorageMSATA, M.2, SATA
MemorySODIMMBIOSAMI EFI BIOS
NetworkIntel i211/i210OSWin7/10,Linux,Ubuntu
MaterialAluminum AlloyPower SupplyAC 100-240V, DC 12V

Features:

  1. Intel 4th/5/6/7/8/10th Gen Core i3/i5/i7 CPU Optional

  2. Gen 4/5 - DDR3L SODIMM x1, max 8GB memory

  3. Gen 6/7/8/10 - DDR4 SODIMM x2, max 32GB memory

  4. 2x Intel i210/i211 Gigabit LAN

  5. One-key restore, watchdog, diskless boot

  6. Low power fanless


Specification


Model: SM04
PC
CPUIntel® Core i5-4278U, 2 Cores, 4 Threads, Base 2.6GHz, Turbo 3.1GHz, Fanless
CPU OptionalIntel® Core i7-4578U, 2 Cores, 4 Threads, Base 3GHz, Turbo 3.5GHz, Fanless
CPU OptionalIntel® Core i3-6157U, 2 Cores, 4 Threads, Base 2.4GHz, Turbo 3.0GHz, Fanless
CPU OptionalIntel® Core i5-7287U/7267U, 2 Cores, 4 Threads, Base 2.3GHz, Turbo 3.6GHz, Fanless
CPU OptionalIntel® Core i7-7560U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.5GHz, Fanless
CPU OptionalIntel® Core i5-8260U, 4 Cores, 8 Threads, Base 2.6GHz, Turbo 4.2GHz, Fanless
CPU OptionalIntel® Core i7-8560/8569U, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless
CPU OptionalIntel® Core i5-10210U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 4.2GHz, Fanless
CPU OptionalIntel® Core i7-10610U, 6 Cores, 12 Threads, Base 1.1GHz, Turbo 4.7GHz, Fanless
CPU OptionalIntel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.2GHz, Fanless
CPU OptionalIntel® Core i5-1155G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.4GHz, Fanless
CPU OptionalIntel® Core i7-1165G7/1185G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless
CPU OptionalIntel® Core i7-1195G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.8GHz, Fanless
CPU OptionalIntel® Core i5-1235U/1245U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz, Fanless
CPU OptionalIntel® Core i7-1265U/1255U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz, Fanless
Memory

4gen, 5gen, 1xDDR3L SODIMM, Max 8GB

6/7/8/10/11th Gen 2xDDR4L SODIMM, Max 64GB

12th Gen 2xDDR5L SODIMM, Max 64G

Storage1x MSATA
1x M.2 NVME 2280(6/7/8/10gen Supports)
1x HDD/SSD
Display1x HDMI, 1x VGA
Network2 x GbE RJ45 Intel i211/i210, 12gen be with 2 x GbE RJ45 Intel i229

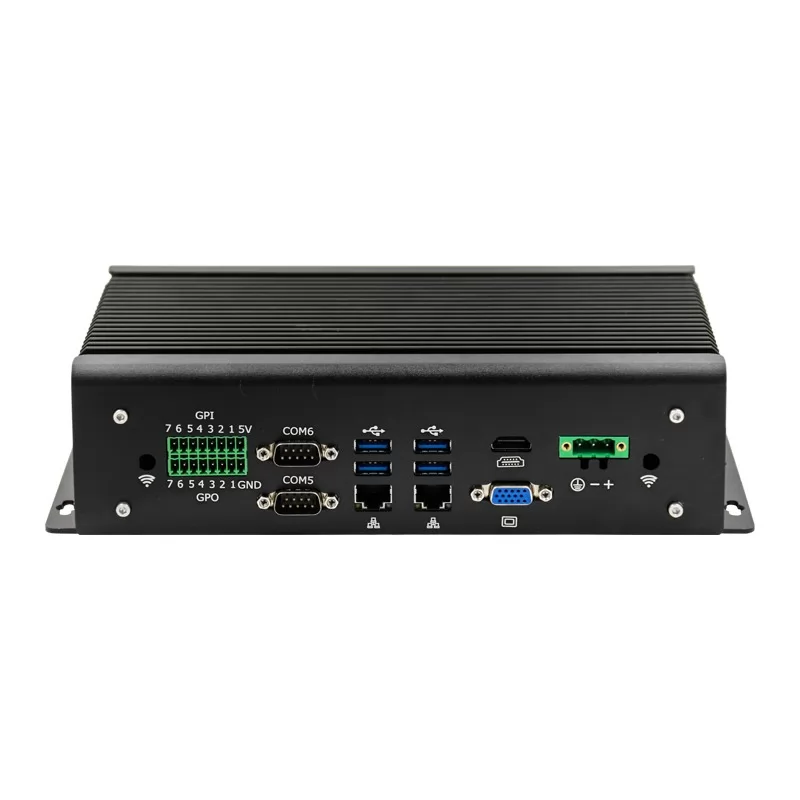

I/O4x USB3.0/3.2, 2x USB2.0, 6x DB9 COM (4 of them support RS485/RS422), 1x HDMI, 1x VGA, 1x PS2 (keyboard and mouse combo), 14x GPIO (7 inputs, 7 outputs), 1x Power Button, 1 x Reset Button, 1 x Clear CMOS Button, 1x 3pin Phoenix, support 9-36V power input, 1x Headphone Jack, 1x Microphone, 1x ATX/AT, 2x Antenna Ports for WIFI/3G/4G
Expansion Slot1x Mini-PCIe half card, supports WIFI Bluetooth
1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth
1x Expand IO, support LPC, USB, PCIE
BIOSAMI EFI BIOS
WDT Support hardware reset (256 level, 0-255 sec)
Operation SystemWindows® 7/8/10, WES 7/10, LINUX
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 9-36V
Power consumption≤20W
Enclosure
MaterialAluminum Alloy
ColorBlack
Operating Environment
Temperature RangeOperating: -20 to 70°C, Storage: -30 to 80°C,  surface air flow
Relative humidity10%~95% , non-condensing
Packing Details
Net weight2 kg
Gross weight3 kg

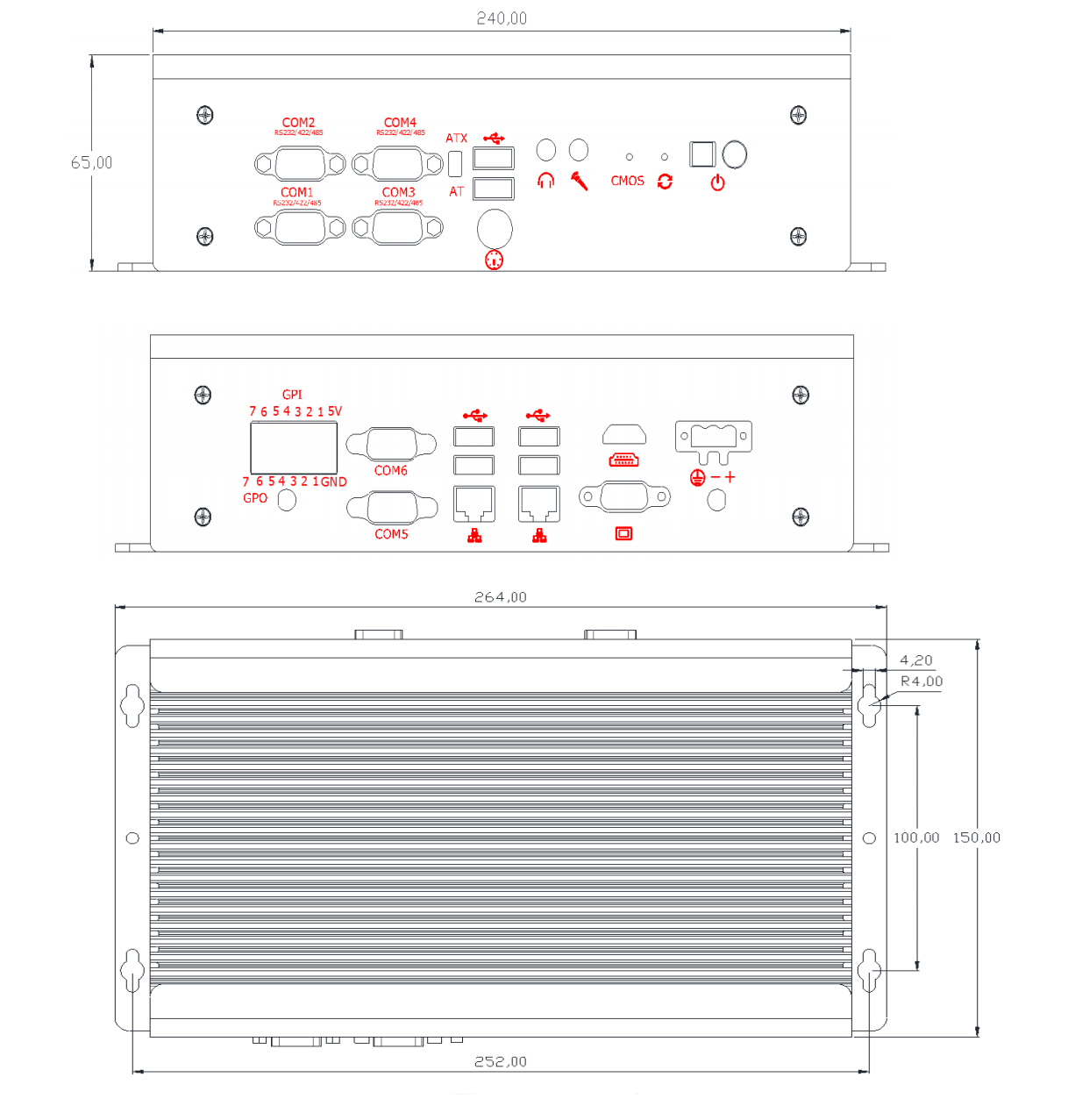

Product Dimension240 x 150 x 65 mm
Packing size30*20*15cm
AccessoriesPower adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Other
Mounting (options)Embedded mount
Wall mounting
Warranty2 years warranty
