Embedded Computer

Home > Products > BOX PC > Embedded Computer

  • mini pc Core i3 10110U Portable
  • mini pc Core i3 10110U Portable
  • mini pc Core i3 10110U Portable
  • mini pc Core i3 10110U Portable

mini pc Core i3 10110U Portable

Quick Details:

CPUCore i3 10110URAM1*SODIMM slot
Storage1*M.2/SATAColorBlack
Network2*LANSystemWin10/11, Linux
MaterialAluminum AlloyPower SupplyDC 12V



Features:
1. Full Aluminum alloy enclosure, compact,fanless design, dustproof,excellent heat dissipation.

2.  Wide operating temperature support (-20°C~70°C).

3.  High performance motherboard, 7x24 continuous operation.

4. Shock - proof.


Specification:

Model: SM603
PC
CPUCPU: Intel® Core  i3 10110U, Dual Cores, Quad Threads, Base 2.1 GHz,  Turbo 4.1 GHz, Fanless
Memory1x DDR4L SODIMM slot, Max 16GB
Storage1x MSATA
1x HDD/SSD
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
Network2×Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI + Bluetooth4.0 Optional

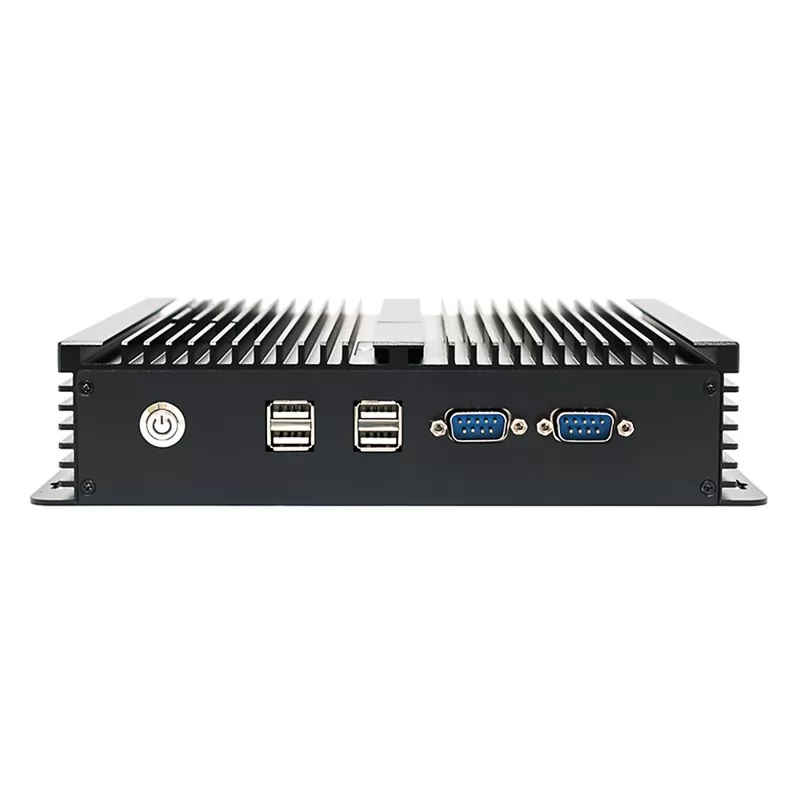

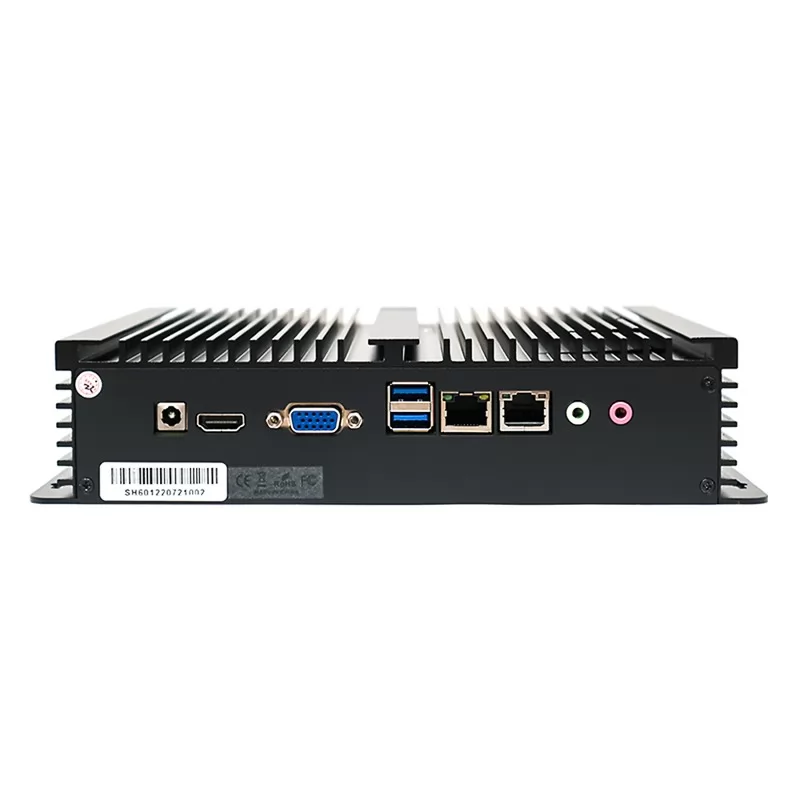

 I/O Ports2xUSB3.0, 4xUSB2.0, 2xCOM, 2xRJ45, 1x HDMI, 1x audio, 1x DC port
HD support1080P
Operation SystemSupport Windows 10/11,  Linux, Ubuntu, Debian etc.
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12 (9-36V DC Optional)
Power consumption≤15W
Enclosure
MaterialAluminum Alloy
ColorBlack, Silver , white,  color can be customized
Operating Environment
Temperature Rangeoperating: -20 to 70°C,  storage : -30 to 80°C
Relative humidity20%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight1.95kg
Gross weight3kg

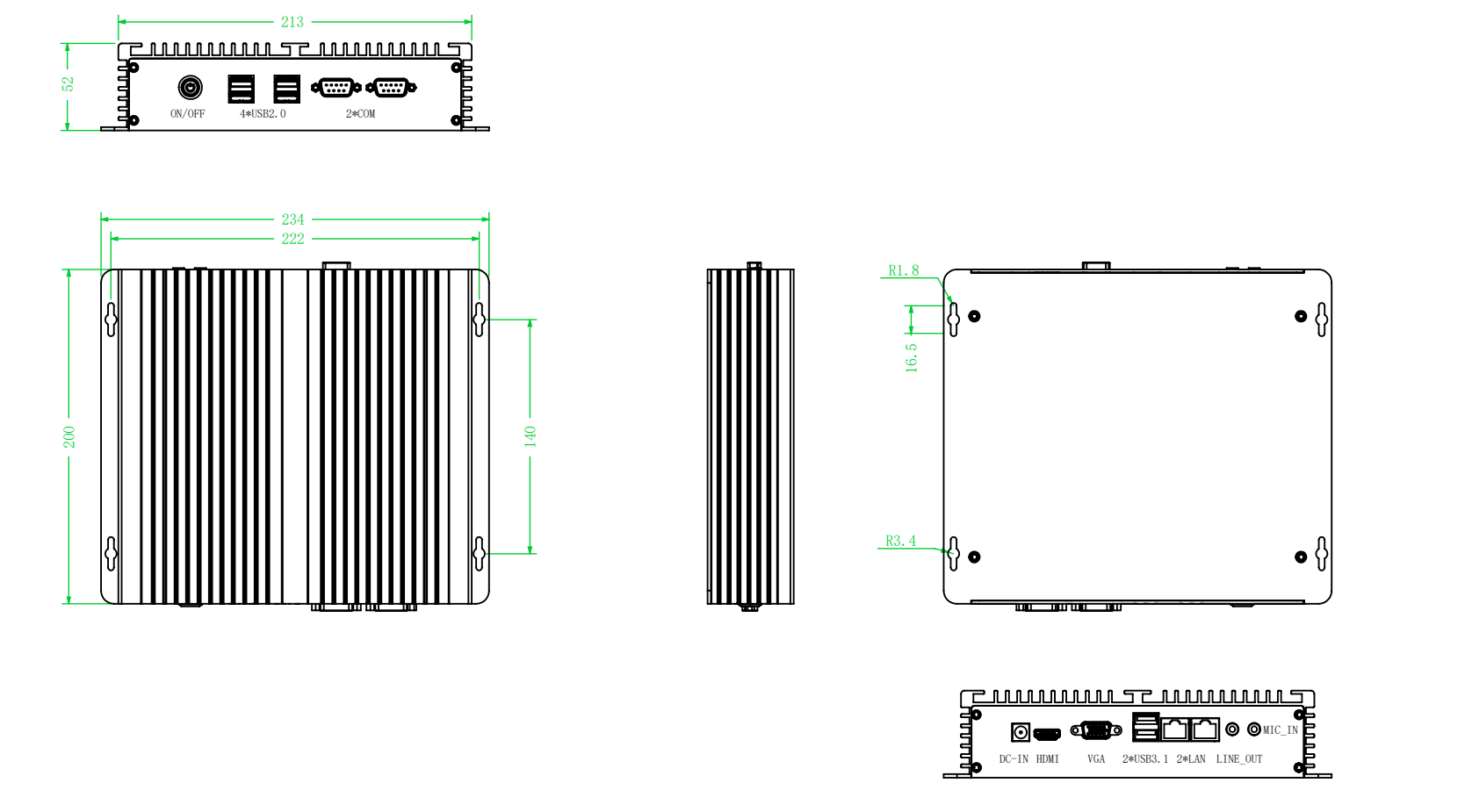

Product Dimension234*200*52mm
Packing size43*38*19cm
AccessoriesPower cable,  mounting kits
Other
Mounting (options)Built-in mounting bracket
wall/desking mounting brackets  (optional)
Warranty1 years warranty



Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
