Feature
1. All aluminum structure, fanless design.
2. Intel 12th Core i3/i5/i7 Processor.
3. Support TPM2.0, support windows 11.
4. Support 1*M.2 2280 slot, 1*2.5”HDD.
5. Support 2*COM (2*COM RS232/485 is Optional).
6. 3*HD-MI,support synchronous/asynchronous triple display.
7. Support OS: Windows 10, Windows 11, Linux.
Specification
| Model: SM8123 | |
| PC | |
| CPU | Intel Core i3 1215U (6 core 8 threads, Turbo 4.4G) |
| Intel Core i5 1235U (10 core 12 threads, Turbo 4.4G) | |
| Intel Core i7 1255U (10 core 12 threads, Turbo 4.7G) | |
| RAM | Support 1*DDR5 4800 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display Port | 3*HDMI |

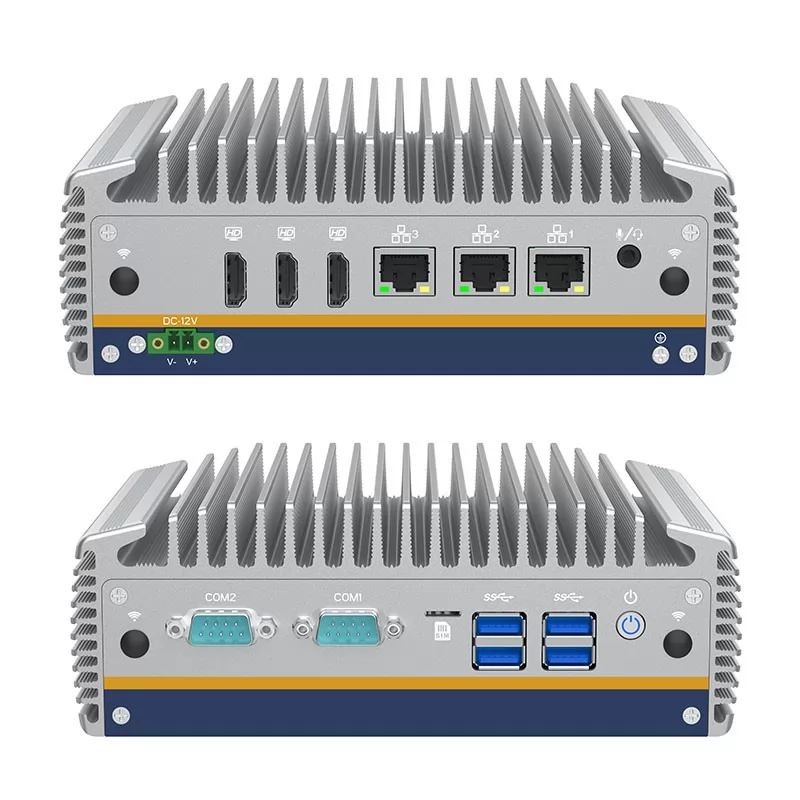

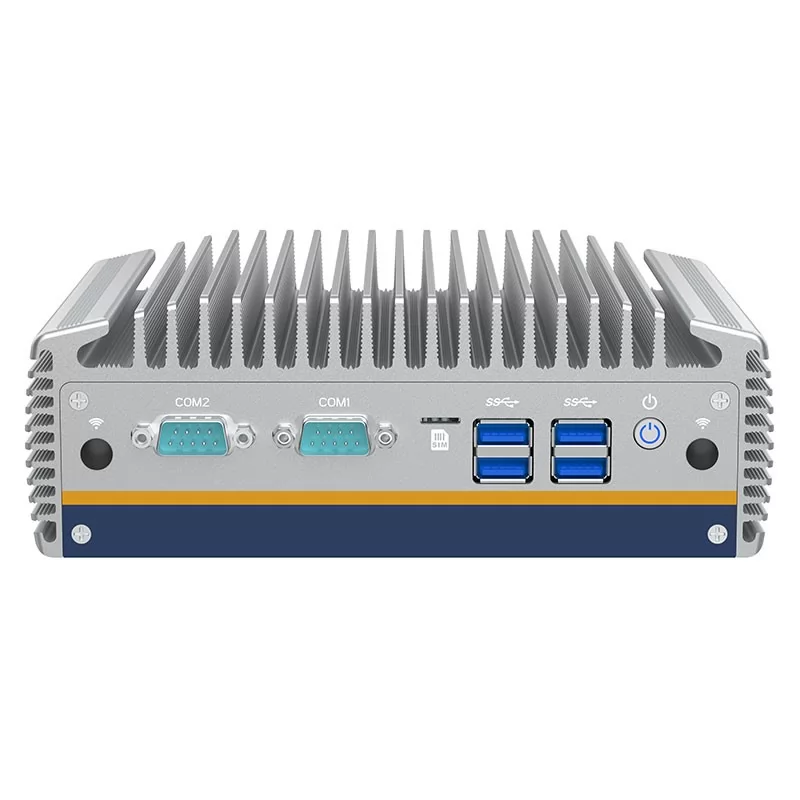

| Front I/O | 2*COM (2*COM RS232/485 Optional), 4*USB3.2, 1*Power Switch, 1*SIM slot |

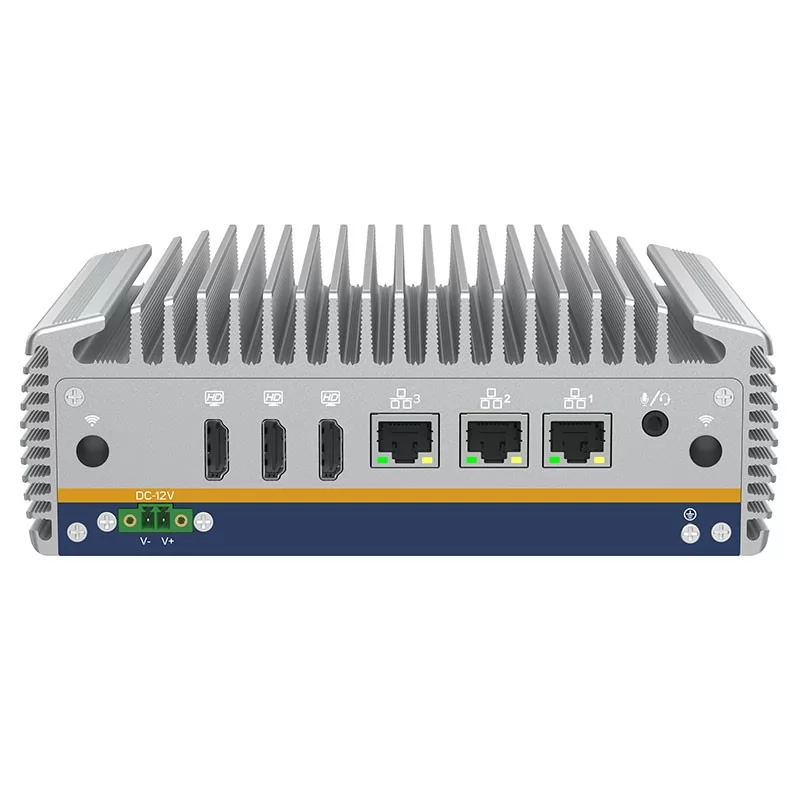

| Rear I/O | 1*DC-IN 12V, 3*HDMI, 3*2.5G LAN,1*Audio ( Support Mic and Speaker at the same time) |
| Expansion Slot | 1*M.2 2280 slot M-Key (Support M.2 PCIE X4 and M.2 NVME); 1*M.2 3052 slot B-key (USB3.0 Support 4G/5G); 1*M.2 2230 slot E-key (PCIe & USB / CNVio2, Support WIFI/ BT); |
| Network | 3*Intel i226-V 100/1000/2500M |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD |
| Other Function | TPM2.0, Auto power on when there is electricity, Wake on LAN, PXE boot, Watch Dog |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Black (color can be customized) |
| Operating Environment | |
| Temperature Range | operating: 0°C ～ +40°C (HDD), -20°C ～ +50°C (Industrial grade SSD), surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.1 kg |
| Product Dimension | 225.5 * 140 * 68.5 mm |
| Packing size | 10 pcs per carton, carton size: 720*300*450 mm |
| Accessories | Power adapter, power cord, Vesa mount,warranty card |
| Other | |
| Mounting (options) | wall mounting brackets (optional) |
| Warranty | 2 years warranty |
| Certificates | CE, FCC, RoHS |
