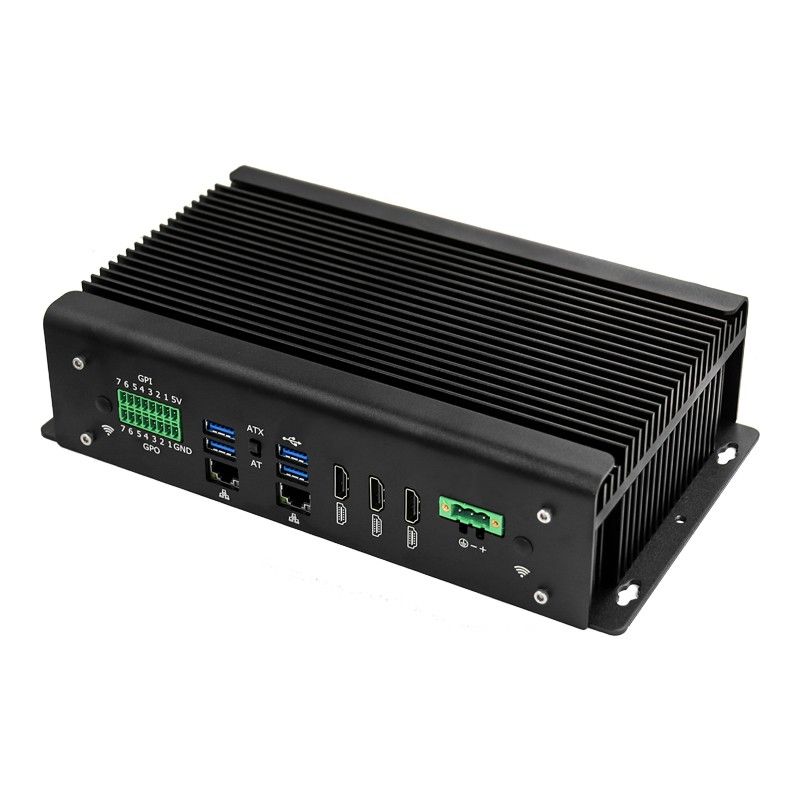

POE Mini PCs Intel Gen H-series Core support GPIO

Quick Details:

CPUIntel 8th/9th/10thStorageMSATA, M.2, SATA
Memory2xDDR4L SODIMMBIOSAMI EFI BIOS
NetworkIntel i211/i210OSWin10/11,Linux
MaterialAluminum AlloyPower SupplyDC 9-36V

Features

  1. Intel 8th/9th/10th Gen H-series Core i5/i7 CPU Optional

  2. DDR4 SODIMM x2, max 32GB memory

  3. 2 x 2.5GbE RJ45 Intel i225V

  4. One-key restore, watchdog, diskless boot

  5. Low power fanless


Specification

Model: SM11-7
PC
CPUIntel 8th/9th/10th Gen H-series Core i5/i7 CPUs Optional
Memory4gen, 5gen, 1xDDR3L SODIMM, Max 8GB
6/7/8/10th Gen 2xDDR4L SODIMM, Max 32GB
Storage1x MSATA
1x M.2 NVME 2280
1x HDD/SSD
Display3x HDMI
Network4 x GbE RJ45 Intel i211/i210
Support POE, support 802.3AF (2x13W), 802.3AT (2x30W), 802.3BT (4x30W)

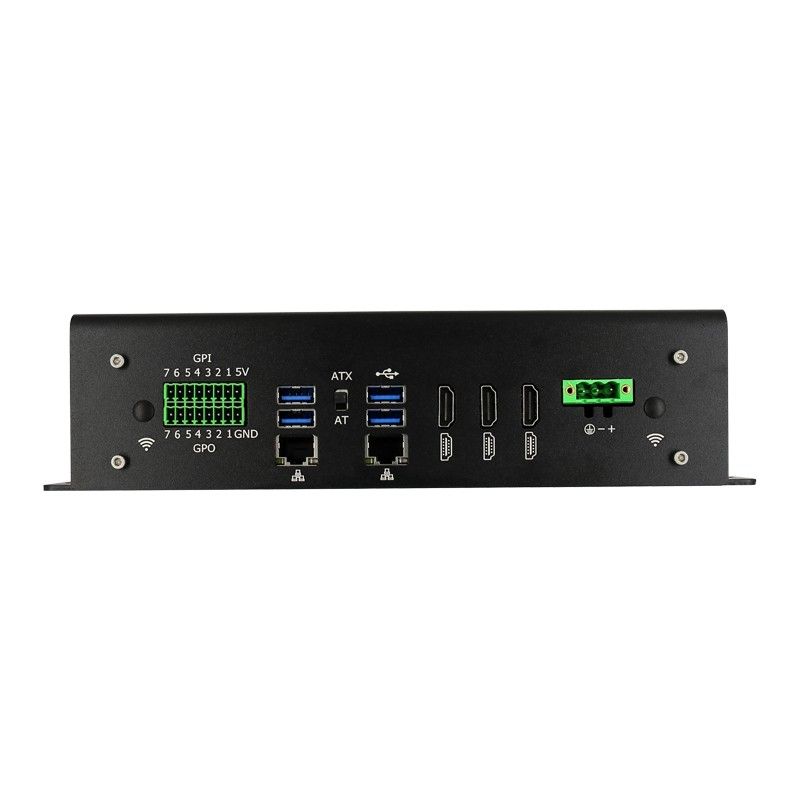

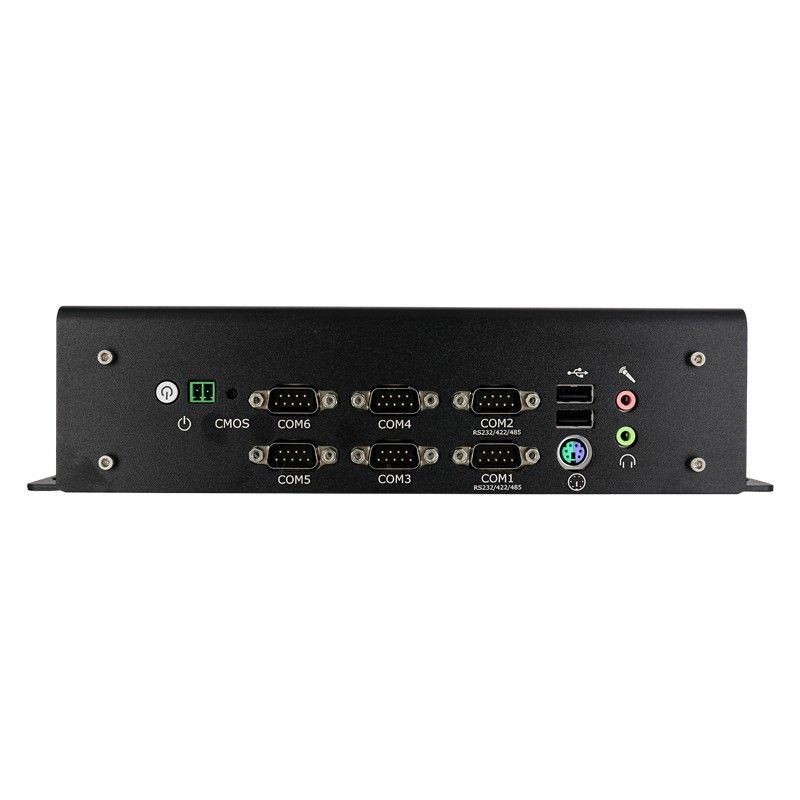

I/O4x USB3.0, 2x USB2.0, 6x DB9 COM (2 of them support RS485/RS422), 3x HDMI, 1x PS2 (keyboard and mouse combo), 14x GPIO (7 inputs, 7 outputs), 1x Power Button, 1 x Reset Button, 1 x Clear CMOS Button, 1x 3pin Phoenix, support 9-36V power input, 1x Headphone Jack, 1x Microphone, 1x ATX/AT, 2x Antenna Ports for WIFI/3G/4G
Expansion Slot1x Mini-PCIe half card, supports WIFI Bluetooth
1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth
BIOSAMI EFI BIOS
WDT Support hardware reset (256 level, 0-255 sec)
Operation SystemWindows® 10, WES 10, LINUX
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 9-36V
Power consumption≤20W
Enclosure
MaterialAluminum Alloy
ColorBlack
Operating Environment
Temperature RangeOperating: -20 to 70°C, Storage: -30 to 80°C,  surface air flow
Relative humidity10%~95% , non-condensing
Packing Details
Net weight2 kg
Gross weight3 kg

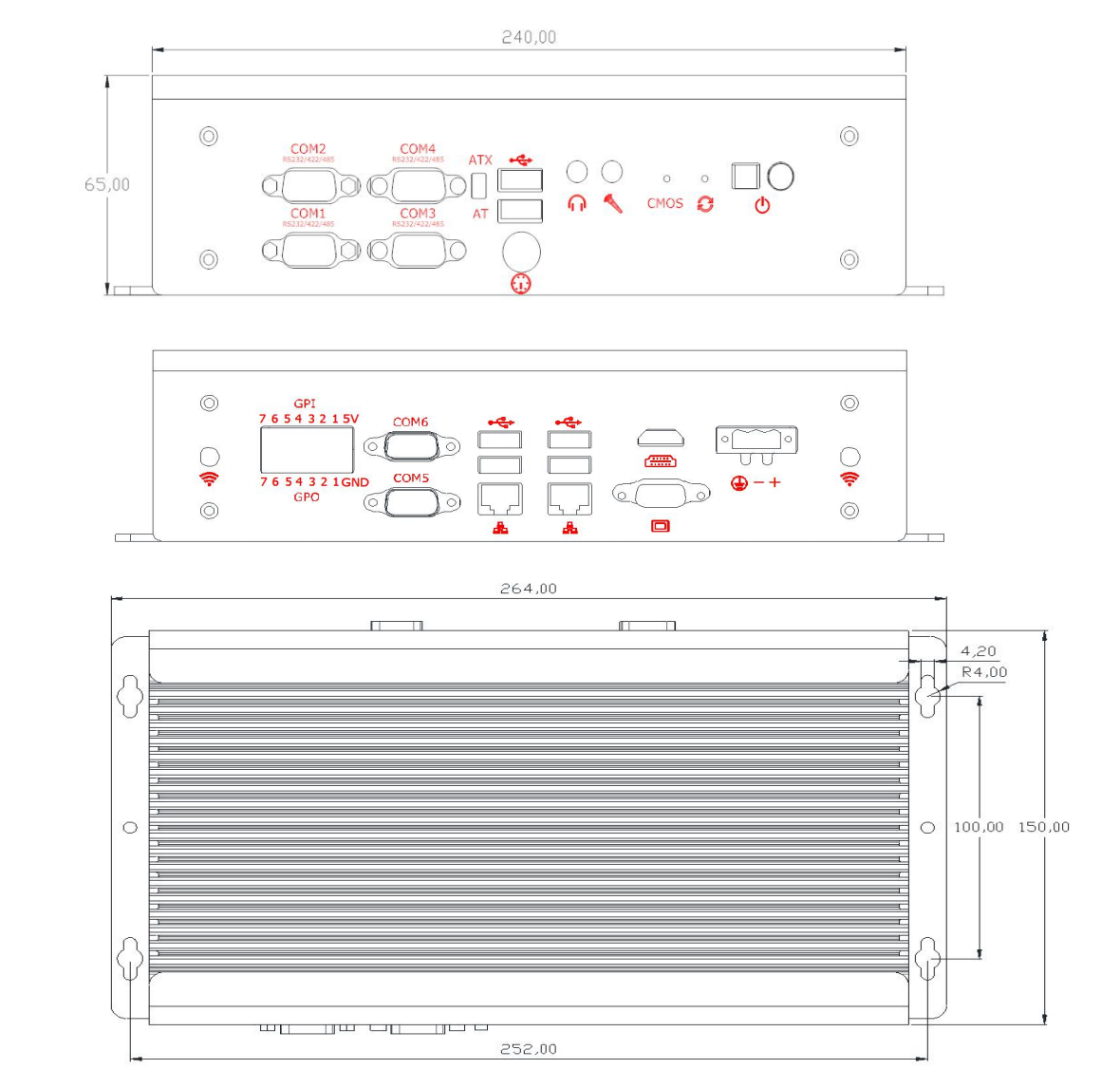

Product Dimension240 x 150 x 65 mm
Packing size30*20*15cm
AccessoriesPower adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Other
Mounting (options)Embedded mount
Wall mounting
Warranty2 years warranty
