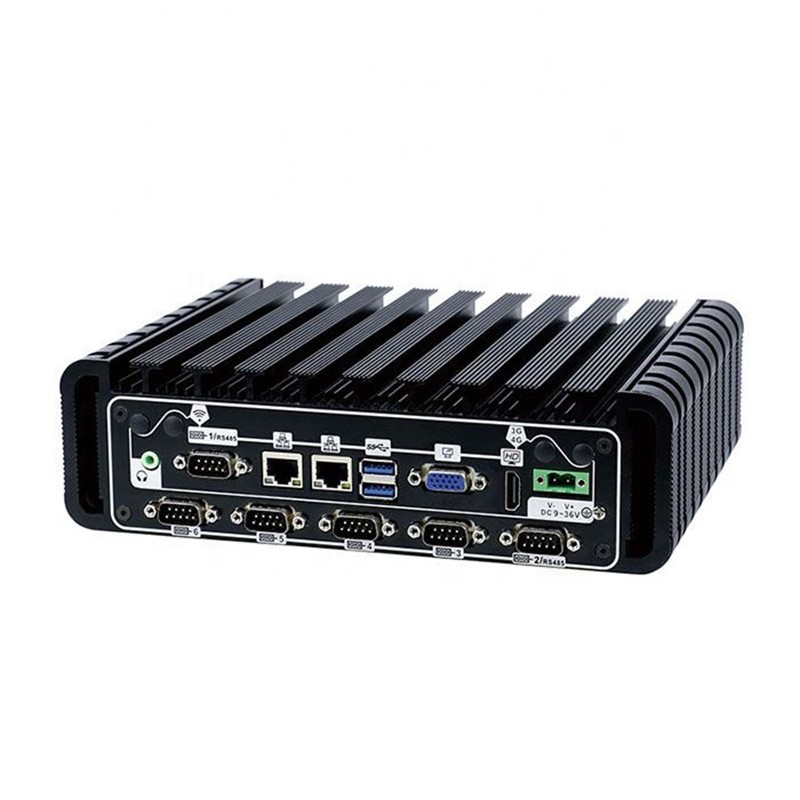

  • Mini PC with PCI Express x4 slot
  • Mini PC with PCI Express x4 slot
  • Mini PC with PCI Express x4 slot

Industrial mini pc with pci express slot

Quick Details:

CPU7th Gen Core i5/i7StorageMSATA/M.2/SATA
Memory2*DDR4 SODIMMOSWin7/10,Linux
BIOSAMI EFI BIOSPower SupplyDC 9V ~ 36V
MaterialAluminum AlloyNetwork4*RJ45 Intel i211

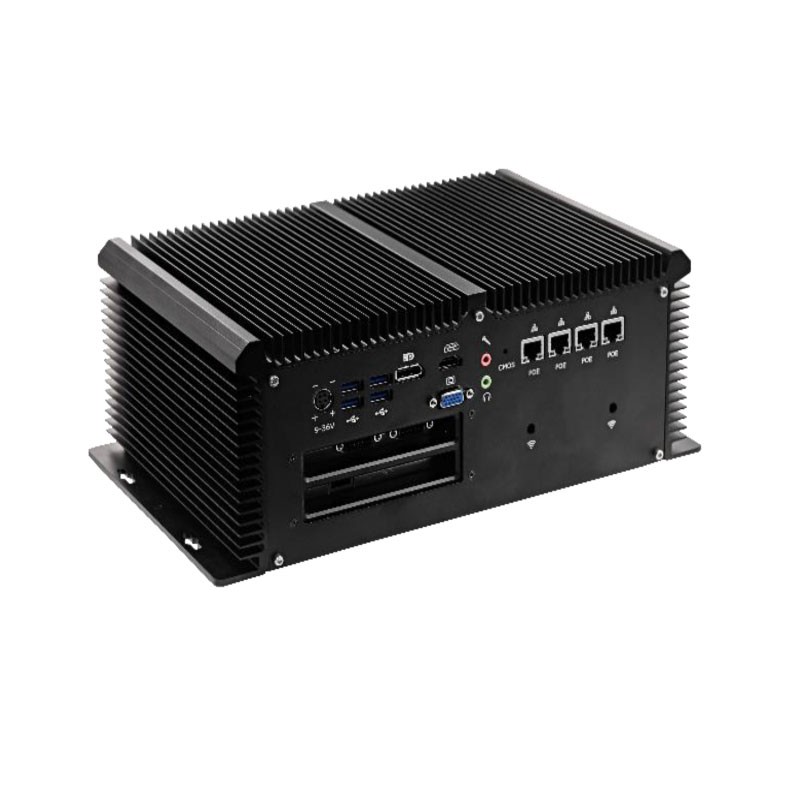

Mini PC with PCI Express x4 slot

Looking for a high-performance industrial mini PC that can meet your specific requirements?  Sihovision presents our industrual mini PC with PCI express slot, designed to elevate your industrial computing experience like never before.

Our industrial mini PC offers flexibility with Intel 7th Gen Core i5/i7-HQ CPU options, empowering you with the processing power you desire. Expand your capabilities with up to 32GB of DDR4 SODIMM memory, enabling seamless multitasking and smooth operations.

Choose us as Your Trusted BOX PC Supplier: With our focus on customization and cutting-edge technology, our industrual mini PC with PCI express slot stands out from the competition. We guarantee a seamless and efficient computing experience for your industrial applications.

Join our league of satisfied customers and elevate your industrial computing to the next level. Contact us now for exceptional wholesale deals on our Embedded Computers and unlock the full potential of your operations!


Mini PC with PCI Express Slot Features

Intel 7th Gen Core i5/i7-HQ CPU Optional

2x DDR4 SODIMM, up to 32GB memory

Support Dual PCI, Dual PCIE x4 or PCIE x4 + PCI

6 RS-232 serial ports (2 of them support RS485/RS442)

4 Intel i210/i211 Gigabit LAN, support POE

One-key restore, watchdog, diskless boot

DC 9-36V wide voltage, Fanless


Mini PC with PCI Express Slot Specification

Model: SM03
PC
CPUIntel 7th Gen Core i5/i7-HQ CPU Optional
Memory2x DDR4 SODIMM, up to 32GB memory
Storage1x MSATA
1x M.2 NVME 2280
1x HDD/SSD
Display1x HDMI, 1x VGA, 1x DP
Network4 x GbE RJ45 Intel i211/i210
Support POE, support 802.3AF (2x13W), 802.3AT (2x30W), 802.3BT (4x30W)

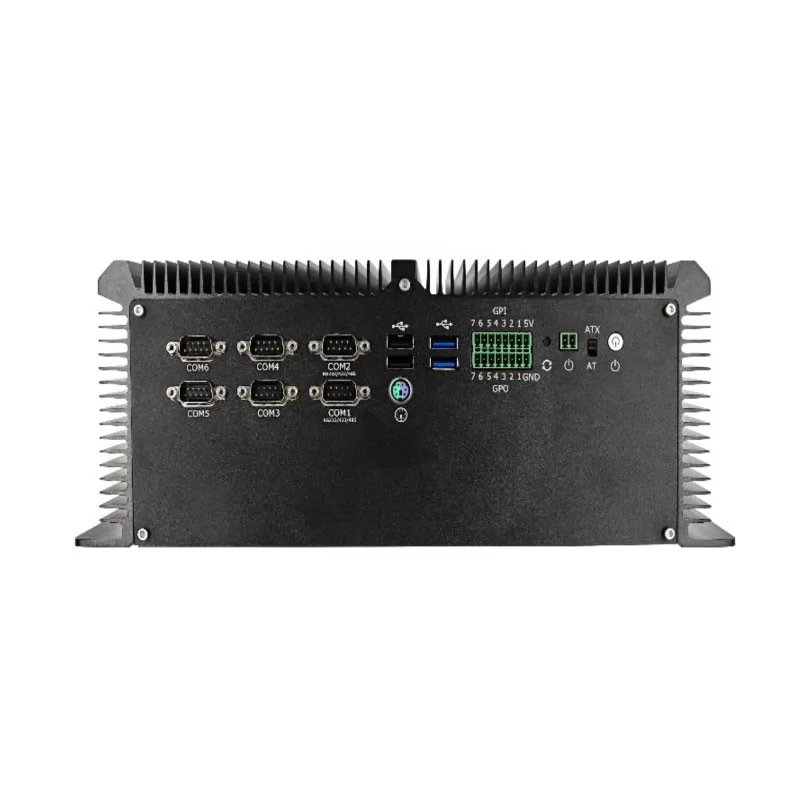

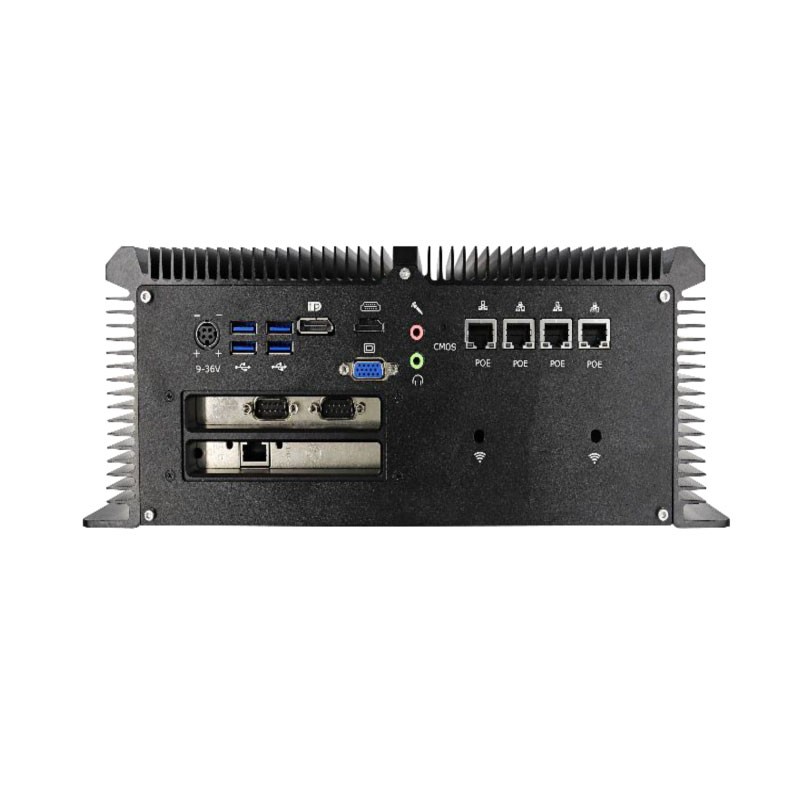

I/O6x USB3.0, 2x USB2.0, 6x DB9 COM (2 of them support RS485/RS422), 1x HDMI, 1x VGA, 1x DP, 1x PS2 (keyboard and mouse combo), 14x GPIO (7 inputs, 7 outputs), 1x Power Button, 1 x Reset Button, 1 x Clear CMOS Button, 1x 4pin Phoenix, support 9-36V power input, 1x Headphone Jack, 1x Microphone, 1x ATX/AT, 2x Antenna Ports for WIFI/3G/4G
Expansion Slot1x Mini-PCIe Half card/Full card (with SIM card holder), support 3G/4G module WIFI Bluetooth
4 x PCI,1 x PCIEx8,2 x PCIEx4
BIOSAMI EFI BIOS
WDT Support hardware reset (256 level, 0-255 sec)
Operation SystemWindows® 7/8/10, WES 7/10, LINUX
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 9-36V
Power consumption≤20W
Enclosure
MaterialAluminum Alloy
ColorBlack
Operating Environment
Temperature RangeOperating: -20 to 70°C, Storage: -30 to 80°C,  surface air flow
Relative humidity10%~95% , non-condensing
Packing Details
Net weight4.6 kg
Gross weight6 kg
Product Dimension310 x 203 x 125 mm
Packing size40*30*17cm
AccessoriesPower adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Other
Mounting (options)Embedded mount
Wall mounting
Warranty2 years warranty



Industrial mini pc with pci express slot

Application


Industrial Automation: Industrial mini PCs are often used in factory automation systems to monitor and control various production processes and equipment.

Internet of Things (IoT) Applications: Mini PCs are employed in IoT applications, connecting and managing various sensors and devices for intelligent control and data collection.

Vision Recognition and Image Processing: Industrial mini PCs possess strong image processing capabilities and are utilized in machine vision, image recognition, and surveillance applications.

Transportation: Mini PCs can be applied in traffic management and vehicle monitoring systems, providing real-time data and navigation functions.

Retail Industry: Mini PCs are used in POS (Point of Sale) systems and for inventory management and order tracking tasks in the retail sector.

Medical Devices: Industrial mini PCs play a crucial role in medical equipment, used for medical image processing, data management, and remote monitoring applications.

Communication and Networking Devices: Mini PCs serve as control centers for communication and networking devices, ensuring stable and reliable connections and data transmission.

Security Systems: Mini PCs are employed in video surveillance and alarm systems to safeguard public places and buildings.

Military and Defense: Mini PCs find applications in military equipment and communication systems, meeting stringent durability and reliability requirements.

Education and Entertainment: In the education and entertainment sectors, mini PCs are used for digital teaching, multimedia presentations, and gaming applications.

Industrial mini pc with pci express slot

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
