Industrial grade Windows Mini PCs 2.5GbE LAN Intel i225V

Quick Details:

CPUIntel Core 7th 8th 10thStorageMSATA
RAM1*SODIMMBIOSAMI EFI BIOS
NetworkIntel i225VOSWin10,Linux
MaterialAluminum AlloyPowerDC 12V

Features

  1. 1x DDR4L SODIMM slot, supports up to 16GB

  2. DP+HDMI dual display, synchronous/asynchronous mode

  3. Dual storage, 1x 2.5" HDD interface, 1x mSATA interface

  4. Low power consumption, ultra-quiet heat dissipation

  5. Industrial grade working temperature -25℃~70℃


Specification

Model: SM07
PC
CPUIntel® Celeron 3965U, 2 Cores, 2 Threads, Base 2.2GHz, Fanless
OptionalIntel® Celeron 4205U, 2 Cores, 2 Threads, Base 1.8GHz, Fanless
OptionalIntel® Pentium 5405U/5202, 2 Cores, 4 Threads, Base 2.3GHz, Fanless
OptionalIntel® Celeron J1900, 4 Cores, 4 Threads, Base 12.0GHz, Fanless
OptionalIntel® Core i3-7167U, 2 Cores, 4 Threads, Base 2.8GHz, Fanless
OptionalIntel® Core i3-8145U, 2 Cores, 4 Threads, Base 2.1GHz, Turbo 3.9GHz, Fanless
OptionalIntel® Core i5-7267U, 2 Cores, 4 Threads, Base 3.1GHz, Turbo 3.5GHz, Fanless
OptionalIntel® Core i5-8265U/8365U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 3.9GHz, Fanless
OptionalIntel® Core i5-10210U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 4.2GHz, Fanless
OptionalIntel® Core i7-10510U, 4 Cores, 8 Threads, Base 1.8GHz, Turbo 4.9GHz, Fanless
OptionalIntel® Core i3-8140U, 2 Cores, 4 Threads, Base 2.1GHz, Turbo 3.9GHz, Fanless
OptionalIntel® Core i5-8260U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 3.9GHz, Fanless
Memory1x DDR4L SODIMM slot, supports up to 16GB, Celeron J1900 (DDR3L Max 8G)
Storage1x MSATA, 1x HDD/SSD
Display1x HDMI
Network6x 2.5GbE RJ45 Intel i225V, optional Intel i211/i210
I/O4x USB, 1x RJ45 COM(Cisco Standard), 1x DB9 COM, 1x HDMI, 1x Power LED, 1 x HDD LED, 1x Power Button, 1 x Reset Button, 1x Power input, 1x SIM Card Slot, 2x Antenna port, For WIFI/3G/4G
Expansion SlotCisco Mini-pcie x1, Full card, Onboard SIM card slot, Support 3G/4G module, WIFI Bluetooth
BIOSAMI EFI BIOS
WDT Support hardware reset (256 level, 0-255 sec)
Operation SystemWindows® 7/8/10,WES 7/10,LINUX
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤20W
Enclosure
MaterialAluminum Alloy
ColorBlack
Operating Environment
Temperature RangeOperating: -25 to 70°C, Storage: -30 to 80°C,  surface air flow
Relative humidity0%~95% , non-condensing
Packing Details
Net weight1.35 kg
Gross weight2 kg

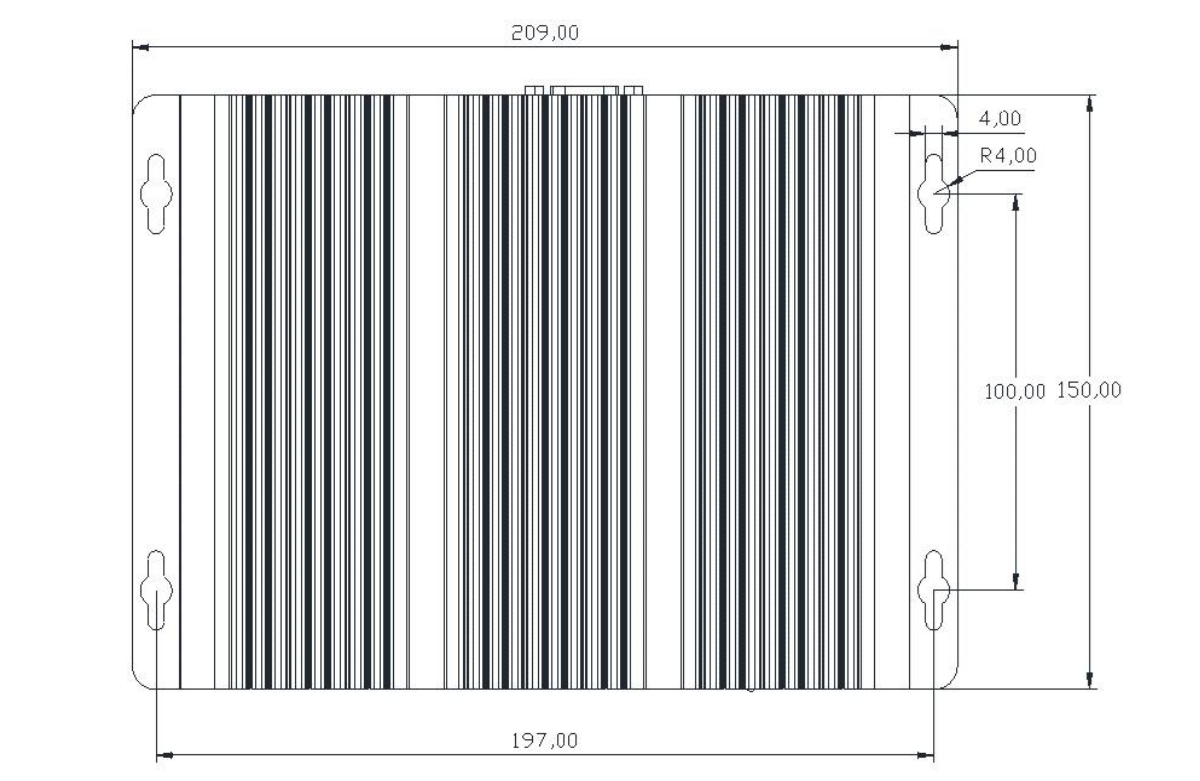

Product Dimension209 x 150 x 57 mm
Packing size30*20*12cm
AccessoriesPower adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Other
Mounting (options)Wall mounting
Desktop installation
Warranty2 years warranty
