Features:
The front frame and back shell are made of 316 stainless steel, the aluminum alloy heat sink plate is sandblasted and oxidized, and the fin design maximizes heat dissipation. It is anti-UV and anti-discoloration. The whole machine is IP67 waterproof. The front frame and back shell are sealed with waterproof tape.
Disassemble the machine for inspection and maintenance without affecting the waterproof performance.
Support AC100~285V AC input.
Industrial-grade LCD screen, 1000 brightness visible under sunlight, PWM software to adjust brightness.
Resistive touch screen, AG anti-glare surface, EETI touch control solution, normal touch when there are water droplets on the touch screen.
Optical bonding.
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
Specification
| Model:SC173W | |
| PC | |
| CPU | Intel® Core i3-6157U CPU 2.40GHz, fanless |
| Chipset | SOC |
| Memory | 8G DDR4 (Max 32G) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 256GB, 512GB, 1TB, 2TB |
| HDD: 500GB, 1TB, 2TB | |
| Graphics | Intel® Iris® Graphics 550(128M) |
| Audio | Onboard HS-100B audio decoding controller |
| Network | 1 x Realek RTL8111H/8111G Gigabit Ethernet |
| Wireless Network | WIFI, Bluetooth, 4G Optional |
| Preinstalled OS | Window 10 Home 64bit |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| I/O waterproof connectors | |
| USB | 2×IP67 USB3.0, 2×IP67 USB2.0 |
| LAN | 1×IP67 RJ45 |
| COM | 2×IP67 COM RS232 |
| Power input | 1×IP67 100~285V AC |
| Other | 1× IP67 Breather valve, 1× IP67 Power on/off button |
| LCD panel | |
| Panel size | 17.3" |
| Display active area | 381.888(W)x214.812(H) mm / 15.035x8.457 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | PWM adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface hardness | 3H |
| Surface treatment | Anti-Glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI ETR4000 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Capacitive touch, non touch, IR touch |
| Power Supply | |
| Working voltage | AC 100~285V |
| Power consumption | 45W |
| Enclosure | |
| Material | Stainless steel 316, Aluminum alloy heat sink plate |
| Finish | Surface wire drawing Front frame and rear shell stainless steel: Surface wire drawing Aluminum heat sink: sandblasted oxidation, anti-UV and anti-discoloration treatment |
| Color | Silver |
| Mounting | VESA mount 100, Panel mount |
| IP grade | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 7.4kg Gross weight 9.7kg |

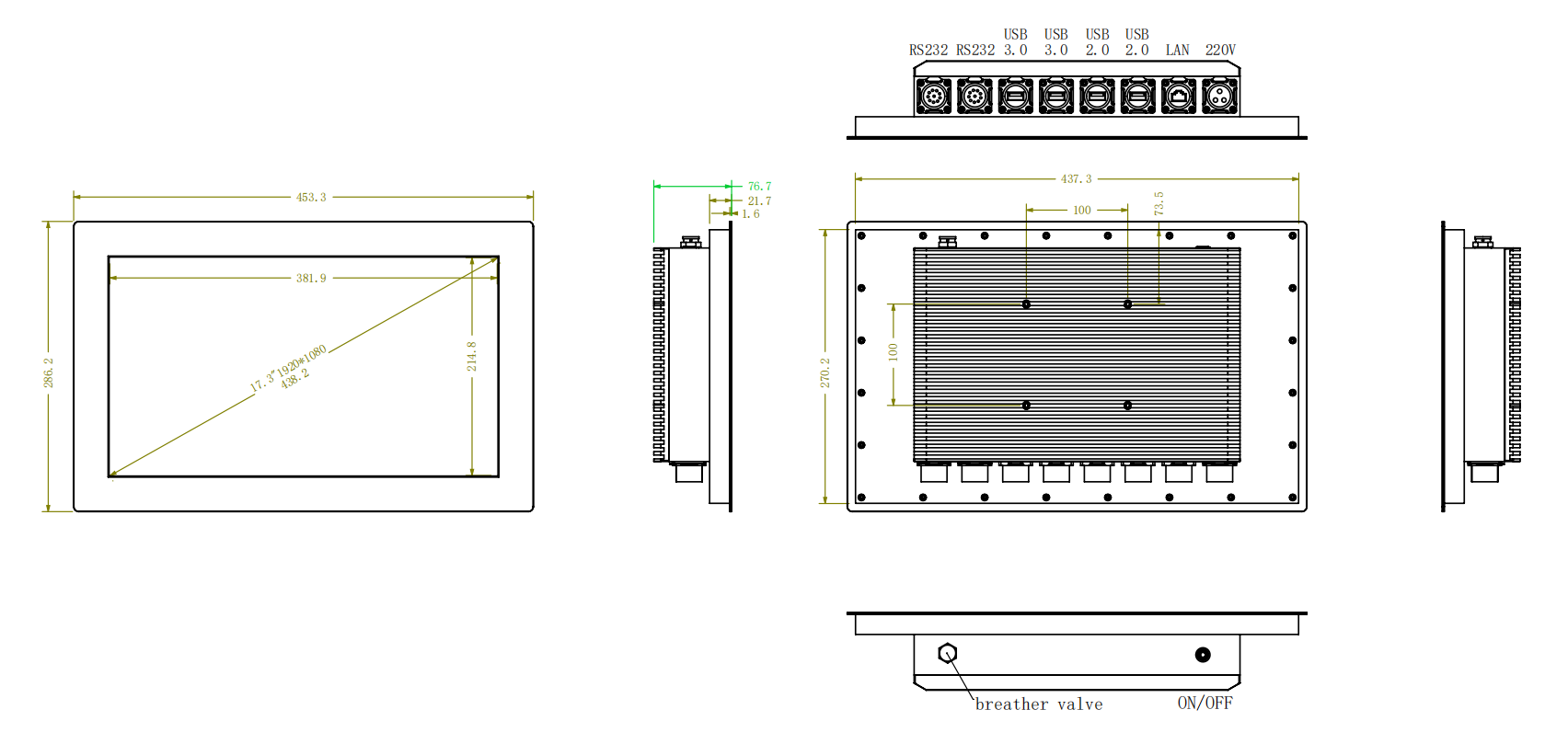

| Product Dimension | 453.3×286.2×76.7mm |
| Packing info | 1pcs/ctn 64×17×45cm 10kg 2pcs/ctn 64×32×45cm 20kg |
| Accessories | Waterproof power cord*1, waterproof USB cable*4, waterproof serial port cable*2 waterproof network cable*1 |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
None
Full IP67 Touch Panel PC For Meat factory
