Features:
1. IP67 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference, support touch with glove.
4. Fanless design.
5. High performance motherboard, 7x24 continuous operation.
6. Support jet washing.
Specification:
| PC | |
| CPU | Intel® Core i3-4010U Dual cores, Quad threads, Base 1.60GHz, fanless |
| Chipset | Haswell-U, Broadwell-U high-speed chipset |
| Memory | 4G DDR3 (Max 8G) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 256GB, 512GB, 1TB, 2TB |
| HDD: 500GB, 1TB, 2TB | |
| Graphics | Intel® HD4400 |
| Audio | Cmedia HS_100B |
| Network | Realtek 8111F |
| Wireless Network | WIFI, Bluetooth, 4G Optional |
| Preinstalled OS | Windows 10 Home 64bit |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |

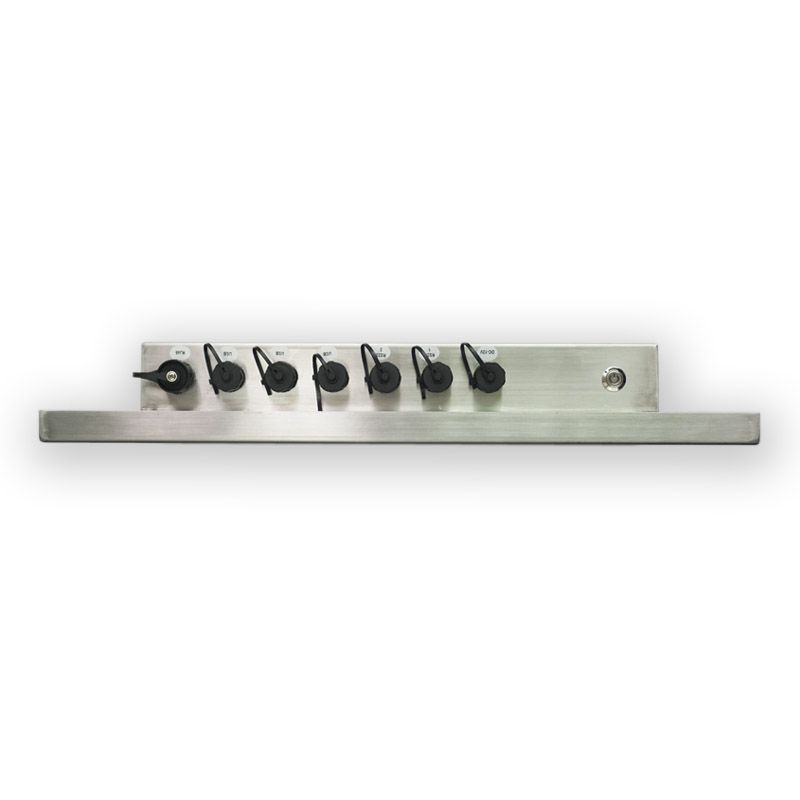

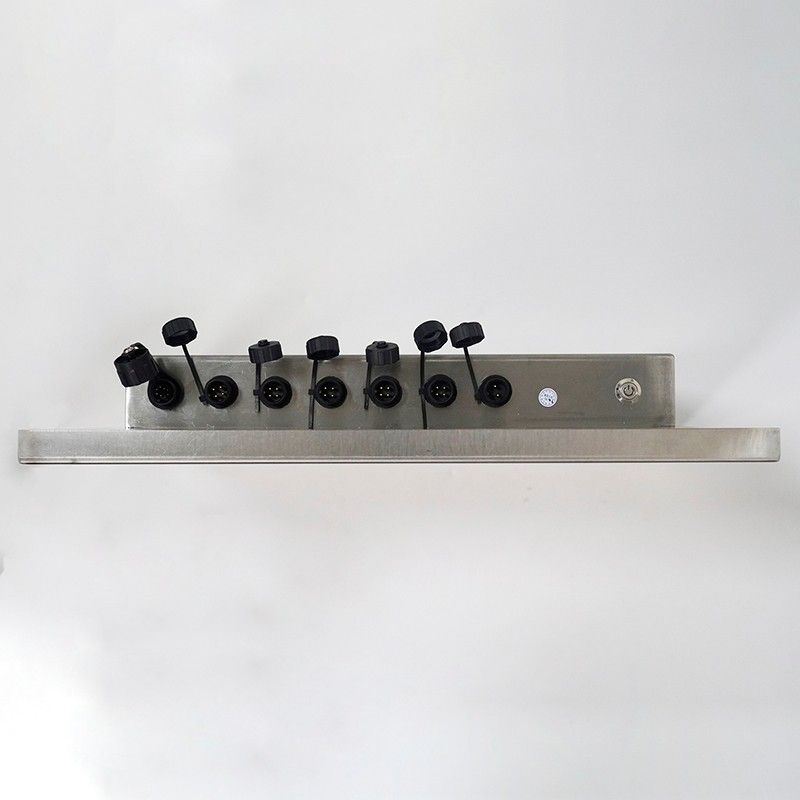

| I/O waterproof connectors | |
| USB | 2×IP65 USB3.0, 2×IP65 USB2.0 |
| LAN | 1×IP65 RJ45 |
| COM | 1×IP65 COM RS232 |
| Video Outputs | 1× IP65 HDMI |
| Power input | 1× IP65 DC12V |
| Other | 1× IP65 Breather valve，1× IP65 Power on/off button |
| LCD panel | |
| Panel size | 17" |
| Display active area | 337.92(W)x270.336(H) mm / 13.304x10.643 in |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | PWM adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface hardness | 3H |
| Surface treatment | Anti-Glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI ETR4000 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Capacitive touch, non touch, IR touch |
| Power Supply | |
| Working voltage | AC 100~285V |
| Power consumption | 45W |
| Enclosure | |
| Material | Stainless steel 316, Aluminum alloy heat sink plate |
| Finish | Surface wire drawing Front frame and rear shell stainless steel: Surface wire drawing Aluminum heat sink: sandblasted oxidation, anti-UV and anti-discoloration treatment |
| Color | Silver |

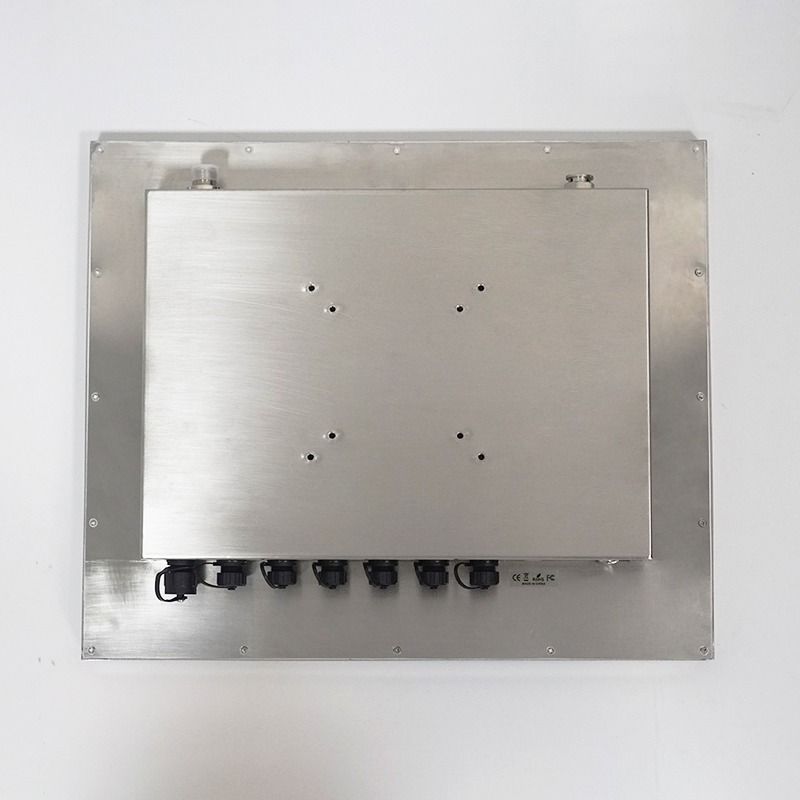

| Mounting | VESA mount 100, Panel mount |
| IP grade | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 7.4kg Gross weight 9.7kg |

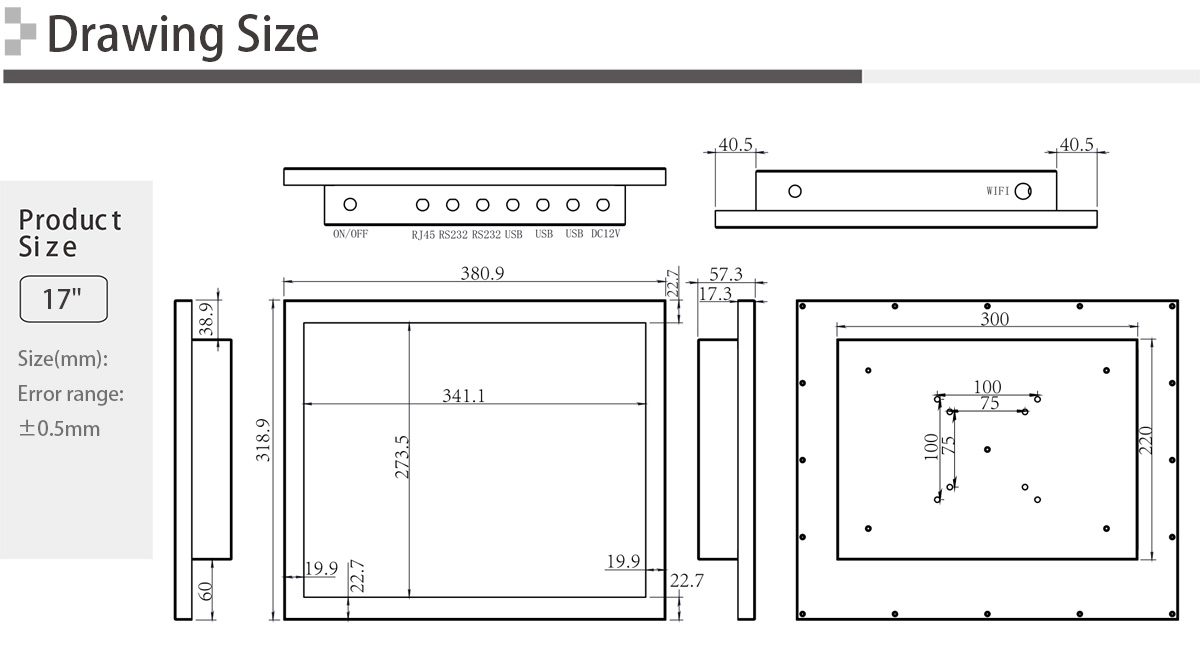

| Product Dimension | 453.3×286.2×76.7mm |
| Packing info | 1pcs/ctn 64×17×45cm 10kg 2pcs/ctn 64×32×45cm 20kg |
| Accessories | Waterproof power cord*1, waterproof USB cable*4, waterproof serial port cable*2 waterproof network cable*1 |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
