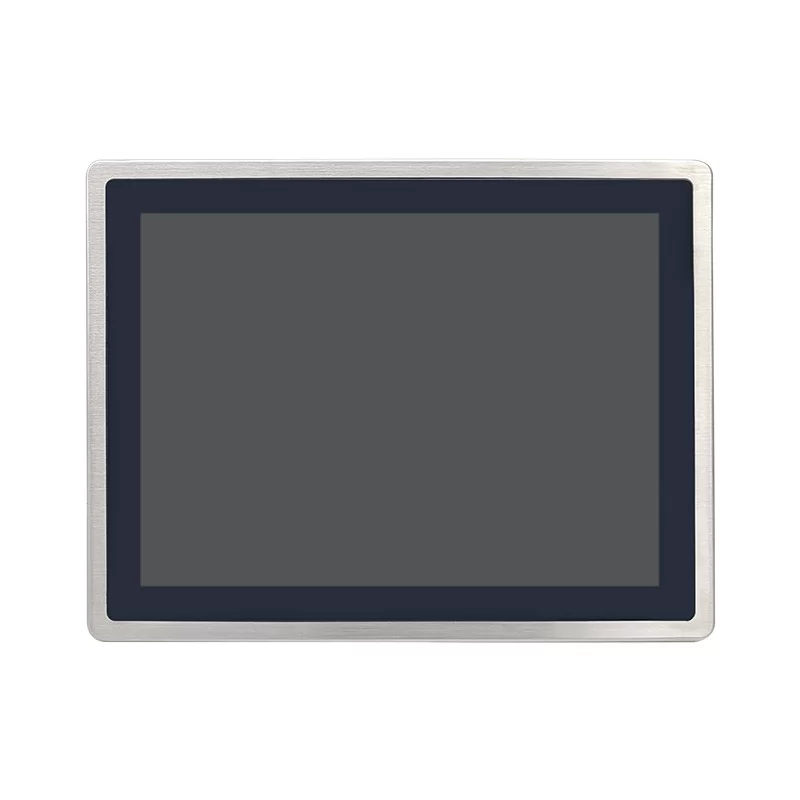

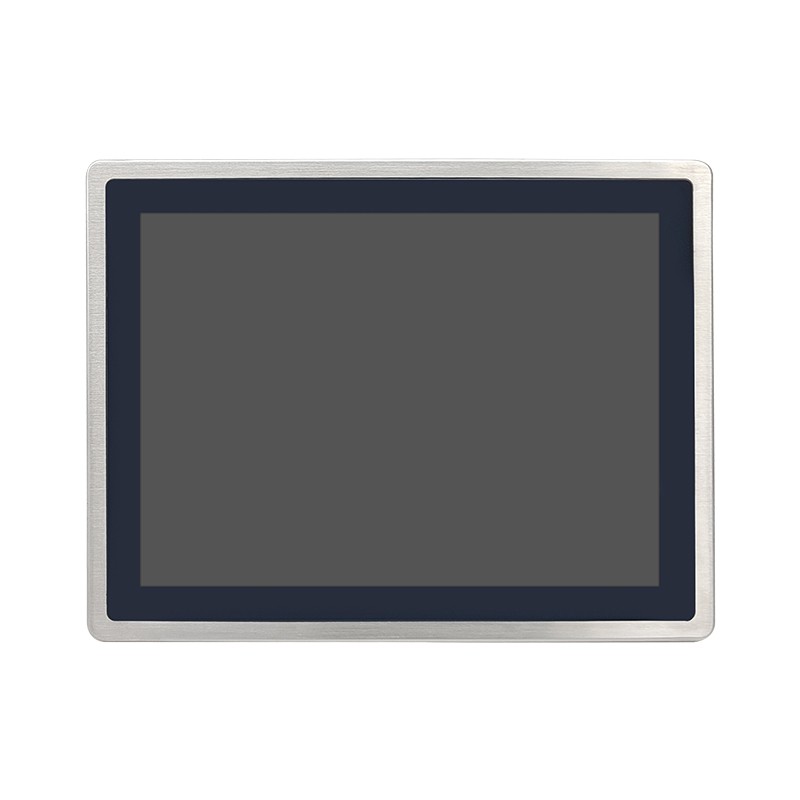

Premium Industrial-Grade Touchscreen Display with IP69K Protection
This professional-grade display system features comprehensive IP69K-certified waterproofing housed within a marine-grade stainless steel 304 enclosure, ensuring maximum durability in the most demanding industrial environments. The sophisticated engineering incorporates a completely sealed, true flat panel architecture with ergonomically contoured rounded corners that minimize potential safety risks.
Advanced Environmental Protection Technology
The integrated pressure equilibrium valve system maintains optimal atmospheric balance between internal and external environments, effectively preventing moisture condensation and fog formation within the display chamber. This intelligent ventilation mechanism ensures sustained optical clarity regardless of ambient humidity fluctuations.
Superior Display & Touch Performance
Engineered with an industrial-specification LCD panel delivering exceptional visual performance characterized by:
Ultra-wide viewing angles for optimal visibility from multiple perspectives
High-luminance output (high-nits brightness) ensuring readability in challenging lighting conditions
Authentic color reproduction with superior chromatic accuracy
The sophisticated multi-point projected capacitive (PCAP) touchscreen technology provides remarkable tactile responsiveness with instantaneous reaction times. Powered by EETI's specialized waterproof touch solution, the interface maintains full operational capability even when subjected to water droplets or wet-surface conditions.
Optical Bonding Innovation
Advanced optical bonding technology eliminates air gaps between display layers, simultaneously preventing internal condensation while significantly enhancing light transmittance for superior image brilliance and clarity.
Robust Industrial Architecture
Built upon a high-performance computing platform featuring fanless thermal management for silent, maintenance-free operation. Engineered for continuous 24/7/365 deployment in mission-critical industrial applications where reliability is paramount.
Specification
| Model: SC15W | |
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| Chipset | Intel® Gemini Lake |
| Graphics | Intel® UHD Graphics 600 |
| Memory | 4GB DDR4, ( 8G, 16GB 32GB optional, ) |
| Hard Drive Capacity | 128G BSSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
| HDD: 500GB,1TB | |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Operation System | Support Windows 10, Linux, Ubuntu, Debian etc. |

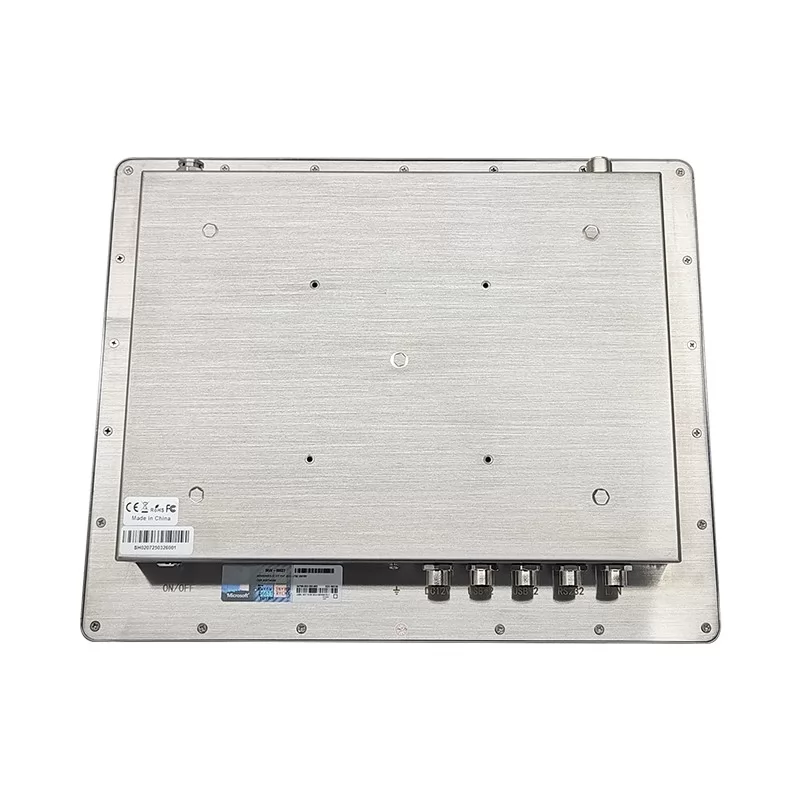

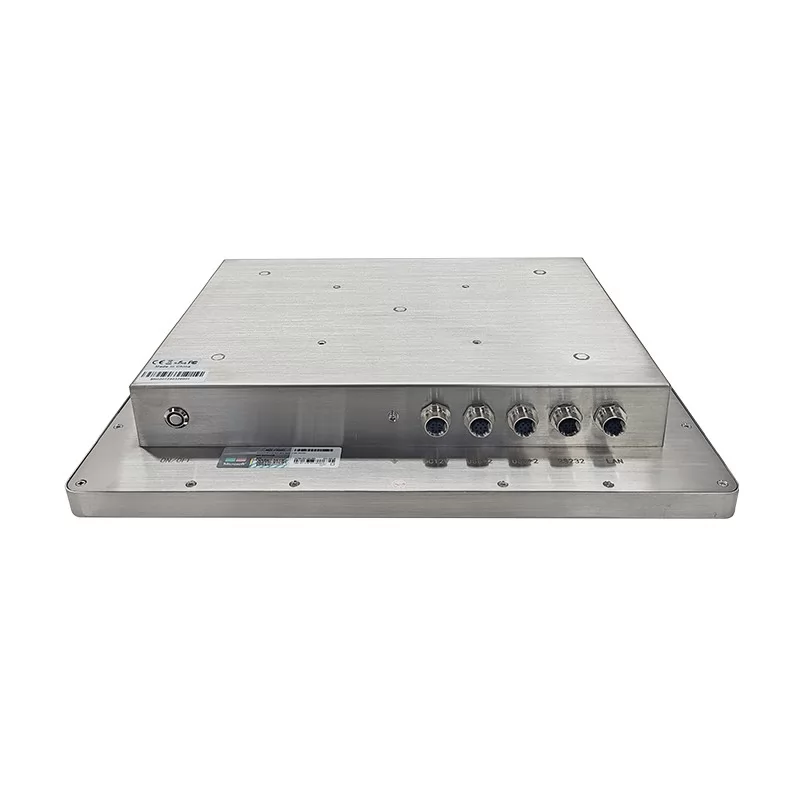

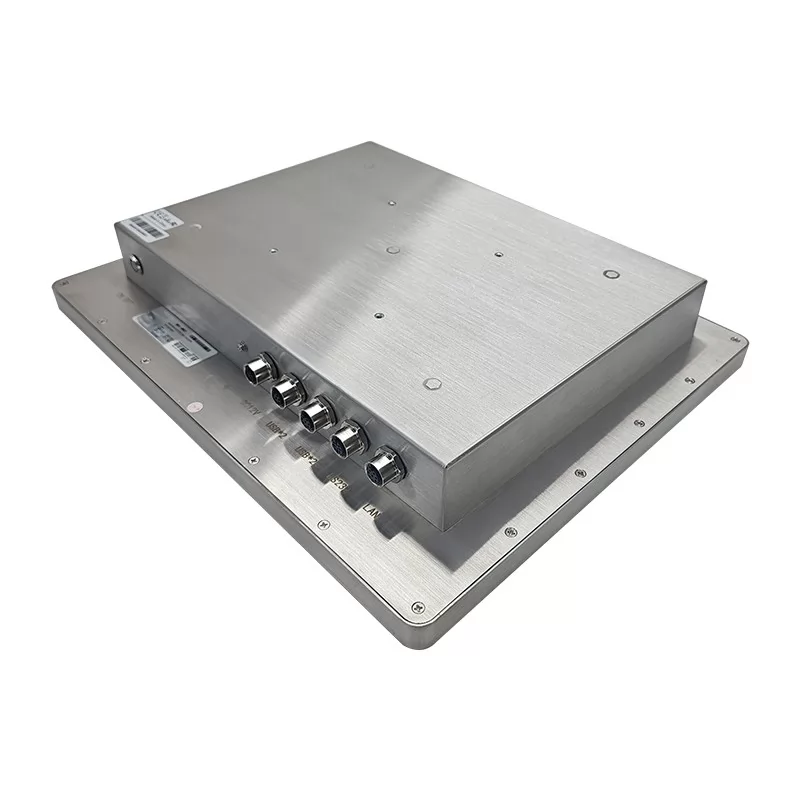

| I/O | |
| USB | 2* M12 USB |
| LAN | 1* M12 RJ45 (2* M12 RJ45 Optional) |
| COM | 1* M12 RS232 |
| Power Input | 1* M12 DC12V |
| Other | 1* Breather valve, 1* Power on/off button |
| LCD panel | |
| Panel size | 15" |
| Display active area | 304.128(W)×228.096(H) mm |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Brightness control | PWM software regulation |
| Contrast ratio | 800:1 |
| View angle | 88/88/88/88 (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 70K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface Hardness | 7H |
| IP Rating | IP69K |
| Surface treatment | N/A |
| Luminousness | 90% |
| Touch controller IC | EETI 80 |
| Touch bonding | Optical bonding |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 25W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Stainless steel 304 |
| Finish | Stainless steel: brushed against scratches |
| Color | Silver |
| VESA mounting | VESA mount 100/100 |
| IP-grade | Full IP69K waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 6.8kg, Gross weight 9.6kg |

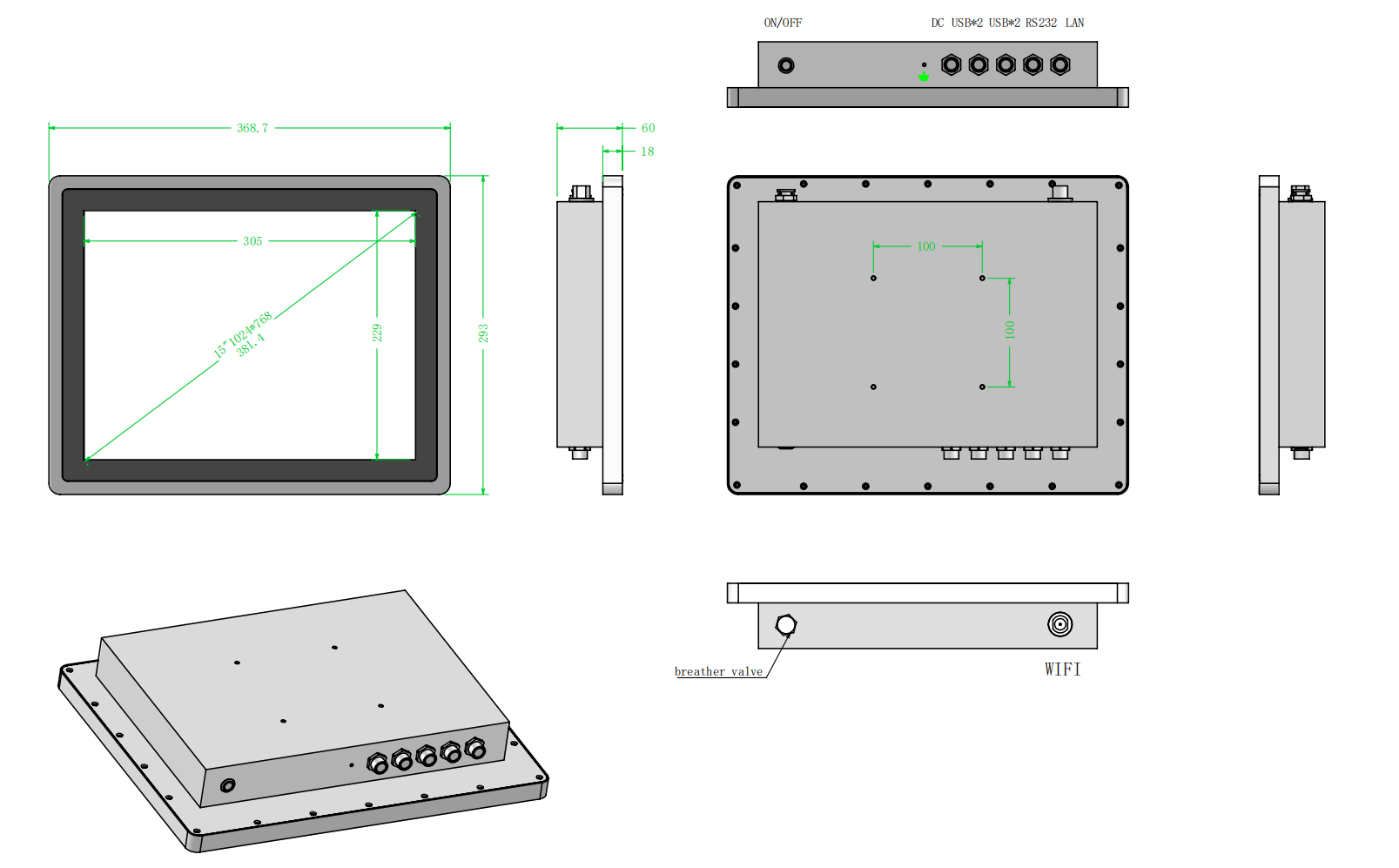

| Product Dimension | 368.7×293×60mm |
| Packing size | 1pcs/ctn 52×18×47cm 10kg |
| Accessories | 1* waterproof adapter/power supply, 2*M12 USB cable, 1*M12 network cable, 1*M12COM cable1* waterproof adapter/power supply, 2*M12 USB cable, 1*M12 network cable, 1*M12COM cable |
| Other | |
| Certificates | CE, FCC, RoHs |
| Warranty | 1 years warranty |
