Features
1. The front frame and rear shell are made of 304 stainless steel, the aluminum alloy heat sink is sandblasted and oxidized, the fish fin design maximizes heat dissipation, anti-UV and anti-discoloration treatment, Full IP67 waterproof,
2. Industrial-grade LCD screen, full viewing angle, 1000 brightness visible in the sun, PWM software to adjust the brightness
3. 10-point capacitive touch screen, EETI touch control solution, normal touch when there are water droplets on the touch screen
4. Optical bonding between LCD and touch screen
5. Adopting industrial-grade components, 7x24 hours work, support wide temperature operation -20-70℃
6. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and repair without affecting the waterproof performance.
Specification
| PC | |
| CPU | Intel® Core, i5-8259U, 4 Core , 8 Threads, Base 2.3 GHz, Turbo 3.8 GHz, Fanless Other CPU Optional |
| Chipset | SOC |
| Memory | 2*SO-DIMM，DDR4-2400/2133, Max 32G |
| Hard Drive Capacity | 1* MSATA, 2* SATA3.0 |
| Extension ports | 1*M.2_4G 1*M.2_WIFI 1*SIM |
| Graphics | intel lris(R)Plus Graphics 655 |
| Audio | Realtek ALC269 HD |
| Network | Realtek 8111GR,10/100/1000M |
| Wireless Network | WIFI, Bluetooth, 4G, GPS Optional |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |

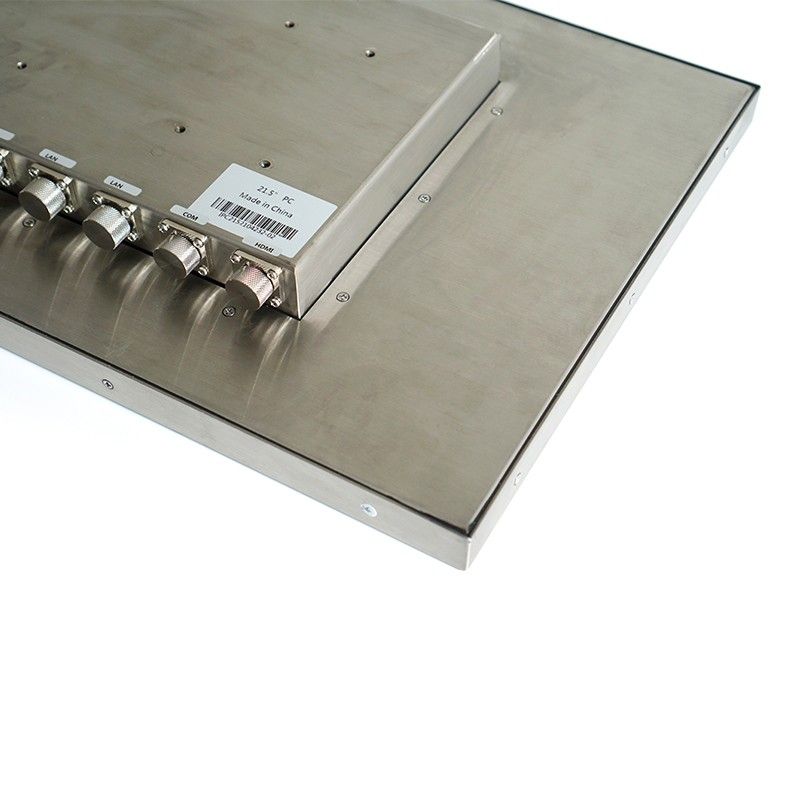

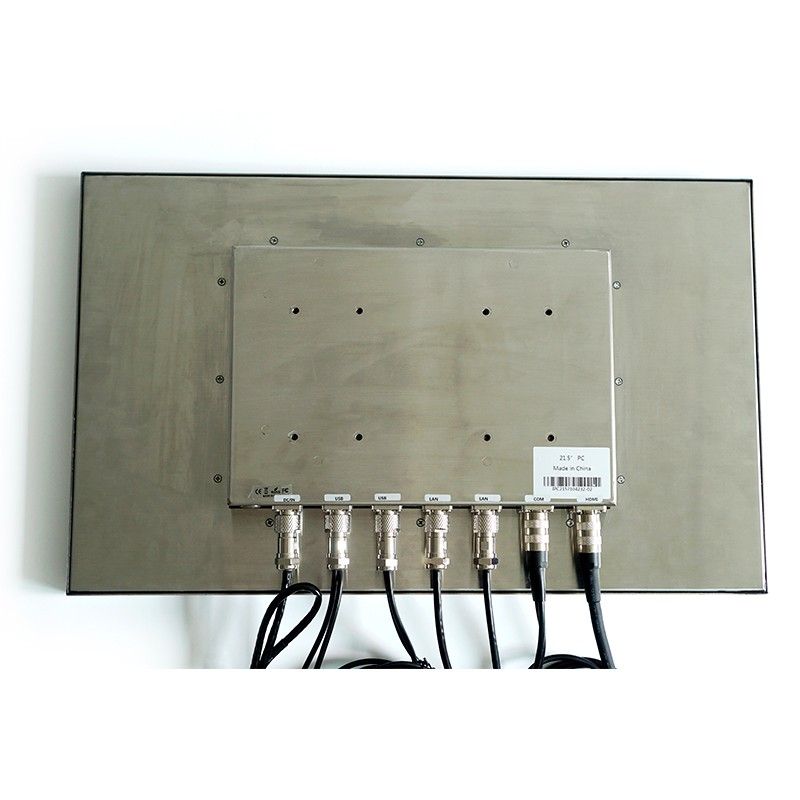

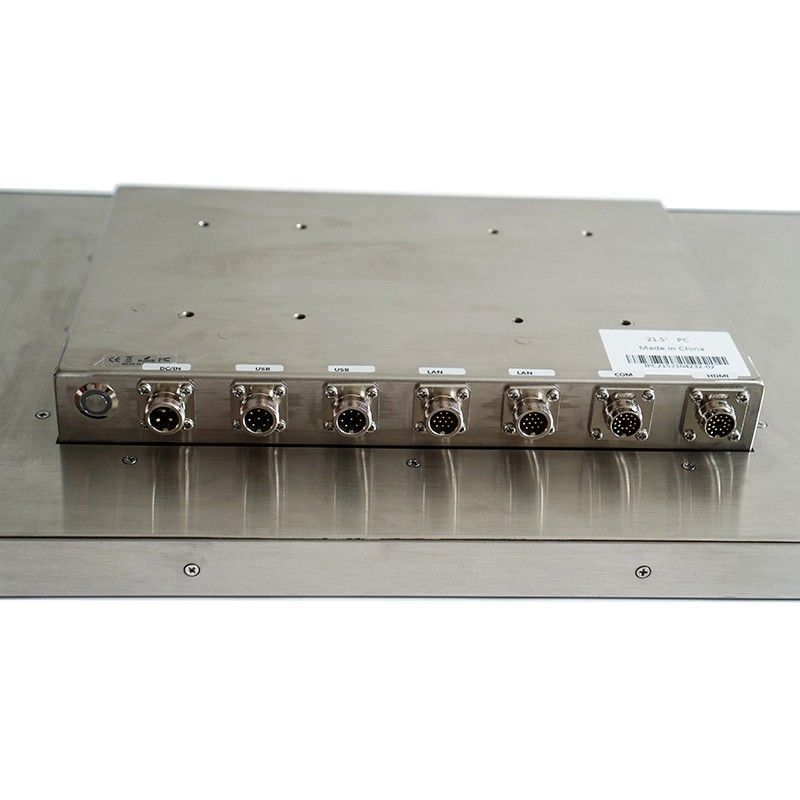

| External I/O Ports | |
| USB | 4x IP67 USB |
| HDMI | 1x IP67 HDMI |
| LAN | 2x IP67 RJ45 |
| COM | 2x IP67 RS232 |
| Power input | 1x IP67 12V DC |
| Other | 1x IP67 Power on/off button, 1x IP67 Breather valve |

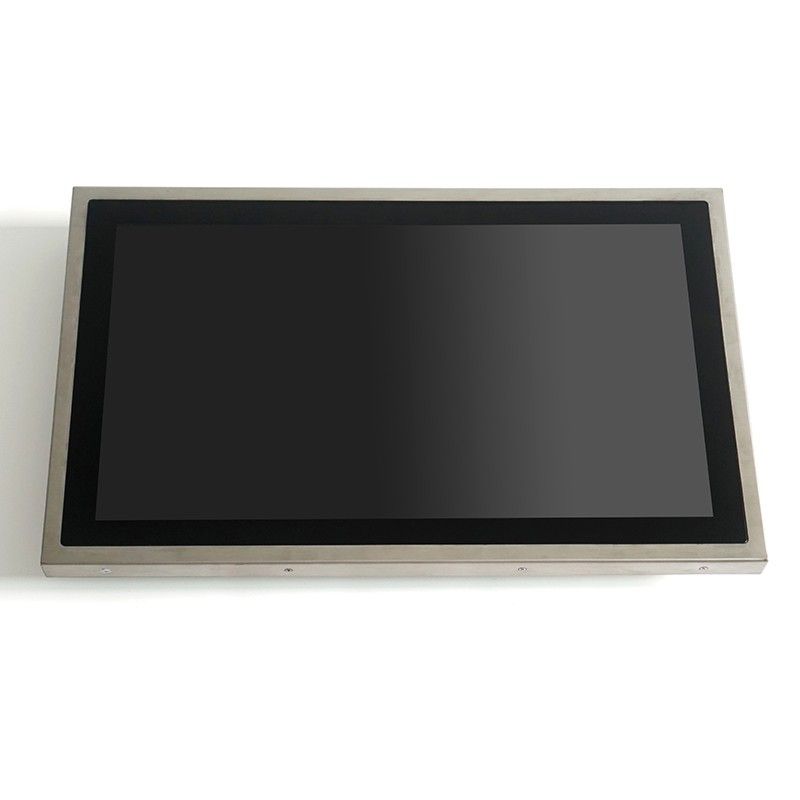

| LCD panel | |
| Panel size | 21.5" |
| Display active area | 476.064(W)x267.786(H) mm / 18.743x10.543 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PWM software to adjust brightness |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 Points capacitive touch |
| Surface Hardness | 7H |
| Surface treatment | Anti glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac |
| Touch bonding | Optical bonding Optional |
| Touch optional | Non touch, IR touch, Resistive touch optional |
| Power Supply | |
| Working voltage | 12V DC (9-36V DC Optional) |
| Power consumption | 60W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 90W |
| Enclosure | |
| Material | Stainless Steel 304 |
| Finish | Wire drawing |
| Color | Silver |

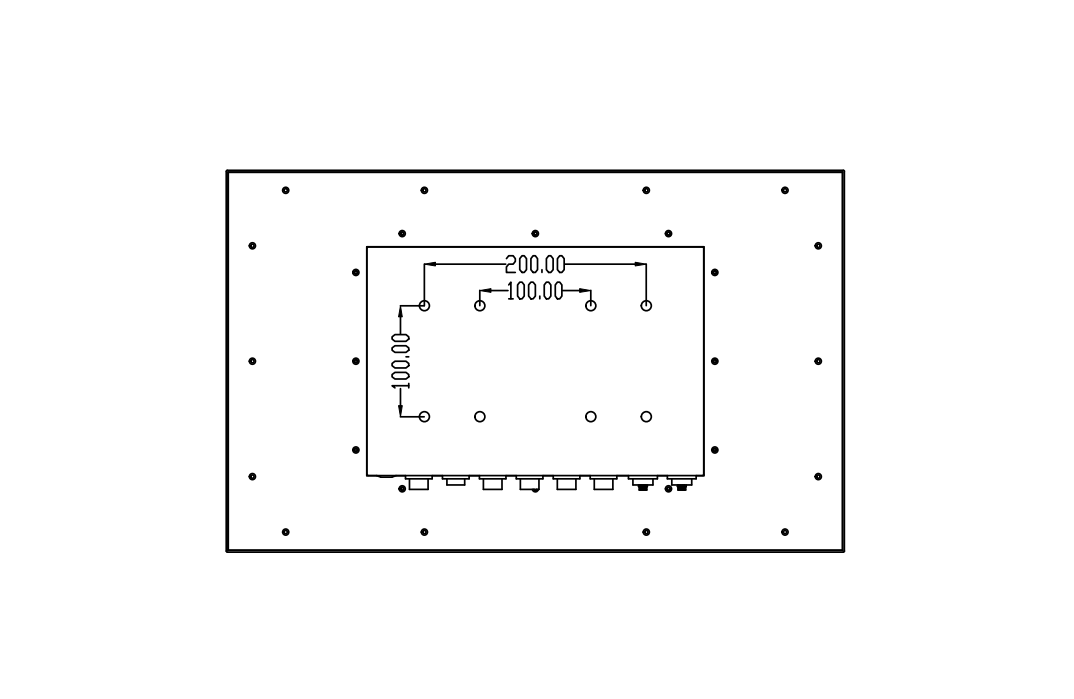

| Mounting | VESA mount 100x100mm |
| IP rating | Full panel IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 10.19kg |

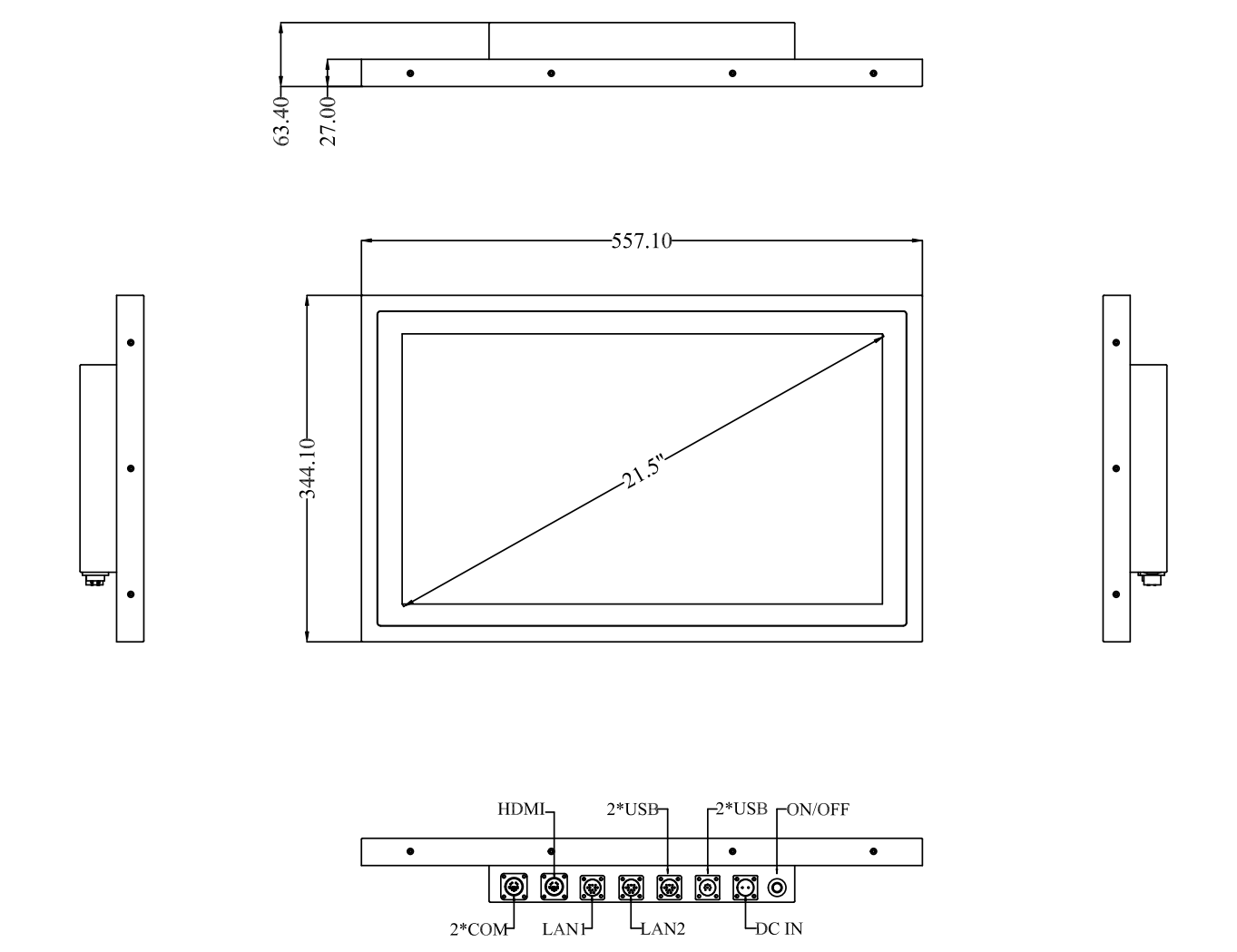

| Product dimension | 557.1×344.1×78.4mm |
| Packing info | 1pc/ctn 68×48×18cm 14kg |
| Accessories | Power adapter, Power plug, Waterproof LAN cable*2, Waterproof USB cable*4, Waterproof COM cable*2, Waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
