Stainless Steel Touch Panel PC

Home > Products > Industrial Computer > Stainless Steel Touch Panel PC

  • Full IP65 Stainless Steel Touch Panel PC SC200S
  • Full IP65 Stainless Steel Touch Panel PC SC200S
  • Full IP65 Stainless Steel Touch Panel PC SC200S
  • Full IP65 Stainless Steel Touch Panel PC SC200S
  • Full IP65 Stainless Steel Touch Panel PC SC200S

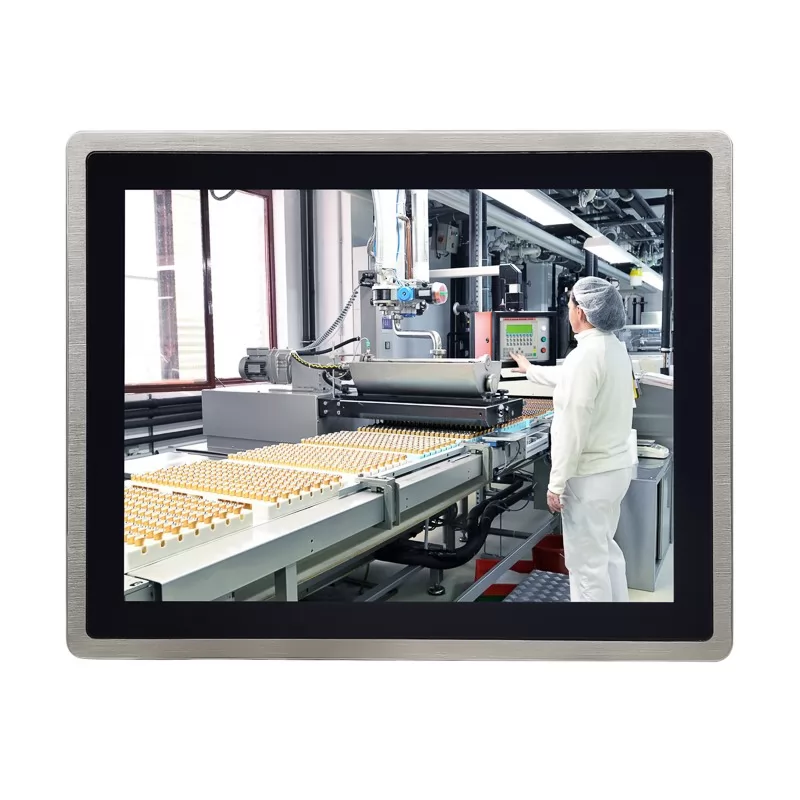

Full IP65 Stainless Steel Touch Panel PC SC200S

Quick Details:

CPUIntel i3/i5/i7/ J4125RAM8GB
Hard Drive256G SSDPanel size10.4"-21.5"
Brightness400nitsView angle80/80/80/80
Materialstainless steel 304IP-GradeFull IP65

2019 latest new-designed, Full IP67 Flat panel stainless steel 304 panel PC. It’s industrial TFT LCD display, and covered with 2MM tempered glass to prevent damage. Adding air valve balance air pressure to avoid screen foggy and ensure HD image.
It adopts EETI waterproof solution, and stainless steel case have supper excellent advantage on acidproof, alkali-resisting and anti-corrosion. Support jet washing, working temperature is -20 to 70℃, suitable for boat navigation, meat factory, chicken slaughter and etc.
OEM/ODM Service support!

Full IP65 Stainless Steel Touch Panel PC SC200WF

Full IP65 Stainless Steel Touch Panel PC Feature:

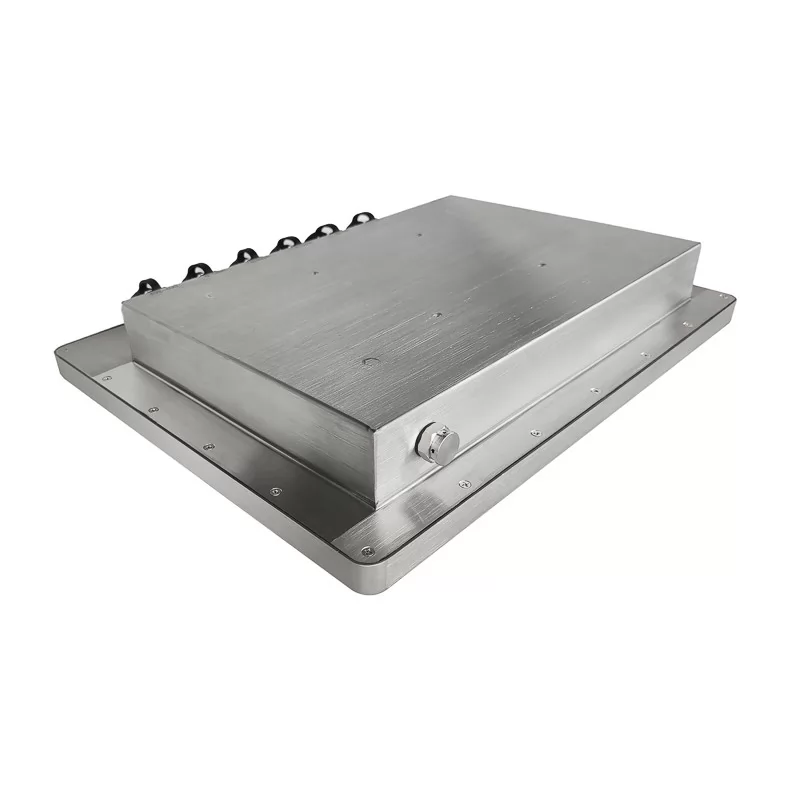

1. Full IP65 sealed stainless steel 304 enclosure, true flat panel design, round corner design.

2. With air valve, keep air pressure balance inside and outside, anti fogging.

3. Industrial LCD panel, wide viewing angle, high nits, true color.

4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

5. EETI waterproof solution.

6. With optical bonding technology to enhance display readability.

7. High performance motherboard, fanless design , 7x24 continuous operation.

8.  Acid-resistant, alkali-resistant,  corrosion-resistant.

Full IP65 Stainless Steel Touch Panel PC Specification:

CPUIntel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless
CPU optionalIntel® Core i3-4010U Dual cores, Quad threads, Base 1.60GHz, fanless
CPU optionalIntel® Core,i5-4288U,Quad core , Base 2.6 GHz,  Turbo 3.1 GHz, Fanless
CPU optionalIntel® Core I5-4300U, Dual Cores, Quad Threads, Base 1.9 Ghz, Turbo 2.9 Ghz, Fanless
CPU optionalIntel® Core i3-6157U Dual Cores Quad threads Base 2.40GHz, fanless
CPU optionalIntel® Core i5-6200U, Dual cores, Quad Threads, Turbo 2.8 GHz, Fanless
CPU optionalIntel® Core I5-8459U, Quad core, 8 Threads, Base 2.3 Ghz, Turbo 3.8 Ghz, Fanless
CPU optionalIntel® Core I5-1135G7, Quad core, 8 Threads, Turbo 4.2 Ghz, Fanless
Memory4G (8G, 16G optional)
Hard Drive Capacity128G SSD
Hard Drive OptionalSSD: 256G, 512GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
NetworkOnboard Realtek RTL 8111E Gigabit Ethernet controller

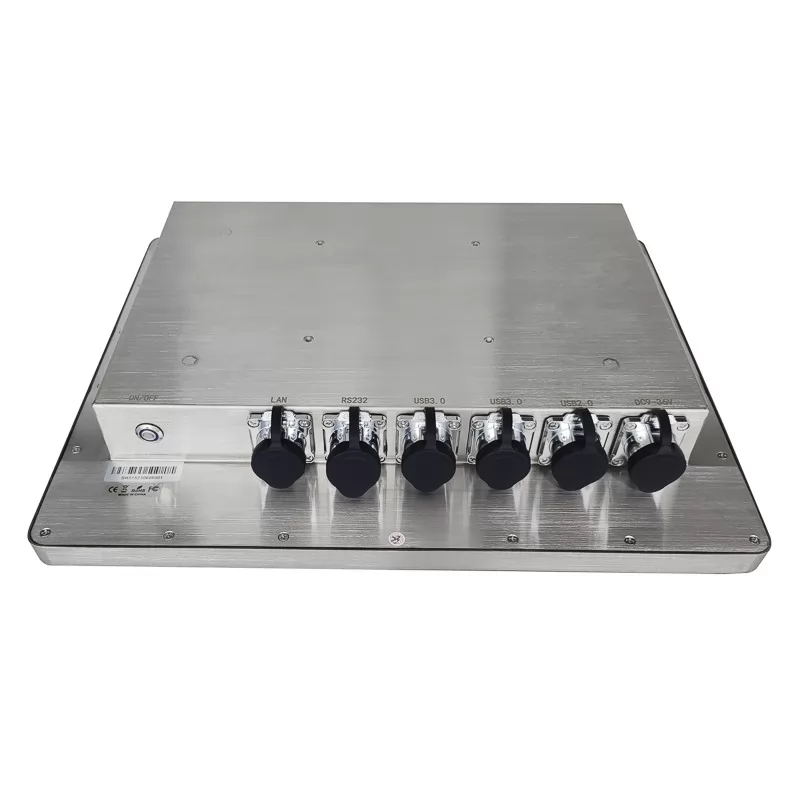

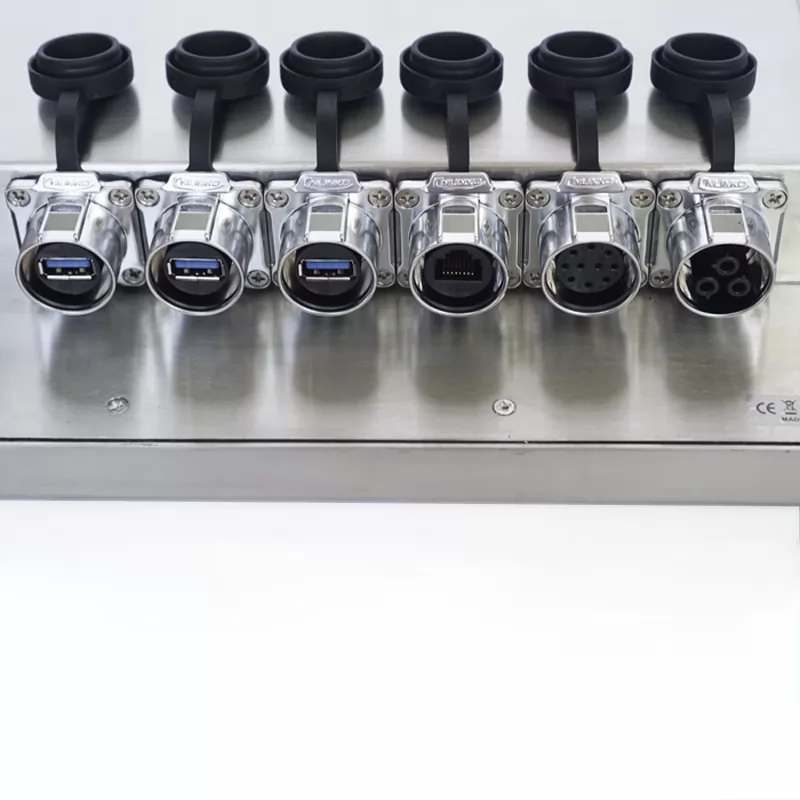

I/O Interface3*USB+1*LAN+1*RS232+1*DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size10.4"-21.5"
Support Color16.7M colors
Brightness (cd/m²)400+ nits
Response time5ms
Backlight typeLED
Backlight lift time≥50k hours
View angle80/80/80/80 (R/L/U/D)
Touch panel
Touchscreen Type10 point capacitive touch
Touchscreen options5 wire resistive touch
Power Supply
External Power SupplyAC 100 - 240V
Working voltage12V
Materialstainless steel case
VESA mounting75×75mm/100×100mm
IP-gradeFull IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Mounting (options)1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
CertificatesCE, FCC, RoHs

1 years warrant

Available Sizes:

SizeResolutionAspect ratioTouch type
10.4"1024*7684:3no touch/capacitive/resistive
11.6"1920*108016:9no touch/capacitive/resistive
12.1" Widescreen1280*80016:10no touch/capacitive
12"1024*7684:3no touch/capacitive/resistive
15"1024*7684:3no touch/capacitive/resistive
15.6"1920*108016:9no touch/capacitive/resistive
17"1280*10245:4no touch/capacitive/resistive
17.3"1920*108016:9no touch/capacitive/resistive
18.5"1366*76816:9no touch/capacitive/resistive
19"1280*10245:4no touch/capacitive/resistive
19" Widescreen1440*90016:10no touch/capacitive/resistive
21.5"1920*108016:9no touch/capacitive/resistive


-Package included: Stainless Steel Touch Panel PC, Waterproof power adapter, power cord;

-Accessories or Parts: Waterproof RS232/LAN/USB cable;

Embedded mounting screws (optional)

Full IP65 Stainless Steel Touch Panel PC SC200S


Full IP65 Stainless Steel Touch Panel PC SC200S

What after-sales service do we provide?

1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the first year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.
6. Pls feel free to contact our customer service team via Service hotlike. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.


1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.

3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;

4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.

5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
