Stainless Steel Touch Panel PC

Home > Products > Industrial Computer > Stainless Steel Touch Panel PC

  • IP67 Stainless Steel Enclosure Fanless All In One PC
  • IP67 Stainless Steel Enclosure Fanless All In One PC
  • IP67 Stainless Steel Enclosure Fanless All In One PC
  • IP67 Stainless Steel Enclosure Fanless All In One PC

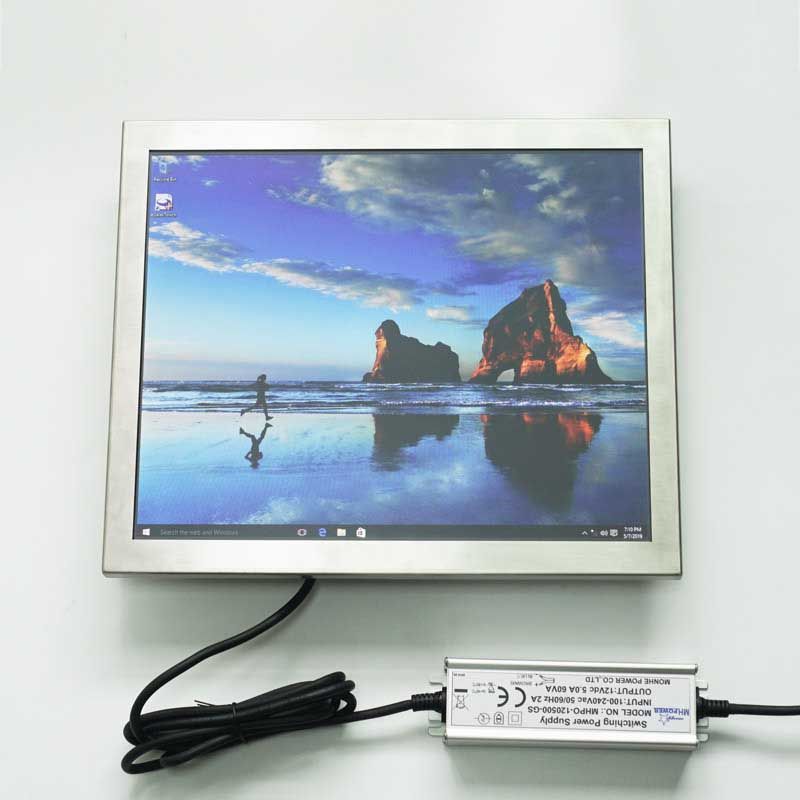

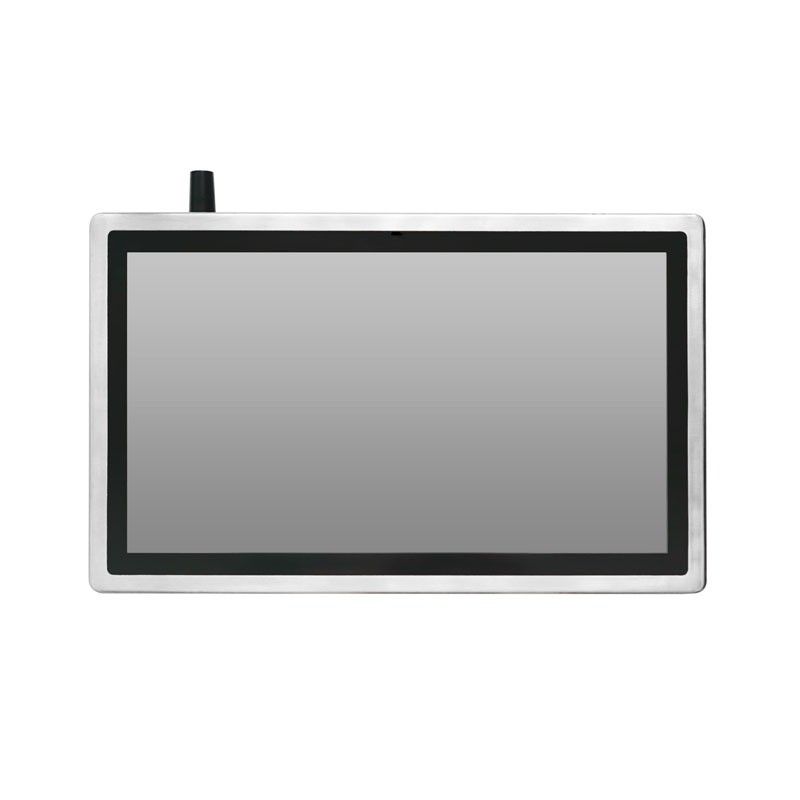

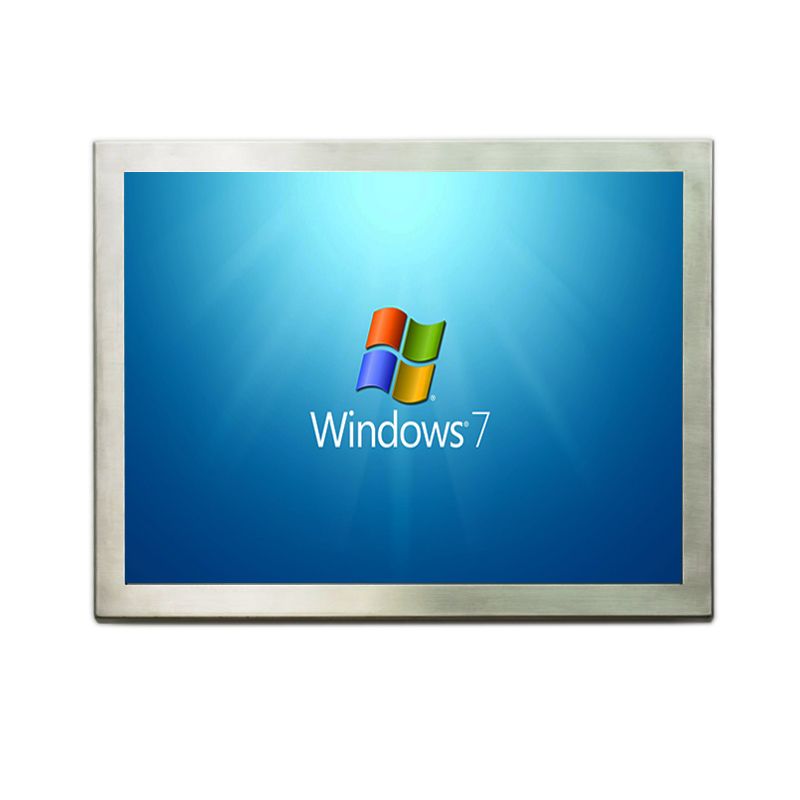

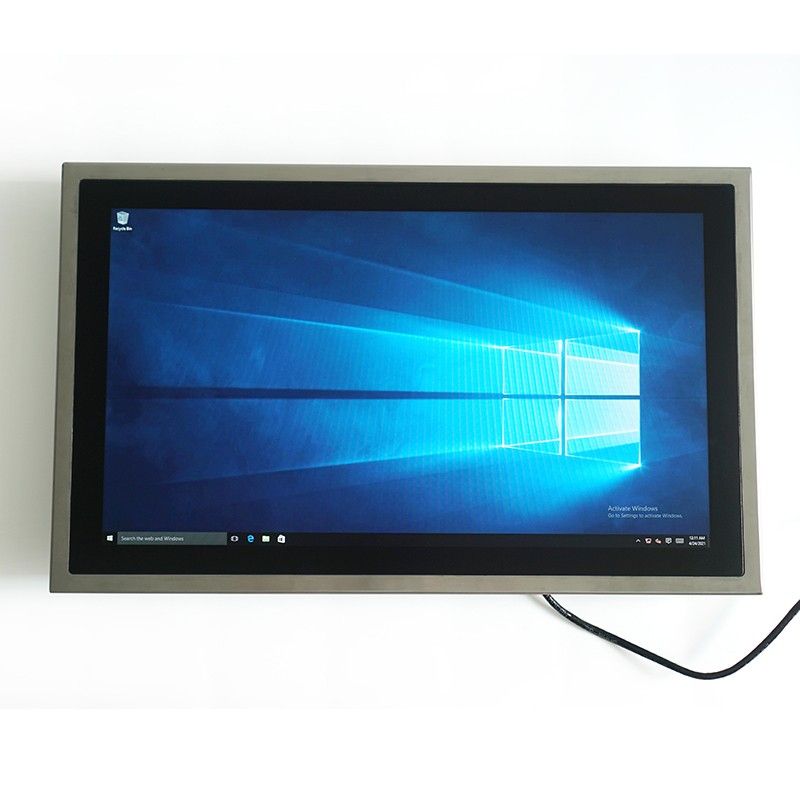

IP67 Stainless Steel Enclosure Fanless All In One PC

Quick Details:

CPUIntel J1900RAM8G DDR3
Hard Disk256G SSDPanel Size17"
Brightness400nitsTouch TypeResistive touch
Case MaterialStainless SteelIP GradeFull IP67



IP67 Stainless Steel Enclosure Fanless All In One PC

Features

1. IP67 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.

2. Industrial 17" LCD panel,  wide viewing angle,  high nits, true color.

3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference. support touch with glove.

4. Fanless design.

5. With switch in front bezel.

6. High performance motherboard, 7x24 continuous operation.


Specification


                                                                        Model:SC17W
PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory8G DDR3 (2G, 4G optional)
Hard Drive Capacity256G SSD
Hard Drive OptionalSSD: 32G, 64G,128GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI(Optional)
I/O Interface 3*USB+1*LAN+ 2*RS232+1*DC power
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size17"
Resolution1280*1024
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400 nits, (1000 nits, sunlight readable optional)
Response time5ms
Contrast ratio1000:1
View angle80°/80°/70°/70° (R/L/U/D)
Touch panel
Touchscreen Type5 wire resistive touch
Touch solutionEETI
Touch InterfaceUSB (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness3H
Working Life >35 million times
Touch options( capacitive touch)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialStainless steel 304
ColorSilver
VESA mounting70x70mm/100x100mm
IP gradeFull IP67 waterproof
Operating Environment
Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight10 kg
Gross weight11.2 kg
Product Dimension42x35.5x5.2 cm
Packing size55×45×21 cm
AccessoriesWaterproof power adapter, power cord, waterproof RS232/LAN/USB cable
Other
Mounting wayWall mounting brackets
Desk stand holder (Optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance



IP67 Stainless Steel Enclosure Fanless All In One PC

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
