About this item
Stable performance, lower power consumption. Equipped with Intel Core i3 6100T / lntel Core i5 6500T / Intel Core i7 6700T Processor.
Support 2 * DDR4 1866/2133MHz SODIMM RAM Slot, Max support 32GB, Support 1 * MSATA, 2 * 2.5'' HDD (support RAID0/1).
2 * Intel i211-AT, 1 *Intel i219-LM, 1*VGA, 1*HDMI, 1*DP (Support synchronous and asynchronous dual display) .
8*USB3.0, 6*COM（COM1, COM2 RS232/422/485 Optional), Support MINI PCIE slot (WIFI/3G/4G Optional), embedded SIM slot. Optional Port: 16Pin GPIO, 4*USB2.0.
1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot, Max length of expansion card: 210 mm.
Fanless design, high quality aluminum case, quickly heat dissipation.
Main function: Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (o～255 level).
Specification

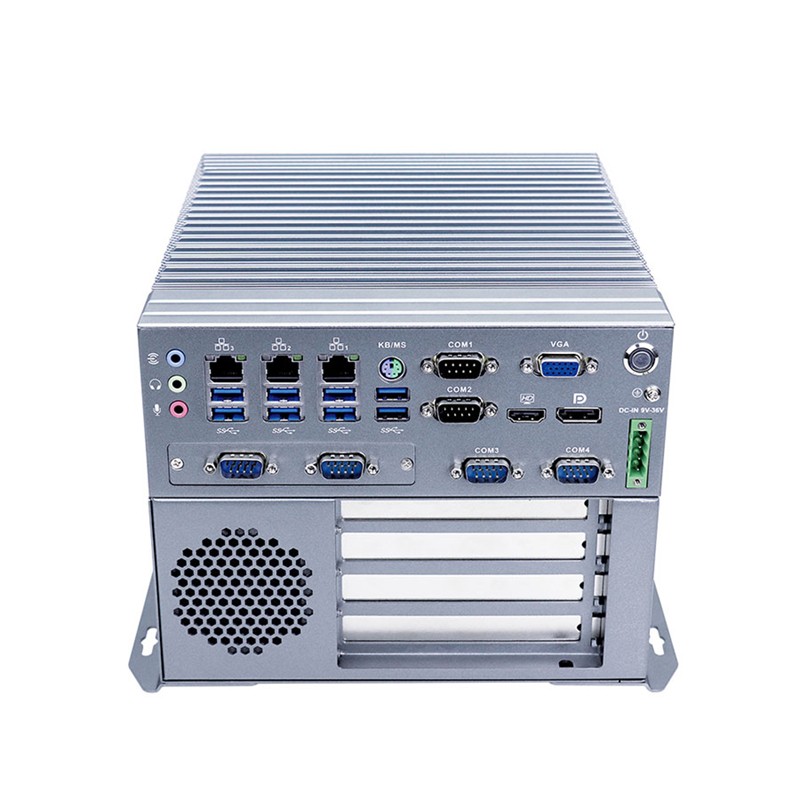

Model:SM708 | |
PC | |
CPU (Optional) | Intel Core i3 6100T (dual core, 4 threads, 3.2GHz) Intel Core i5 6500T (dual core, 4 threads, 2.5GHz, MaxTurbo 3.1GHz) Intel Core i7 6700T (Quad core, 8 threads, 2.8GHz，Max turbo 3.6GHz) |
RAM | Support 2*DDR4 1866/2133MHz SODIMM RAM Slot, Max support 32GB |
Storage | Support 1*MSATA, 2*2.5''HDD ( support RAID0/1) |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 530 |
Display Port | 1*VGA, 1*HDMI, 1*DP (Support synchronous and asynchronous dual display） |
I/O | 8*USB3.0, 3*Intel 1000M LAN, 1*Power Switch，1*MIC，2*Speaker, 6*COM（COM1, COM2 RS232/422/485 Optional), 1*DC power supply phoenix connector, 1*VGA, 1*HDMI, 1*DP, 1*Keyboard or Mouse port |
Expansion | Support 1*MINI PCIE slot (WIFI/3G/4G Optional), embedded SIM slot Support 1*MINI PCIE Slot (MSATA/3G/4G Optional), embedded SIM slotOptional Port: 16Pin GPIO, 4*USB2.0 (standard version without these port) |
Expansion Slot | 1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot，Max length of expansion card: 210 mm |
Network | 2* Intel i211-AT 1000M Lan, 1 *Intel i219-LM 1000M Lan（support Vpro Technology ) |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0～255 level) (Standard version doesn’t set these function) |
Power Supply | |
Power Supply | Support DC 9V~36V wide voltage input, Support positive pole and negative electrode connect reversely protection |
Operating Environment | |
Work Temp | 0℃ ～ +50℃ (Commercial HDD)，-20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Packing Details | |

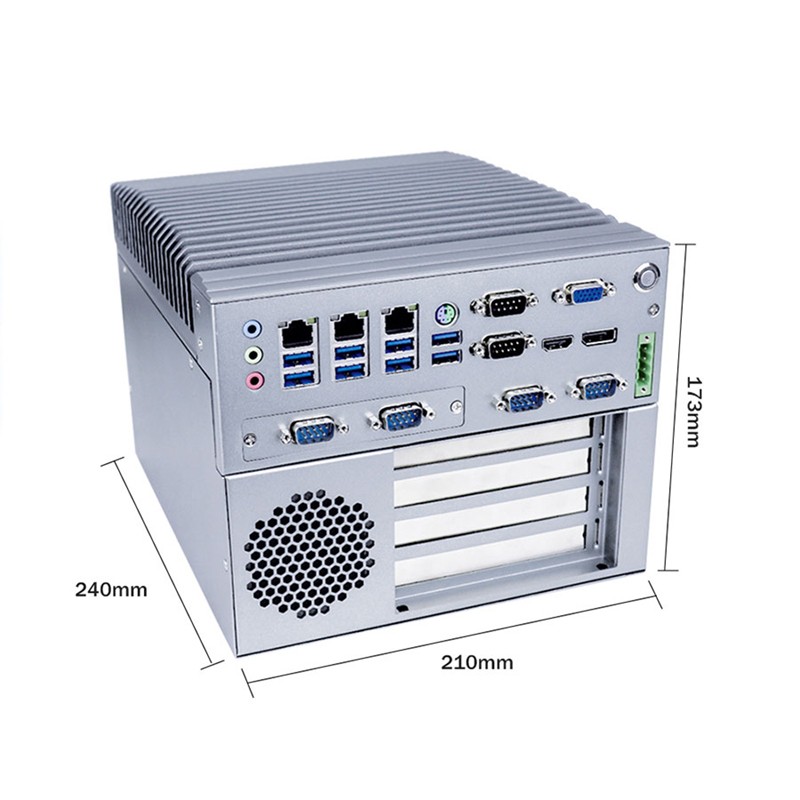

Dimension | 210 * 240 * 83.5 mm |
Net Weight | 4 kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc. |
Enclosure | |
Material | High quality aluminum alloy+ sheet metal structure |
Color | Titanium gray |
Other | |
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
Warranty | 1 year warranty |
