Embedded Computer

Home > Products > BOX PC > Embedded Computer

  • Intel Core i5-8300H Embedded MINI PC 2 HDMI
  • Intel Core i5-8300H Embedded MINI PC 2 HDMI
  • Intel Core i5-8300H Embedded MINI PC 2 HDMI
  • Intel Core i5-8300H Embedded MINI PC 2 HDMI

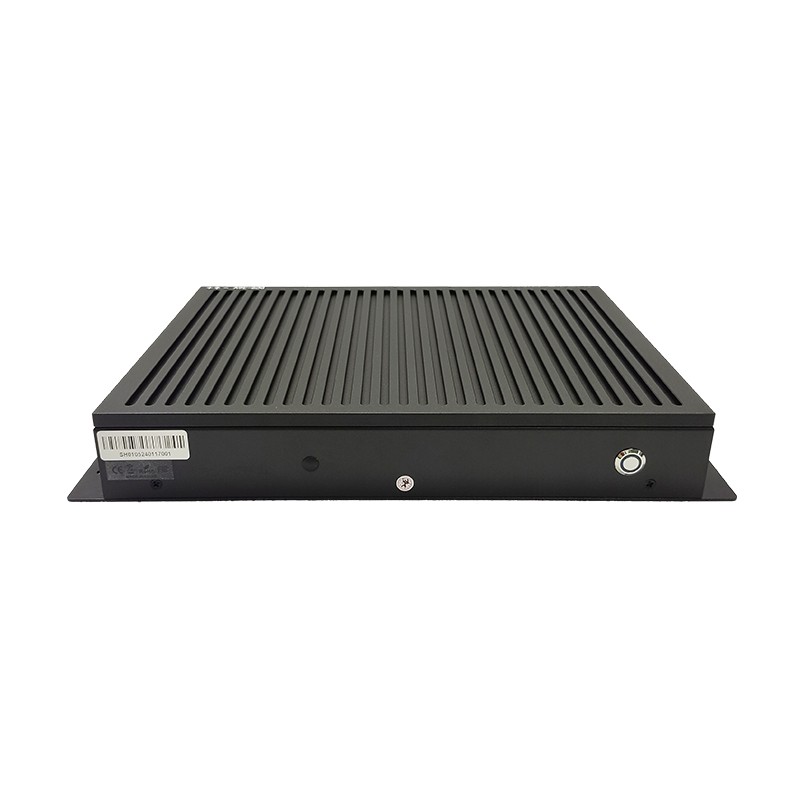

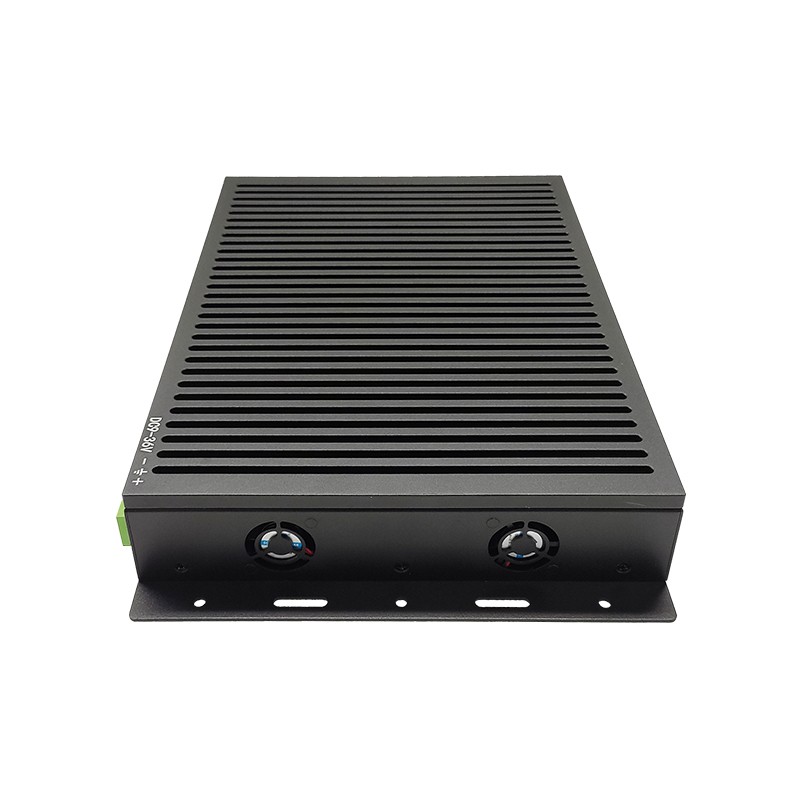

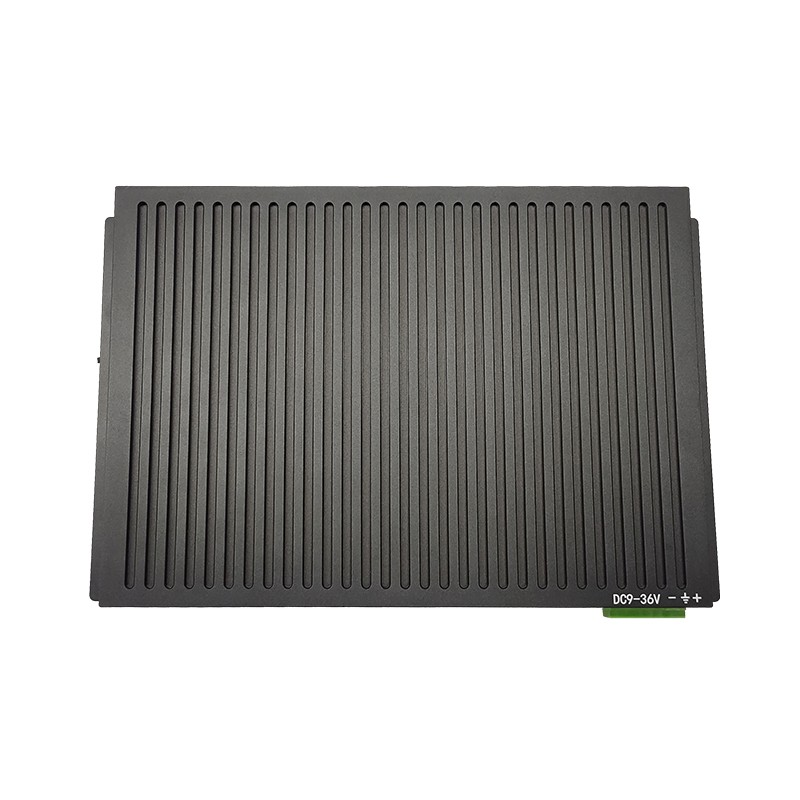

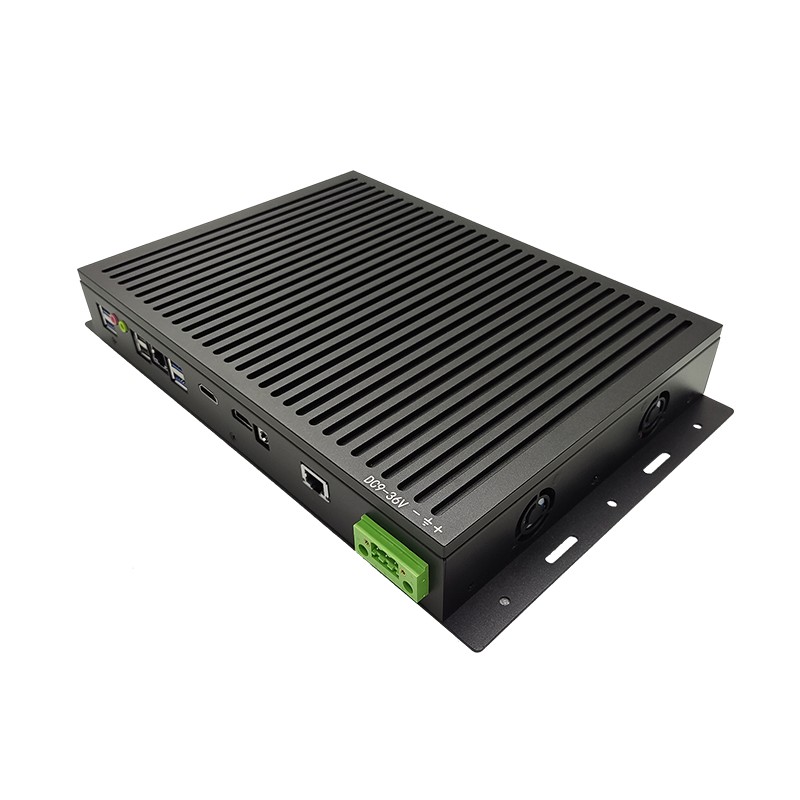

Intel Core i5-8300H Embedded MINI PC 2 HDMI

Quick Details:

CPUCore i5-8300HHard Drive1x MSATA/M.2/SATA
RAM32/64/128GBBIOSAMI UEFI BIOS
NetworkRTL8111EOSWin10,Linux,Ubuntu
MaterialAluminum AlloyPower SupplyDC 9V - 36V

Features:

The Intel Core i5-8300H has 4 cores and 8 threads and is based on the 8.Genes of the Intel Core i5 series.

1G network interface

2 HDMI interfaces

DC9-36V input


Specification

PC
CPUIntel® Core i5-8300H,  4 Cores, 8 Threads, Base 2.3 GHz, Turbo 4.0 GHz, with Fan
ChipsetHM470 High Speed Chipset
Memory2x SODIMM DDR4 2133/2400/2666MHz, Max 64G
Storage Capacity1x MSATA, 1x M.2, 1x SATA 3.0
GraphicsIntegrated Intel UHD Graphics
AudioIntegrated Cmedia HS_100B USB audio chip
NetworkRealtek 8111H, Realtek 8111H+Intel I219V Optional
Wireless Network1*MINI_PCIE interface: supports WIFI/4G/Bluetooth module
Preinstalled OSWindows 10 Pro 64bit
Operation SystemSupport Windows 10/11, Linux, Ubuntu, Debian, etc.
External I/O Ports
Front I/O4*USB3.1, 2*USB2.0
2*RJ45
1*Line-out
1*MIC
2*HDMI
1*12V DC-JACK
1*3-pins terminal block connector(DC9-36V)
Rear I/O1*On/Off Button
Power Supply
Working voltageDC9-36V
Power consumption≤30W
Power adapterAC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
MaterialAluminum alloy shell
FinishAluminum alloy shell: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment
ColorBlack
VESA mountingWall mount
IP gradeN/A
Cooling systemActive - Fan
Operating Environment
Temperature RangeOperating: -20 °C(-4℉) to 60°C(140℉),
Storage: -30 °C(-22℉) to 70°C(158℉)
Relative humidityUp to 90% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
ShockGB2423.5
EMCClass B
Packing Details
Product weightNet weight 2.77kg
Product Dimension280*200*45mm
Packing info1pc/ctn   45×18×44cm  5kg
2pcs/ctn  46×28×45cm  10kg
AccessoriesPower adapter, power plug, installation bar, screws
Other
Warranty1 year warranty
CertificateCE, FCC, RoHS
