Features:
6th generation 7th generation 8th generation 9th generation Core i3 / i5 / i7 processor

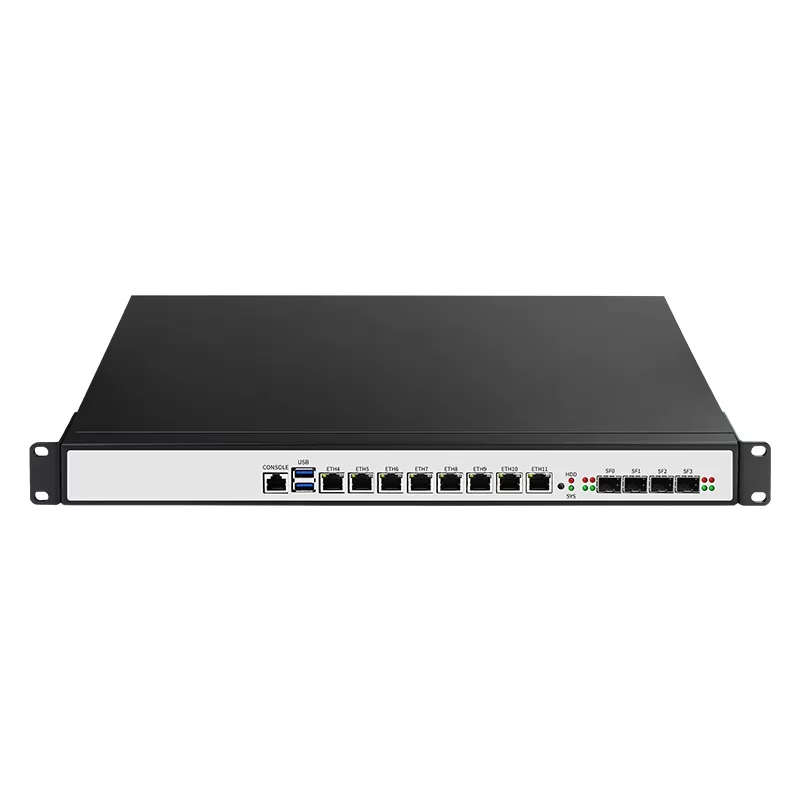

Network security platform
Sheet metal structure, fan design
Support the 6,7,8,9 generation CoreI3 / I5 / I7 processor
Support for 2 DDR4 2133 / 2400 32G memory, up to 64GB
1x mSATA, slot, 12.5-inch hard disk bit
1x PCI-EX 8 slot
Specification
| PC | |
| CPU | The i3 / i5 / i7 processor 6th / 7th / 8th / 9th Intel®celeron / Pentium Core™ supporting LGA1151 architecture |
| chip set | C236/H170 |
| Memory | Support for 2xDDR4 2133 / 2400 MHz SODIMM memory slot, up to 64GB support |
| Storage | 1x mSATA SSD 1x 2.5-inch hard disk bit |
| Display | 1x HDMI interface (1x VGA interface) |
| Network | 8x Intel I211-AT, 4x gigabit port intel 82580 or 40 megabit port intel x710 |
| I/O | 1 x RJ 45 serial port (support Console function), 2x USB3.0 interface, 8x gigabit network port, 4x 10G network 1x HDMI display interface, 1x restart / switch button, and 2x AC power input interface |
| Expansion Slot | Supports 1 PCI-E X 8 PCI-E expansion slot, 2 Mini-PCIE slot, (optional WIFI / Bluetooth / 4G) |
| Source | 110~240V / 50~60Hz AC input 200W (300W optional new poly redundant power supply in Taiwan) |
| Working temperature | -0~ + 50℃ (commercial HDD), -20℃ ~ + 50℃ (industrial SSD), surface air flow |
| Working humidity | 5%~95% relative humidity, non-condensation state |
| Product size | 440x250x45 (mm) (excluding hanging ears) |
| The weight of the machine | The overall machine weight is 5.2kg, and the bare machine weight is 4kg |
| acking measurement | 52x34x12cm |
