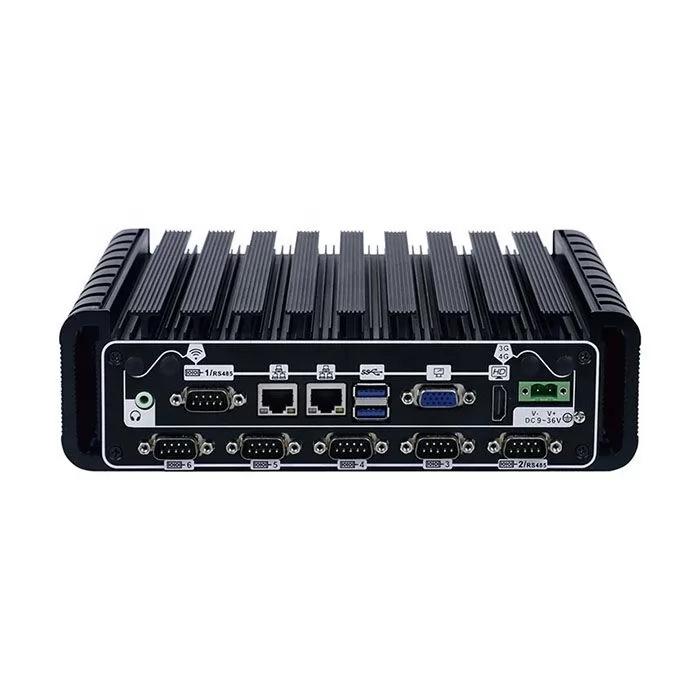

Fanless Industrial Mini computer SM706

Quick Details:

CPUIntel Core i3/i5/i7RAM4/8GB (DDR3)
Hard Drive(ssd)32/64/128/256GBIOS64Mb SPI FALSH
Network2*Intel 82583VOperation SystemWin7/10, Linux, Ubuntu
MaterialAluminum AlloyPower SupplyAC 100-240V, DC 12V



Features:
1. Full Aluminum alloy enclosure, compact, low weight design, excellent heat dissipation.
2. DC 9-36V DC, Support reverse polarity protection.

3. Win7/8/10, Linux and etc.

4. 1*MINI PCIE(WIFI or Bluetooth), 1*MINI PCIE(3G/4G), With SIM Card Slot, 1*PCIE 4X Slot, 10*COM Port, GPIO Port.


Specification:

Model: SM706
CPUIntel® Core i5 4200U Dual core Quad threads 2.6GHz 15W
Memory4G DDR3(Support 1*DDR3L Slot, Max 12G)
SSD128GB
BIOS64MB SPI FALSH
GraphicsIntegrated Intel HD Graphics
I/O Interface2*USB 3.0, 4*USB2.0, 6*COM(COM1 and COM2 support RS232/ RS422/RS485 mode), 2*1000M RJ45 LAN, 10*LED indicator, 1*VGA/LVDS/RST/Power switch/2PIN and 4PIN Phoenix terminal DC 9-36V
Optional1*MINI PCIE(WIFI or Bluetooth), 1*MINI PCIE(3G/4G), With SIM Card Slot, 1*PCIE 4X Slot, 10*COM Port, GPIO Port
Network2*Intel 82583V 10/100/1000M
Storage2*SATA3.0, 1*MSATA, Support RAID 0 RAID 1(Optional 2*2.5inch hardware disk)
OSWin7/8/10, Linux and etc
ColorBlack or customise
MaterialAluminium Alloy
Power supplyDC 9-36V DC, Support reverse polarity protection
Temperature Range -10 to 60°C
Relative humidity0%~95%, non-condensing
Net weight3kgs
Gross weight3.05kgs
Product Dimension23.69×17.5×7.05cm
Warranty1 year warranty
CertificatesCE, FCC, RoHS

Fanless Industrial Mini computer SM706

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
