Features:
Made of stainless steel 304.
10 Points capacitive touch screen, 2mm Vandal-Proof glass, 7H hardness.
The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature -20 to 70ºC.
Surface brushed treatment, anti-scratch.
Fanless design.
High performance motherboard, 7x24 continuous operation.
Specification
| Model:SC15 | |
| PC | |
| CPU | Intel® Celeron J4125, Quad cores, Base 2.0 GHz, Turbo 2.7 GHz, fanless |
| Chipset | Intel® Gemini Lake |
| Memory | 8G DDR4 (Max 16G) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 256GB, 512GB, 1TB, 2TB |
| HDD: 500GB, 1TB, 2TB | |
| Graphics | Intel® UHD Graphics 600 |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 2×Realtek RTL8106E,10/100/1000M Ethernet controller, Gigabit network card |
| Wireless Network | WIFI + Bluetooth 4.0 |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |

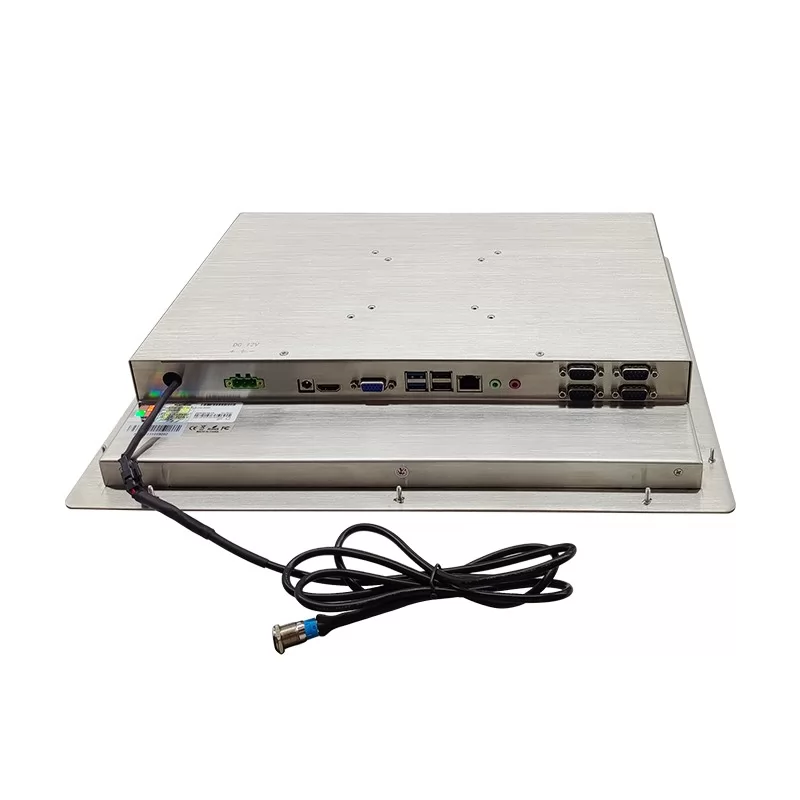

| I/O waterproof connectors | |
| USB | 2×USB2.0, 2×USB3.0 |
| COM | 4×RS232 |
| LAN | 1×RJ45 |
| Video Outputs | 1×VGA, 1×HDMI |
| Audio | 1 × 3.5mm Line-out, 1 × 3.5mm Line-in |
| Power input | 1× 12V DC jack, 1× 3-pins terminal block connector |
| Other | 1×Power on/off button |
| LCD panel | |
| Panel size | 15" |
| Display active area | 304.128(W)x228.096(H) mm / 11.974x8.98 in |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits (1000 nits, sunlight readable optional) |
| Brightness control | N/A |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Surface hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | ILITEK2510 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air bonding |
| Touch optional | 5 wire resistive touch , non touch, IR touch |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 15W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Stainless steel 304 |
| Finish | Surface wire drawing |
| Color | Silver |
| Mounting | VESA mount 75/100, Panel mount |
| IP grade | Front IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 5.5kg Gross weight 7kg |
| Product Dimension | 407×331×55mm |
| Packing info | 1pcs/ctn 53×17×46cm 7kg 2pcs/ctn 53×32×46cm 15kg |
| Accessories | Power adapter, power cord, embedded mounting screws |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
