Features:
Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector.
Industrial grade LCD screen, full viewing angle.
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H.
EETI touch control solution, can touch well with drop water.
Front build in 12MP pixel camera.
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃.
The touch screen and LCD screen are optical bond.
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
| Model:SC101W | |
| PC | |
| CPU | Intel® Core i5-7200U, 2 Cores, 4 Threads, Base 2.5 GHz, Turbo 3.1 GHz, Fanless |
| Chipset | Chipset Kabylake |
| Memory | 16G DDR4 |
| Hard Drive Capacity | 512G SSD |
| Hard Drive Optional | SSD: 64G,128GB, 256GB, 512GB, 1TB, 2TB |
| HDD: 500GB,1TB, 2TB, 4TB | |
| Graphics | Intel(R) HD Graphics 620(128M) |
| Audio | Audio Device Intel (R) display audio |
| Network | Realtek Pcie GbE |
| Wireless Network | Intel(R)WIFI Link 5300 |
| Preinstalled OS | Windows 10 Pro 64bit |
| External I/O Ports | |
| Power input | 1x IP67 DC12V |
| Other | 1x IP67 Power on/off button 1x IP67 WIFI |
| LCD panel | |
| Panel size | 10.1" |
| Display active area | 216.96(W)×135.6(H) mm / 8.542 in × 5.339 in |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 300 nits |
| Brightness control | N/A |
| Contrast ratio | 900:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| IC Touch controller | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc. |
| Touch options | ( 5 wire resistive touch, IR touch optional) |
| Touch bonding | Air bonding |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 45W |
| Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |
| Build in battery | |
| Battery capacity | 25000mAh |
| Enclosure | |
| Material | Stainless Steel 316 |
| Finish | Wire drawing |
| Color | Silver |

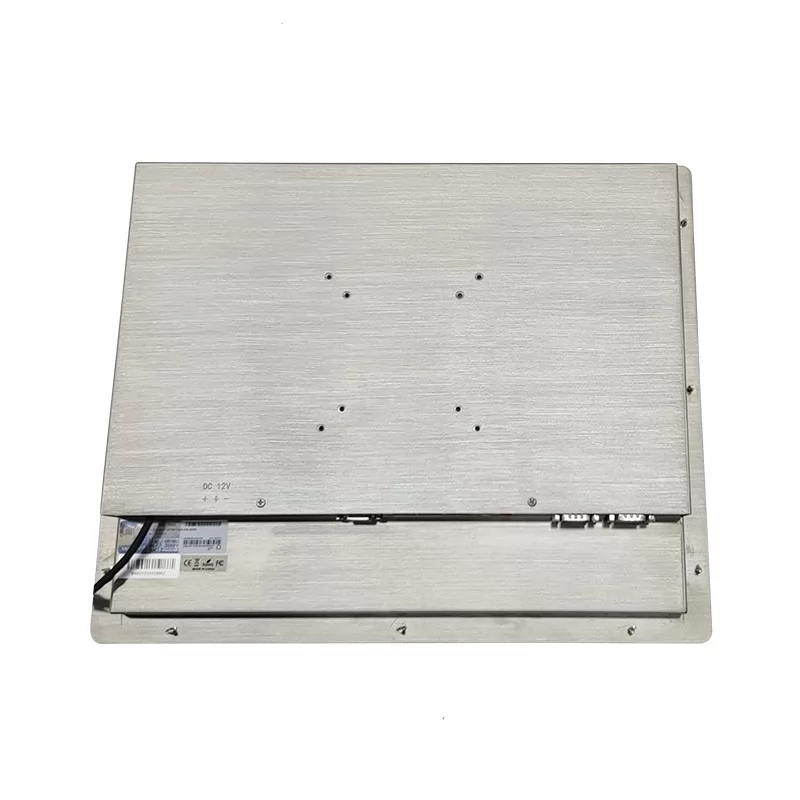

| Mounting | VESA mount 75/100mm |
| IP rating | Full panel IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 5.36 |

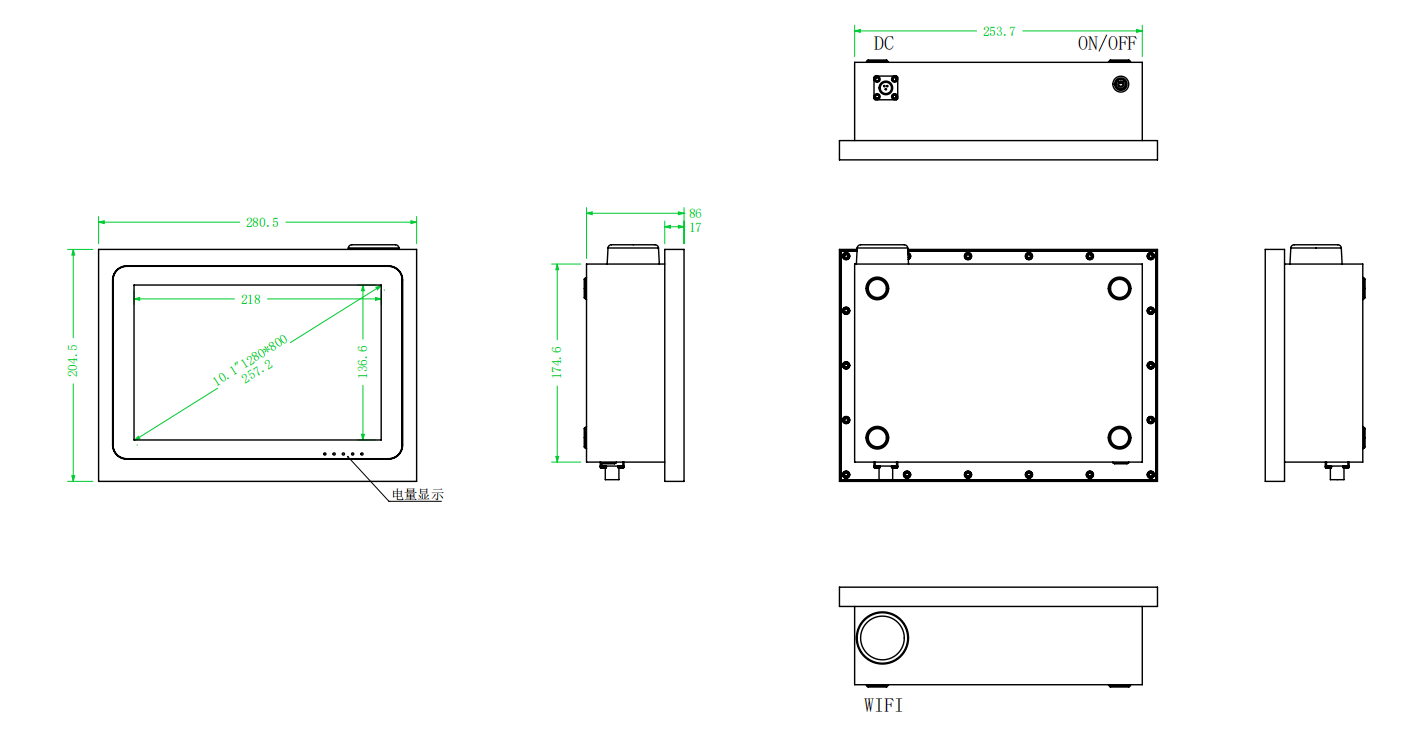

| Product dimension | 280.5×2104.5×86mm |
| Packing info | 1pcs/ctn 47×33×18cm 7kg 2pcs/ctn 48x34x32cm 15kg |
| Accessories | Waterproof power supply, waterproof plug |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
