Features:

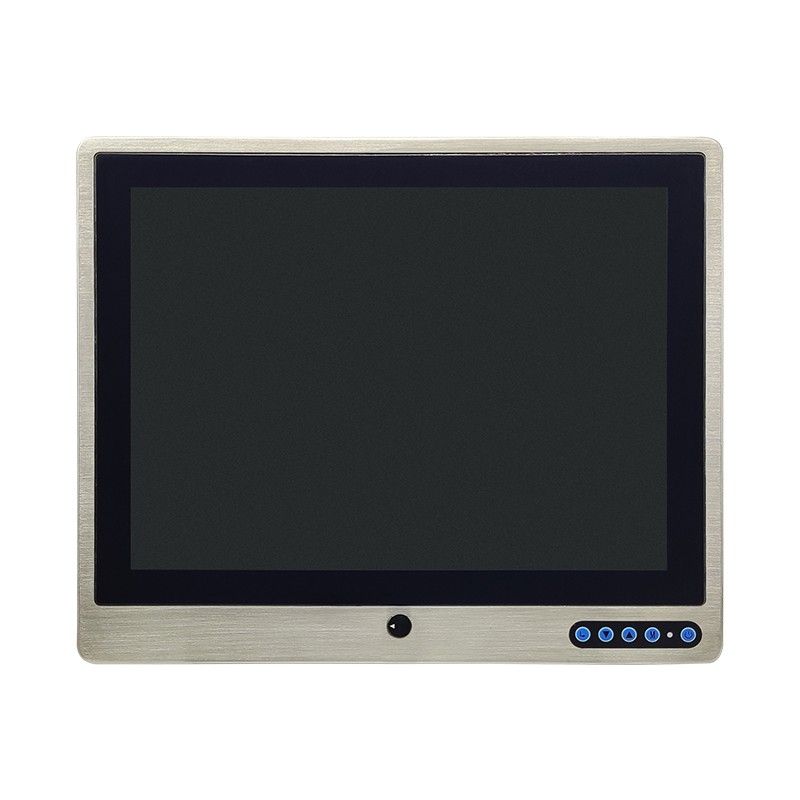

Stainless steel 304 enclosure, true flat panel design, round corner design.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof. Support touch with glove.
EETI waterproof solution.
High performance motherboard, fanless design, 7x24 continuous operation.
WIFI Antenna external cable(above 30cm).
Optical bonding.
Specification
| Model: SC07S | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (2G, 8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| I/O Interface | 4*USB+2*RS232+1*LAN+1*VGA/HDMI/DC/Power button |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 nits |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch, EETI waterproof solutions |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel case 304 |
| Color | Silver |
| VESA mounting | 75×75mm |
| IP-grade | Front IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 1.5 KGS |
| Gross weight | 2.2 KGS |
| Product Dimension | 20.607×14.16×4 cm |
| Packing size | 31*22*17.5 cm |
| Accessories | Power adapter, power cord, WIFI Antenna, screws, user manual and warranty card |
| Other | |
| Mounting | 1) Provide embedded screws |
| 2) Provide wall bracket for wall-mounting, VESA 75×75mm(Optional) | |
| 3) Provide stable metal holder to support the monitor(Optional) | |
| Certificates | CE, FCC, RoHS |
| Warranty | 1 year warranty |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
