Outdoor Embedded Touch Monitor

Home > Products > Touch Monitor > Outdoor Embedded Touch Monitor

  • Optical Boding 1000 nits LCD panel Stainless Steel Touch Screen
  • Optical Boding 1000 nits LCD panel Stainless Steel Touch Screen
  • Optical Boding 1000 nits LCD panel Stainless Steel Touch Screen
  • Optical Boding 1000 nits LCD panel Stainless Steel Touch Screen

Optical Boding 1000 nits LCD panel Stainless Steel Touch Screen

Quick Details:

Panel size7" - 21.5"Brightness1000nits
Touch TypeCapacitiveInterfaceVGA, DVI, HDMI
Colors16.7MPower SupplyDC 9V-36V
FeatureOptical bodingIP GradeFront IP65



Features

1. The whole machine is made of stainless steel 304;

2. Industrial-grade LCD screen, full viewing angle, 1000 brightness visible under sunlight, OSD to adjust brightness;

3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, Anti-Glare;

4. EETI waterproof solution, the touch function can work well with drop water on the screen;

5. Optical bonding;

6. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F);

9. Support wall mounting, embedded mounting, desk stand mounting etc.


Specification


Model:SL500S
LCD panel
Panel size7" - 21.5"
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Brightness controlLight sensor for auto dimming
Contrast ratio1000:1
BacklightWLED, 50K hours
Touch panel
Touchscreen TypeProjected Capacitive Touch (up to 10 points )
Surface Hardness7H
Surface treatmentAnti glare (chemical etching)
Luminousness≥85%
Touch controller ICEETI 80
Available touch driversWindows, Linux, Android, Mac, etc
Touch bondingOptical Bonding
Touch options(5 wires restive touch, IR touch optional)

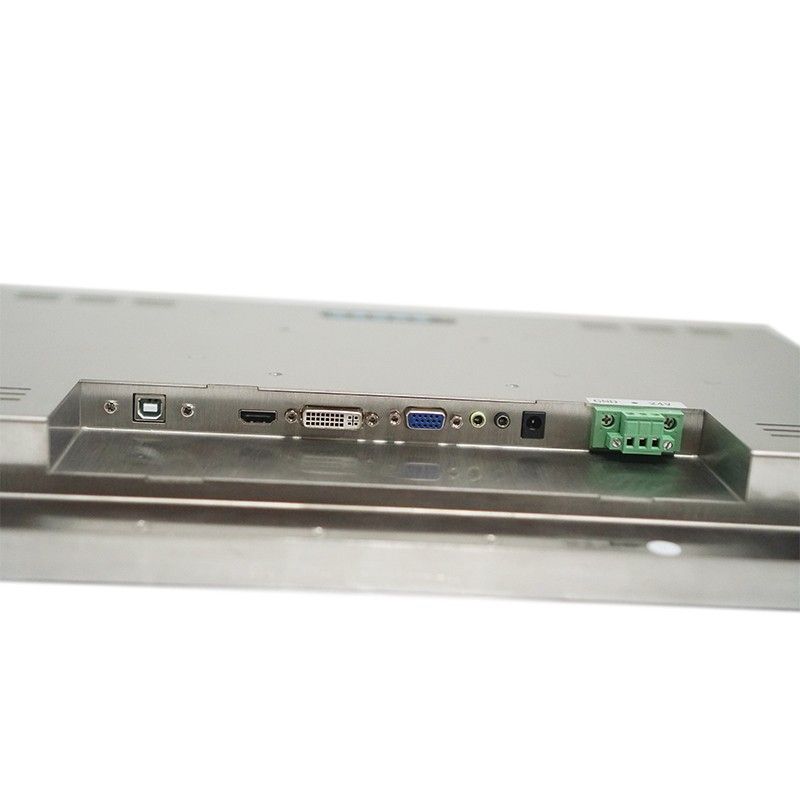

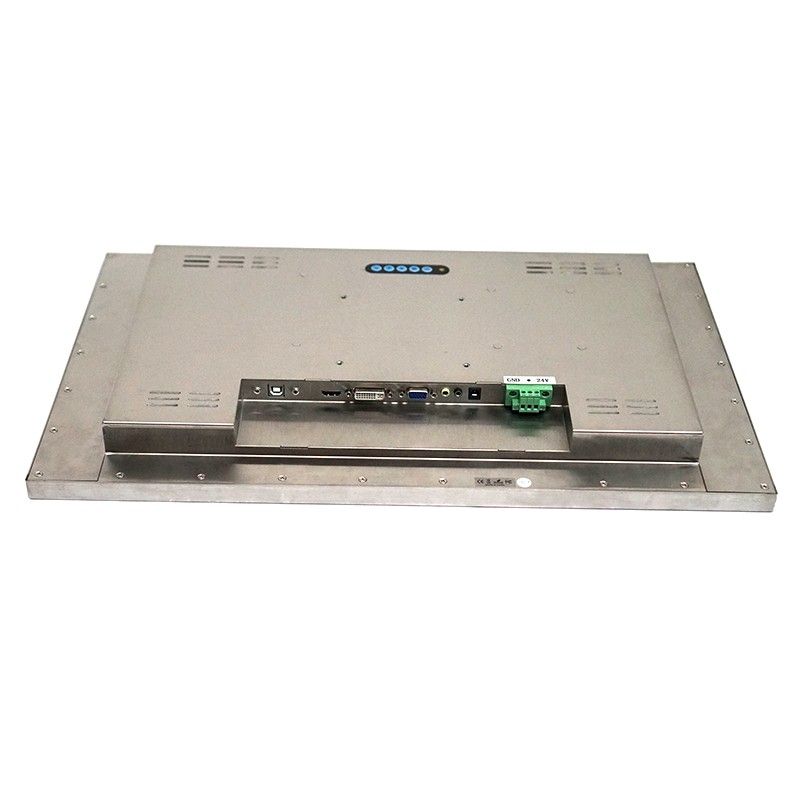

External I/O Ports
Video input1×VGA, 1×DVI, 1×HDMI
Audio in/out1×3.5mm Line-out, 1×3.5mm Line-in  (2 x 2W Speakers)
Touchscreen interface1×USB
Power connector1×Screwable 9~36V DC jack,1× 3-pins terminal block connector
Power Supply
Working voltageDC 9~36V
Power adapterAC 100 ~ 240V input and DC +12V@5A MAX output, 60W
OSD
Function Keys5 Keys: Power/Menu/Up/Down/Return
Menu FunctionsBrightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc.
Support languagesEnglish, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文,简体中文

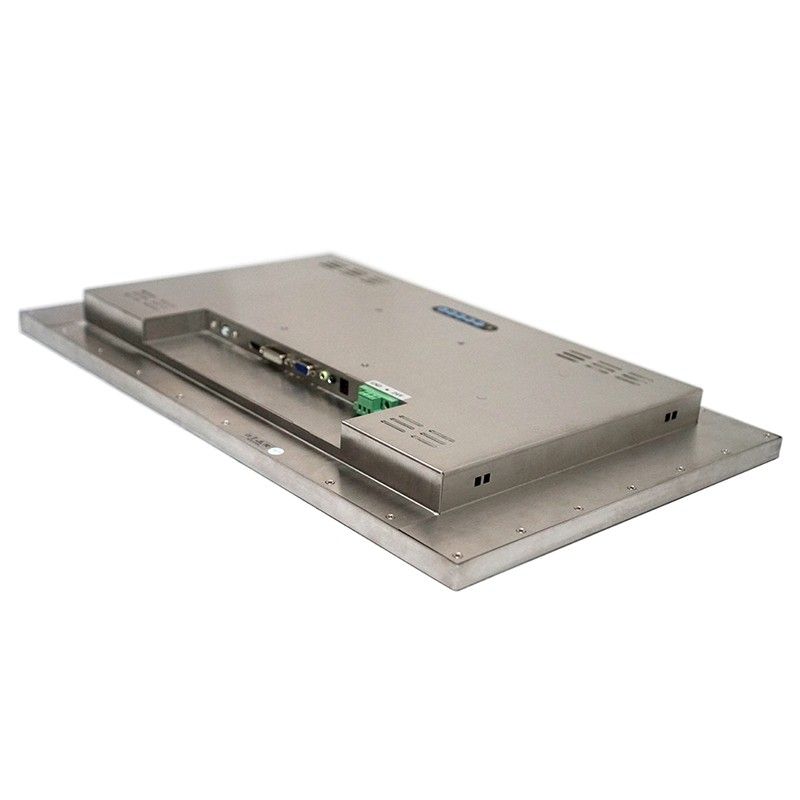

Enclosure
MaterialStainless steel 304
FinishWire drawing
ColorSilver
MountingVESA mount 75*75/100*100mm,  Panel mount
IP ratingFront panel IP65

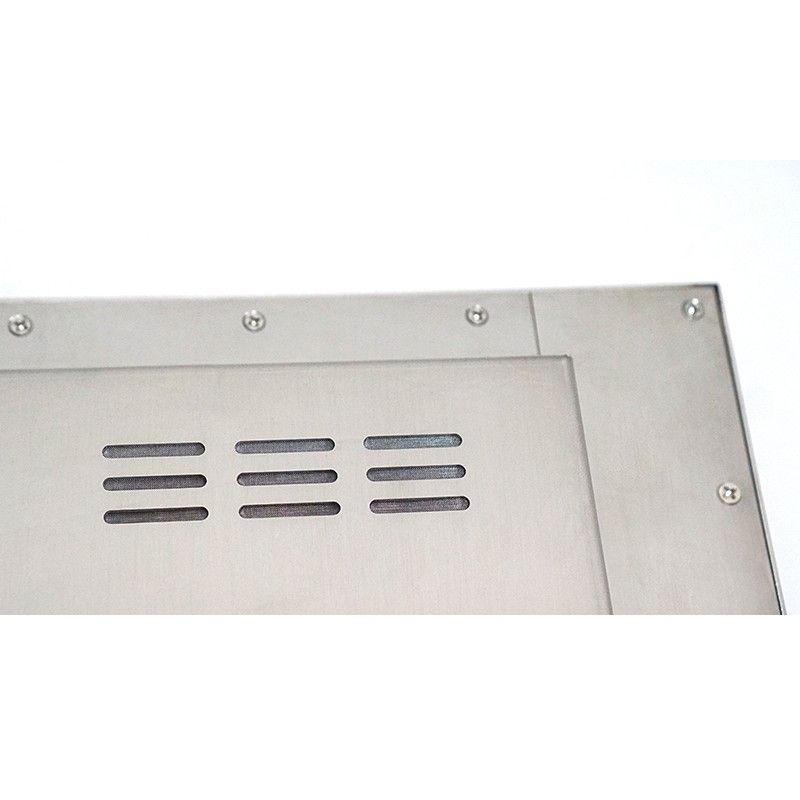

Cooling systemPassive - Fanless

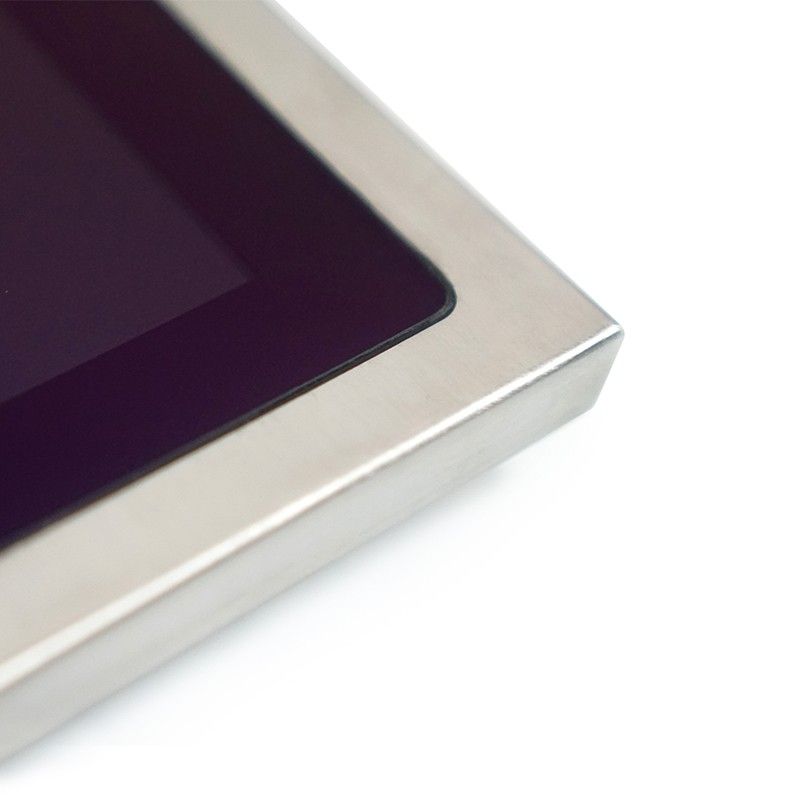

Design3mm bezel design(open frame design optional)
Operating Environment
Temperature RangeOperating: -20 °C ~ 70°C  (-4°F ~158°F), Storage: -30 °C~80°C  (-22°F ~176°F)
Relative humidityUp to 90% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
ShockGB2423.5
EMCClass B
Other

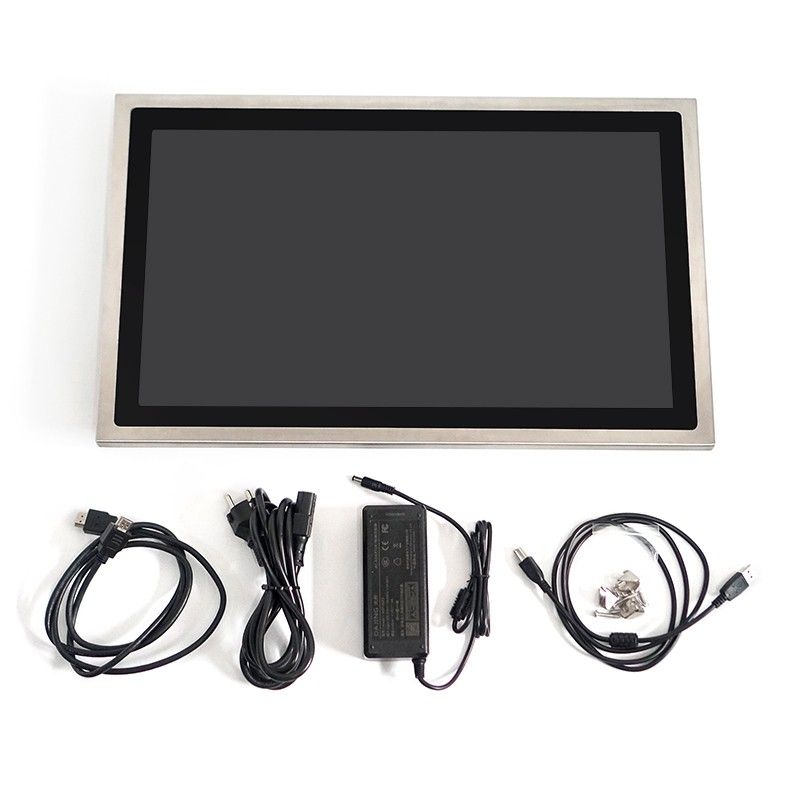

AccessoriesPower adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws
Warranty1 year warranty
CertificatesCE, FCC, RoHS




Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance


21.5" Capacitive touch monitor



21.5" Optical Boding 1000 nits LCD panel Stainless Steel Touch Screen

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
