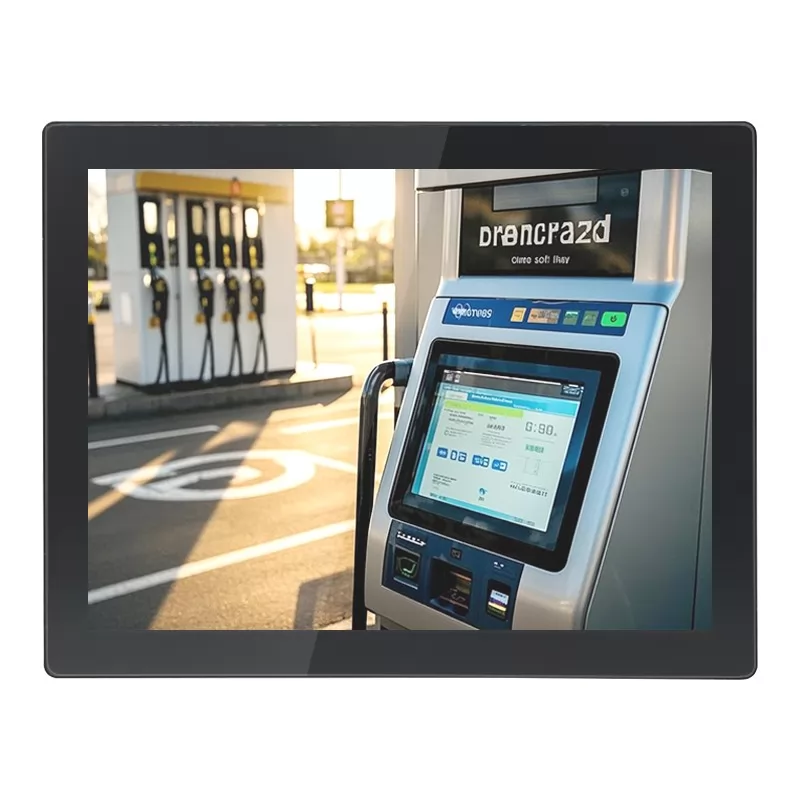

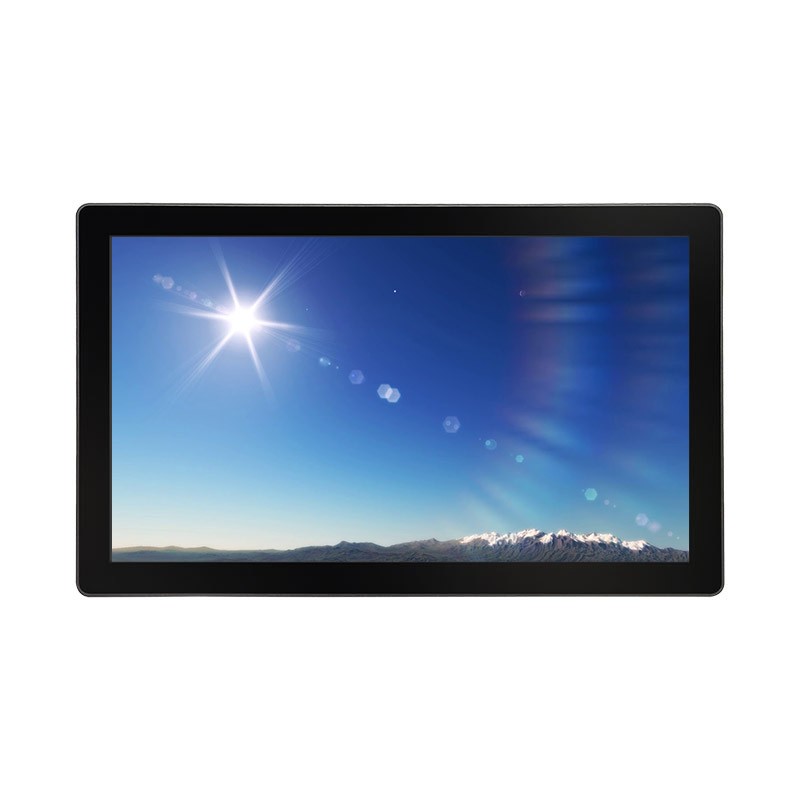

1000 nits Industrial Monitor Features

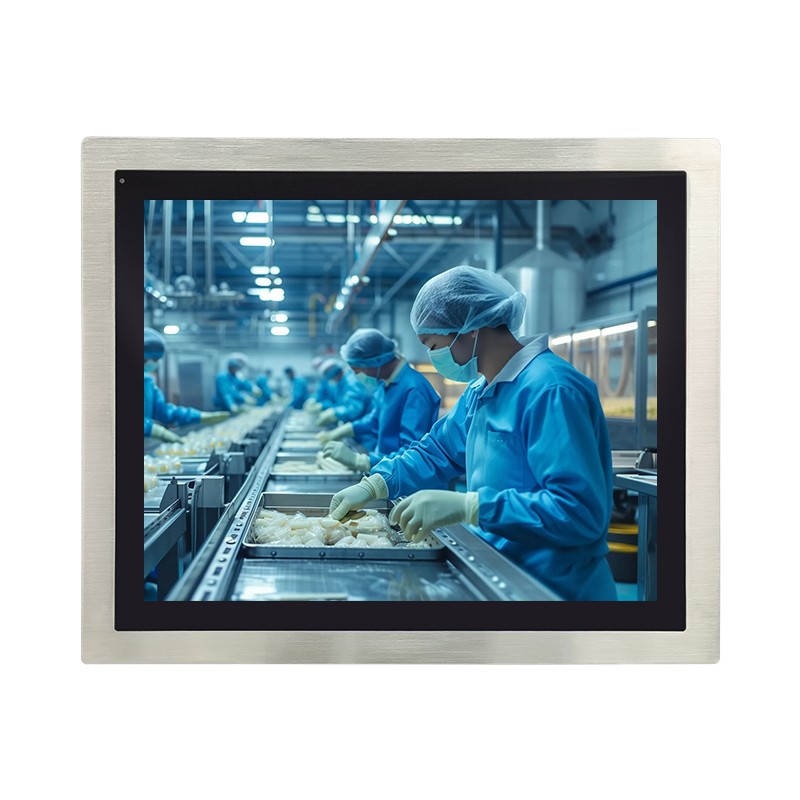

Seamless Design: The front bezel is made from brushed aluminum alloy, providing a sleek and seamless appearance.
High-Quality Display: Features an industrial LCD panel with a wide viewing angle and true color reproduction. With 1000 nits brightness, the screen is sunlight-readable and includes a light sensor for automatic dimming.
Durable Touch Panel: Equipped with a highly sensitive multi-point PCAP touch panel, covered by 2mm tempered glass for enhanced protection and fast response.
Advanced Performance: Powered by a high-performance mainboard, it supports continuous 7x24 operation for demanding industrial environments.
Wide Temperature Range: Operates reliably in temperatures from -20°C to +70°C and can be stored in temperatures ranging from -30°C to +80°C.
Flexible Mounting Options: Supports multiple mounting methods, including wall mounting, embedded mounting, and desk stand mounting.
Power Supply: Screwable DC jack, Support DC 9-36V.
Specification
| Model:SL200E | |
| LCD panel | |

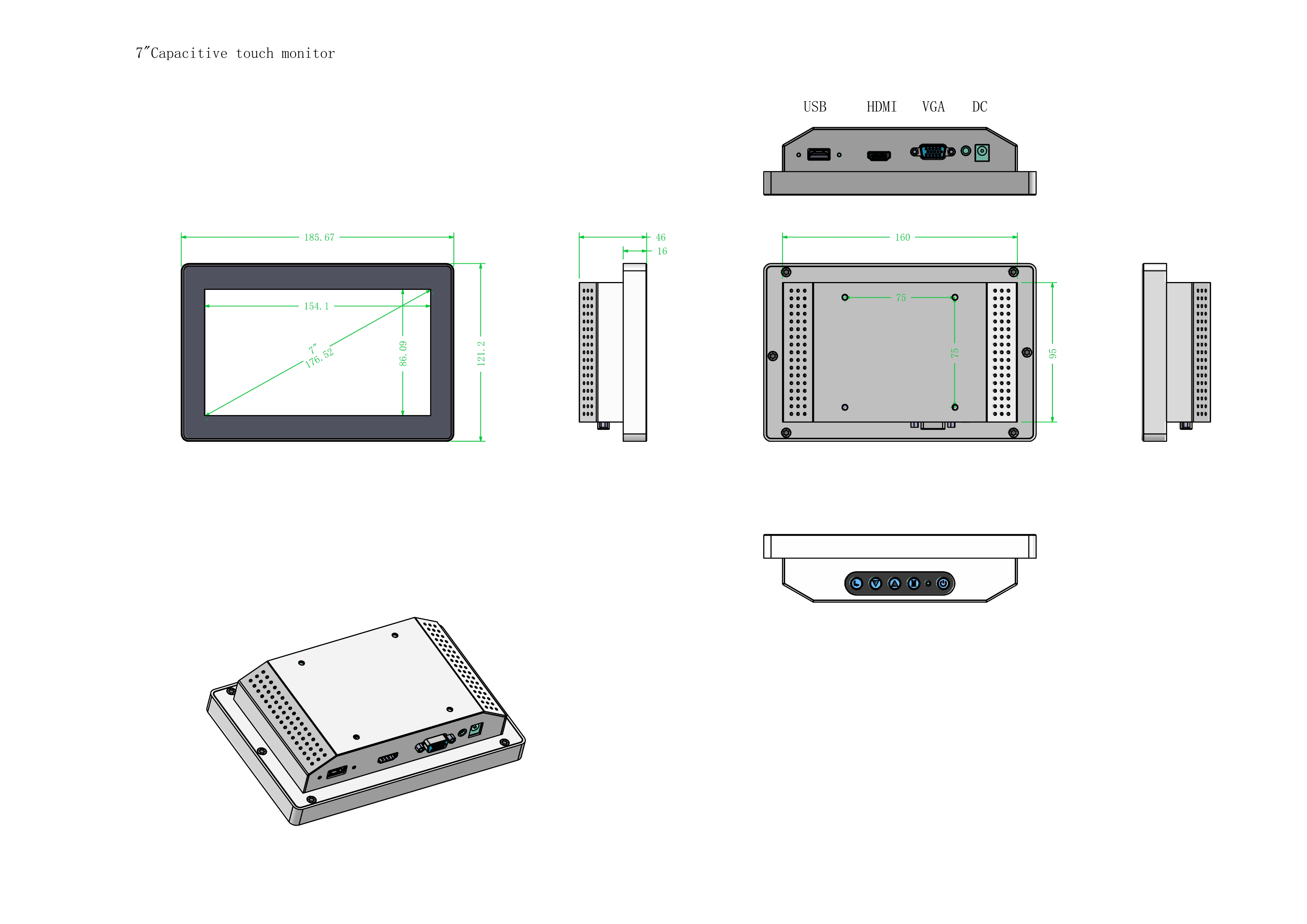

| Panel size | 7"-24" |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Brightness control | Optional Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D), 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M, 72% NTSC |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare (chemical etching) |
| Surface Hardness | 7H |
| Luminousness | 85% |
| Touch controller IC | EETI 80 |
Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding (Optical bonding optional) |

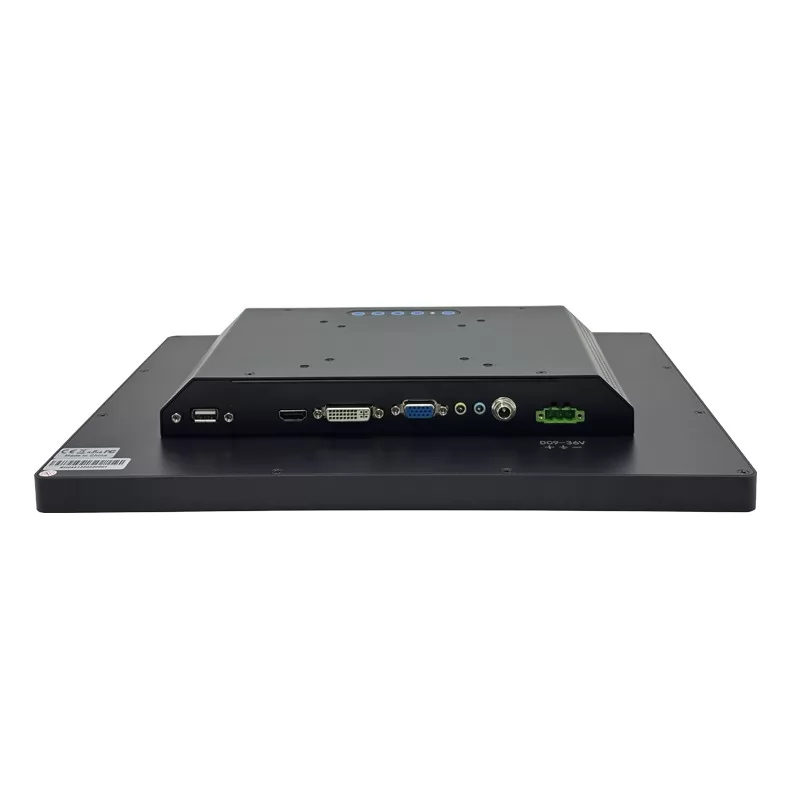

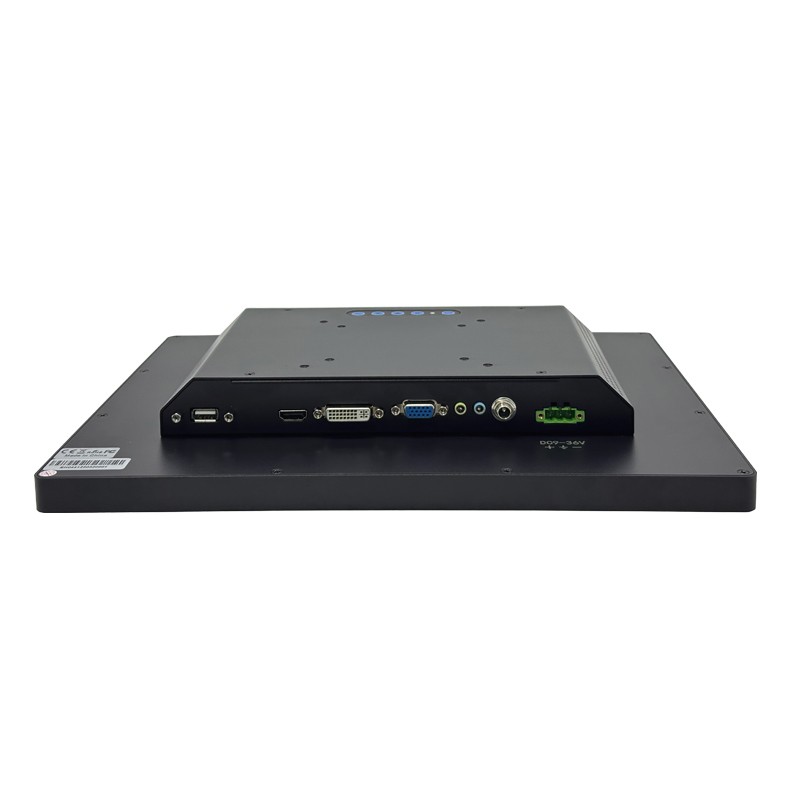

| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI-D |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어, 日本語, 繁體中文，简体中文 |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 9 ~ 36V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Color | Black, white, Silver, color can be customized |

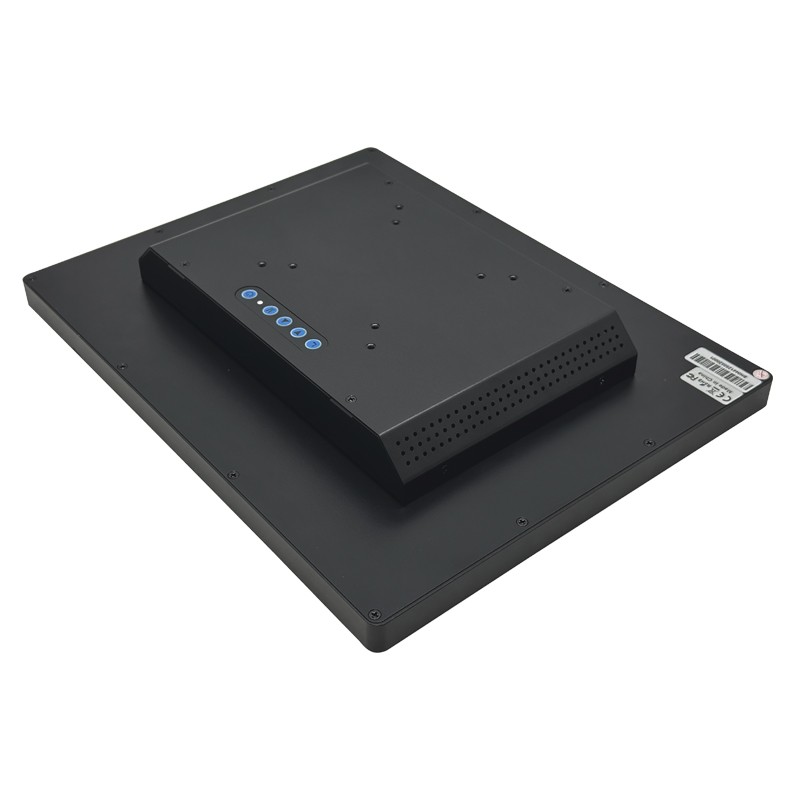

| VESA mounting | VESA mount 75*75/ 100*100mm, Panel mount |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to +70°C, storage: -30 to +80°C |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Other | |
| Mounting | wall mounting brackets (optional), desk stand holder (optional) |
| Accessories | Power adapter, power cord, USB touch cable, HDMI or VGA cable, embedded mounting screws |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

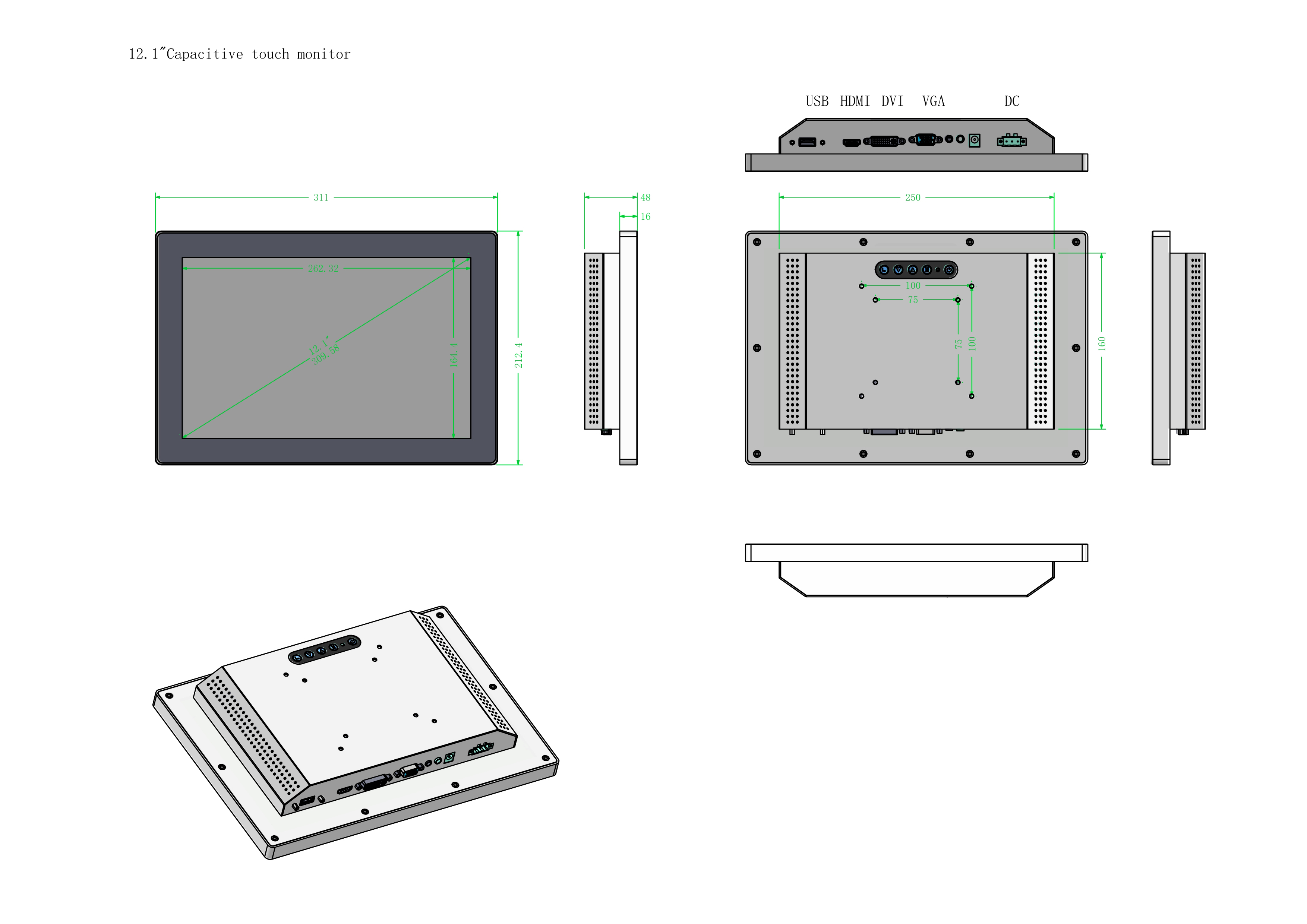

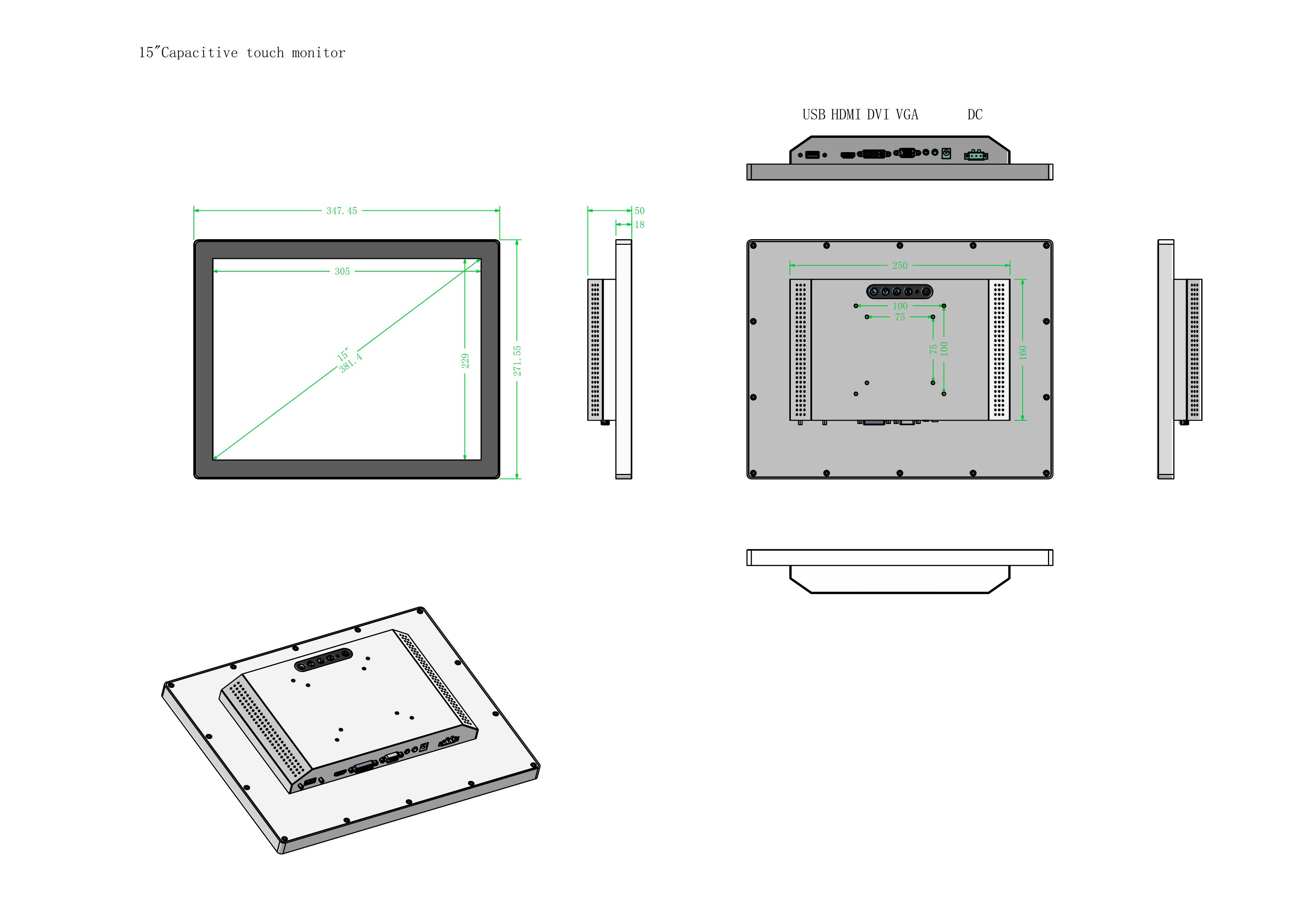

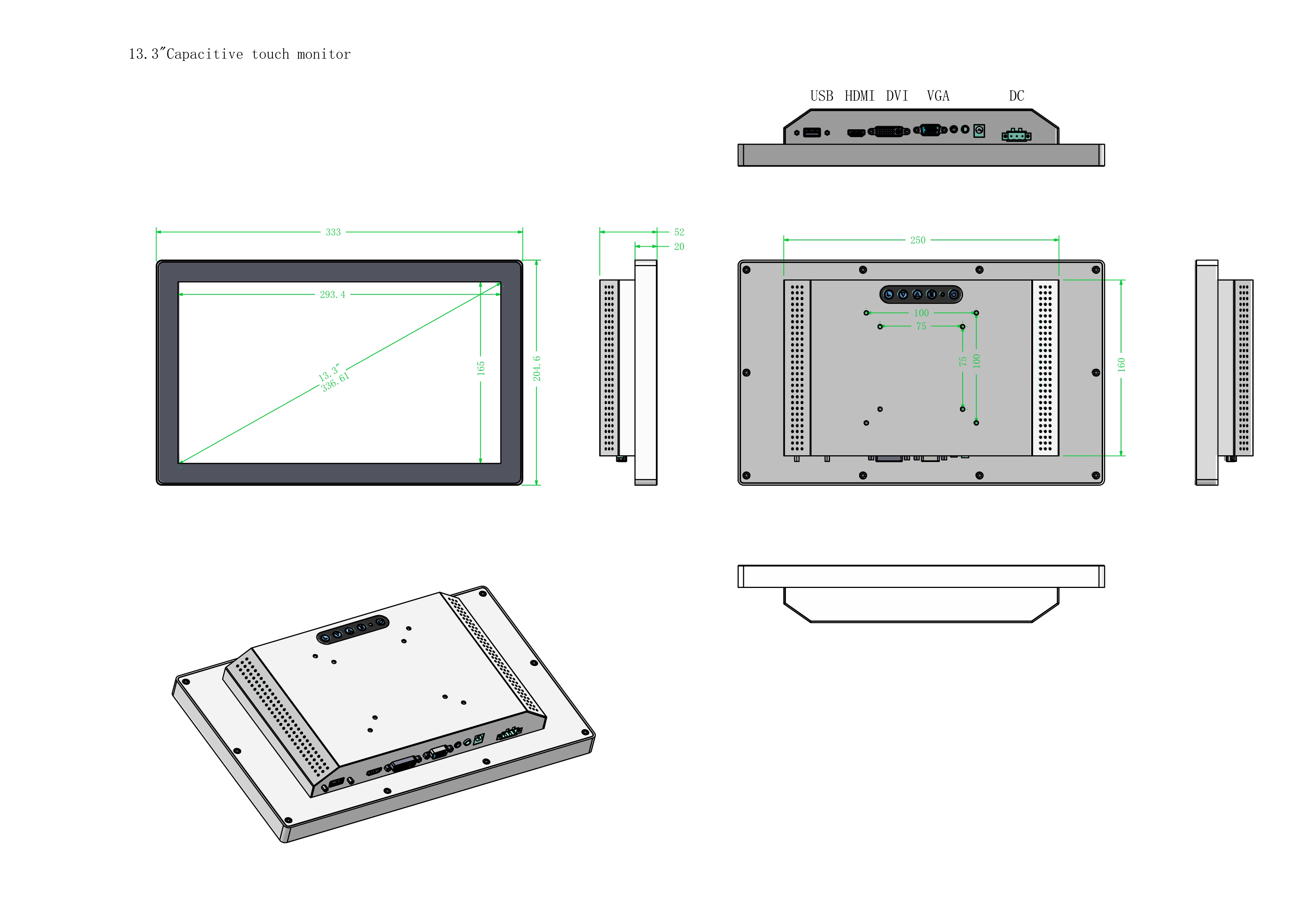

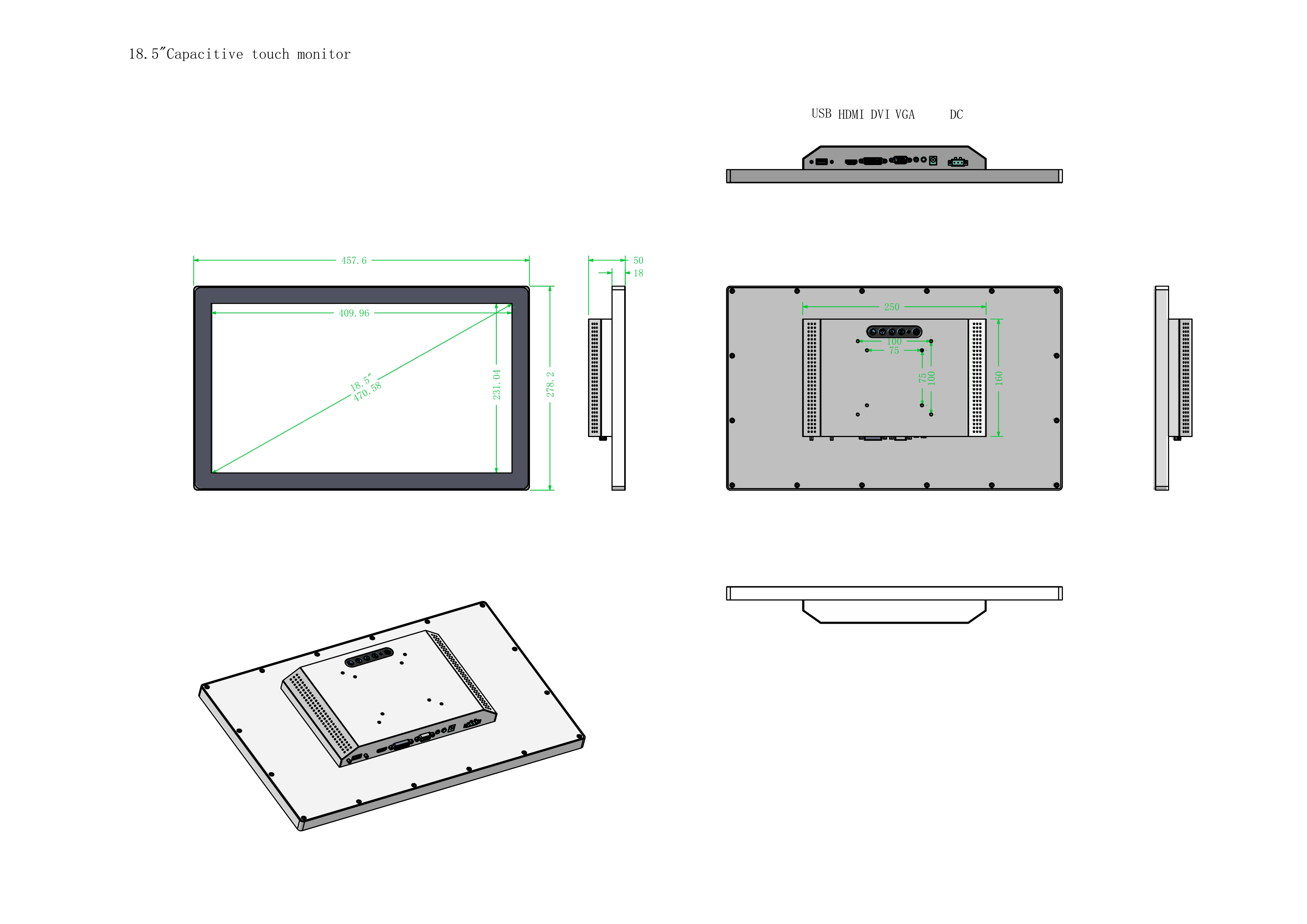

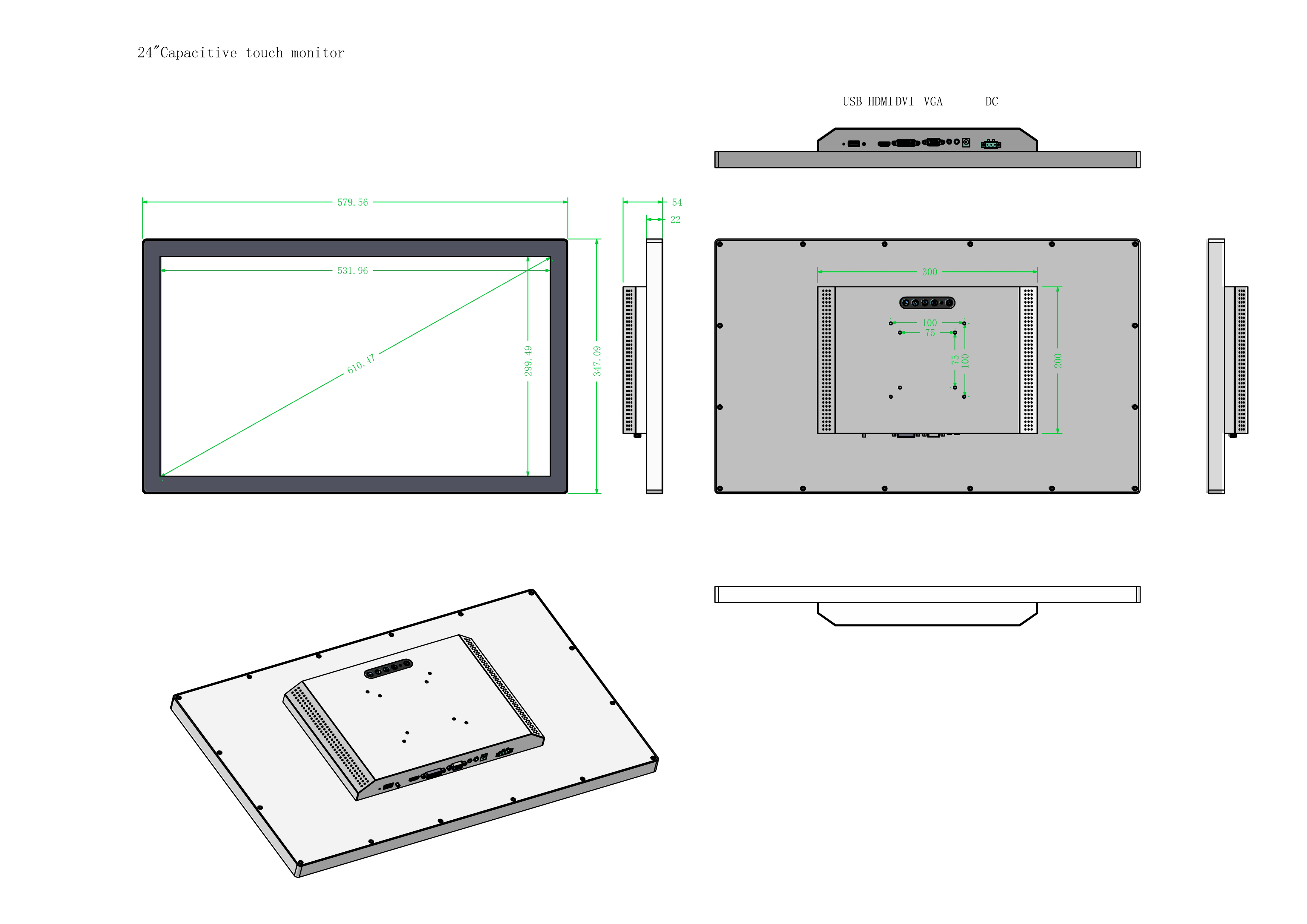

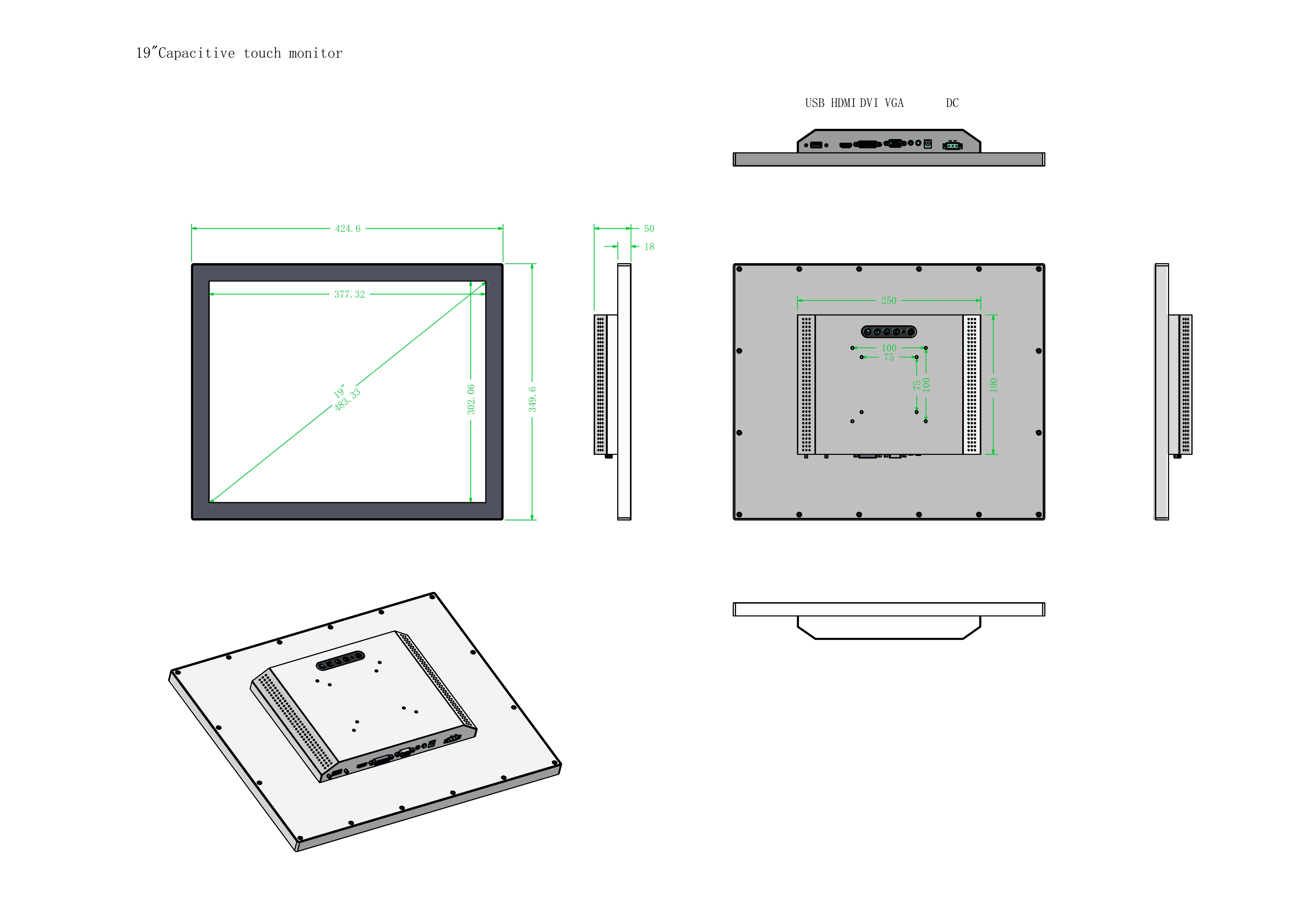

Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |

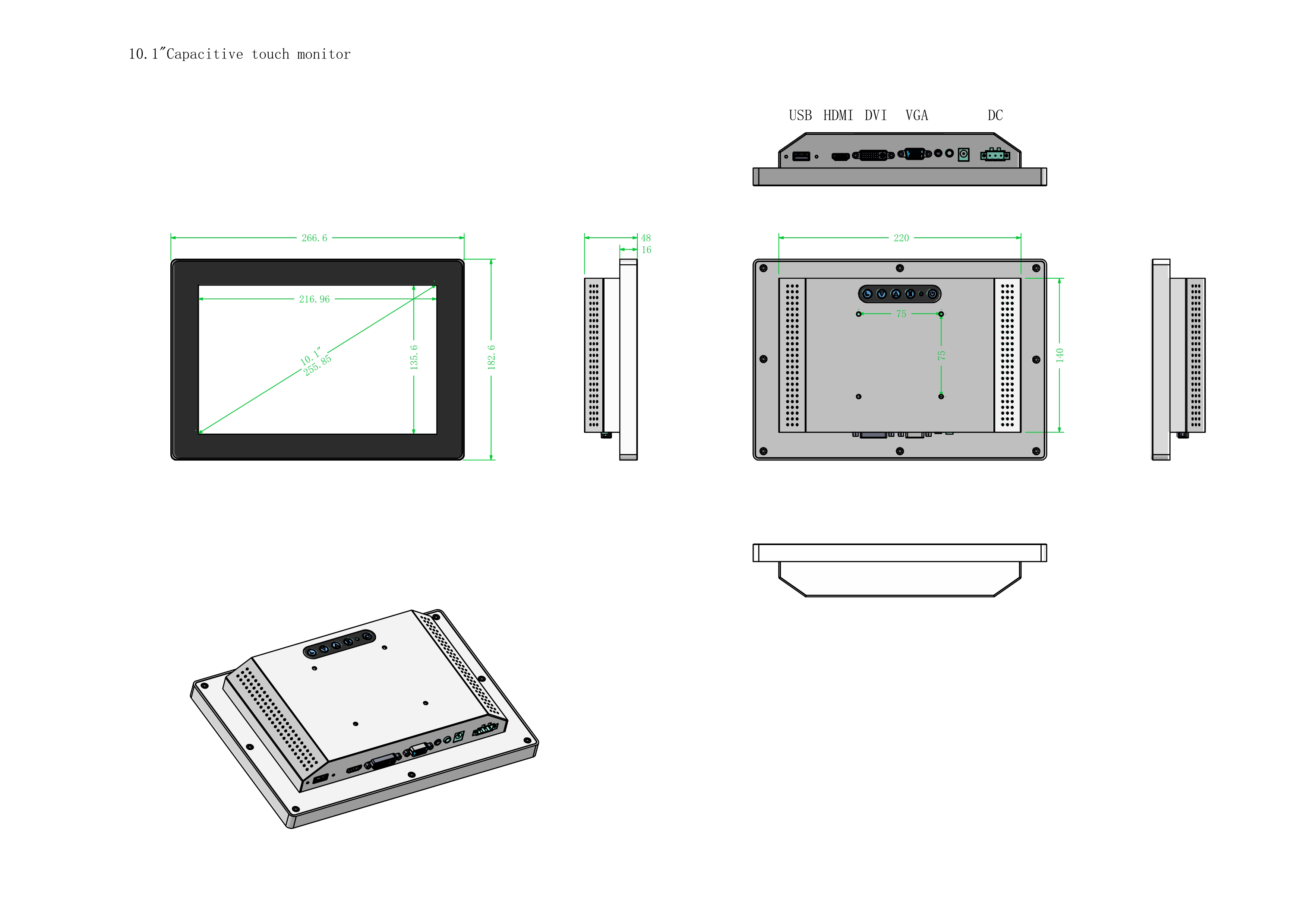

| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |

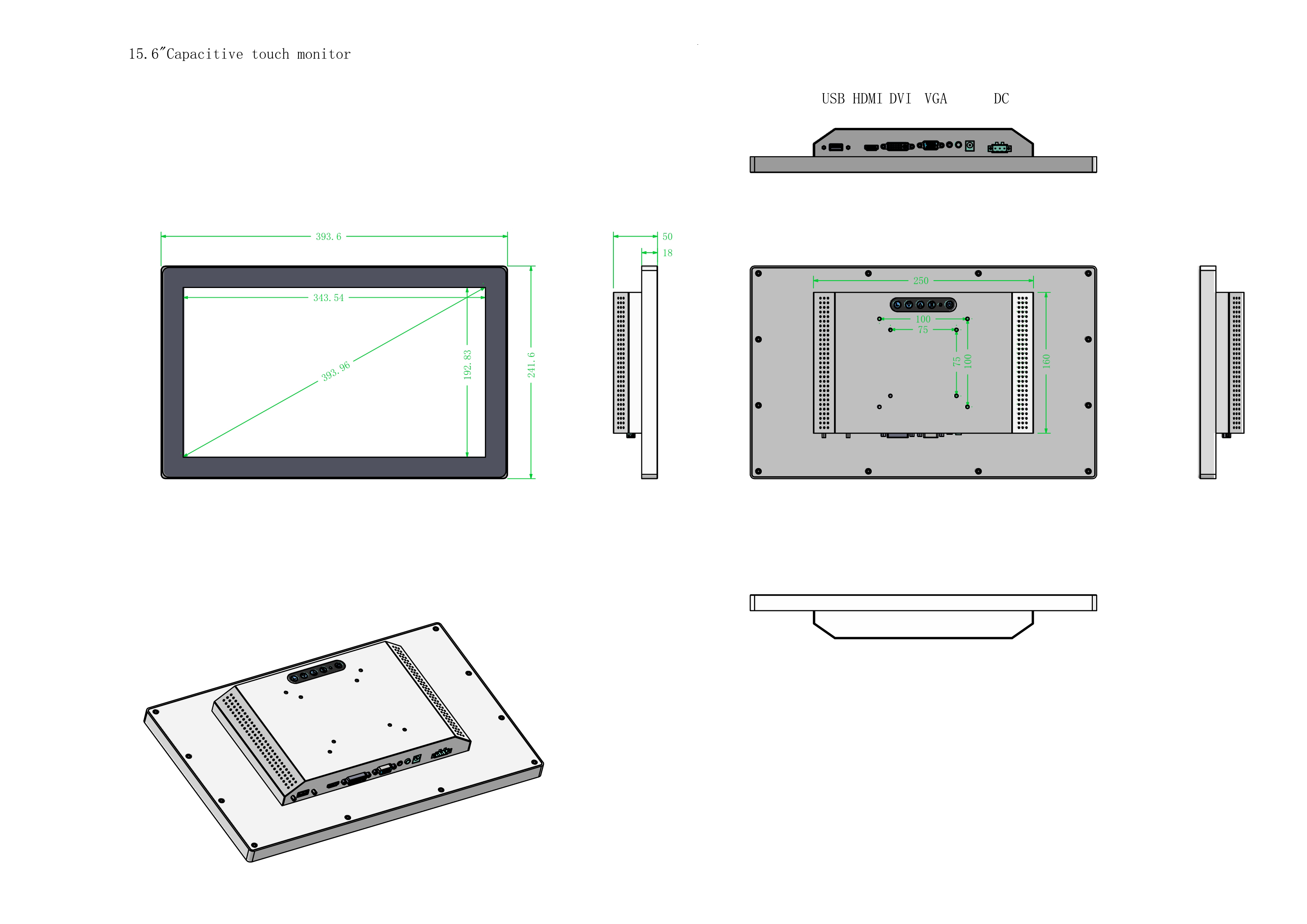

| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |

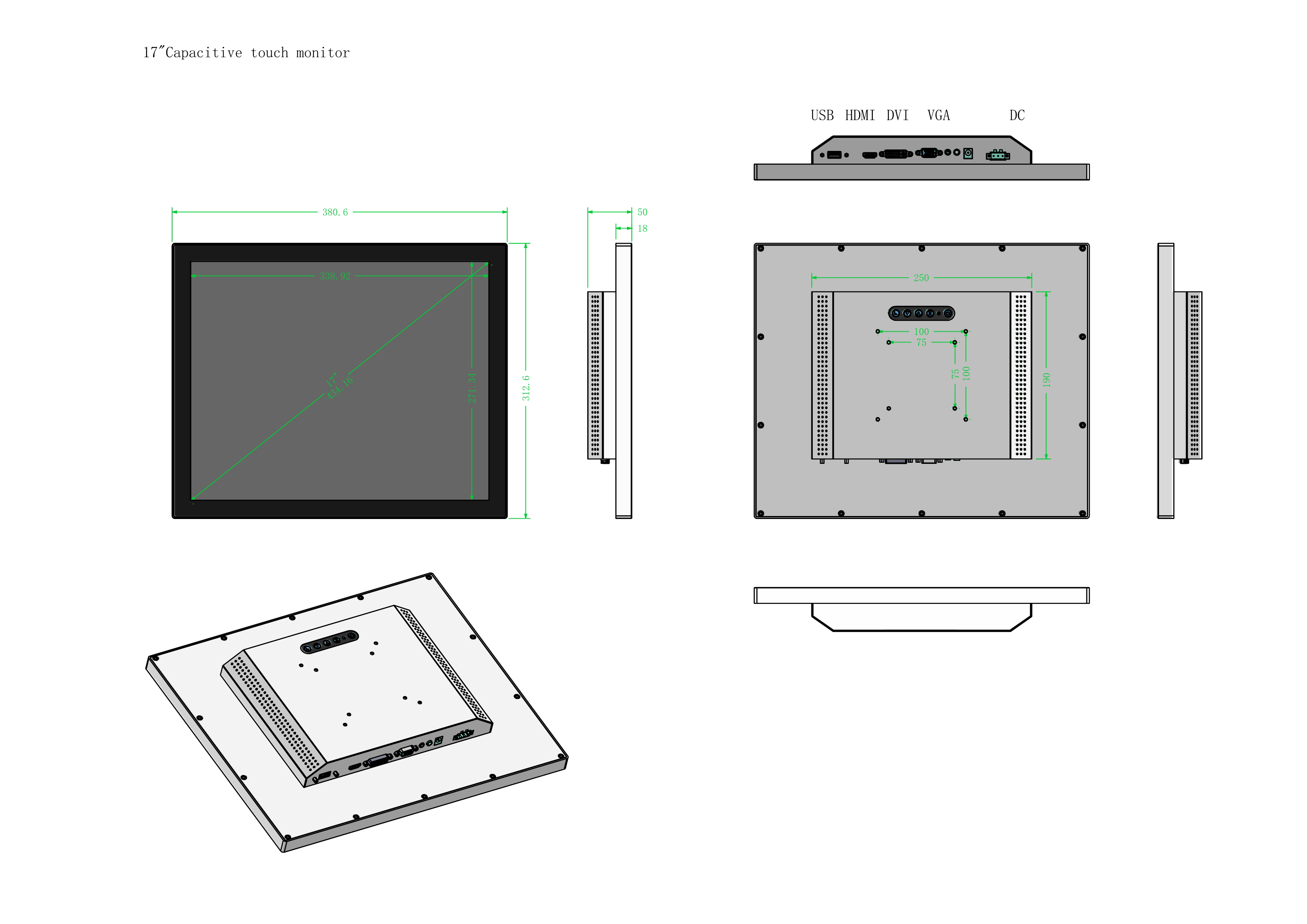

| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |

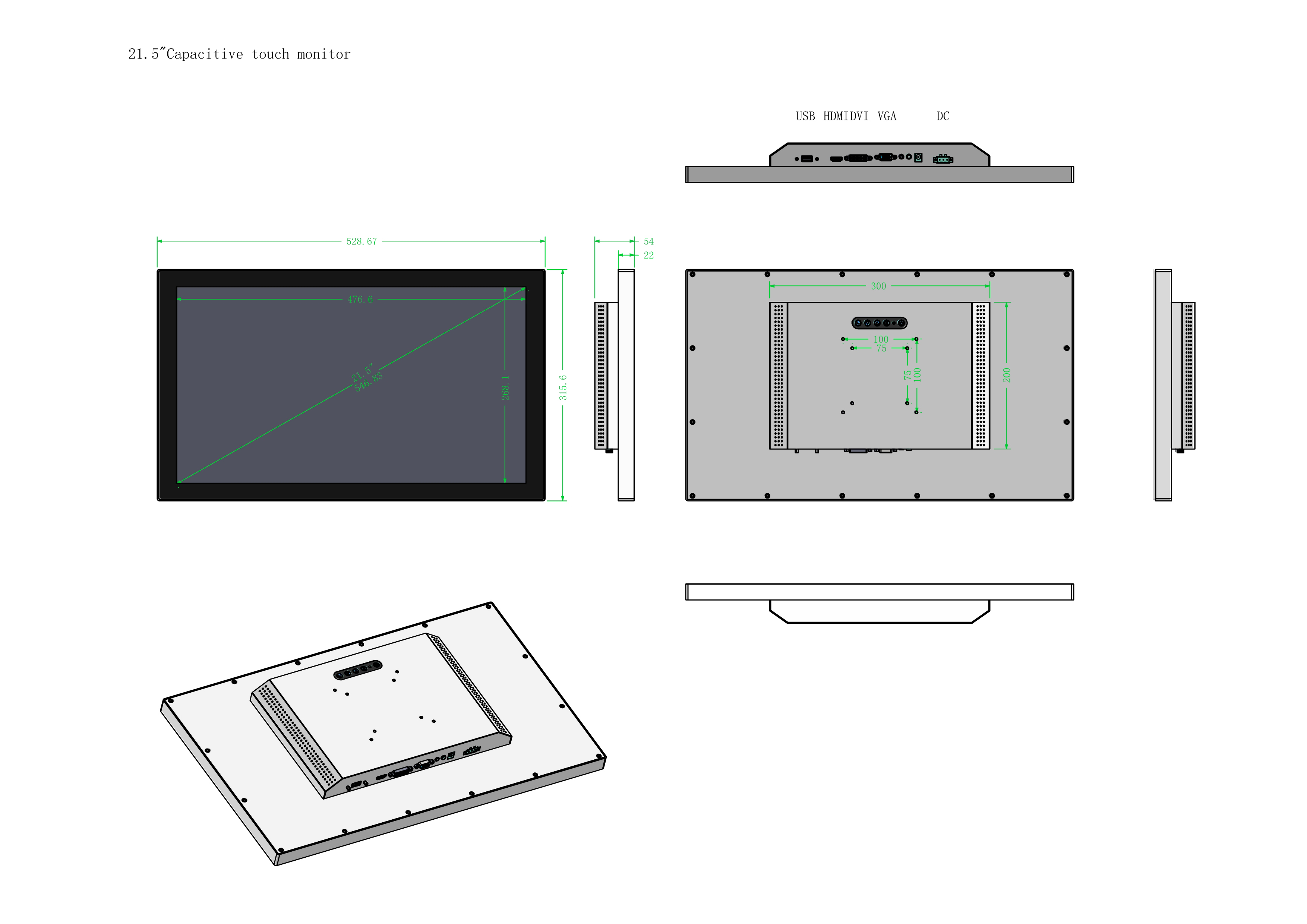

| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
Application Scenarios of 1000 Nits Industrial Monitor
Outdoor high brightness application
The main application of 1000 nits industrial monitor is in outdoor high brightness environment. They have super high brightness and can be clearly seen under direct sunlight, which is very suitable for the following scenarios:
Outdoor billboards and digital signage
Traffic lights and traffic information display
Outdoor industrial control and monitoring system
Industrial control and automation
1000 nits industrial monitor is also widely used in control and automation systems in industrial environments such as factory workshops and warehouses, such as:
Human-machine interaction interface of factory production line
Operation terminal of warehouse logistics management system
Control console of industrial robot and automation equipment
Harsh environment application
1000 nits industrial monitor adopts metal shell, which has excellent durability and high reliability. They are very suitable for harsh environments, such as:
Monitoring system of offshore oil platform
Control system of mine and tunnel engineering
Military equipment and military command system
1000 nits industrial monitor plays an important role in outdoor advertising, traffic information, industrial automation, harsh environment and other fields with its super high brightness, excellent visibility and reliability. Contact us to learn more about product performance and application details.
