Key Feature
1000 nits high brightness, sunlight readable.
With light sensor to adjust brightness automatically.
7×24 hours operation
Industrial grade lcd panel , wide working temperature -20°C~70°C.
Anti glare glass
Front IP65 waterproof
EETI touch controller, waterproof solution. touch can work well with drop water on the screen
Specification
| Model:SL07 | |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Dimming | light sensor, auto dimming |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/60°/70° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Surface Treatment | Anti-glare |
| Touch options | (4 wires resistive touch, IR touch optional) |

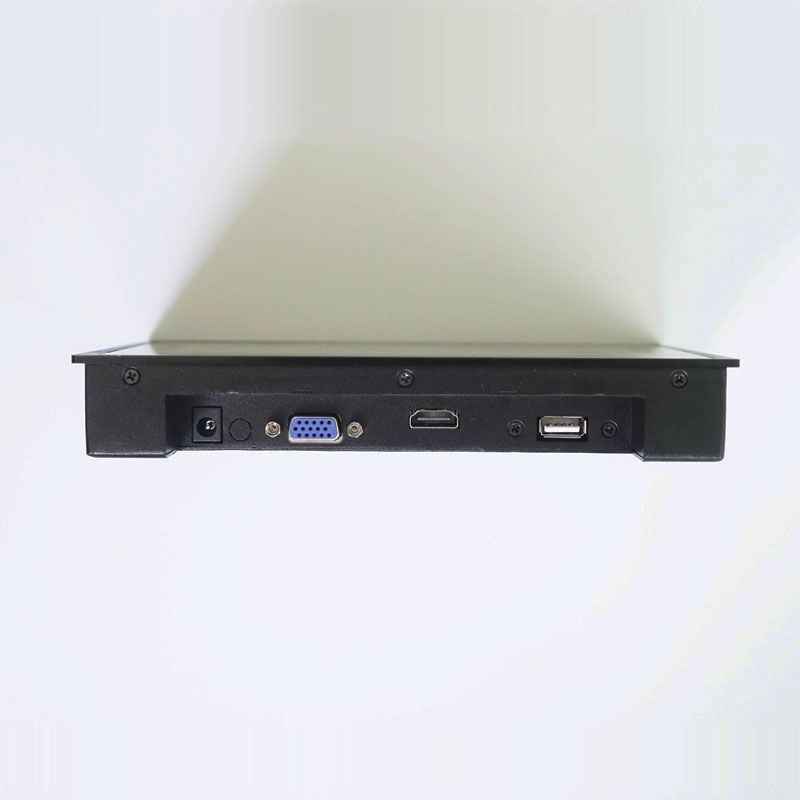

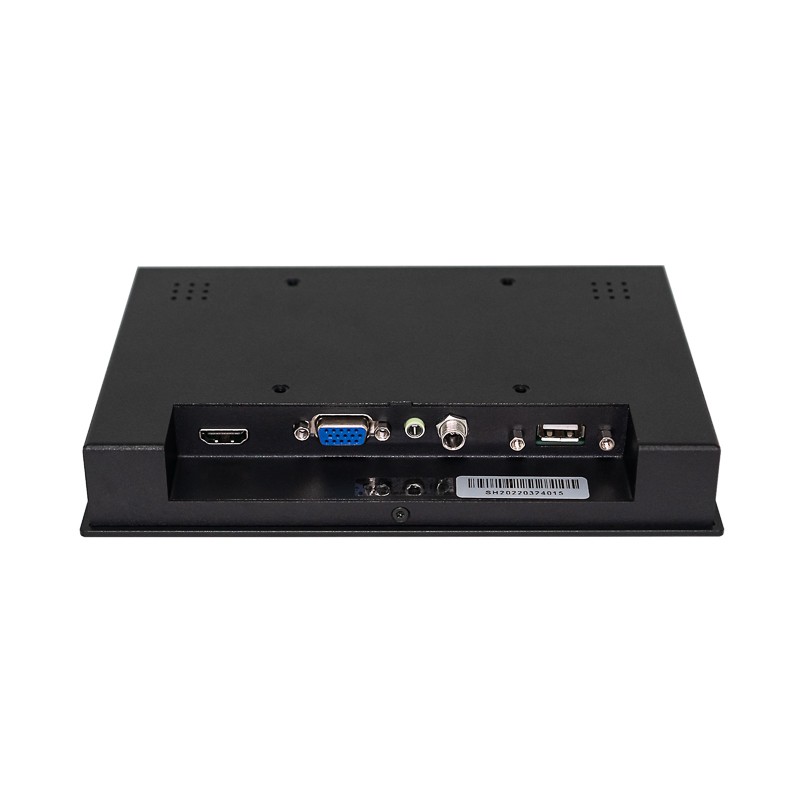

| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |
| Enclosure | |
| Appearance | Flat panel |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |

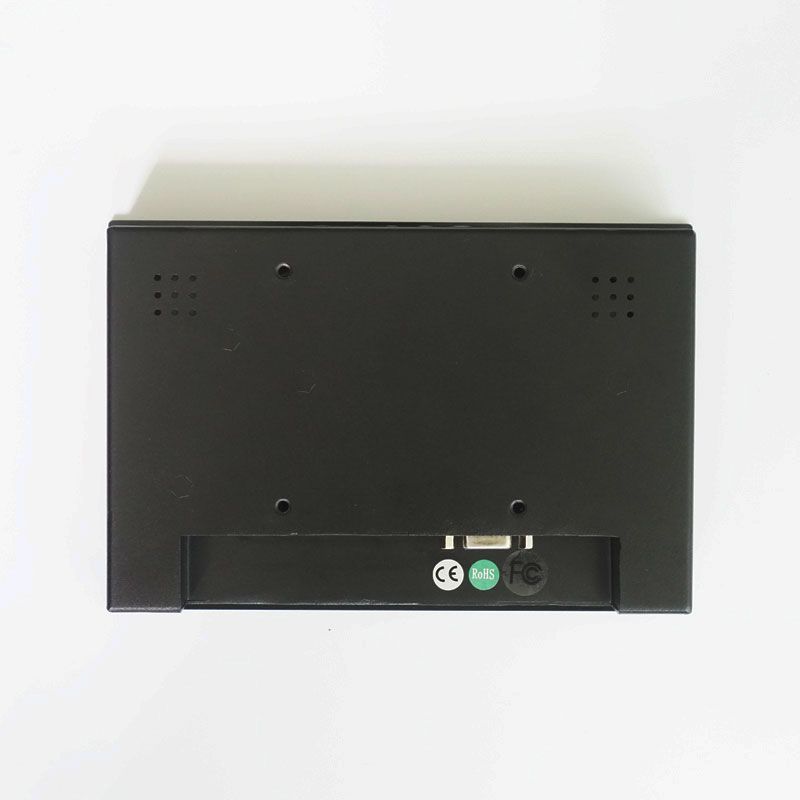

| VESA mounting | 75×75mm |
| IP Grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 1.85kg |
| Gross weight | 2.5kg |

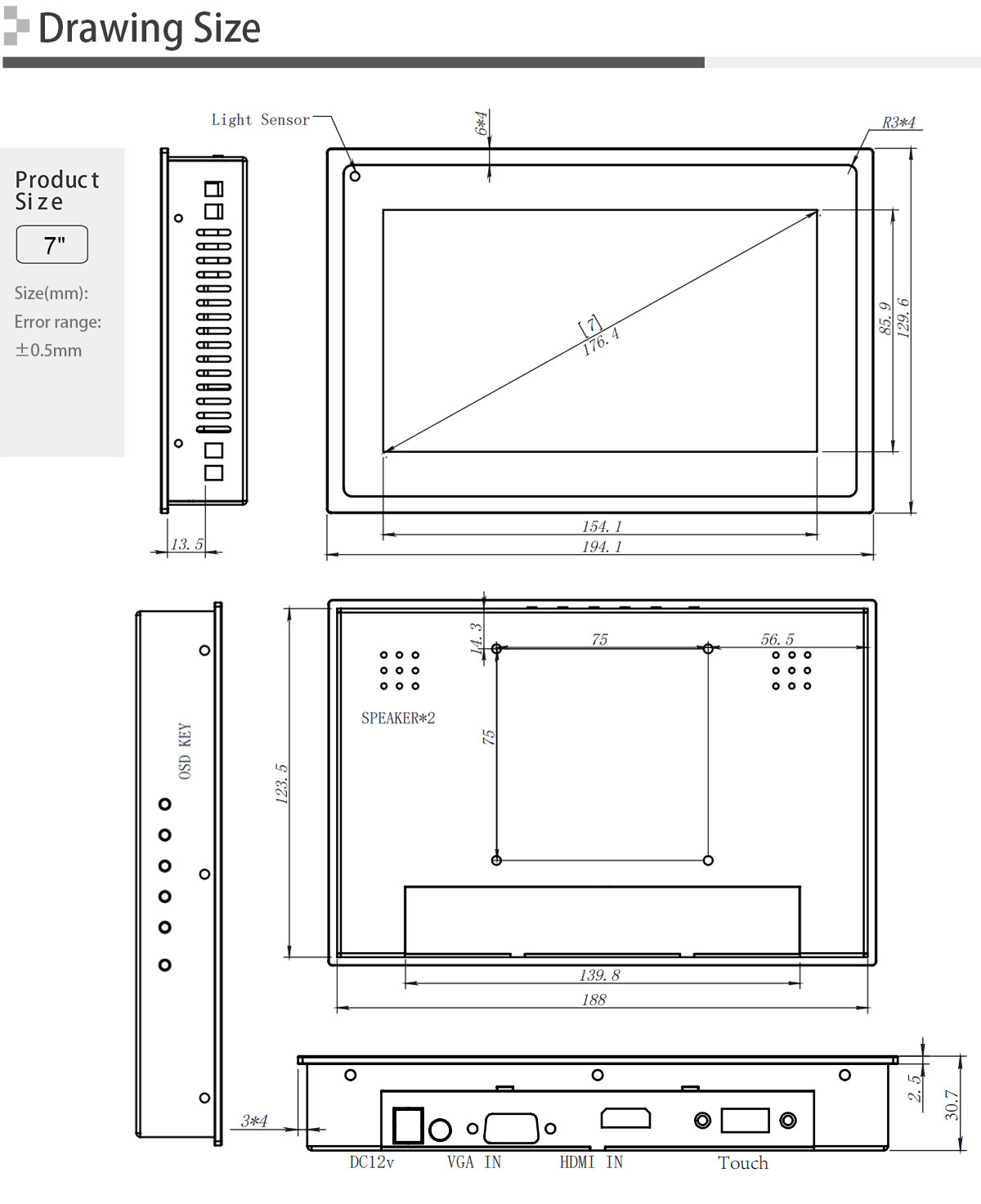

| Product Dimension | 19.1×12.8×3.4 cm |
| Packing size | 37×28×10 cm |

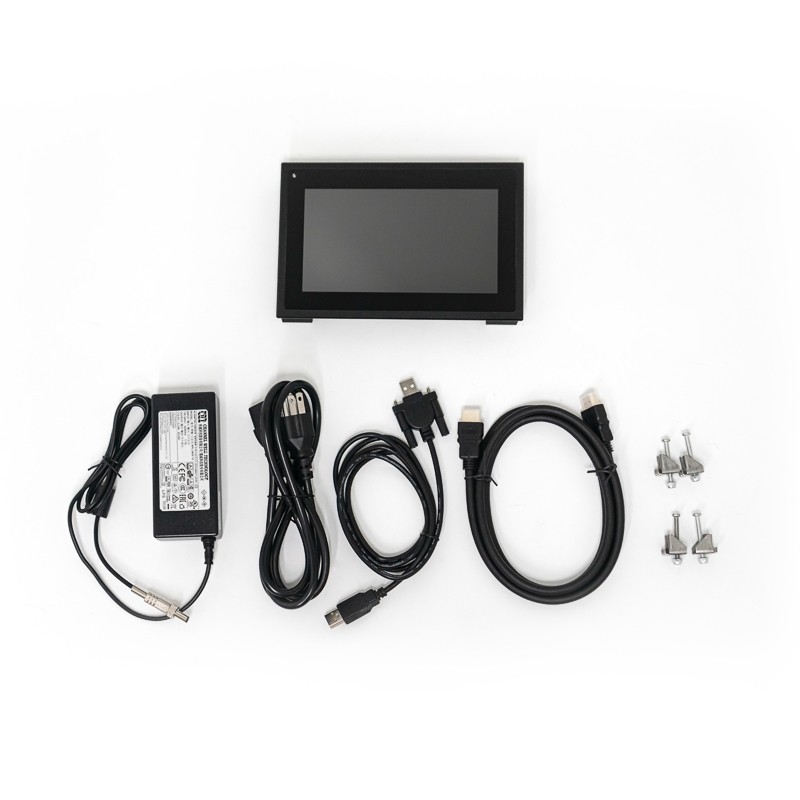

| Accessories | Power adapter, HDMI /VGAcable, USB touch cable |
| Other | |
| Mounting | Embedded screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |

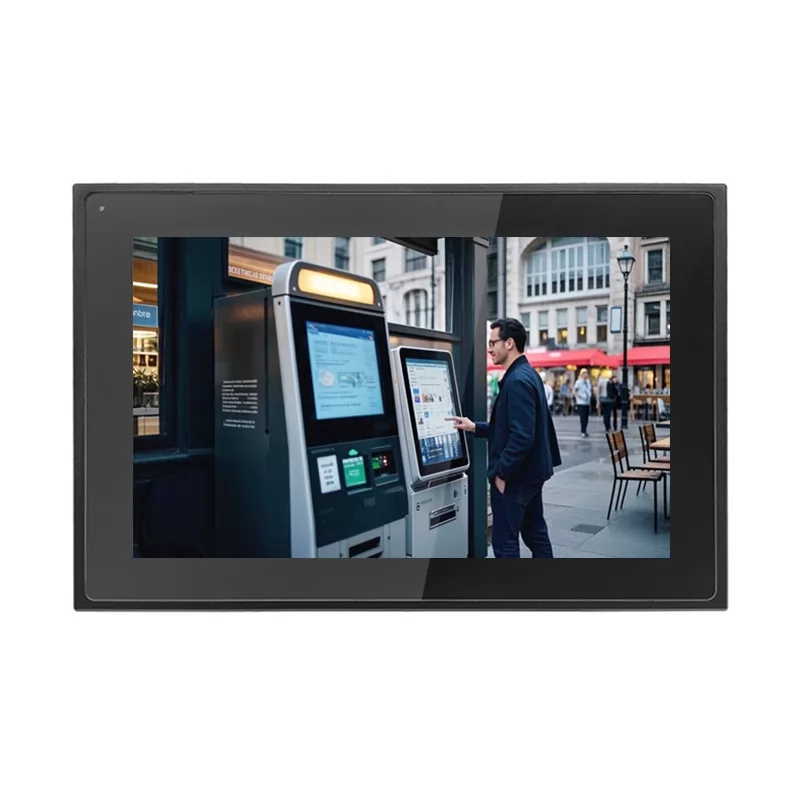

Anti reflection 7 inch high brightness monitor 1000 nits for EV kiosk
