Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable, with light sensor for auto dimming.
6. Anti glare.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL185 | |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 88°/88°/88°/88° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum alloy bezel+ High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 6.5 kg |
| Gross weight | 7.5 kg |
| Product Dimension | 48.48x30.54x3.8 cm |
| Packing size | 64x46x18 cm |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws open frame mounting kits |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |

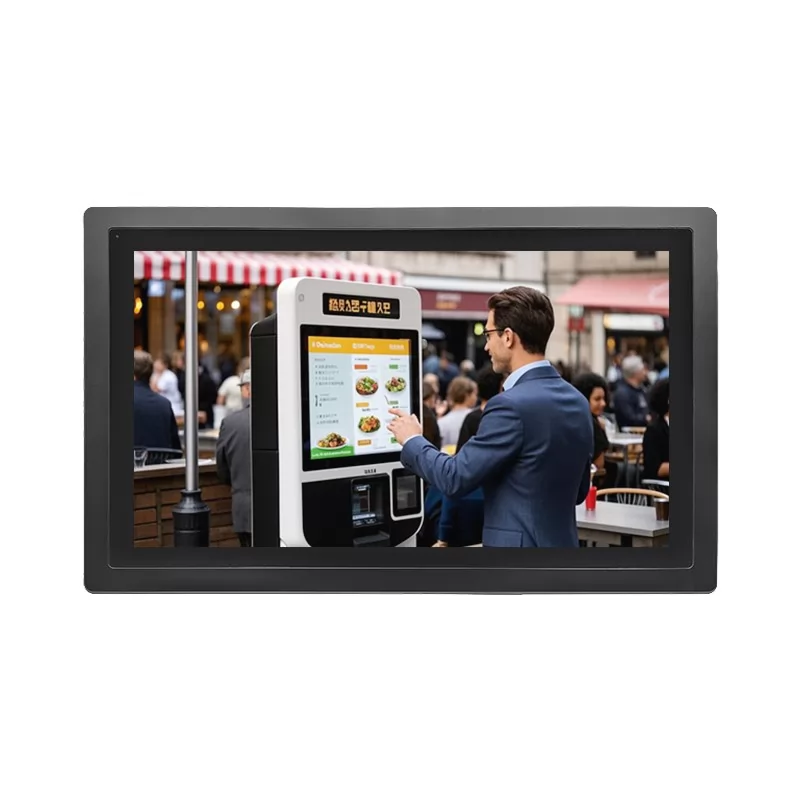

Anti Glare Embedded Monitor in Parking Management System
Anti glare embedded monitor is a touch display for outdoor parking management system.
High Brightness
The high brightness of 1000 nits makes the display clearly visible even in direct sunlight. This is very important for outdoor parking applications to ensure that the anti glare embedded monitor can provide clear images even in bright sunlight.
Anti Glare
The anti glare design of the anti glare embedded monitor can reduce specular reflections, making the screen easier to see in a variety of indoor lighting conditions, including bright indoor areas or near windows. This is critical for parking management systems, which need to provide clear visual feedback in a variety of environmental conditions.
Wide Temperature Range
The anti glare embedded monitor can operate in a temperature range of -20°C to 70°C. This enables it to operate stably in extreme temperature conditions in outdoor parking lots, whether it is cold winter or hot summer.
Embedded Design
3MM's embedded design allows the display to be seamlessly integrated with the housing of the parking management system. This not only provides an aesthetically pleasing appearance, but also protects the display from environmental factors.
Sihovision anti glare embedded monitor can provide clear visual feedback in various environmental conditions, ensuring the effective operation of your parking management system.
