Features:
Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with drop water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F).
Screwable DC jack and 3 pin Phoenix Terminal, Support DC 9V-36V.
Optical bonding optional, Prevent condensation and fogging inside the screen and increase transmittance.
Specification:
| Model:SL300D | |
| Panel size | 10.1"-24" |
| Resolution | 1024*768, 1280*800, 1280*1024, 1366*768, 1440*900, 1920*1080 |
| Aspect ratio | 4:3, 5:4, 16:9, 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D), 85°/85°/85°/85° (R/L/U/D), 89°/89°/89°/89° (R/L/U/D) |
| Backlight life time | ≥50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical Bonding |
| Signal Ports | |

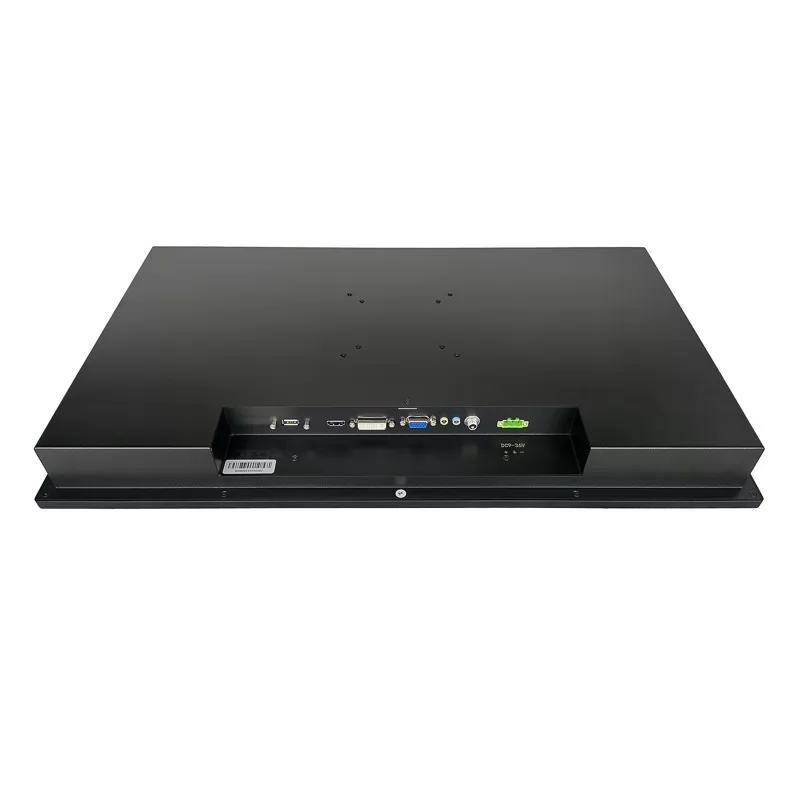

| Video input | 1×VGA, 1×DVI, 1×HDMI |
| Touchscreen interface | 1×USB |
| Audio in/out | 1×3.5mm Line-out, 1×3.5mm Line-in (2 x 2W Speakers) |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC DC 9~36V |
| Enclosure | |

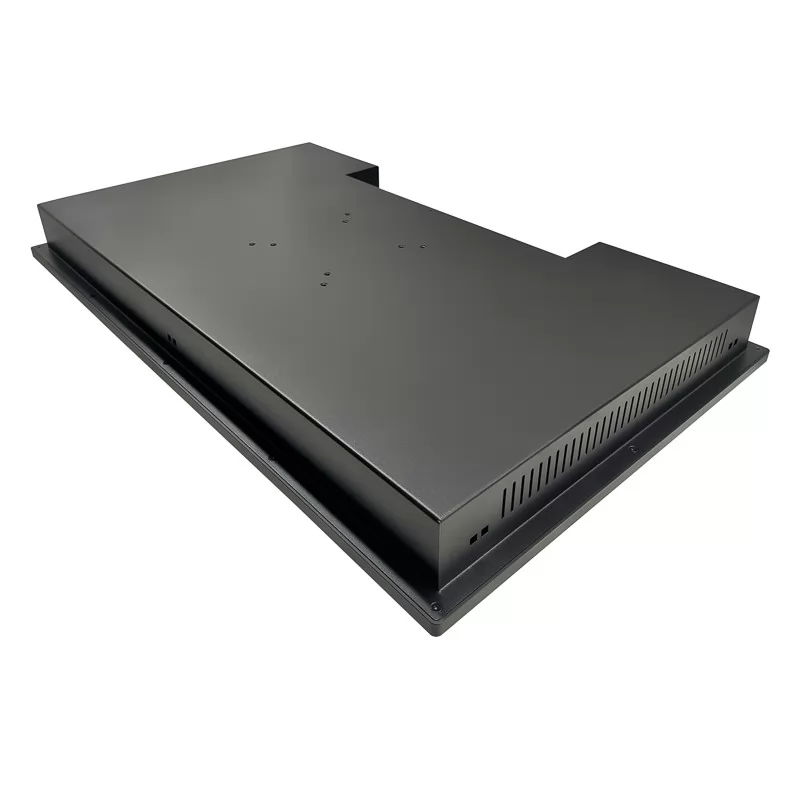

| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |

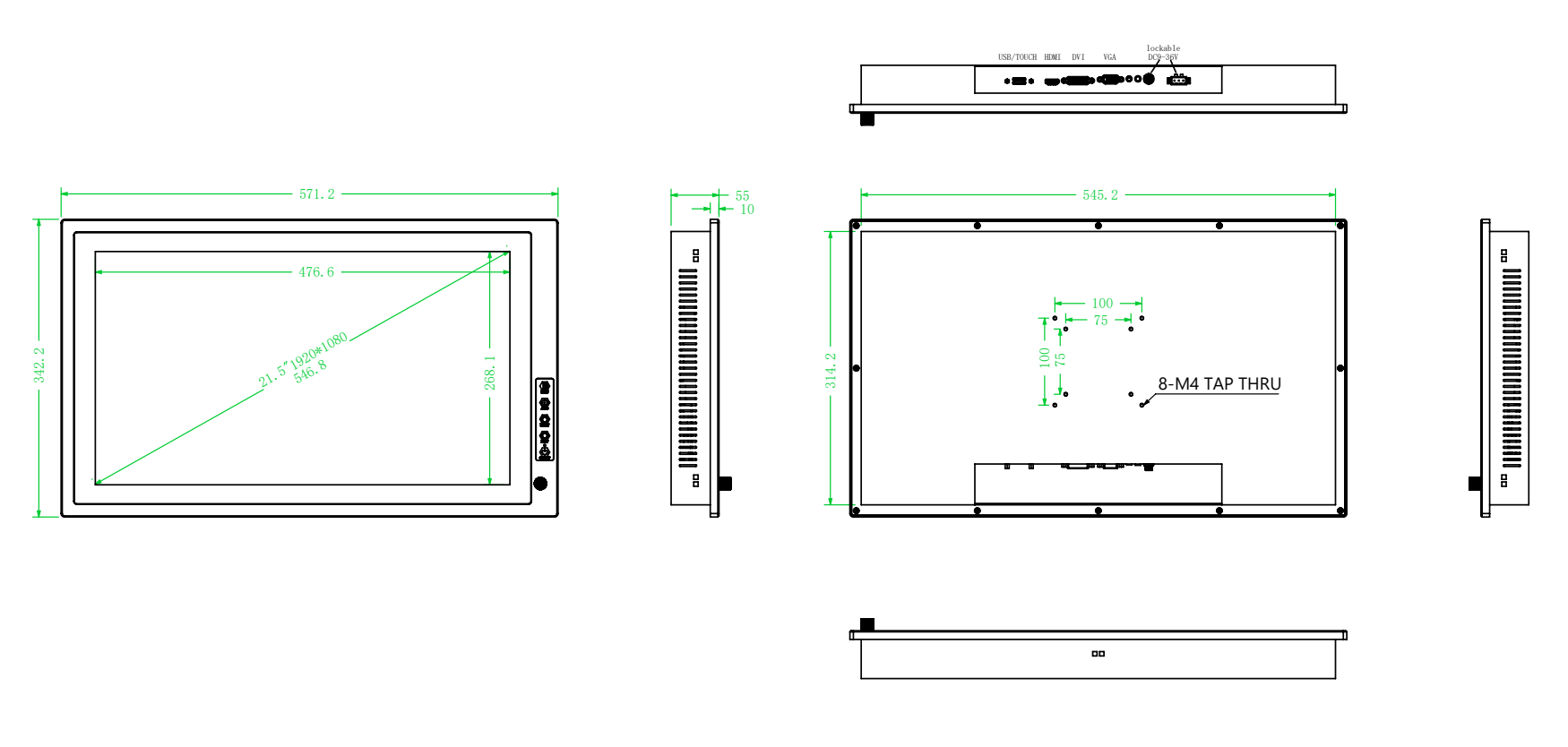

| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Other | |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |

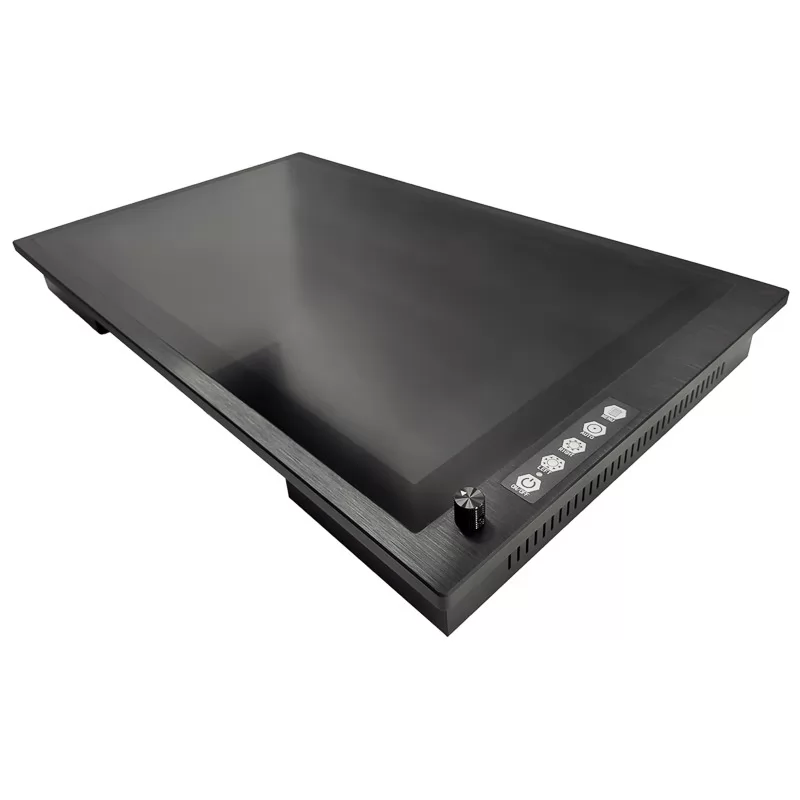

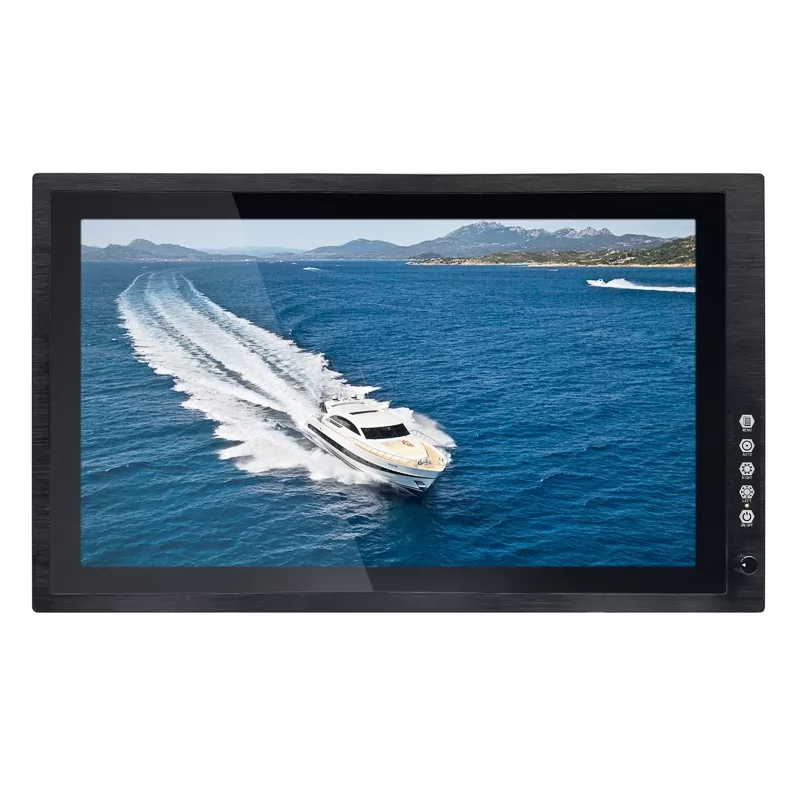

21.5" Capacitive touch monitor with dimmer
