Outdoor Embedded Touch Monitor

Home > Products > Touch Monitor > Outdoor Embedded Touch Monitor

  • High Brightness Monitor SL100E
  • High Brightness Monitor SL100E
  • High Brightness Monitor SL100E
  • High Brightness Monitor SL100E
  • High Brightness Monitor SL100E

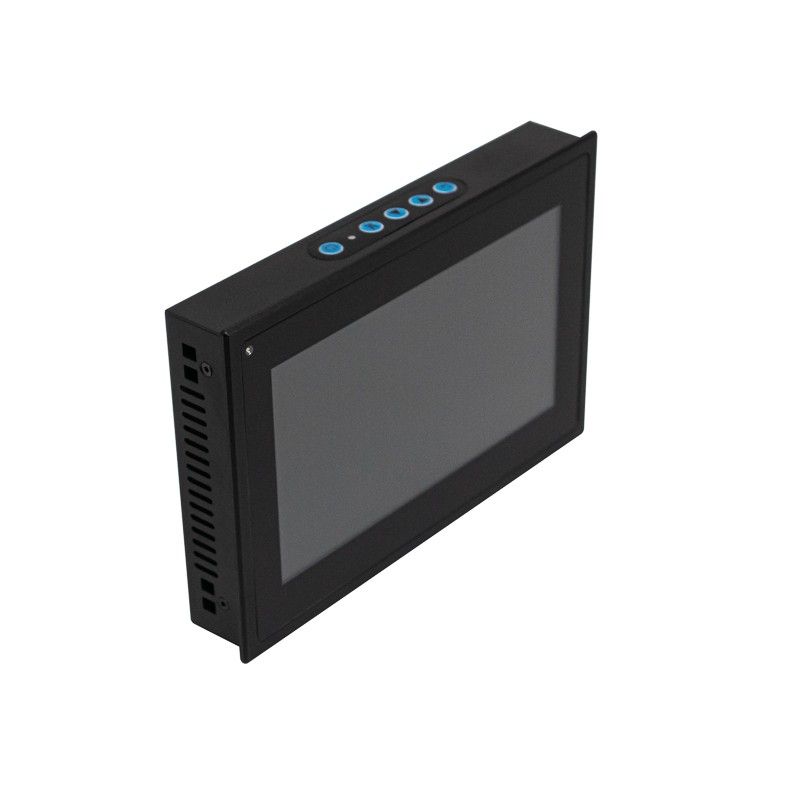

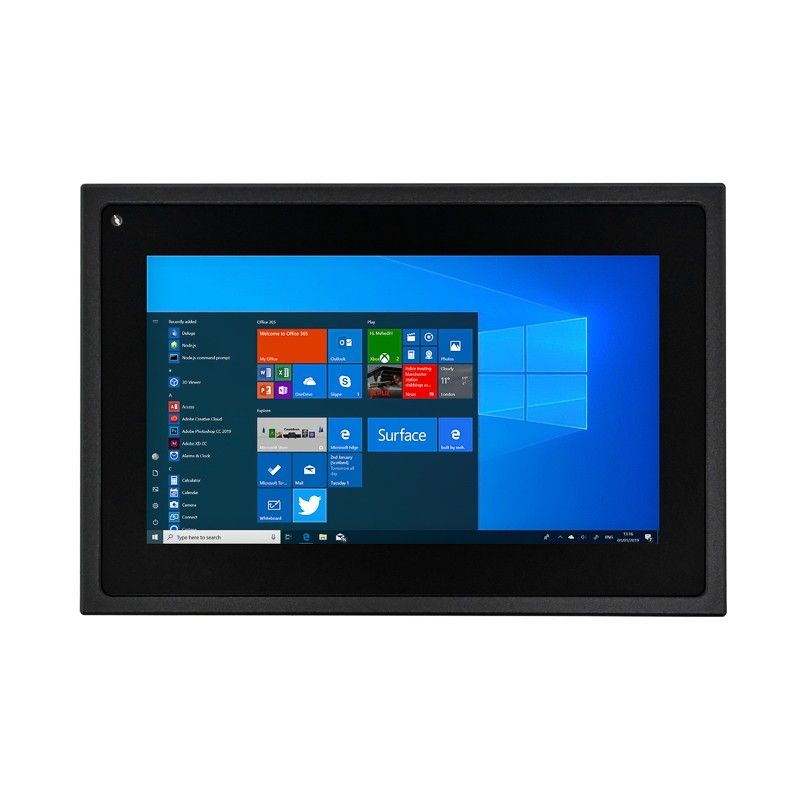

High Brightness Monitor SL100E

Quick Details:

Panel size5.7"-21.5"
Brightness1000nits
Touch TypeCapacitive TouchInterfaceVGA+DVI+HDMI
View angle80°/80°/80°/80°Power SupplyAC 100-240V, DC 12V
MaterialAluminum AlloyIP GradeFront IP65




High Brightness Monitor SL100HM

High Brightness Monitor SL100E Feature?

1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof .

2. Industrial LCD panel, wide viewing angle, high nits, true color.

3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.

4. High performance mainboard, 7x24 continuous operation.

5. Support wall mounting, embedded mounting, desk stand mouting etc.

6. 1000 nits, sunlight readable, ideal for embedded in outdoor kiosk.

7. With light sensor, auto adjust brightness.


High Brightness Monitor SL100E Specification:

SL100E
LCD panel
Panel size5.7"-21.5"
Support Color16.7M colors
Brightness (cd/m²)1000nits, sunlight readable
Backlight typeLED
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Touch options5 wires restive touch

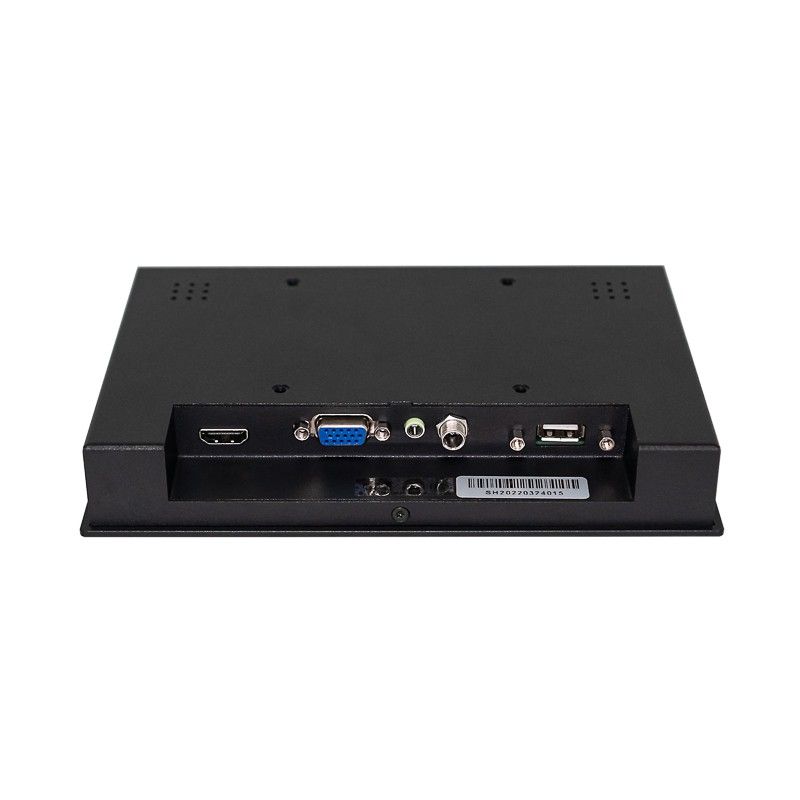

Signal Ports
VGA1×VGA
DVI1×DVI
HDMIHDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltageDC 12V
Enclosure
Materialaluminium alloy bezel+High strength cold rolled steel back case
ColorBlack
VESA mounting100×100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Other
Mountingopen frame
wall mounting brackets (optional)
desk stand holder (optional)
AccessoriesPower adapter, USB touch cable, HDMI cable, open frame kits
Warranty1 year warranty
CertificatesCE, FCC, RoHS

Product Series:

SizeResolutionAspect ratioTouch type
5.7"640*4804:3no touch/capacitive/resistive
7"1024*60016:9no touch/capacitive/resistive
8"1024*7684:3no touch/capacitive/resistive
10.1"1280*80016:10no touch/capacitive/resistive
12.1"1024*768/1280*8004:3/16:10no touch/capacitive/resistive
15.6"1920*108016:9no touch/capacitive/resistive
17"1280*10244:3no touch/capacitive/resistive
18.5"1920*108016:9no touch/capacitive/resistive
21.5"1920*108016:9no touch/capacitive/resistive

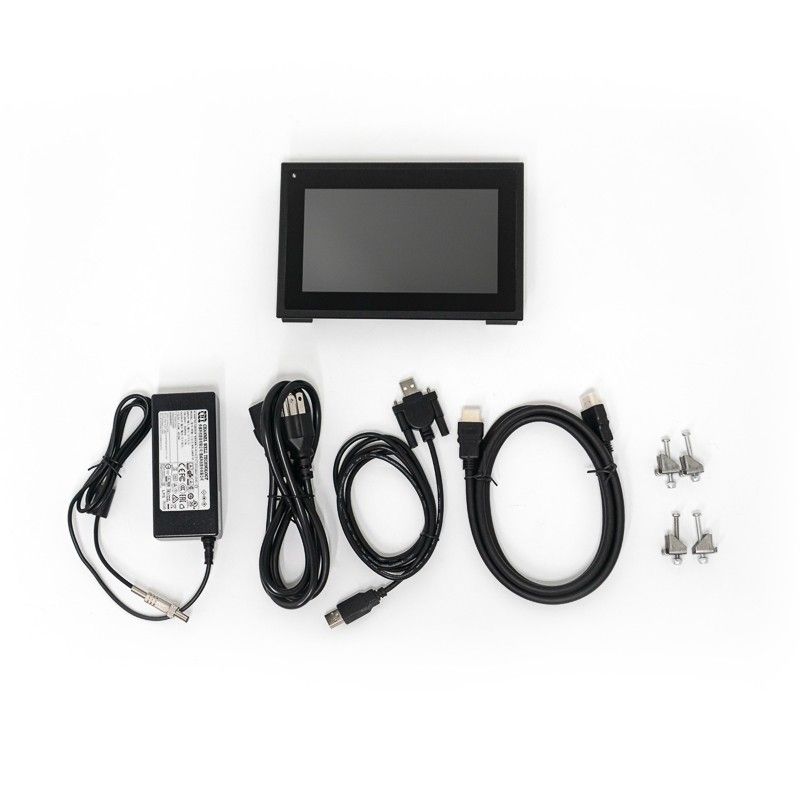

Components:

-Package included: High Brightness Monitor SL100E, power adapter and power cord;

-Accessories or Parts: VGA/HDMI video cable, Touch cable, User manual, warranty card;




High Brightness Monitor SL100HM


OEM/ODM Service:



High Brightness Monitor SL100HM

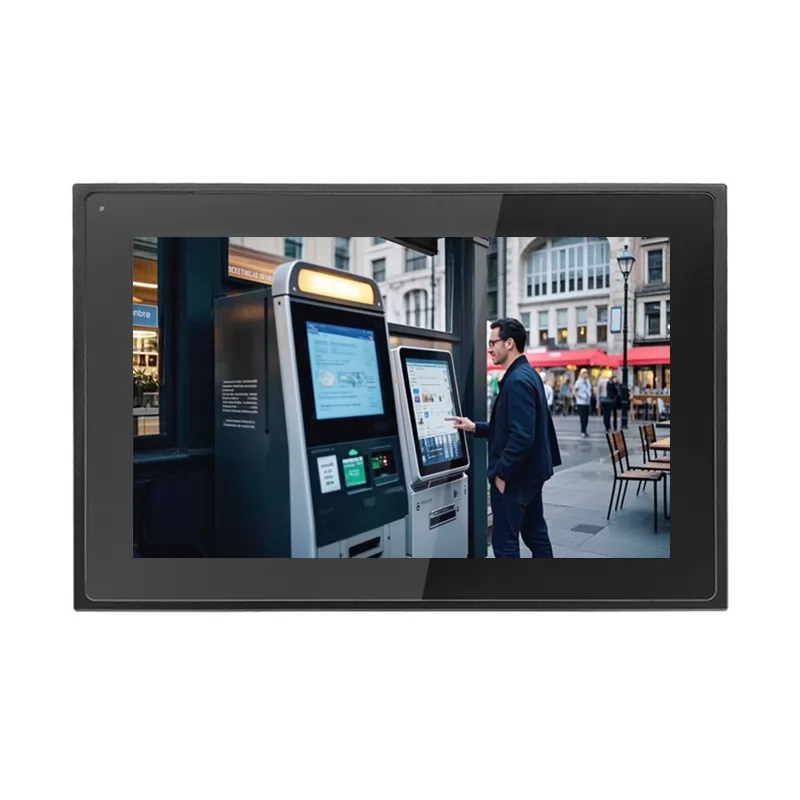

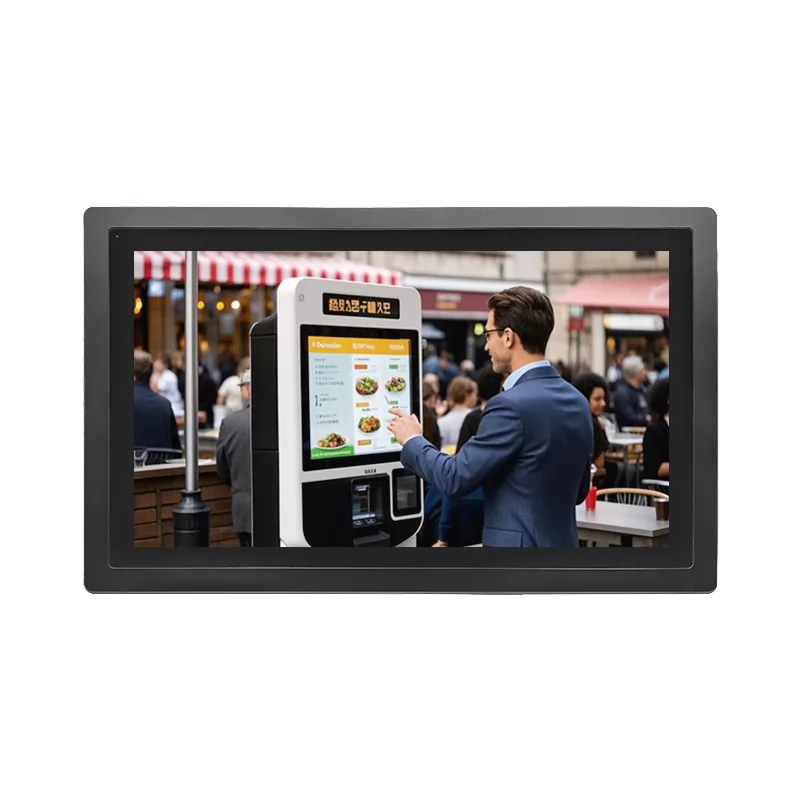

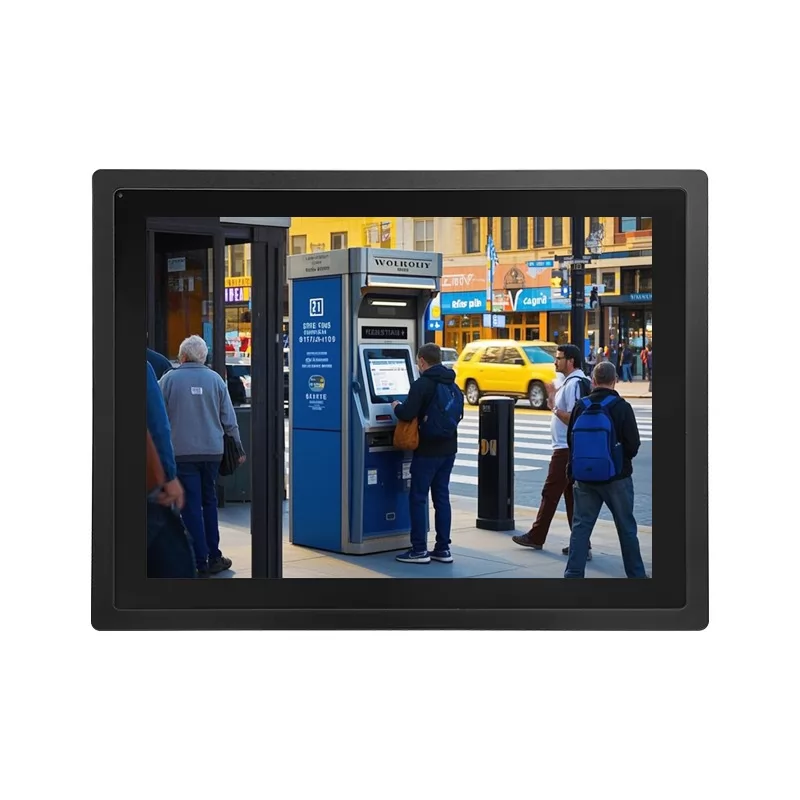

Where can High Brightness Monitor SL100E be used?

7inch 1000 nits monitor Anti glare for parking management system

High Brightness Monitor SL100E

Certifications:

High Brightness Monitor SL100E

Quality Inspection

High Brightness Monitor SL100HM


FAQ:

1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.

2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.

3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;

4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.

5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.

High Brightness Monitor SL100HM

None

     Water dispenser/water distribution system  for public places

15152

7" screen 1000 nits monitor Anti glare for Charging pile

High Brightness Monitor SL100E

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
