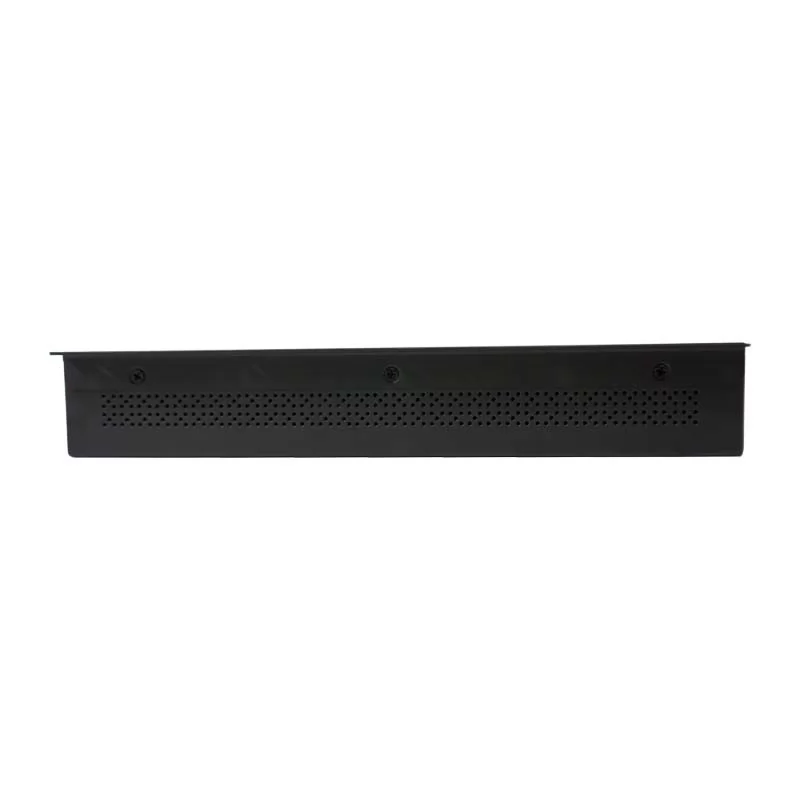

Open Frame PCAP Touch Monitor 21.5 Inch Optical Bonding LCD Screen 1000 nits

Quick Details:

Panel size21.5"Resolution1920*1080
Aspect ratio16:9Touch TypeCapacitive Touch
Brightness1000 nitsOperating -20 C to 70 C
Power12V DCFeatureAnti glare



Features

  1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.

  2. Industrial LCD panel, wide viewing angle, high nits, true color.

  3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

  4. EETI waterproof solution, touch function can work well with drop water on the screen.

  5. 1000 nits, sunlight readable, with light sensor for auto dimming.

  6. Anti glare.

  7. High performance mainboard, 7x24 continuous operation.

  8. Wide temperature range: operating: -10 to 70°C, storage: -20 to 80°C.

  9. Support wall mounting, embedded mounting, desk stand mounting etc.

  10. Optical bonding technology.


Specification

                                                                        Model:SL215
LCD panel
Panel size21.5"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000nits, sunlight readable
Brightness controlLight sensor for auto dimming
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface TreatmentAnti glare
Surface Hardness7H
Luminousness90%
Touch InterfaceUSB   (RS232 optional)
Touch response time2ms
Working Life >50 million times
Touch options(5 wires restive touch,  IR touch optional)
Signal Ports
VGA1×VGA
DVI1×DVI
HDMI1×HDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position,  language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP , Windows /7/8/10 ,  Linux,  Mac OS X,  Android   ect.
Power Supply
External Power SupplyAC 100 - 240V , 50-60Hz
Working voltageDC 12V
Power consumption≤45W
Enclosure
Materialaluminium alloy bezel+High strength cold rolled steel back case
ColorBlack, white, Silver , color can be customized
VESA mounting75×75mm, 100×100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80% ,  storage :5% to 90%
Packing Details
Net weight8 kg
Gross weight9 kg
Product Dimension57.6×32.6×5.2cm
Packing size67×46×20cm
AccessoriesPower adapter, power cord, USB touch cable, HDMI/ VGA cable, open frame mounting kits
Other
MountingEmbedded mounting
wall mounting brackets  (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE, FCC, RoHS



Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
