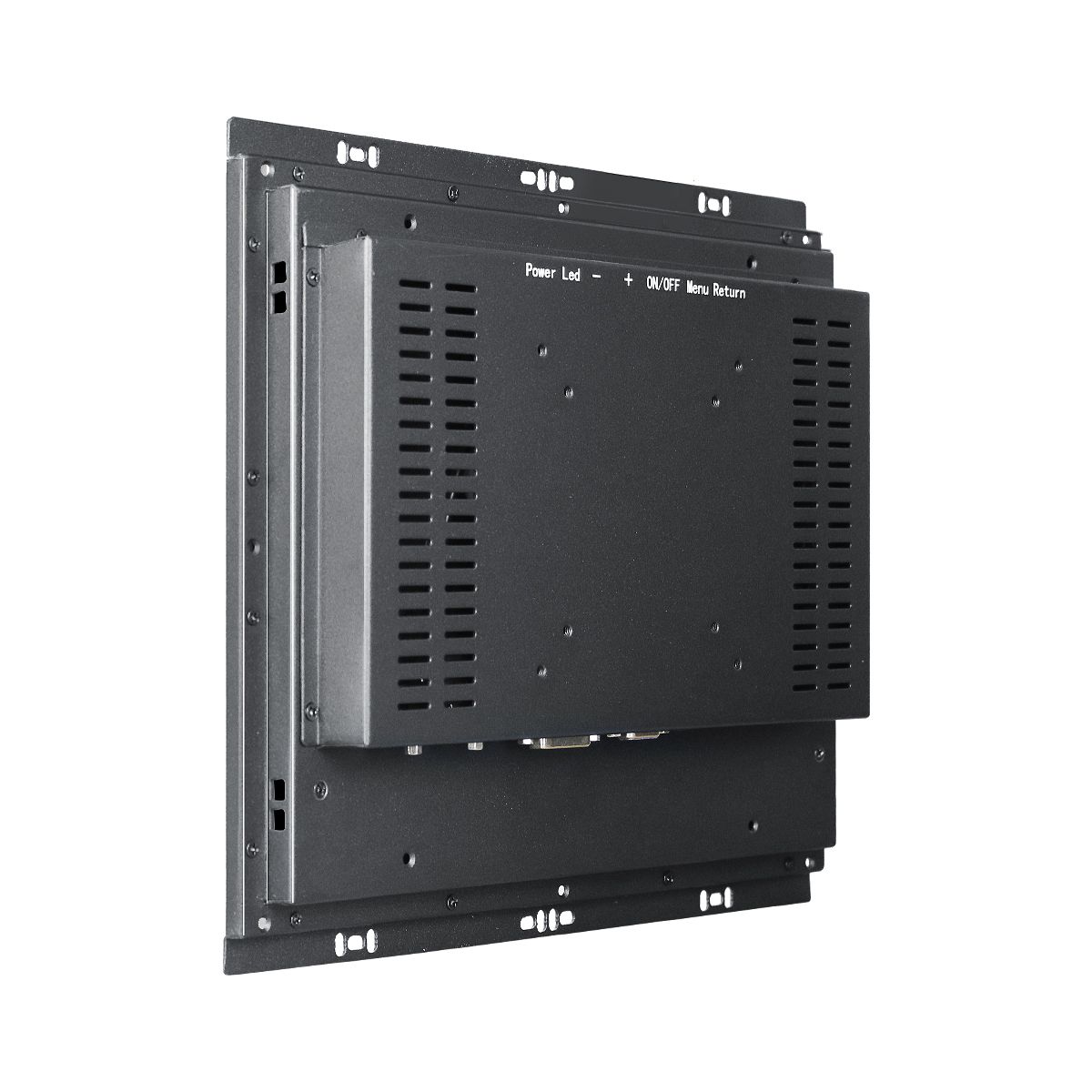

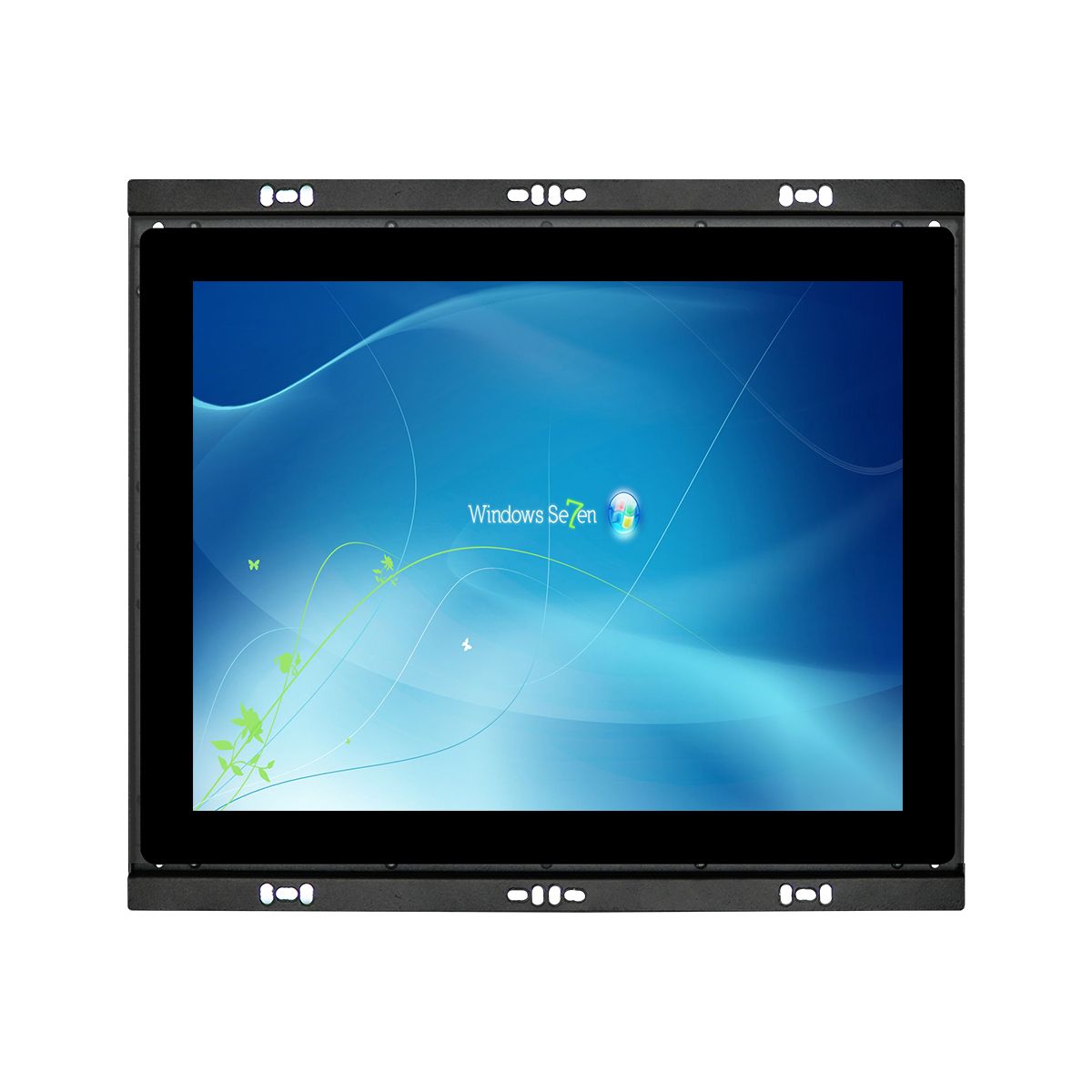

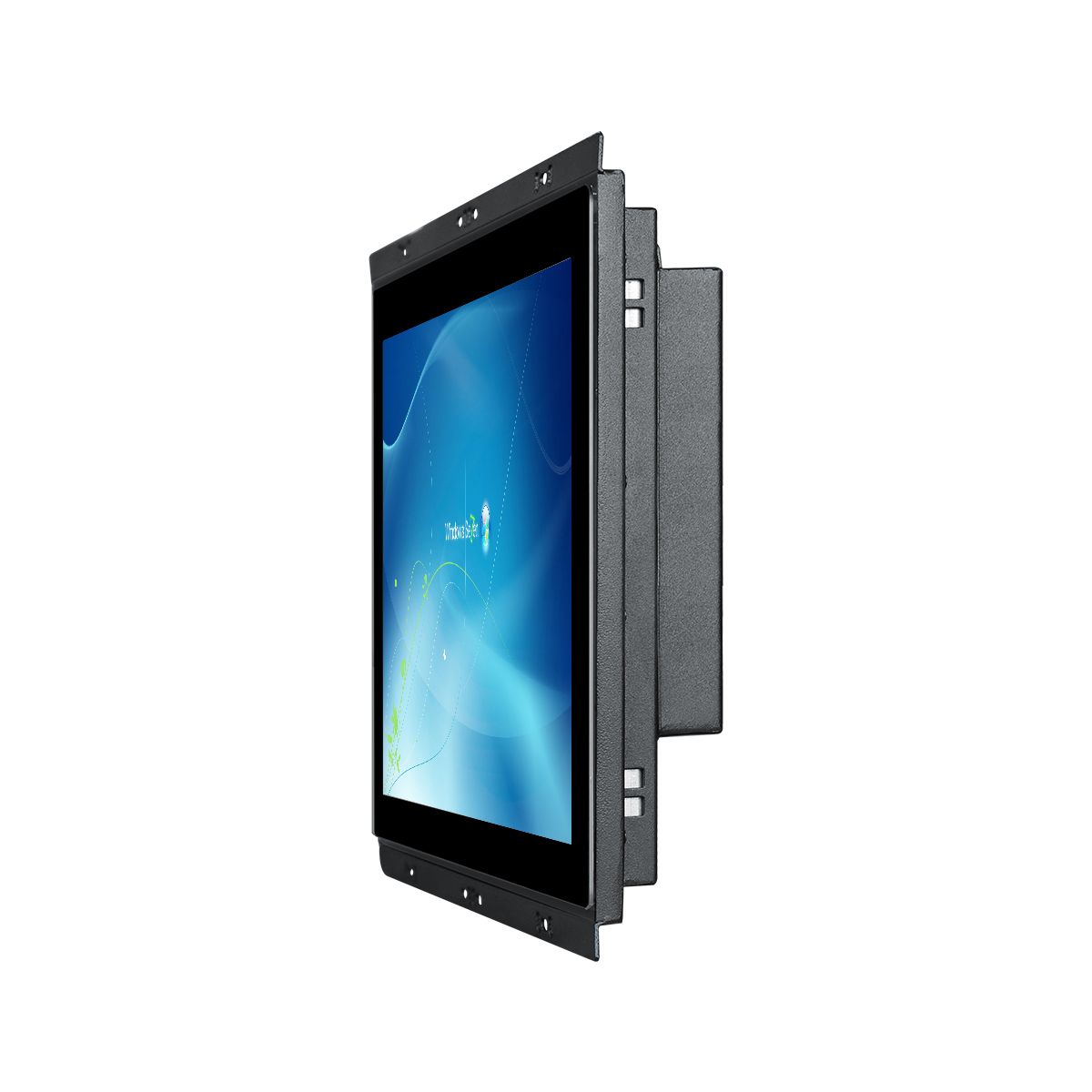

12 Inch Open Frame Rugged Touch Monitor

Quick Details:

Panel size24"Brightness1000nits
Touch TypeCapacitiveInterfaceVGA/HDMI
View angle160°/160°Temperature Range-20 to 70°C
CertificatesCE,FCC,RoHSSurface TreatmentAnti glare&UV


Features

1. Industrial  LCD panel, wide viewing angle, high nits, true color.

2. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

3. High performance motherboard, 7x24 continuous operation.

4. Support wall mounting,embedded mounting,desk stand mouting etc.

5. 1000 nits sunlight readable.

6. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.

7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8. Support wall mounting, embedded mounting, desk stand mounting etc.


Specification

Model:SL12
LCD panel
Panel size12"
Resolution1024*768
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)1000nits, sunlight readable
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface TreatmentAnti glare
Surface Hardness3H
Luminousness90%
Touch InterfaceUSB   (RS232 optional)
Touch response time2ms
Working Life >50 million times
Touch options(4 or 5 wires restive touch,  IR touch optional)

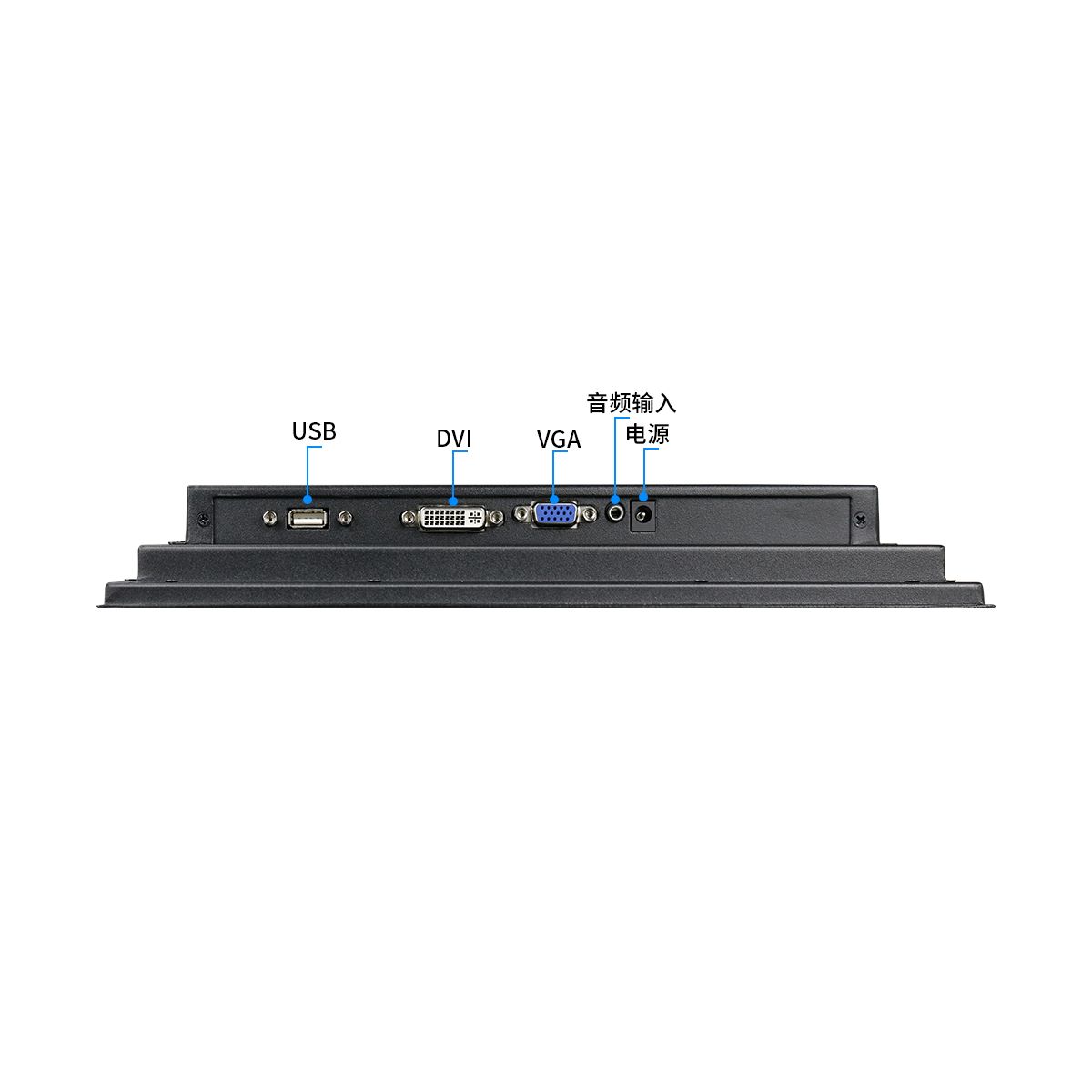

Signal Ports
VGA1×VGA
DVI1×DVI
USB1×USB
Audio in/outSupport
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position,  language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP , Windows /7/8/10 ,  Linux,  Mac OS X,  Android   ect.
Power Supply
External Power SupplyAC 100 - 240V , 50-60Hz
Working voltageDC 12V
Power consumption≤35W
Enclosure
Materialaluminium alloy bezel+High strength cold rolled steel back case
ColorBlack, white, Silver , color can be customized

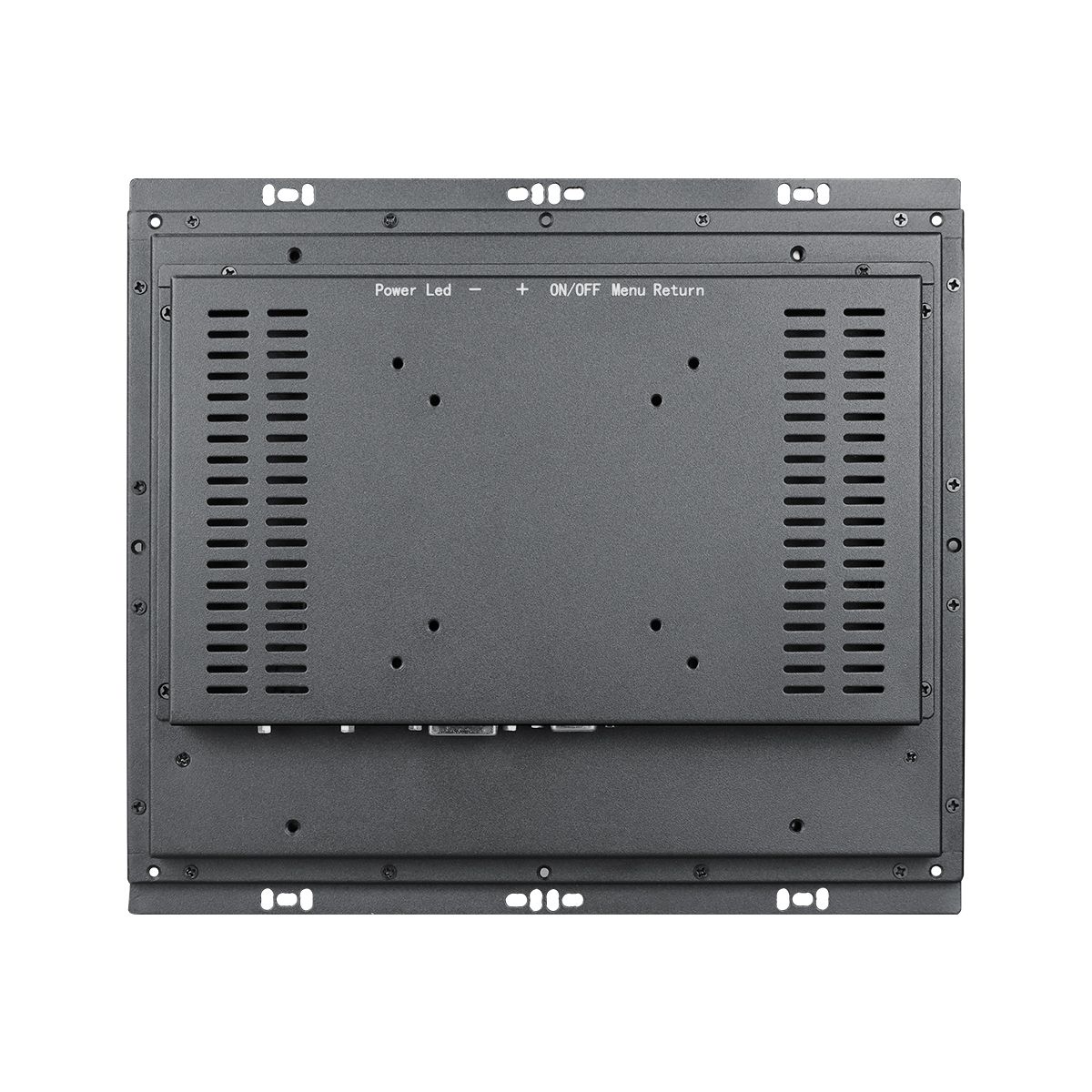

VESA mounting100×100mm
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80% ,  storage :5% to 90%
Other
Mountingopen frame
wall mounting brackets  (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE, FCC, RoHS
AccessoriesPower adapter, power cord, USB touch cable, DVI/ VGA cable, embedded screws


None

None
Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
