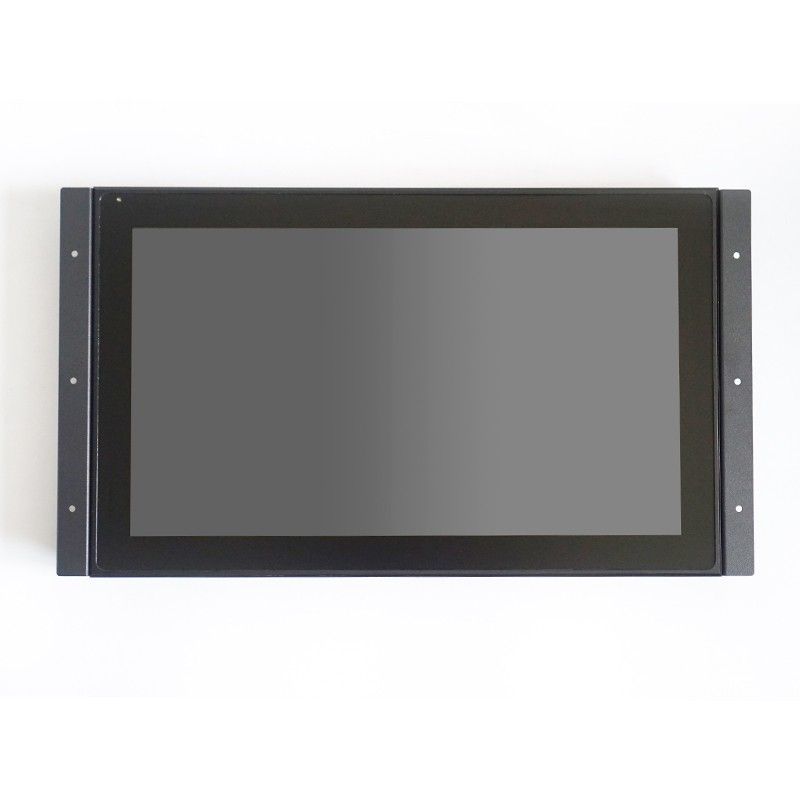

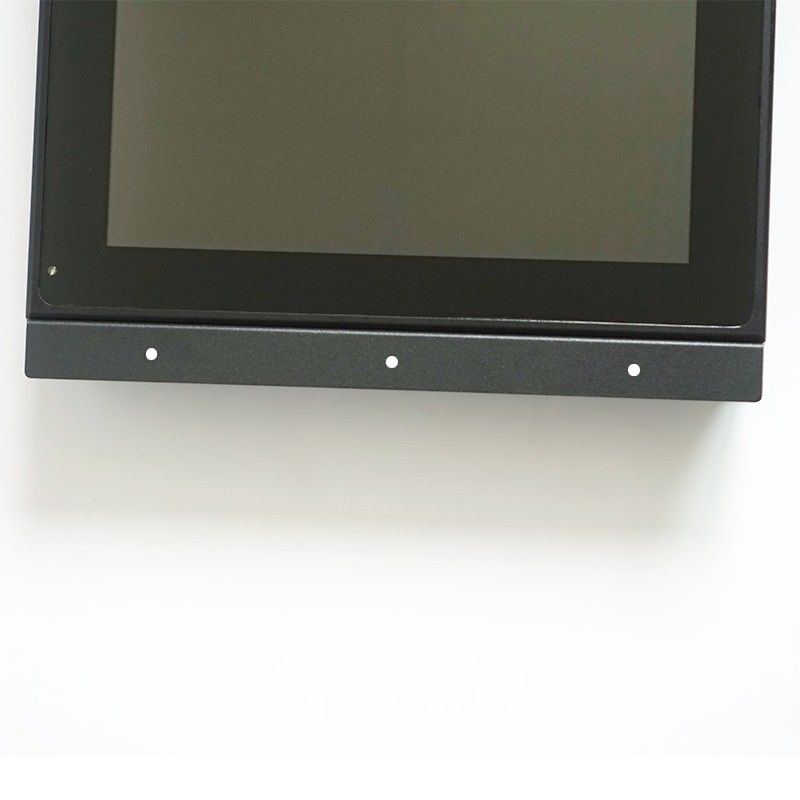

1000 nits Open frame Touch Screen Panel Monitor SL300E

Quick Details:

Panel size7"-21.5"Brightness1000 nits
Touch TypeCapacitiveInterfaceVGA, DVI, HDMI
MaterialMetalIP gradeFront IP65
Warrantyone yearCertificateCE, FCC, RoHS

Open frame Touch Screen Panel Monitor


SHINHO’s 1000 nits Open frame Touch Screen Panel Monitor is perfect for industrial or commercial display use. With a 1000 nit sunlight readable LCD panel and a wide viewing angle as 80 degree from right side and 80 degree from left side make this compact size open frame monitor useful in either indoor or outdoor environments. The outstanding Ultra Wide Viewing Angle 80°/80°/80°/80° (R/L/U/D), is one of the best in the market. It displays native 1920 x 1080 resolution and shows the picture in vivid details and optimal performance.




1000 nits Open frame Touch Screen Panel Monitor Features

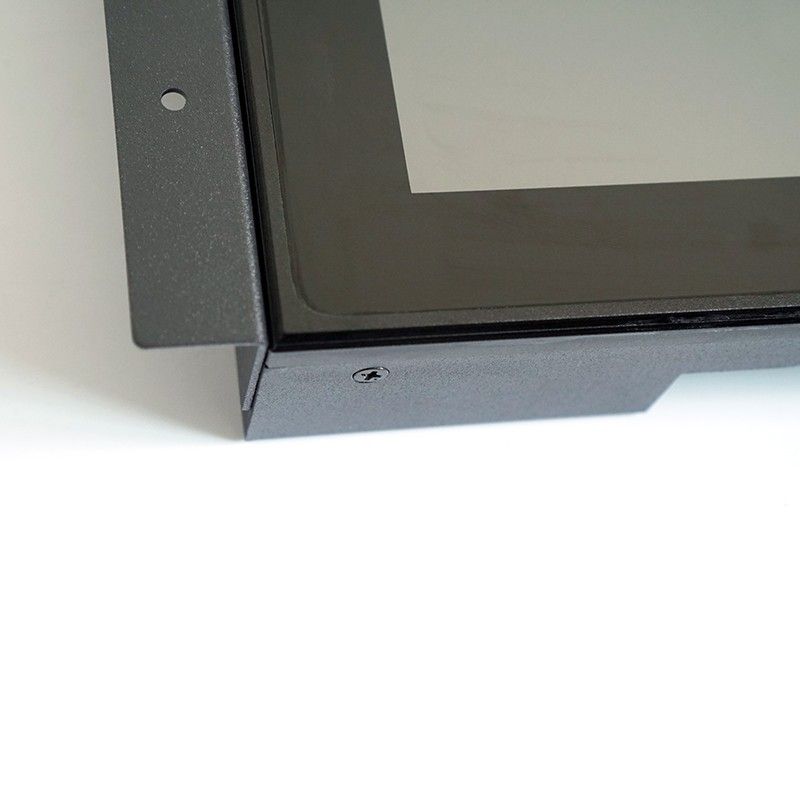

  1. Open frame design.Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.

  2. Industrial LCD panel, wide viewing angle, high nits, true color.

  3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

  4. EETI waterproof solution, touch function can work well with drop water on the screen.

  5. 1000 nits, sunlight readable, with light sensor for auto dimming.

  6. Anti glare.7. High performance mainboard, 7x24 continuous operation.

  7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

  8. Support wall mounting, embedded mounting, desk stand mounting etc.


1000 nits Open frame Touch Screen Panel Monitor  Advantages

Special designed for easy integration into industrial machine and kiosks.

12.1 inch of versatile screen size

Wide industrial operating temperature range

Built with WIFI and Ethernet(lan) internet connection

The brightness can be customized to 600nits, 1000nits, 1500nits.

Built-in Touch Display


Specification


Model:SL300E
LCD panel
Panel size7"-21.5"
Resolution1024*600, 1024*768, 1024*800, 1280*1024, 1366*768, 1440*900, 1920*1080
Aspect ratio4:3, 5:4, 16:9, 16:10
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Brightness controlLight sensor for auto dimming
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface TreatmentAnti glare
Surface Hardness7H
Luminousness90%
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Working Life >50 million times
Touch options(5 wires restive touch, IR touch optional)

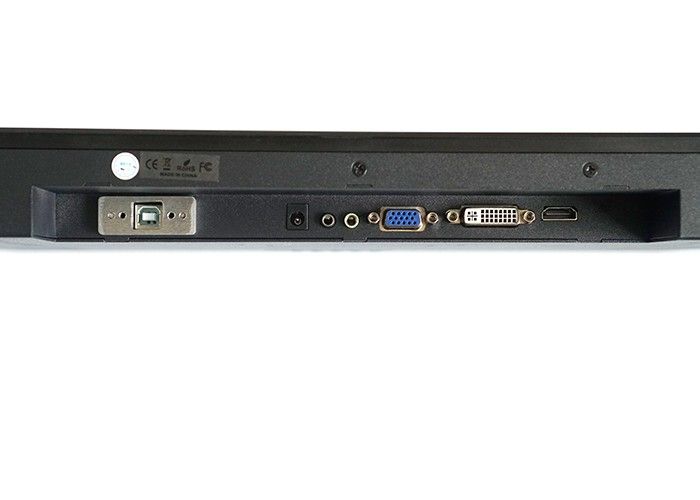

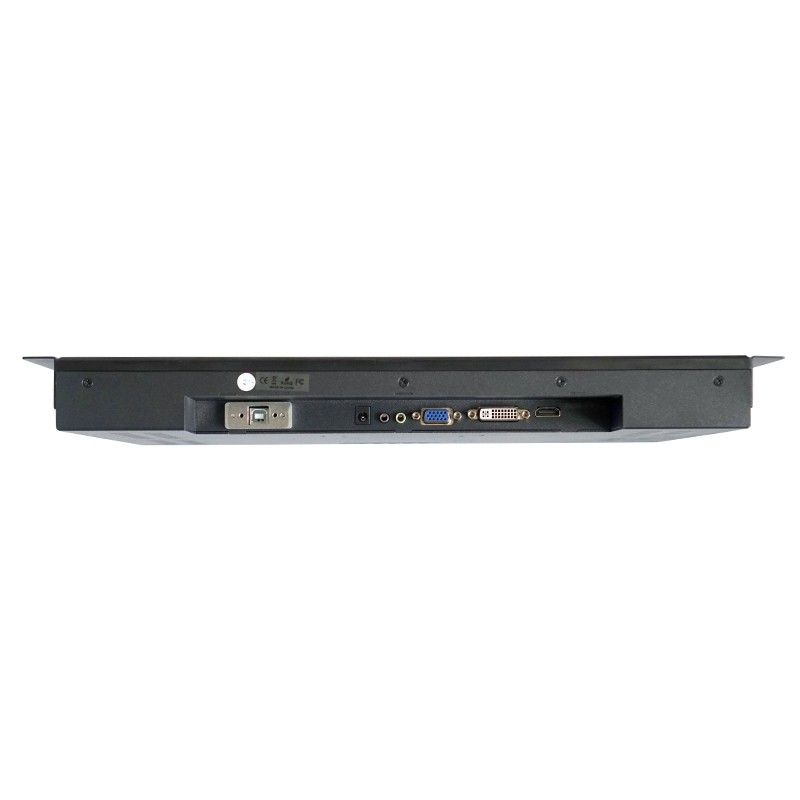

Signal Ports
VGA1x VGA
DVI1x DVI
HDMI1x HDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltageDC 12V
Enclosure
MaterialAluminum alloy bezel+ High strength cold rolled steel back case
ColorBlack, Silver
VESA mounting100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
AccessoriesPower adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws
open frame mounting kits
Other
Mountingembedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance


1000 nits Open frame Touch Screen Panel Monitor  can operate in a stable and failure-free way for a long period within wide range of temperatures from operating: -20 to 70°C, storage: -30 to 80°C. which results in fewer constraints for outdoor installation. thanks to such option, it may be successfully applied, e.g in transportation and automotive industry, or testing machine.Our 1000 nits Open frame Touch Screen Panel Monitor supports Bluetooth to wirelessly connect to various device, such as keyboard, mouse, speaker and so on. It is r ecommended to building a hybrid environment, so that the people can have a online or offline meetings or classes with ease. With a great brightness of 1,000 cd/m²,  our open frame touch screen display can clearly deliver contents and information, and attract people attention, which is the ultimate display for outdoor visibility.This open frame monitor is built in a touch screen,  it adopts Capacitive touch technology that not easy to touch by mistake, precise positioning, high light transmittance and clarity, lets you take advantage of touch features and navigate web pages, flick through photos, paint and play games - all with your finger tips, that is suitable for various commercial and industrial environments,



SHINHO is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of Touch Monitor , Industrial Computer,  BOX PC, open frame monitor,  outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price,SHINHO is your best choice!

OEM and ODM are welcomed!
