Open Frame Touch Monitor

Home > Products > Touch Monitor > Open Frame Touch Monitor

  • Anti reflection without case 7 inch open frame monitor
  • Anti reflection without case 7 inch open frame monitor
  • Anti reflection without case 7 inch open frame monitor
  • Anti reflection without case 7 inch open frame monitor
  • Anti reflection without case 7 inch open frame monitor

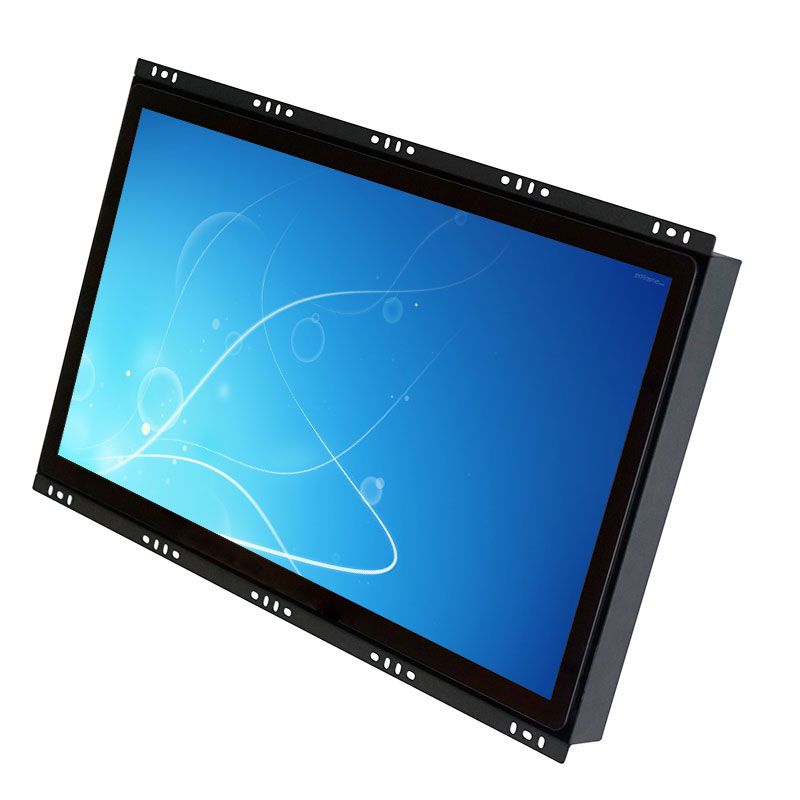

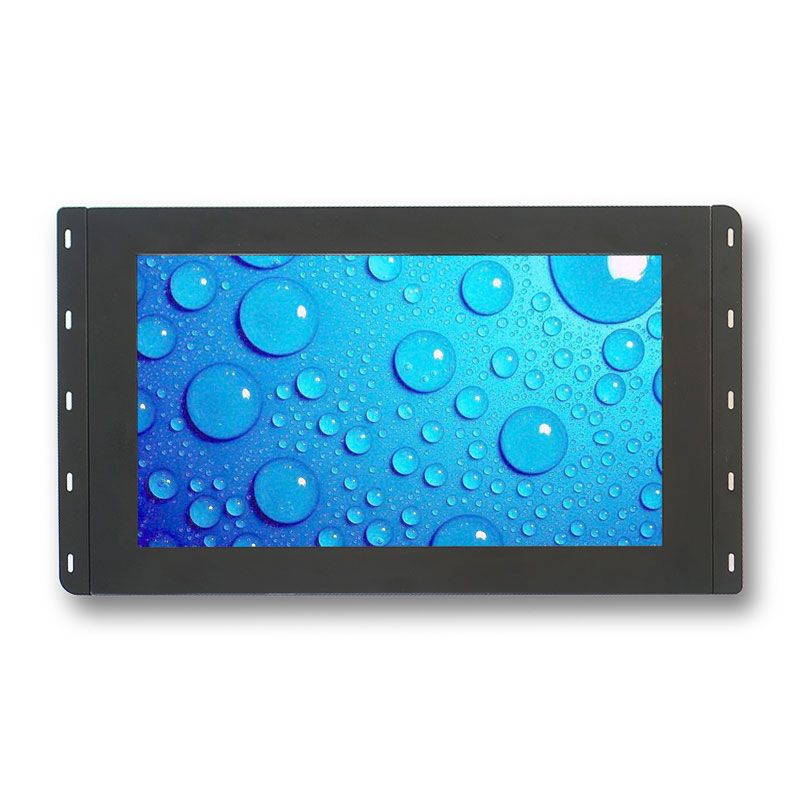

Anti reflection without case 7 inch open frame monitor

Quick Details:

Panel size7"Resolution1024*600
Aspect ratio16:9InterfaceVGA, HDMI
Brightness1000nitsTouch TypeCapacitive
Power SupplyDC12VIP gradeFront IP65

Key Feature


Anti glare, Anti reflection.

Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.
Anti reflection without case 7 inch open frame monitor

1000 nits high brightness, sunlight readable

Anti reflection without case 7 inch open frame monitor

With light sensor for auto dimming.

High performance mainboard, 7x24 continuous operation

Anti reflection without case 7 inch open frame monitor

Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.

Industrial wide temperaturer LCD panel, wide viewing angle, high nits, true color.

Anti reflection without case 7 inch open frame monitor

Open frame design, without case.

Anti reflection without case 7 inch open frame monitor

EETI waterproof solutiontouch function can work well with drop water on the screen.
Anti reflection without case 7 inch open frame monitor


Specification

Model:SL07
LCD panel
Panel size7"
Resolution1024*600
Aspect ratio16:9
 Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Brightnesswith light sensor, to adjust brightness automatically
Contrast ratio800:1
View angle80°/80°/60°/70° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface Hardness7H
Luminousness90%
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Working Life>50 million times
Touch options(4 wires restive touch )
Signal Ports
VGA1×VGA
HDMI1×HDMI
DVIoptional
AVoptional
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤10W
Enclosure
MaterialAluminum alloy bezel+High strength cold rolled steel back case
ColorBlack, Silver
VESA mounting75x75mm
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight0.6kg
Gross weight1 kg
Product Dimension21.21*14.76*3.32cm
Packing size29*27*13cm
AccessoriesPower adapter, Power cord, HDMI /VGA cable, USB touch cable
Other
Warranty1 year warranty
CertificatesCE, FCC, RoHS



Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance




Anti reflection without case 7 inch open frame monitor

Anti reflection 7 inch open frame monitor for EV kiosk

Anti reflection without case 7 inch open frame monitor

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
