Open Frame 1000nits High Brightness Monitor

Quick Details:

Panel size7" - 21.5"SurfaceAnti glare
Color16.7MInterfaceVGA, DVI, HDMI
Brightness1000nitsTouch TypeCapacitive Touch
IP gradeFront IP65Power SupplyDC 12V

High Brightness Monitor Features:

1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.

2. Industrial LCD panel, 1000nits sunlight readable, with light sensor for auto dimming.

3.10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.

4. EETI waterproof solution, the touch function can work well with drop water on the screen.

5. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C  (-4°F ~158°F), 7. Support wall mounting, embedded mounting, desk stand mounting etc.

6. Support wall mounting, embedded mounting, desk stand mounting etc.

High Brightness Monitor Specification:

LCD panel
Panel size7" - 21.5"
Brightness (cd/m²)1000 nits sunlight readable
Brightness controlLight sensor for auto dimming
Contrast ratio1000:1
View angle85°/85°/85°/85° (R/L/U/D)
Support Color16.7M
BacklightWLED, 50K hours
Touch panel
Touchscreen TypeProjected Capacitive Touch (up to 10 points )
Surface Hardness7H
Surface treatmentAnti glare (chemical etching)
Touch controller ICEETI  80
Available touch driversWindows, Linux, Android, Mac, etc
Touch bondingAir Bonding
Touch optionalResistive touch, Non touch, IR touch Optional

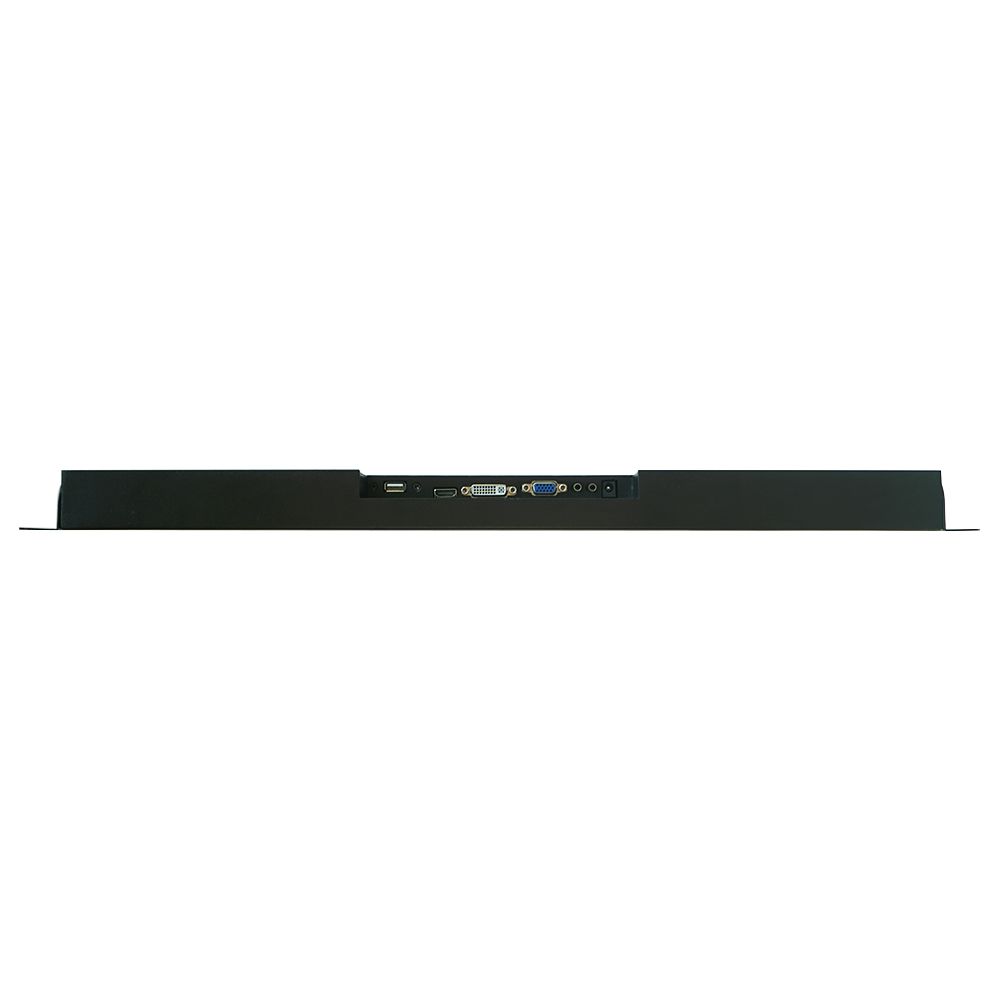

External I/O Ports
Video input1×VGA, 1×DVI, 1×HDMI
Audio in/out1×3.5mm Line-out, 1×3.5mm Line-in  (2 x 2W Speakers)
Audio in/out1×USB
Power connector1×Screwable 9~36V DC jack,1× 3-pins terminal block connector
Power Supply
Working voltageDC 12V(9-36V Optional)
Power adapterAC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Function Keys5 Keys: Power/Menu/Up/Down/Return
Menu FunctionsBrightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc.
Support languagesEnglish, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文,简体中文
MaterialAluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
FinishFront bezel: Sandblasting+Hard Anodizing,
UV-protection and Anti-discoloration treatment
Rear housing: powder coated
ColorBlack, Other color optional
MountingVESA mount 75*75/100*100mm, Panel mount
IP ratingFront IP65 waterproof
Cooling systemPassive - Fanless
DesignOpen frame design(3mm bezel design optional)
Operating Environment
Temperature RangeOperating: -20 °C ~ 70°C  (-4°F ~158°F), Storage: -30 °C~80°C  (-22°F ~176°F)
Relative humidityUp to 100% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
EMCClass B
AccessoriesPower adapter, power cord, HDMI/VGA cable, Mounting strip
Warranty1 year warranty
CertificatesCE, FCC, RoHS

Available Sizes:

SizeResolutionAspect ratioTouch type

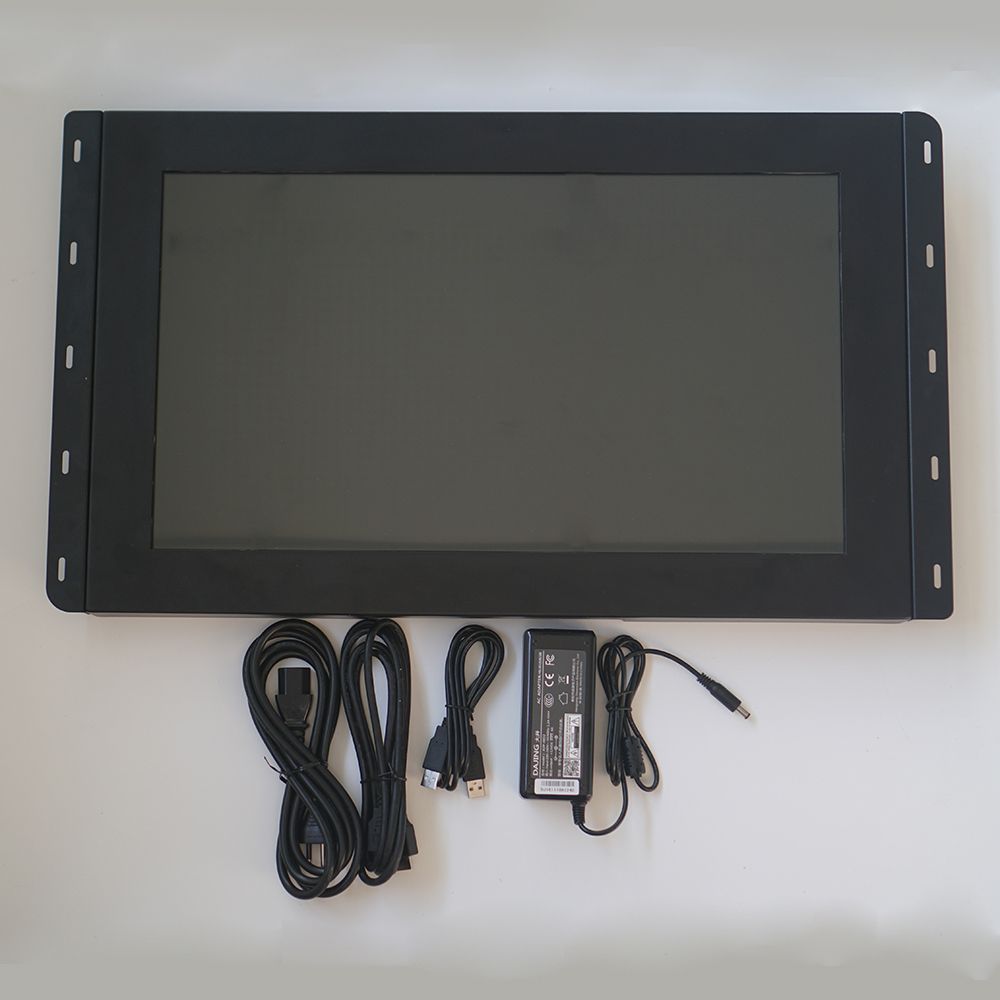

-Package included: High Brightness Monitor, power adapter and power cord;

-Accessories or Parts: VGA/HDMI video cable, Touch cable, User manual, warranty card;

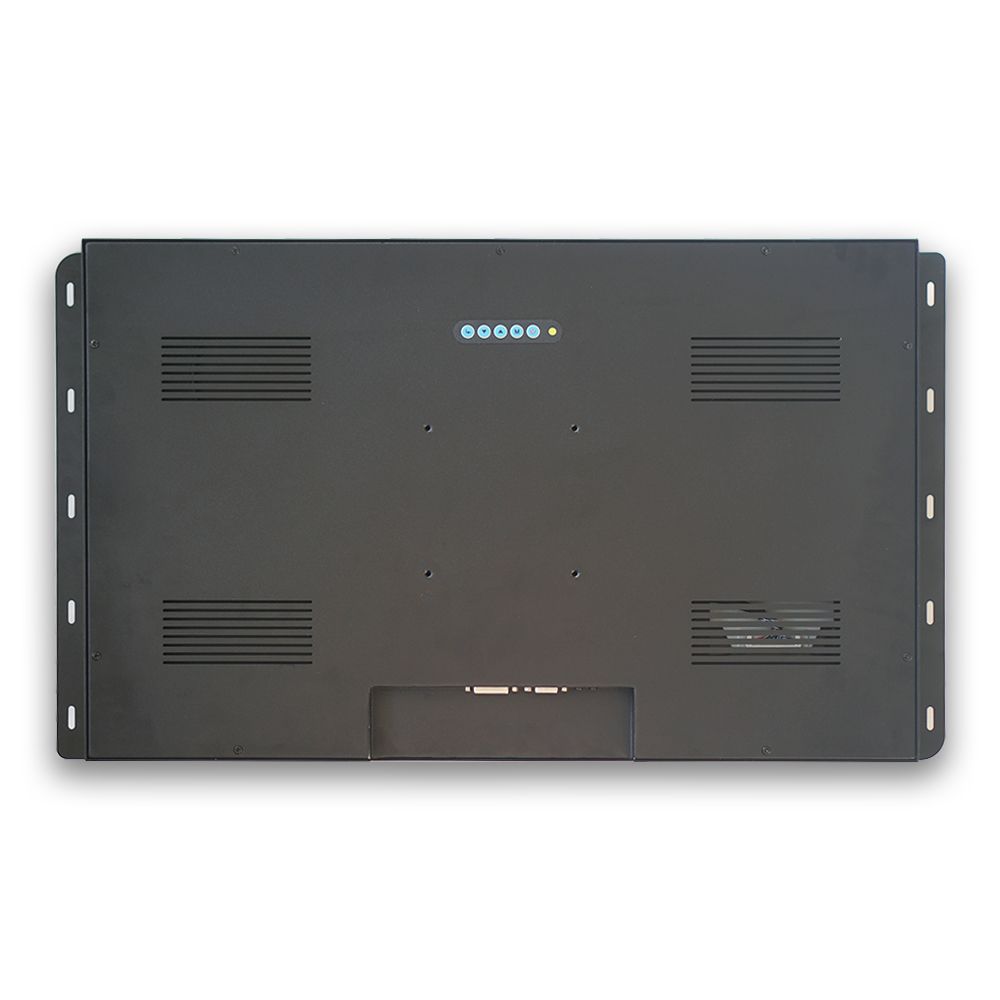

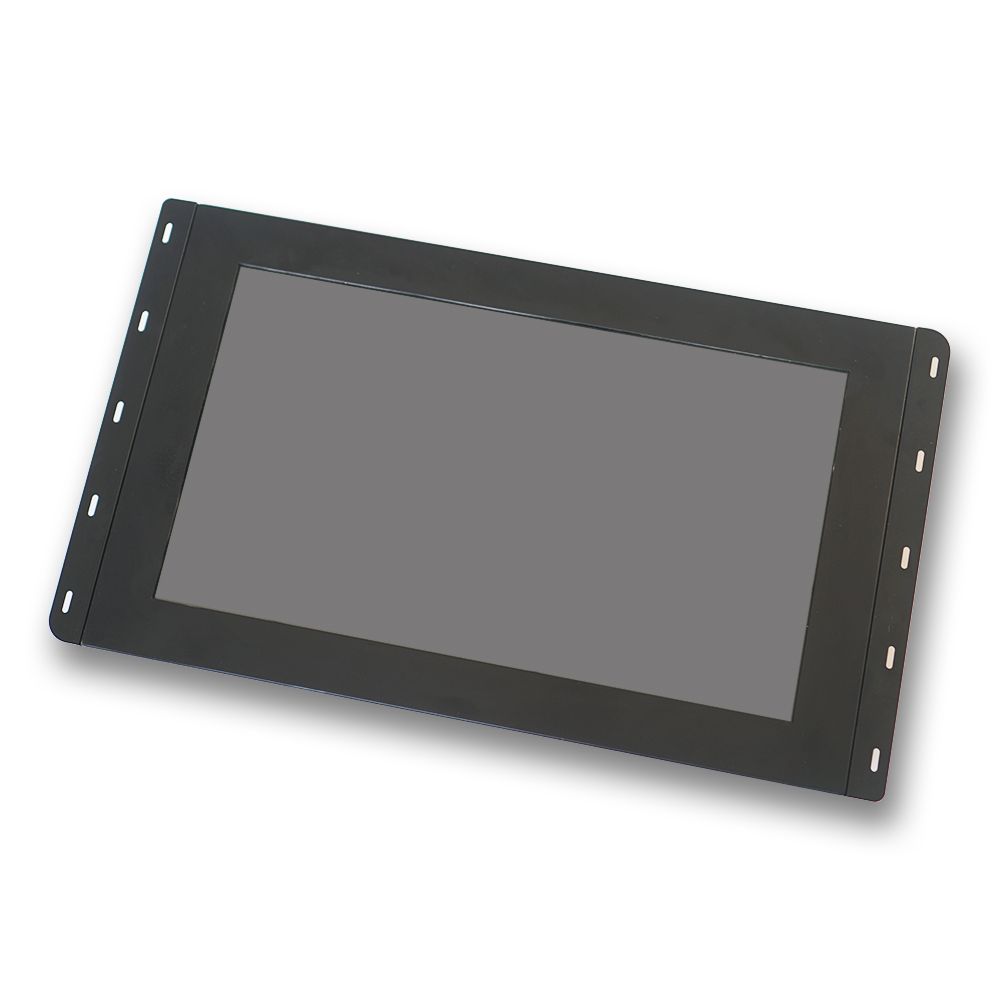

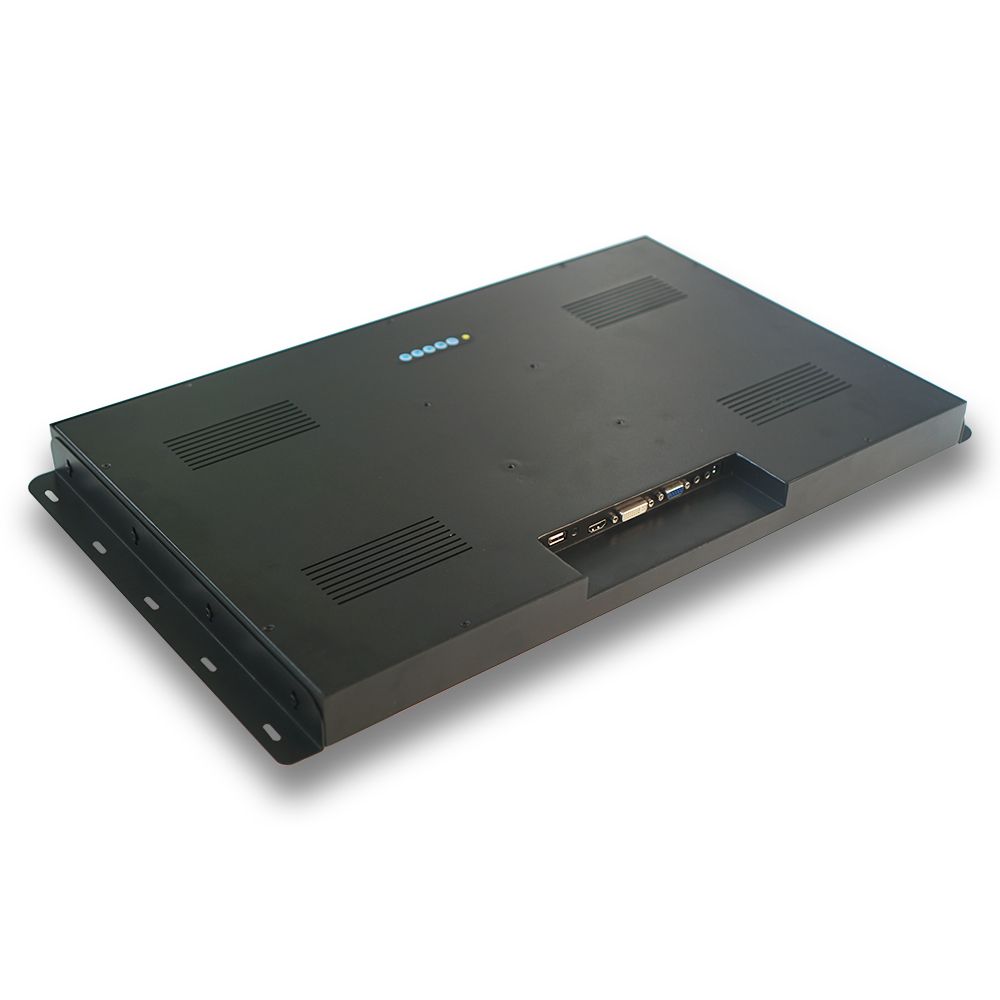

21.5inch Open Frame 1000nits High Brightness Monitor

Quality Inspection

High Brightness Monitor SL100HM


1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.

3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;

4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.

5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
