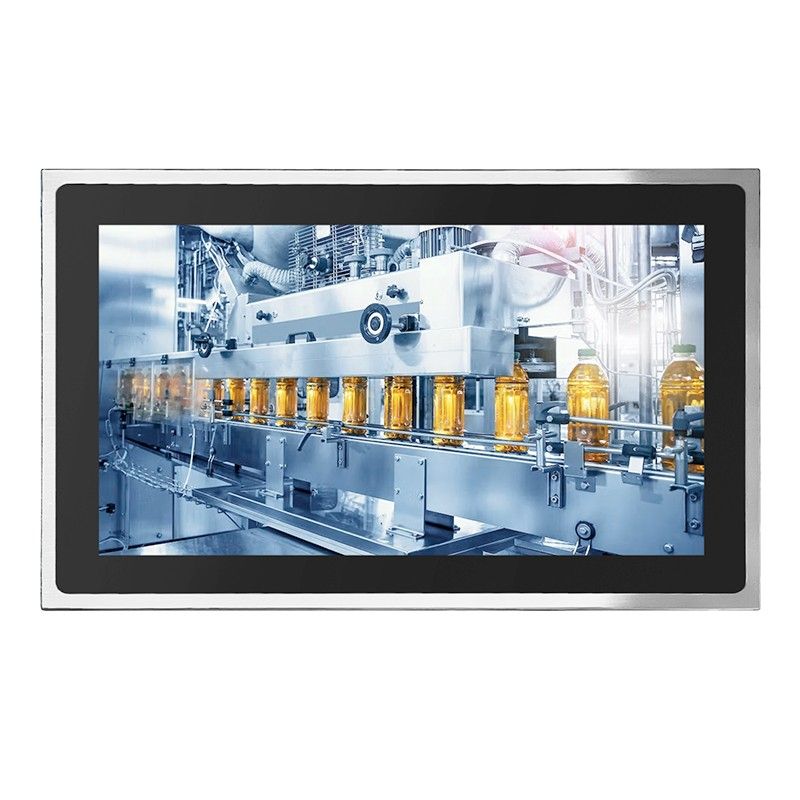

Ubuntu All In One PCs RK3288 1000 nits Sunlight Readable

Quick Details:

CPURK3288RAM2GB
Storage8GBPanel size13.3"
Brightness1000 nitsWarranty1 year
MaterialAluminum alloyIP GradeFull IP65

Features:

  1. Made of sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.

  2. Industrial  LCD panel, wide viewing angle, high nits, true color.

  3. Fully sealed and fanless design, full IP65 waterproof, Sealed I/O with cable set included.

  4. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

  5. Covered with 2mm  Glass(anti cooling lubrication (spray) and oilmist), vandalproof.

  6. High performance motherboard, fanless design, 7x24 continuous operation.


Specification


Model:SC133
PC
CPURK3288 1.6GHz Quad core A17 AP
Memory2G (4G, 8G optional)
Hard Drive Capacity8GB
Wireless NetworkRJ45, WIFI, 3G, 4G , TD-LTE (optional)
I/O Interface1xRJ45, 1xPOWER DC
Operation SystemAndroid 10.0, Ubuntu
LCD panel
Panel size13.3"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits
Response time5ms
Contrast ratio800:1
View angle85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5 wire resistive touch, IR touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialAluminum Alloy front bezel+High strength cold rolled steel back case
ColorSilver, Black, white, color can be customized
VESA mounting75x75mm/100x100mm
IP gradeFull IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 70°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight5 kg
Gross weight6 kg
Product Dimension32.28x19.77x3.5cm
Packing size53x47x18cm
AccessoriesPower adapter, LAN cable, Power cord
Other
Mountingstand holder
Warranty1 year warranty
CertificateCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
