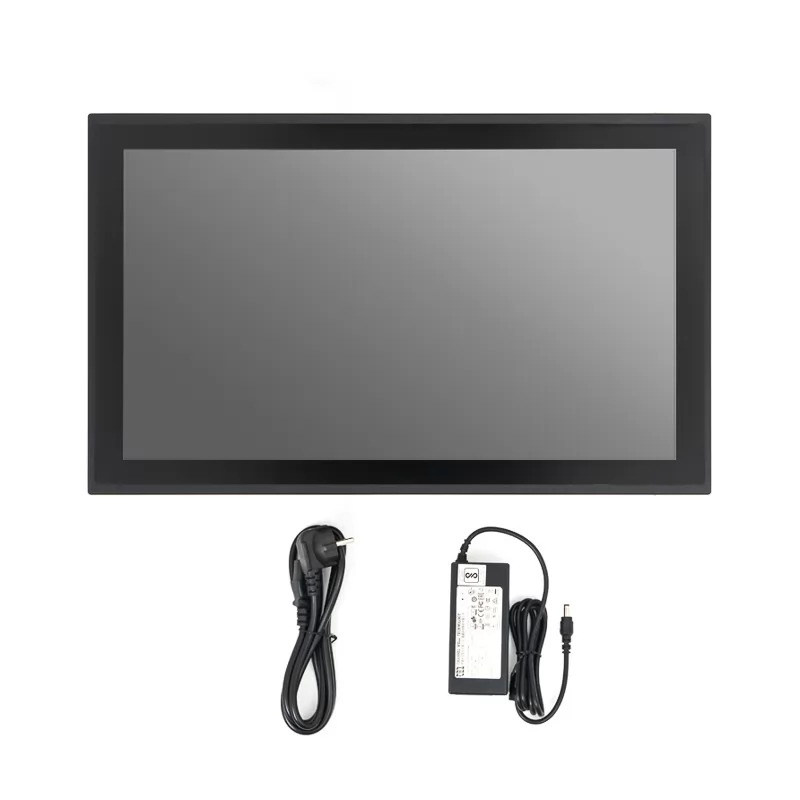

1000 nits Industrial LCD Screen Panel PC Memory 8GB SSD 128GB

Quick Details:

CPUIntel 6/7/8/10th i5 i7
RAMMax 8GB
Hard Drive128GB SSDPanel size7" -21.5"
Brightness1000 nitsView angle178°/178°
WIFISupportIP GradeFront IP65

Features

  1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.

  2. Industrial  LCD panel,  wide viewing angle,  1000cd/m² sunlight readable ,dimming via buttons.

  3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

  4. High performance motherboard, 7x24 continuous operation.

  5. Support wall mounting,embedded mounting,desk stand mouting etc.


Specification


Model:SC100E
PC
CPUIntel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless

Intel® Core  I3-3217U or I3-3227U, Dual Core, Quad Thread, Bas 1.9GHz, Turbo 2.4GHz

Intel® Core I3-4005U, dual core, 1.7GHz

Intel® Core I3-5005U, Dual Cores, Quad Threads, Base Frequency 2.0 GHz, Fanless


Intel® Core I5-6200U, Dual Core, Quad Threads, Base frequency 2.4GHz, Turbo frequency 3.0GHz, Fanless

Intel® Core I5-6300U, Dual Core, Quad Threads, Base frequency 2.4GHz, Turbo frequency 3.0GHz, Fanless

Intel® Core i3-10110U,  Dual core , Frequency 2.1GHz, Turbo Frequency 4.1GHz

Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless
Memory4GB, 8GB, 16GB Optional
Hard Drive Capacity128Gb SSD
Hard Drive OptionalSSD: 256G, 512GB, 1TB
HDD: 1TB,2TB
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network2×Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface2×USB 2.0, 2×USB 3.0,   2 x COM RS232
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10,  Linux, Ubuntu, Debian etc.
Microphone1×Built-in microphone
LCD panel
Panel size7"- 21.5"
Resolution1024*600,1024*768,1280*800,1280*1024,1366*768,1920*1080
Aspect ratio4:3,5:4,16:9,16:10
Support Color16.7M colors
Brightness (cd/m²)1000 cd/m² sunlight readable, 300 cd/m² Optional
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB   (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options( 5 wire resistive touch,  IR touch optional)
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialAluminum Alloy+high strong rolled steel
ColorSilver , Black, white,  color can be customized
VESA mounting75×75mm/100×100mm
IP gradefront panel IP65 waterproof and dustproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C,  storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
AccessoriesPower adapter,embedded screws,user manual,warranty card
Other
Mounting (options)open frame
embedded mounting screws (optional)
wall mounting brackets  (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE,FCC,RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
