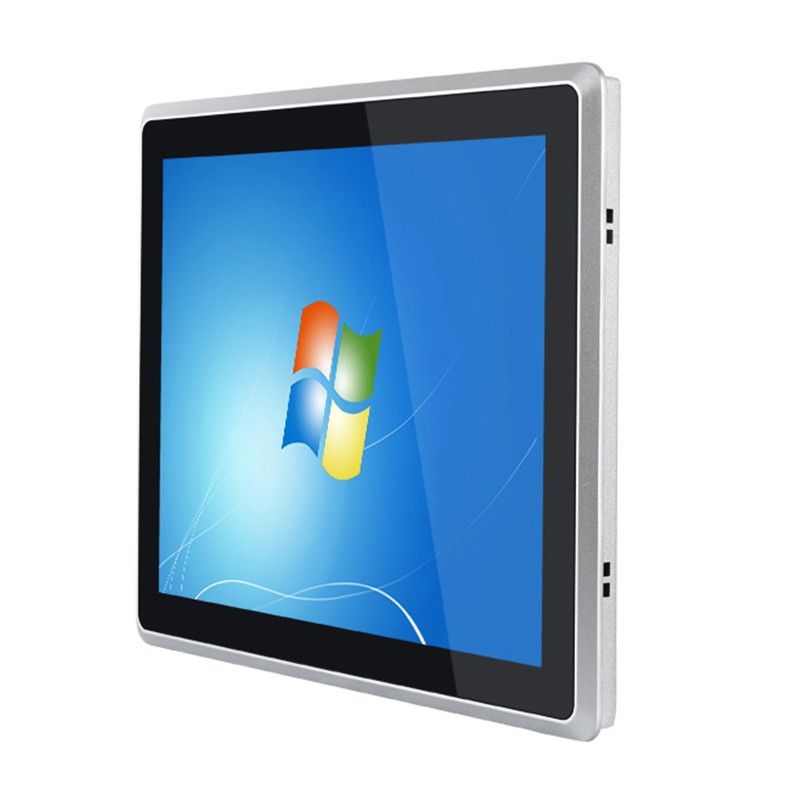

Industrial Panel PC SC200M

Quick Details:

CPUIntel Celeron J1900RAM2GB
Hard Drive32G SSDPanel size10.1"-21.5"
Brightness400nitsView angle80/80/80/80
MaterialAluminum alloyIP-GradeFront IP65


Industrial Panel PC SC200X

Why should I buy Industrial Panel PC SC200M ?

1. Fully enclosed design, the whole PC is dustproof.

2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.

3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

6. High performance motherboard, 7x24 continuous operation.

7. Ultra-thin front bezel 3mm, ideal for embedded mounting.

8. 4 COM optional, RS232/RS422/RS485 optional.


Industrial Panel PC SC200M Specification:

PC
CPUIntel® Celeron J1900 (I3/I5/I7 optional)
ChipsetIntel Valley View SSA-CUnit
Memory2G DDR3 (4G, 8G optional)
Hard Drive Capacity32G SSD
Hard Drive OptionalSSD: 64G, 128GB, 256GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI

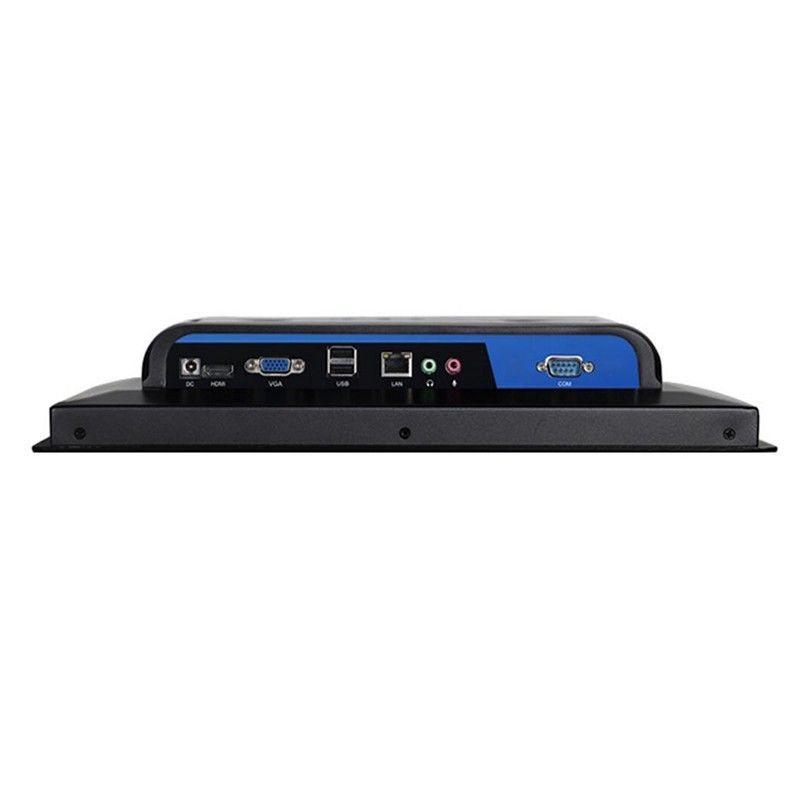

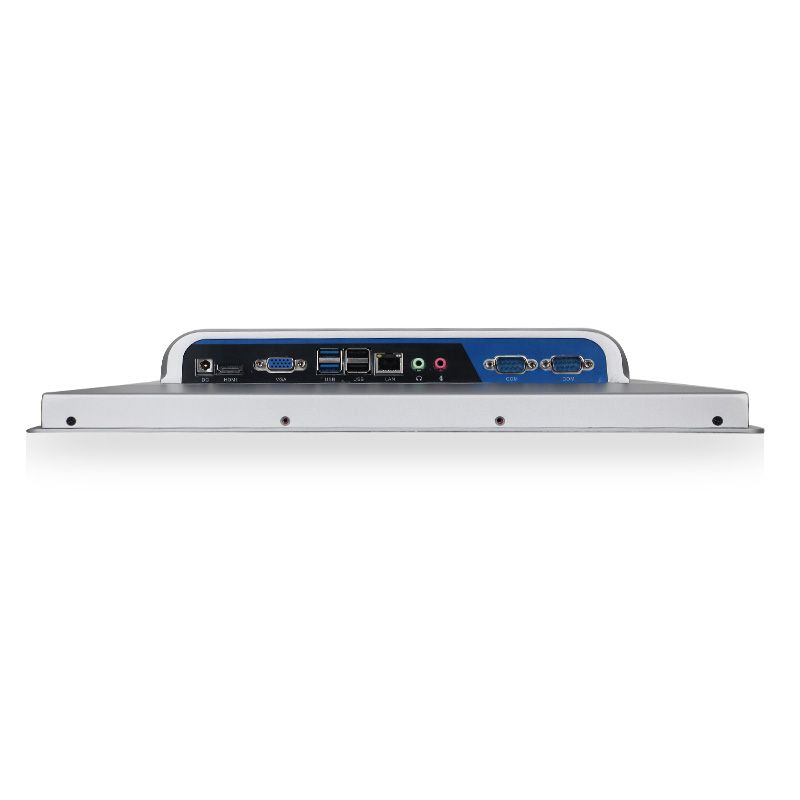

I/O Interface3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232 (10.1"-10.4": 2×USB2.0, 1×COM)
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size10.1"-21.5"
Support Color16.7M colors
Brightness (cd/m²)400+ nits
Response time5ms
Backlight typeLED
Backlight life time≥50K hours
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch options5 wire resistive touch
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Enclosure
MaterialAluminum Alloy
ColorSilver, Black, white, color can be customized
VESA mounting75x75mm/100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Other
Mounting (options)embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
AccessoriesPower adapter, embedded screws, user manual, warranty card
Warranty1 year warranty
CertificateCE, FCC, RoHS

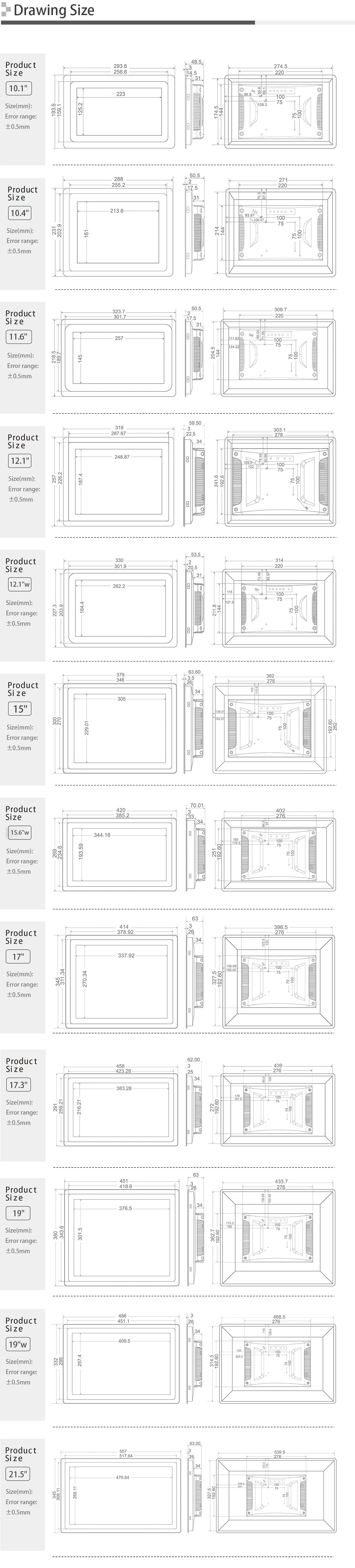

Product Series:

SizeResolutionAspect ratioTouch type
10.1"1366*76816:9no touch/capacitive/resistive
10.4"1024*7684:3no touch/capacitive/resistive
11.6"1920*108016:9no touch/capacitive
12.1"1024*7684:3no touch/capacitive/resistive
12.1"1280*80016:10no touch/capacitive
15"1024*7684:3no touch/capacitive/resistive
15.6"1920*108016:9no touch/capacitive/resistive
17"1280*10245:4no touch/capacitive/resistive
17.3"1920*108016:9no touch/capacitive/resistive
19"1280*10245:4no touch/capacitive/resistive
19"1440*90016:10no touch/capacitive/resistive
21.5"1920*108016:9no touch/capacitive/resistive


How to package?

Industrial Panel PC SC200X

Components:

-Package included: Industrial Touch Panel PC, Power adapter and power cord;

-Accessories or Parts: Embedded screws, user manual, warranty card;


Certifications:

Industrial Panel PC SC200M

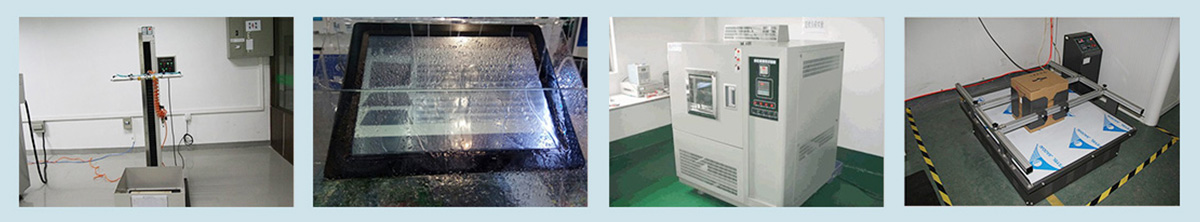

Severe Test:

We strictly control the incoming material quality and whole production process. All products must be checked at least 5 times before delivery. We have advanced inspection equipments. Most importantly, we have strong sense of responsibility and meticulous manner, never let the unqualified product go out of the factory.

Industrial Panel PC SC200X


FAQ:

1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.

2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.

3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;

4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.

5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
