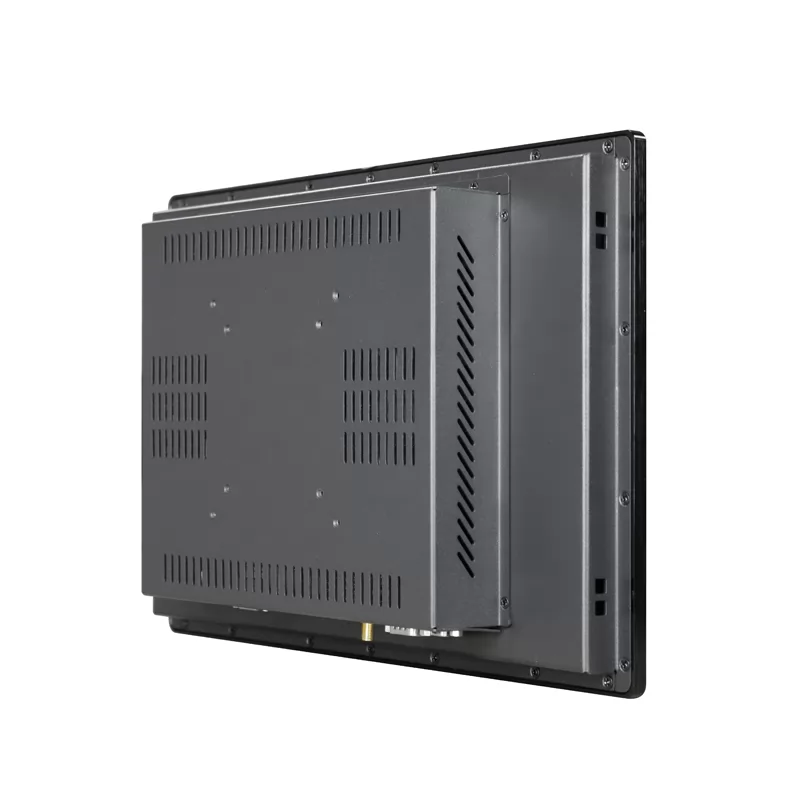

Panel PC RFID
Fanless Dustproof Antishock Embedded Touch Panel PC with RFID equipped with an Intel® Celeron J1900, quad core, 2.0GHz, fanless. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 4xserial ports, 4xUSB ports, 1xRFID module make device connection and integration easy.
SHINHO 10-inch Panel PC RFID with all-in-one design provides high-quality image, picture, and advanced features for reliable operation in any commercial self-service vending equipment, community access control, and security for many years. The unique streamlined design with ultra-thin 10mm front bezel makes installation a snap. Options like types of touch screens and AC or DC or power input makes these all-in-one PCs highly versatile. Backed by standard industrial certifications, 3rd-party environmental testing, and a trustworthy before / after-sales service system.
Advantages
1. High speed communication and fast startup.
2. Powerful inner core, faster calculation speed.
3. No fan, ultra quiet.
4. Durable operation, stable performance and wide application.
Features Of Panel PC RFID:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Integrated with RFID.
6. Support wall mounting, embedded mounting, desk stand mouting etc.
Welcome to purchase our Panel PC RFID!
After years of accumulation, our products and services have gradually extended from the initial industrial automation to commercial intelligent terminals, intelligent devices, human-computer interfaces and other fields. Now Shinho has a wide range of products, always taking customization as the core value. If you want to customize your exclusive Industrial Touch Panel PC, please contact us!
Panel PC RFID Specification:
| Model: SC104 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2xUSB 2.0 , 1xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤21.5W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 4kg |
| Gross weight | 5kg |
| Product Dimension | 36.26x23.5x6.6cm |
| Packing size | 49x45x20cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
Our experienced sales team can offer the most up to date information and suggest options which fit your specification and budget; depending on location, please click the Contact Us to send your requirements.
