Features
Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
Industrial LCD panel, wide viewing angle, high nits, true color.
Brightness: 1000 nits, sunlight readable, Anti glare.
With dimmer to adjust brightness from 0 to 100%.
Ultra-thin front bezel 3mm, ideal for embedded mounting in outdoor kiosk/ parking machine/ charging station and so on.
High performance motherboard, 7x24 continuous operation.
Be with discrete graphics card: GTX1050
Specification
| Model:SC185 | |
| PC | |
| CPU | Intel® Core i5-6400, Quad Cores, Quad Threads, Base 2.7 GHz, Turbo 3.3 GHz |
| Memory | 16G RAM |
| Hard Drive Capacity | 256G SSD |
| Hard Drive Optional | SSD: 32G, 64GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | Intel® HD Graphics 530 |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI Optional |

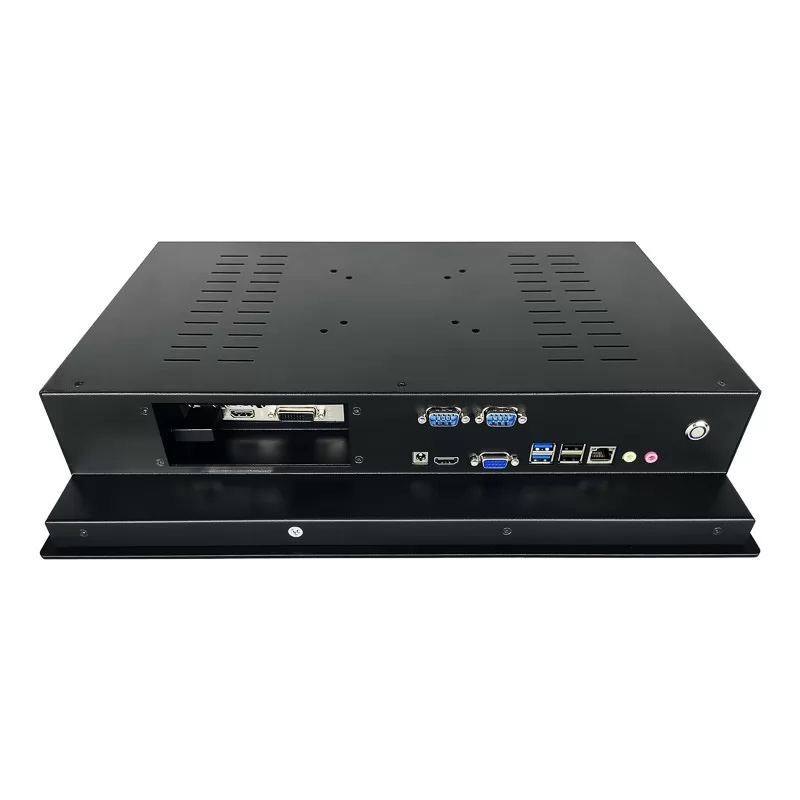

| I/O Interface | 2xUSB 3.0, 2xUSB 2.0, 2xCOM RS232,1x RJ45 |
| 1xVGA/HDMI/Audio OUT/POWER DC | |
| Graphics card | TGX1050 |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+high strong rolled steel back case |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75*75mm/100*100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, Storage: -20 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 6kg |
| Gross weight | 8.1kg |

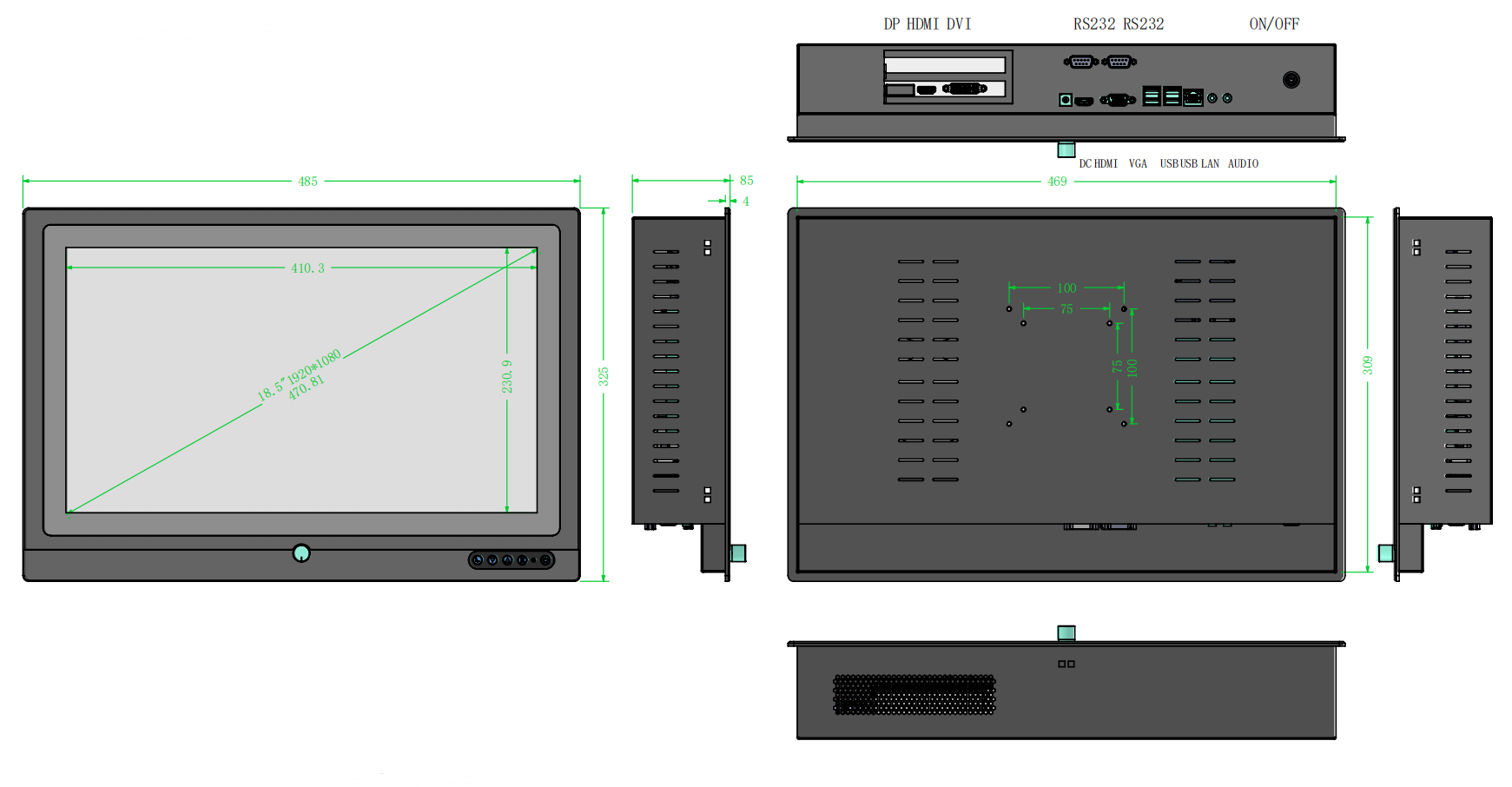

| Product Dimension | 485×325×85mm |
| Packing size | 69×55×20 cm |
| Accessories | Power adapter, power cord, embedded screws |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
