High-Quality Industrial Embedded Touch Panel PC: Empower Your Operations
Introduction
Welcome to our comprehensive guide on industrial embedded touch panel PCs, designed to meet the demanding needs of modern industries. At [Our Company Name], we take pride in offering cutting-edge technology solutions that empower businesses to streamline their operations and enhance productivity. If you are interested in our embedded touch pc, feel free to contact us!
Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide operating temperaturer: -20 ~ 70 °C, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. Cover with AG glass, Anti-glare.
5. EETI touch controller.
6. High performance motherboard, 7x24 continuous operation.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Specification
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |

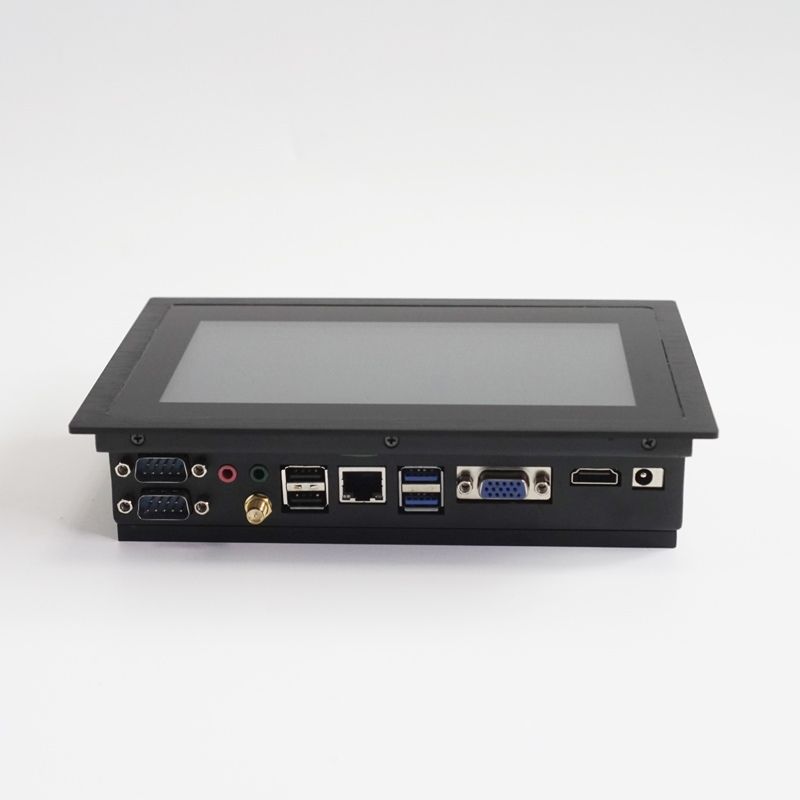

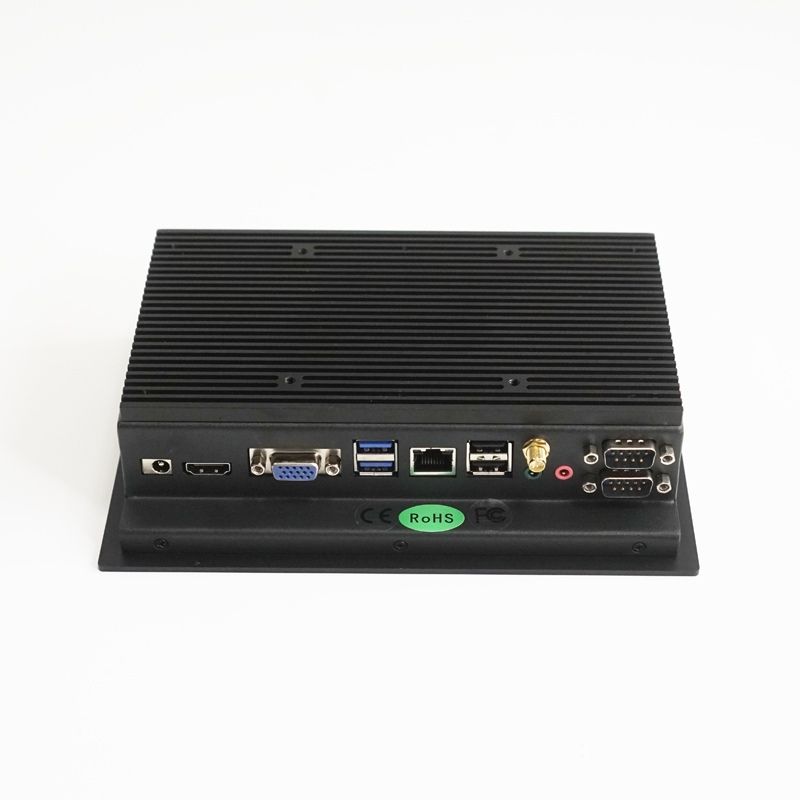

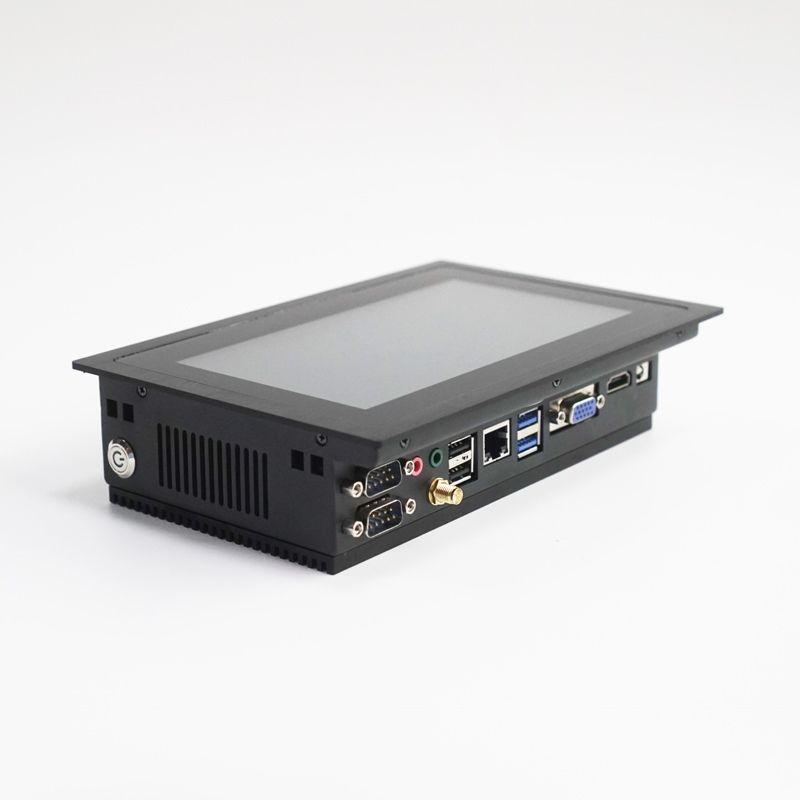

| I/O Interface | 2×USB 2.0, 2×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |

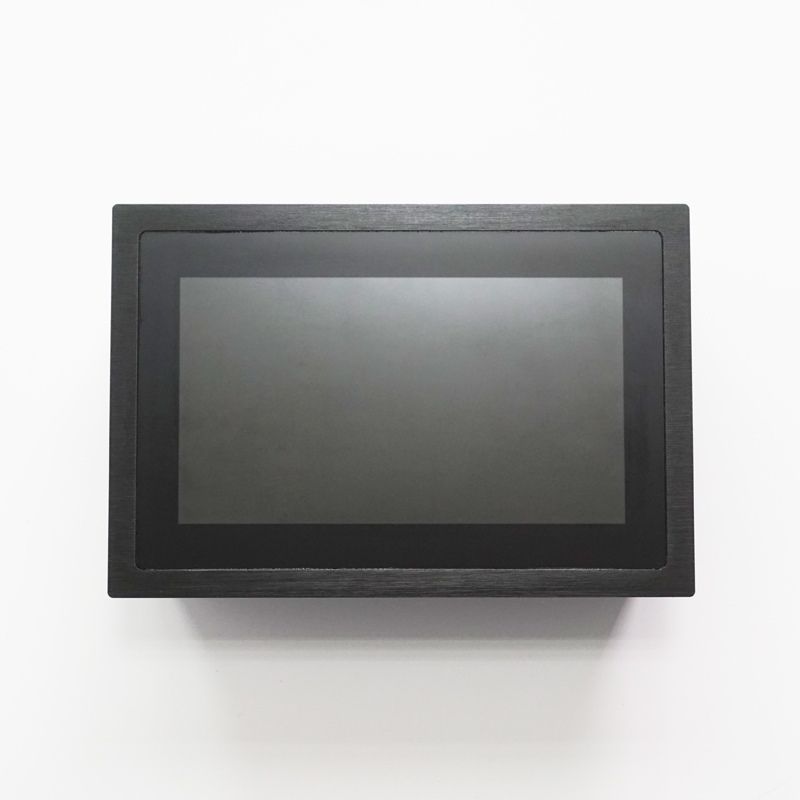

| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 75°/75°/75°/75° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+ High strength cold rolled steel back case |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75×75mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 1.5kg |
| Gross weight | 2kg |
| Product Dimension | 20.11*13.66*5.05cm |
| Packing size | 40*33*16cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
Unparalleled Display Performance
1. Crystal-Clear Visuals
Our 7-inch 1000nits industrial embedded touch panel PC boasts an impressive display performance, providing users with crystal-clear visuals that are essential for precise monitoring and control. Equipped with state-of-the-art display technology, this PC delivers vibrant colors, sharp images, and exceptional clarity, ensuring an optimal user experience even in challenging industrial environments.
2. High Brightness for Enhanced Visibility
Featuring an impressive brightness level of 1000 nits, our industrial embedded touch panel PC excels in scenarios where visibility is crucial. Whether operating in direct sunlight or in brightly lit areas, this PC ensures that your critical data and controls are always visible, minimizing the risk of errors and maximizing efficiency.
Robust and Reliable Design
1. Rugged Construction for Demanding Environments
Our 7-inch 1000nits industrial embedded touch panel PC is built to withstand the rigors of industrial settings. With its robust construction, it can endure harsh conditions, including extreme temperatures, vibrations, and dust, making it the ideal choice for industries such as manufacturing, automation, transportation, and more. This rugged design ensures uninterrupted performance, minimizing downtime and optimizing productivity.
2. Wide Temperature Range
To meet the diverse needs of industrial applications, our industrial embedded touch panel PC offers a wide temperature range. It can operate reliably in environments ranging from -20°C to 60°C (-4°F to 140°F), allowing for deployment in both extreme cold and hot conditions. This versatility ensures consistent performance, regardless of the operational environment.
3. IP-rated Protection
Our industrial embedded touch panel PC is designed with IP-rated protection, providing an additional layer of safeguarding against dust, water, and other contaminants. With its IP65-rated front panel, this PC is resistant to water jets and can withstand occasional spills and splashes, enhancing its longevity and reliability in demanding industrial settings.
Advanced Features and Connectivity Options
1. Powerful Processing Capabilities
Equipped with a high-performance processor, our 7-inch 1000nits industrial embedded touch panel PC delivers impressive computing power to handle complex industrial applications seamlessly. This processing prowess ensures swift data processing, rapid response times, and efficient multitasking, allowing you to optimize your operations and achieve higher productivity levels.
2. Versatile I/O Ports
To accommodate various industrial devices and peripherals, our industrial embedded touch panel PC offers a wide range of I/O ports. These ports enable seamless connectivity with a multitude of equipment, including sensors, actuators, cameras, and other industrial devices. The versatility of the I/O ports ensures compatibility and simplifies integration, facilitating the creation of robust and interconnected industrial systems.
3. Expandable Storage and Memory
Recognizing the importance of data storage and retrieval in industrial settings, our industrial embedded touch panel PC provides expandable storage and memory options. With support for additional storage devices and ample memory capacity, this PC enables efficient data management, ensuring easy access to critical information and facilitating seamless operations.
4. Advanced Communication Capabilities
Our 7-inch 1000nits industrial embedded touch panel PC offers advanced communication capabilities, allowing for seamless integration within your industrial network infrastructure. With features such as Ethernet ports, Wi-Fi connectivity, and optional cellular modules, this PC facilitates real-time data exchange, remote monitoring, and centralized control, empowering you to manage your industrial processes with utmost efficiency.
Applications and Industries
1. Industrial Automation
In industrial automation, precise control and monitoring are paramount. Our 7-inch 1000nits industrial embedded touch panel PC serves as a central interface for automation systems, enabling operators to efficiently manage processes, monitor equipment performance, and make informed decisions. With its robustness, reliability, and advanced features, this PC excels in industrial automation applications.
2. Manufacturing
Within the manufacturing sector, our industrial embedded touch panel PC finds extensive applications. From production line control and monitoring to quality assurance and data analysis, this PC provides a versatile platform to streamline manufacturing processes and enhance overall productivity. Its rugged design ensures reliable operation in challenging factory environments.
3. Transportation and Logistics
In the transportation and logistics industry, our industrial embedded touch panel PC offers valuable solutions for fleet management, cargo tracking, and route optimization. With its advanced communication capabilities, high brightness display, and rugged construction, this PC empowers transportation companies to efficiently manage their operations, improve safety, and optimize resource utilization.
4. Energy and Utilities
Power generation plants, oil refineries, and utility facilities require robust and reliable computing solutions. Our 7-inch 1000nits industrial embedded touch panel PC is well-suited for these demanding environments, providing operators with the tools they need to monitor and control critical systems. Its ability to withstand extreme temperatures and harsh conditions ensures uninterrupted performance in the energy and utilities sector.
SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED: Your Partner in Customized Embedded Touch PCs
At SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, we pride ourselves on being a leading manufacturer specializing in Industrial Computers and providing tailored solutions to our valued enterprise clients. With our dedication to integrating resources and technologies, we have positioned ourselves as a trusted partner for the design and production of customized industrial panel PCs and touch screen monitors.
Unleashing the Power of Customization
One of our key advantages lies in our ability to offer customized solutions that precisely meet the unique requirements of our customers. Our team of highly skilled and experienced engineers and technicians is constantly expanding, allowing us to harness their expertise and deliver comprehensive custom solutions. Whether it's developing a specialized interface, adapting to specific environmental conditions, or integrating specific features, we are committed to providing the perfect embedded touch PC solution for your enterprise.
A Broad Range of Industries and Applications
Over the years, our product portfolio and services have expanded beyond industrial automation to encompass commercial smart terminals, intelligent devices, and human-machine interfaces. Our wide range of products is a testament to our commitment to staying at the forefront of technological advancements. Whether your enterprise operates in manufacturing, transportation, energy, or any other industry, we have the knowledge and expertise to deliver tailored embedded touch PCs that address your unique needs and challenges.
Uncompromising Quality and Reliability
We understand that in demanding industrial environments, reliability is paramount. That's why we adhere to stringent quality control measures throughout our production processes. From selecting the finest components to rigorous testing and inspection, we ensure that every embedded touch PC that leaves our facilities meets the highest industry standards. Rest assured that when you choose SHENZHEN SHINHO, you are investing in a product that is built to withstand the rigors of your industry and provide reliable performance day after day.
Collaborative Partnership Approach
At SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, we believe in fostering long-term partnerships with our clients. We see ourselves not just as a supplier but as an extension of your team, working together to develop innovative and customized solutions. Our dedicated sales and support team is committed to understanding your specific requirements, providing personalized guidance, and offering ongoing assistance to ensure your complete satisfaction with our embedded touch PC solutions.
Choose SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED
When it comes to embedded touch PCs, SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED is your trusted partner. Our expertise, dedication to customization, commitment to quality, and collaborative approach set us apart in the industry. Let us empower your enterprise with cutting-edge embedded touch PC solutions that optimize your operations, enhance productivity, and drive success.
Reach out to us today to discover how SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED can be your go-to provider of customized embedded touch PCs. Together, let's create the perfect solution tailored to your enterprise's unique needs.
