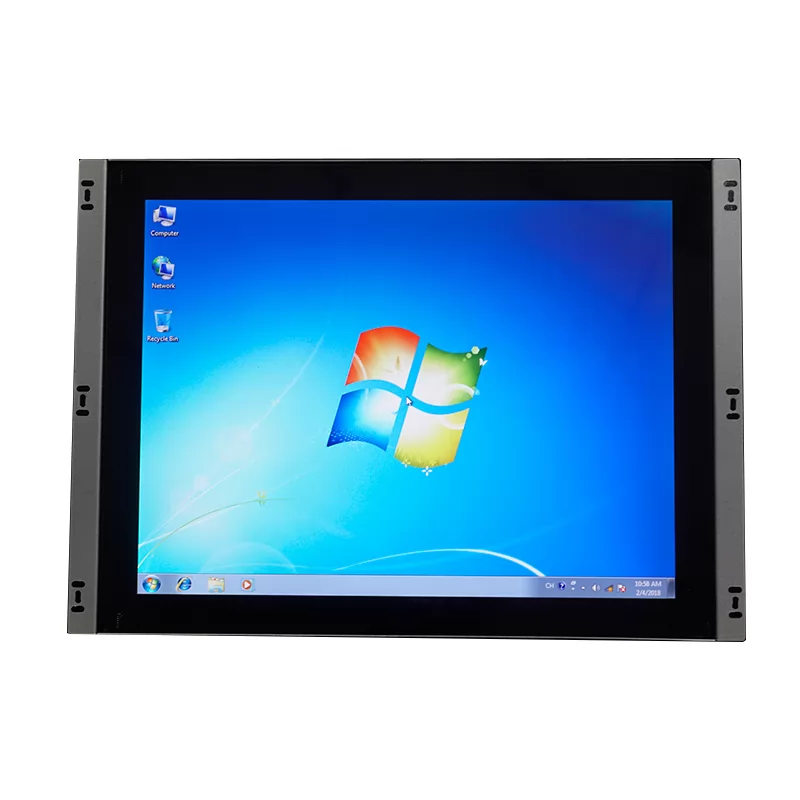

Open frame 15" 1000 nits touch panel PC for parking equipment

Quick Details:

CPUIntel I3 4160RAM4G DDR3
Hard Disk64G SSDPanel Size15"
Brightness1000nitsTouch TypeCapacitive
MaterialAluminum alloyView angle170°/170°


Features

1. Full aluminum alloy enclosure, light weight, excellent heat dissipation

2. Industrial  LCD panel,  wide viewing angle,  high nits, true color.

3. With 10 point capacitive touchscreen film, the capacitive touch will work on the 6mm glass.

4. High performance motherboard, 7x24 continuous operation.

5.With the button for manual adjusting the brightness.

6.With 4 RS232,1RS485,2 Lan ports.

7. Support wall mounting, embedded and rackmount etc.  Apply to a wide range of industrial application.


Specification


Model:SC15
PC
CPUIntel®  core I3-4160,2.0GHz, 3.6GHz,dual core
ChipsetIntel NM81
Memory4G  DDR3    ( Max. 8G)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD:  32GB,64GB,128GB,256GB
HDD: 320GB,500GB,1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek® High Definition Audio Decoder (5.1) Digital audio via HDMI Port
Network2x Realtek® Gigabit Ethernet Controller(RTL8111F)
Wireless NetworkWIFI
I/O Interface2×USB2.0 ,  2×USB3.0,   4x COM RS232 , 1× RS485, 2×LAN
1×VGA/HDMI/Audio OUT/MIC IN/POWER DC
Opetation SystemWindows7/8/10, Linux/Ubuntu/Debian
LCD panel
Panel size15"
Resolution1024*768
Aspect ratio4:3
 Support Color16.7M colors
Brightness1000 cd/m²,sunlight readable
Response time10ms
Contrast ratio1500:1
View angle85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type10 point capacitive touch
Touch InterfaceUSB   (RS232 optional)
Touch response time<8ms
Luminousness75-85%
Surface Hardness3H
Working Life>50 million times
Touch options(IR touch ,resistive touch optional)
VESA mounting100×100 mm
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤100W
Enclosure
MaterialAluminum Alloy
ColorSilver , Black, white,  color can be customized
VESA mounting75×75mm/100×100mm
Operating Environment
Temperature Rangeoperating: -10 to 60°C,  storage :-30 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight4kg
Gross weight5.5kg
Product Dimension38.1×27.5×7 cm
Packing size47×44cm×18
AccessoriesPower adapter, WIFI antenna ,  user manual
Other
Mounting (options)1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder  to support the monitor
Warranty1 year warranty
CertificatesCE,FCC,RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
