Features:
1. Aluminum alloy frame with sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof;
2. Industrial grade LCD screen, 1000 brightness visible under sunlight, PWM software to adjust brightness;
3.10 point capacitive touch screen, the protective layer is 1.8mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment;
4.EETI touch control solution, normal touch when there are water droplets on the touch screen;
5. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃.
Specification
| Model:SC156 | |
| PC | |
| CPU | Intel® Core i7-4500U, Dual Cores, Quad Threads, Base 1.8 Ghz, Turbo 3.0 Ghz |
| Chipset | Haswell-U、Broadwell-U |
| Memory | 4G DDR3 |
| Storage Capacity | 256G SSD |
| Graphics | Intel® HD4400 |
| Audio | Cmedia HS_100B USB |
| Network | Realtek 8111F |
| Wireless Network | MC-AC7265 IEEE 802.11a/b/g/n/ac |
| Preinstalled OS | Window10 pro |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |

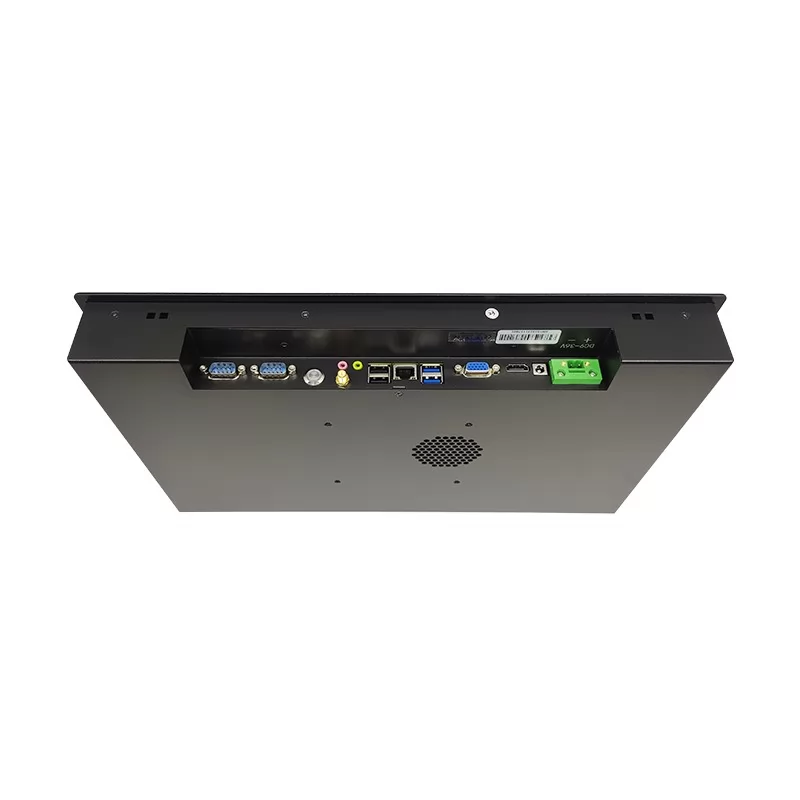

| I/O | |
| USB | 1*USB3.0, 3*USB2.0 |
| COM | 2* COM RS232 |
| LAN | 2* RJ45 |
| Video Outputs | 1*VGA, 1*HDMI |
| Audio | 1* 3.5mm Line-out, 1* 3.5mm Line-in |
| Power input | 1* 12V DC jack, 1* 3-pins terminal block connector(9-36V) |
| Other | 1* Power on/off button, 1* WIFI antenna jack male |
| LCD panel | |
| Screen diagonal | 15.6" |
| Display active area | 344.232(W)x193.536(H) mm / 13.552x7.62 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits |
| Brightness control | PWM Brightness Adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M colors |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air bonding |
| Touch optional | Resisive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |

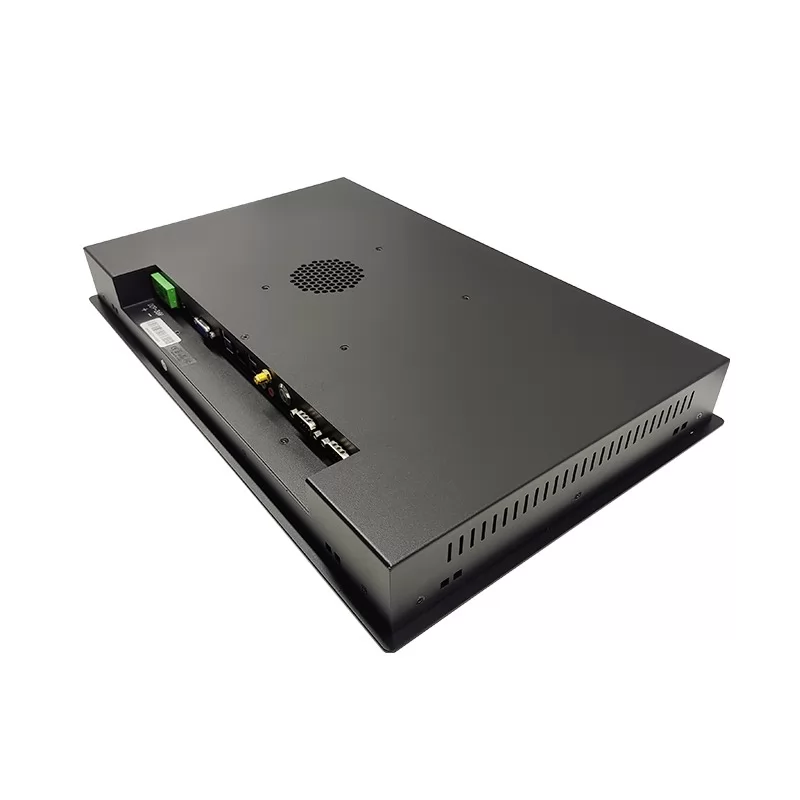

| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
| Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Front IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -10 °C(14℉) to 60°C(140℉), Storage: -20 °C(158℉) to 70°C(158℉) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 4.9kg Gross weight 7kg |

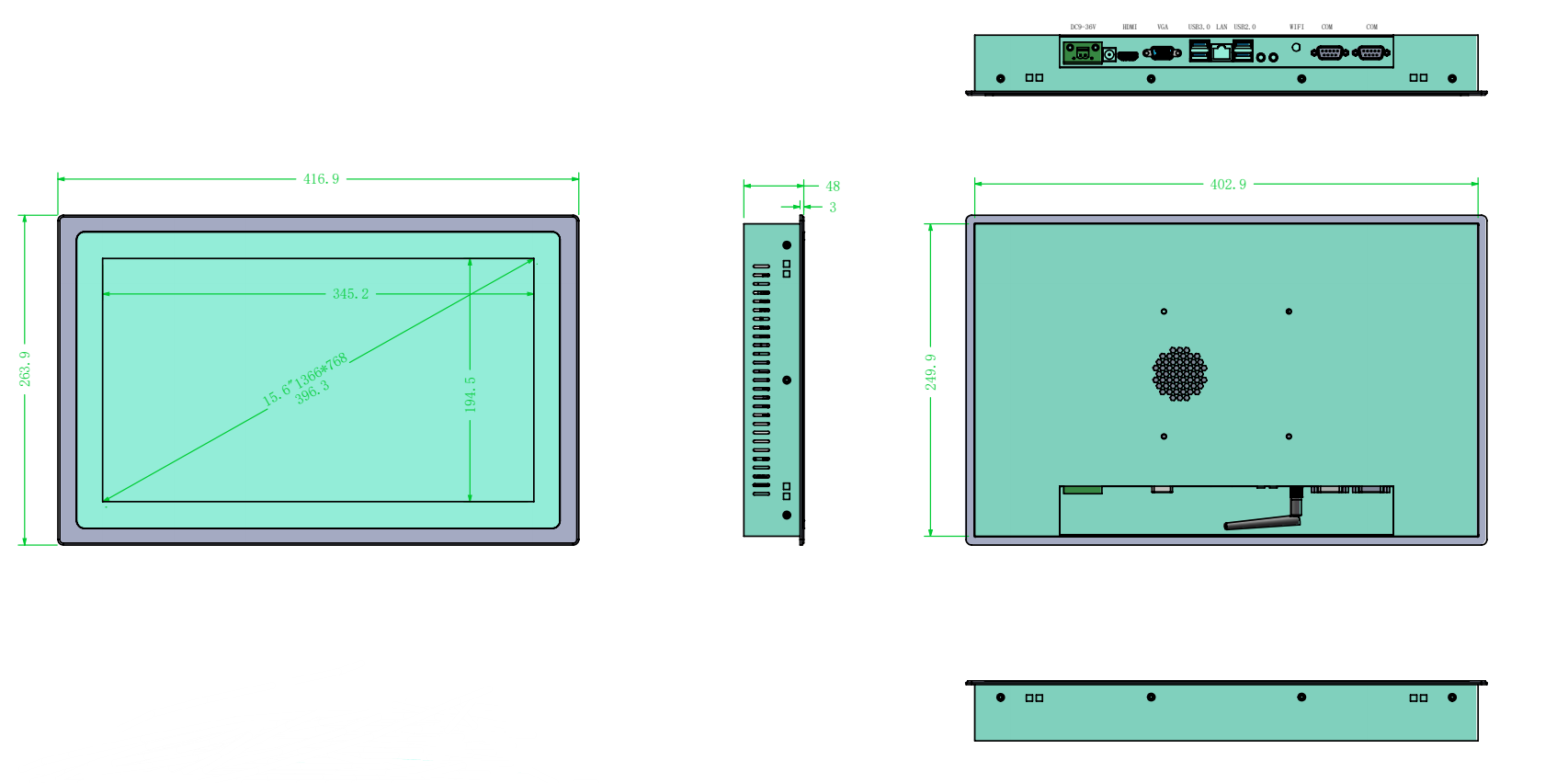

| Product Dimension | 416.9×263.9×48mm |
| Packing info | 1pcs/ctn 53×17×40cm 7.5kg 2pcs/ctn 53×32×40cm 15kg |
| Accessories | Power cable, Power supply, Embedded mount screws, Antenna |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
