Features:

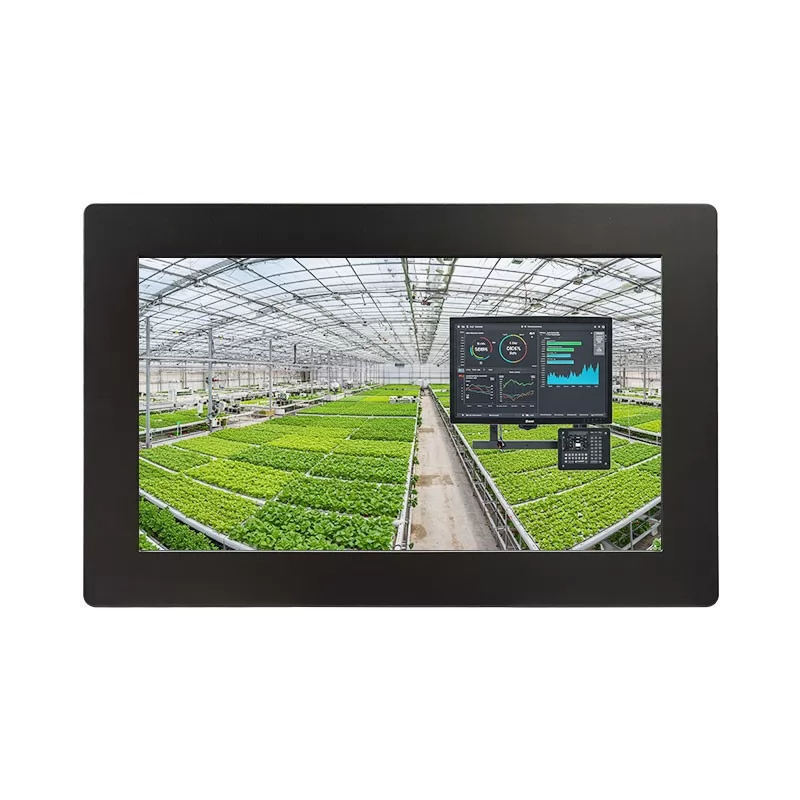

Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, Front panel IP65 waterproof.
Industrial LCD panel, wide viewing angle, high nits, true color.
Brightness: 1000 nits, sunlight readable.
EETI touch solution.
Independent graphics card Panel PC.
Wide temperature range: operating: -20 to 70°C, storage: -30 to 85°C.
High performance motherboard, 7x24 continuous operation.
Specification
| Model:SC156 | |
| PC | |
| CPU | Intel® Core i5-12400, 6 Cores, 12 Threads, Base 2.4 GHz, Turbo 4.4 GHz, Fanless Other CPU Optional |
| Chipset | H610 |
| Memory | 2* SODIMM DDR4 memory, supports 2133/2400/2666/2933/3200MHz memory, maximum support 128G |
| Storage | 1* M.2 Supports Key-M interface M.2 2280 hard disk, supports NVME/SATA protocol by default, 1* SATA3.0, 1* SATA_PWR PIN |
| Video card/Graphics card | GTX1050/2GB |
| Audio | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-definition audio controller |
| Network | Realtek 8111H Gigabit Ethernet controller |
| Wireless Network | WIFI, Bluetooth, 4G, GPS, optional |
| Expansion Slots | 1x M.2, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | windows 10 pro 64bit |
| Operation System | Support Windows 8/10, Linux, Ubuntu, Debian, etc. |
| External I/O Ports | |

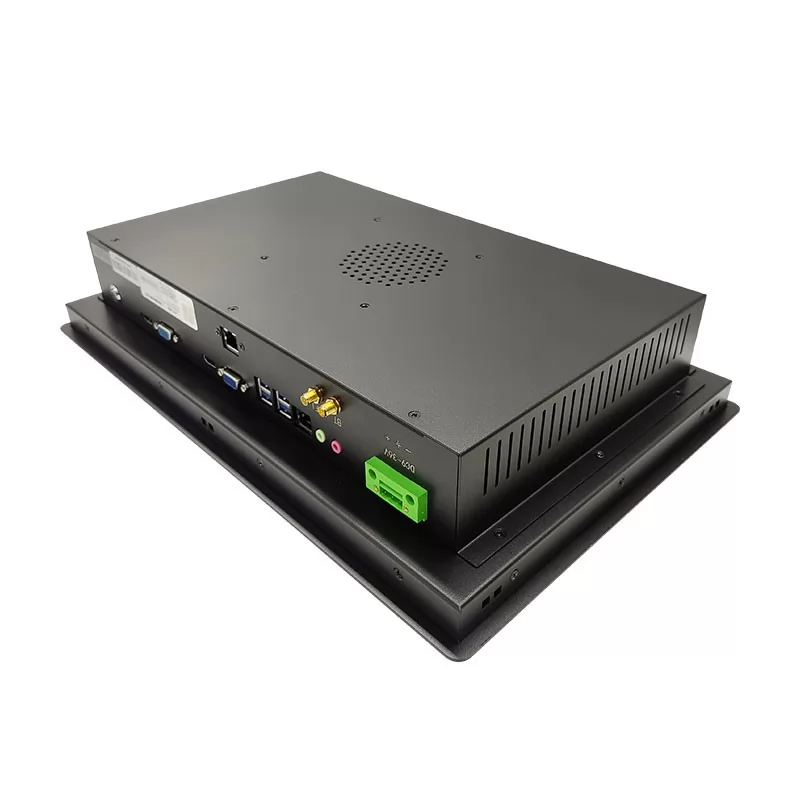

| USB | 4xUSB3.2 |
| LAN | 2×RJ45 |
| COM | 2×RS232 (422/RS485 Optional) |
| Video Outputs | 1×VGA, 1×HDMI |
| Vedeo Card | 1×VGA, 1×HDMI |
| Audio | 1 × 3.5mm Line-out, 1 × 3.5mm Line-in |
| Other | 1×Power on/off button |
| LCD panel | |
| Panel size | 15.6" |
| Display active area | 343.54(W)×192.83(H) mm /13.525 in × 7.591 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PMW software adjustment(Light sensor for auto dimming optional) |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding(Optical bonding optional) |
| Touch optional | Projected Capacitive Touch (up to 10 points ), IR touch, Non touch optional |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V (9-36V Optional) |
| Power consumption | ≤70W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
| Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |

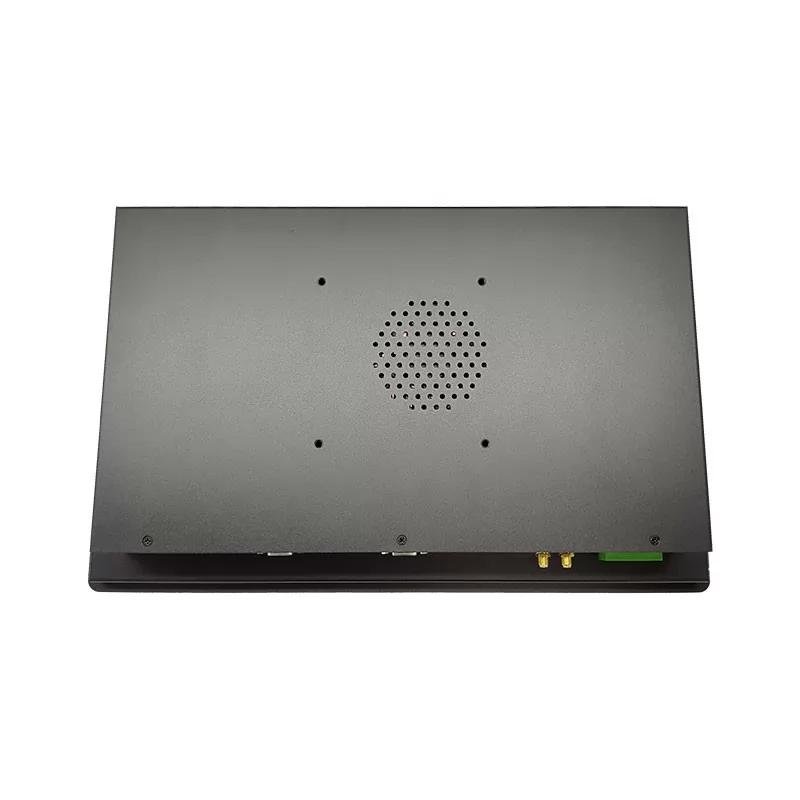

| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Front panel IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C（-4℉） to 70°C（158℉）, Storage: -30 °C（-22℉） to 80°C（176℉） |
| Relative humidity | Up to 99% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product Weight | Net weight 5.86kg |

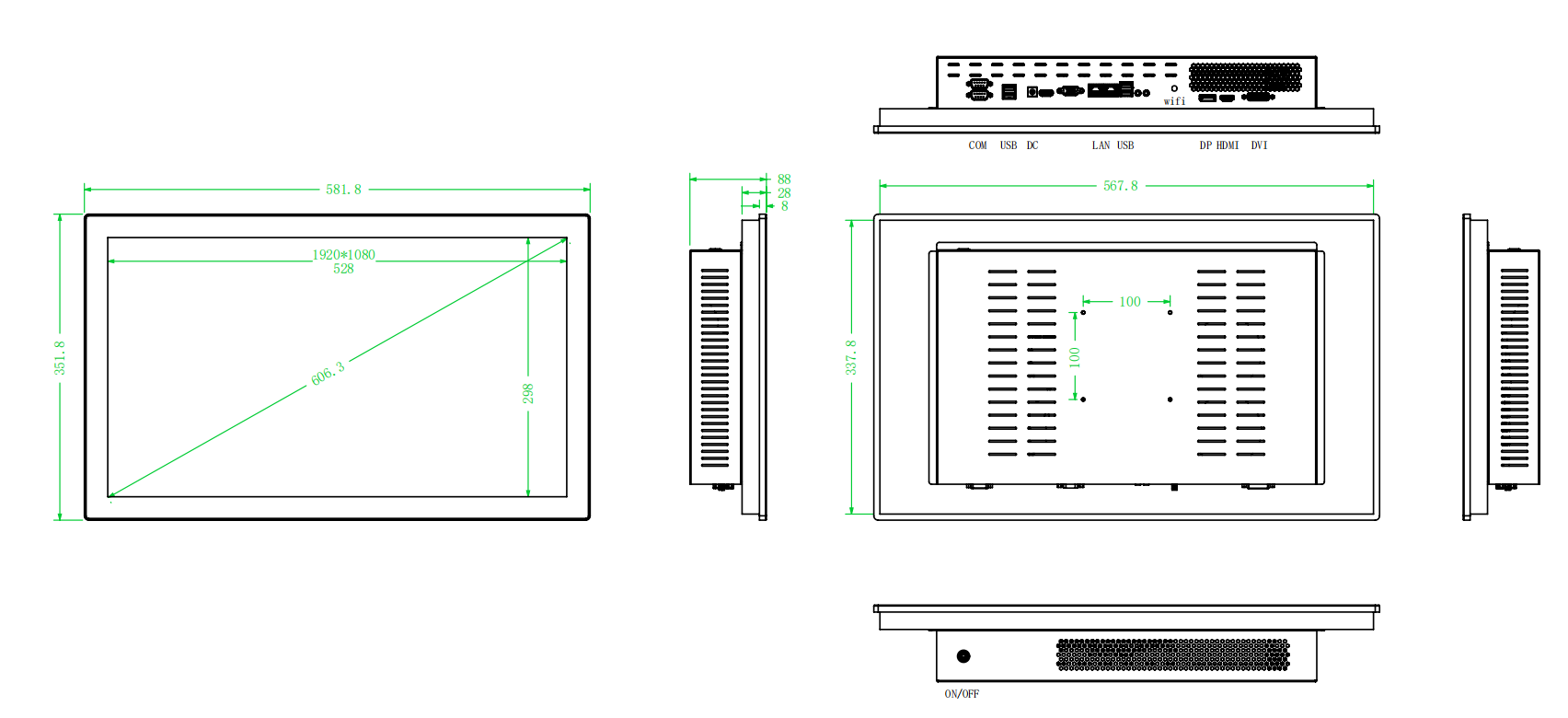

| Product Dimension | 420×267×80mm |
| Packing info | 1pc/ctn 57×46×24cm 11 kg 2pcs/ctn 58×47×50cm 23 kg |
| Accessories | Power adapter, power cord, Wall mounting brackets |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
