Feature
Front bezel aluminum alloy brushed metal craft,seamless design, front IP65 waterproof and dustproof .
Industrial LCD panel, wide viewing angle, high nits, true color.
High performance mainboard, 7x24 continuous operation.

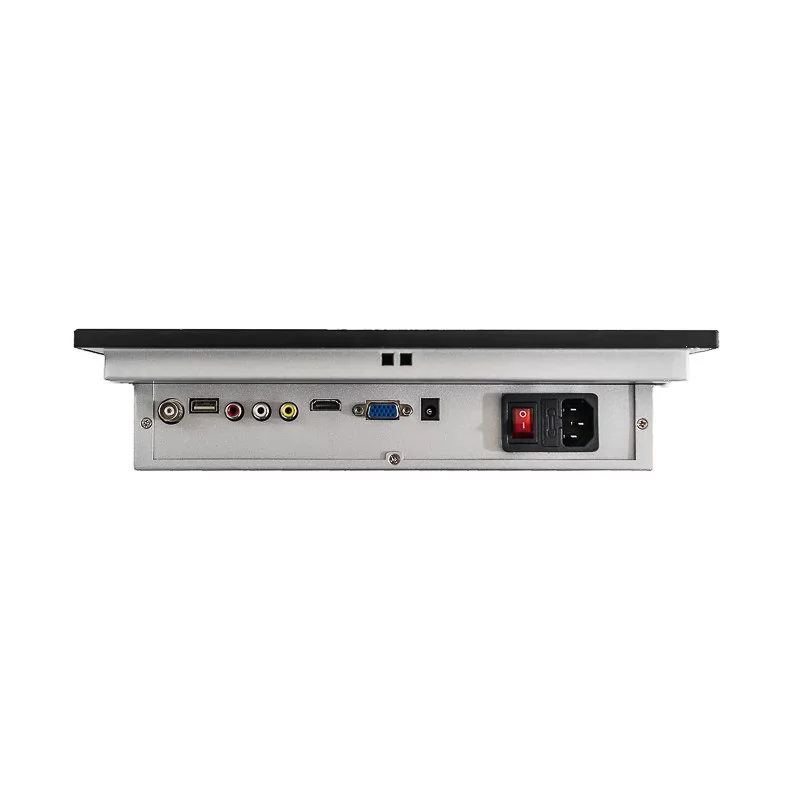

Support BNC, VGA, HDMI, AV Input.
Built-in power adapter with switch.
With power interface 6 PIN cable.
Support wall mounting, desk stand, embedded mounting.
Specification
| Model:SL12 | |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Signal Ports | |
| VGA | 1x VGA |
| BNC | 1x BNC |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black bezel+Silver back case |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 2.5 kg |
| Gross weight | 4 kg |
| Product Dimension | 31.2*24.5*7.05cm |
| Packing size | 43*38*18cm |
| Accessories | Power cord, DC(6PIN) cable, BNC cable, embedded screws, user manual, warranty card |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
