Industrial Touch Monitor

Home > Products > Touch Monitor > Industrial Touch Monitor

  • 15.6 inch 4K widescreen 600 nits touchscreen monitor photobooth
  • 15.6 inch 4K widescreen 600 nits touchscreen monitor photobooth
  • 15.6 inch 4K widescreen 600 nits touchscreen monitor photobooth
  • 15.6 inch 4K widescreen 600 nits touchscreen monitor photobooth

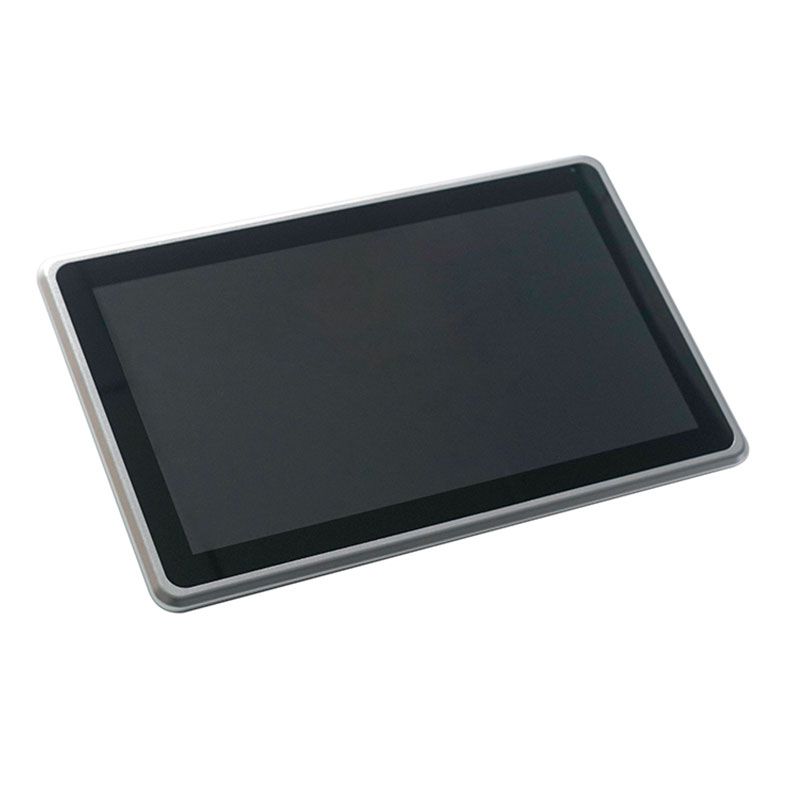

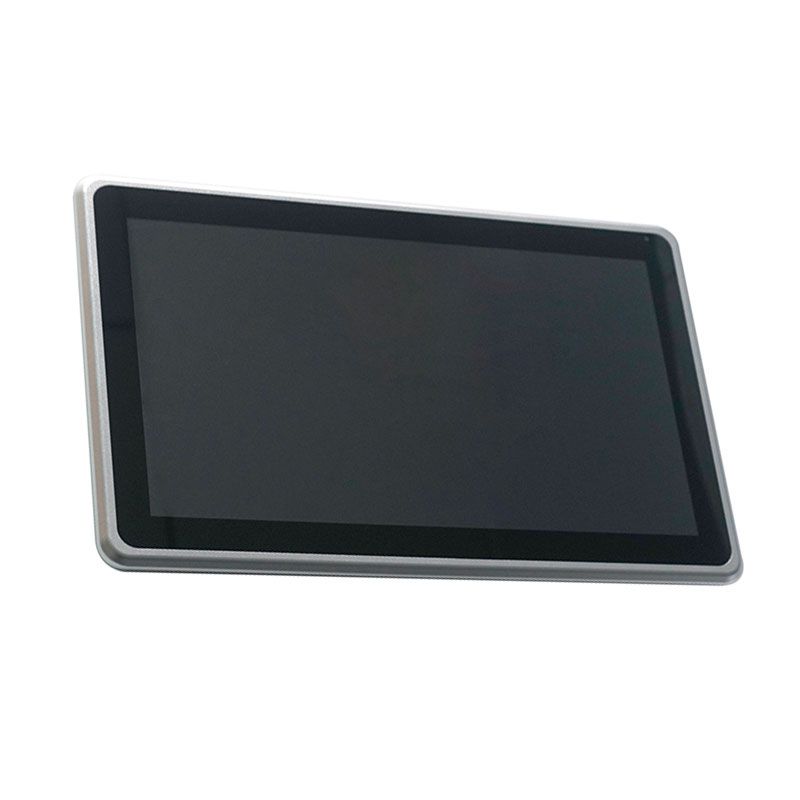

15.6 inch 4K widescreen 600 nits touchscreen monitor photobooth

Quick Details:

Panel size15.6''Brightness600 nits
Touch TypeCapacitiveInterfaceDP+3*HDMI
View angle89°/89°/89°/89°IP GradeFront IP65
MaterialAluminum AlloyPower SupplyDC 12V



Introducing the 15.6 Inch Touch Screen Monitor - Illuminating Your Vision with 600 Nits

Our 15.6 Inch Touch Screen Monitor/Touch Screen display has the advantages of high brightness, high temperature resistance portable and waterproof, if you are interested in our products, please contact us as soon as possible!

As a leading force in the realm of industrial computing, SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED proudly presents our 15.6 Inch Touch Screen Monitor, a testament to our commitment to cutting-edge innovation and unparalleled customization. With over 8 years of experience in crafting bespoke industrial panel PCs and touch screen monitors, we've harnessed the vast reservoir of knowledge, resources, and technology, all under one roof. We are more than just manufacturers; we are solution providers, dedicated to meeting the unique requirements of our esteemed customers.


China Industrial Monitor Manufacturer - A Name You Can Trust

SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED proudly carries the distinction of being a China Industrial Monitor Manufacturer. Our products bear the hallmark of quality, precision, and technological prowess that China is renowned for. When you choose our 15.6 Inch Touch Screen Monitor, you're investing in a product designed and crafted with a passion for excellence, a dedication to customization, and the expertise of seasoned engineers and technicians.



Powerful Luminance at 600 Nits

Our 15.6 Inch Touch Screen Monitor stands out in the industrial monitor landscape with its astounding brightness of 600 nits. This high luminance ensures unrivaled visibility even in the most challenging environments, from sun-drenched manufacturing floors to dimly lit industrial settings. Your visuals are crystal clear, vivid, and immune to the impact of external light sources. Every detail is brought to life, enhancing efficiency and accuracy in your operations.


Customization: Our Core Value

At SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, we understand that every industry has unique demands. Our 15.6 Inch Touch Screen Monitor is a prime example of our commitment to customization. We go beyond off-the-shelf solutions, offering you the power to tailor your touch screen monitor to your precise requirements. Whether you need specific connectors, touch technologies, or industrial certifications, we've got you covered. Your vision becomes our mission.



Features:


1. 15.6'' widescreen LCD panel, high resolution, wide viewing angle, high nits, true color.

2. 4K(3840*2160) resolution.

3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness.

4. Interfaces: 3*HDMI+1*DP+Type B USB for touch.

5. EETI waterproof solution, the touch function can work well with drop water on the screen.

6. Support wall mounting, desk stand mouting etc.

7. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C  (-4°F ~158°F).


Expanding Horizons: From Industrial Automation to Commercial Smart Terminals

Over the years, our product and service portfolio has grown to span a wide range of industries, from industrial automation to commercial smart terminals, intelligent devices, and human-machine interfaces. The versatility of our 15.6 Inch Touch Screen Monitor is a testament to our evolution as a dynamic industrial monitor manufacturer. We stay ahead of the curve, adapting to the ever-changing technological landscape to provide innovative solutions.


Specification:

Model:SL156
LCD panel
Panel size15.6"
Display active area343.5(W)×192.8(H) mm / 13.52 in × 7.590 in
Resolution3840*2160
Aspect ratio16:9
Brightness (cd/m²)600 nits
Brightness controlLight sensor
Contrast ratio1500:1
View angle89°/89°/89°/89° (R/L/U/D)
Support Color16.7M
BacklightWLED, 50K hours
Touch panel
Touchscreen TypeProjected Capacitive Touch (up to 10 points )
Surface Hardness7H
Surface treatmentAnti glare (chemical etching)
Luminousness≥90%
Touch controller ICEETI 81
Available touch driversWindows, Linux, Android, Mac, etc
Touch bondingAir bonding
Touch options(5 wires restive touch, IR touch optional)

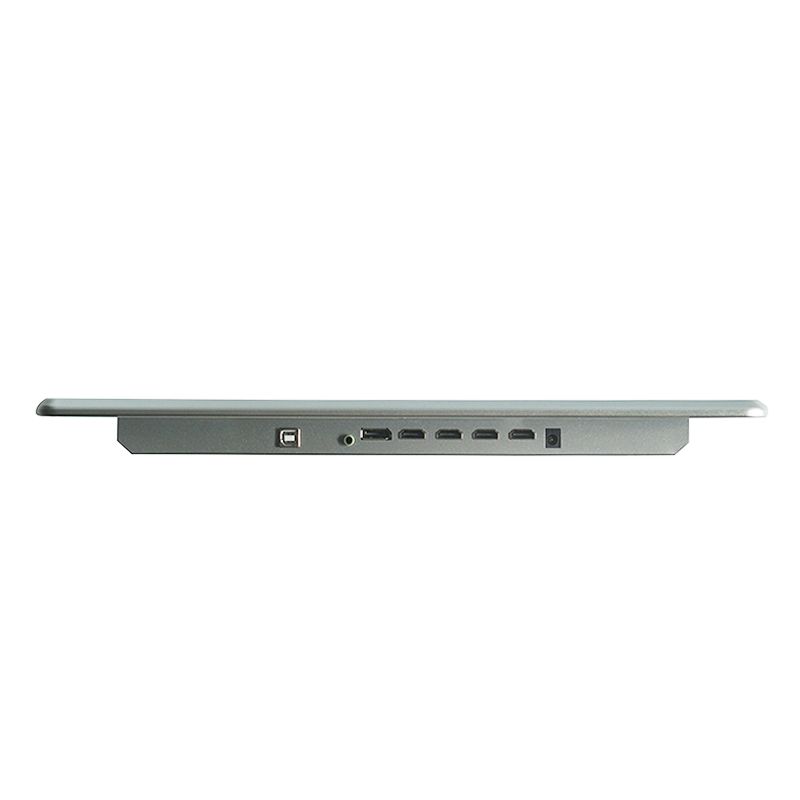

External I/O Ports
Video input1*HDMI2.0
2*HDMI1.2
1*DP
Audio out1×3.5mm Line-out
Touchscreen interface1×USB
Power connector1× 12V DC jack
Power Supply
Working voltageDC 12V
Power consumption20W
Power adapterAC 100 ~ 240V input and DC +12V@5A MAX output, 60W
OSD
Function Keys5 Keys: Power/Menu/Up/Down/Return
Menu FunctionsBrightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc.
Support languagesEnglish, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文,简体中文
Enclosure
MaterialAluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
FinishFront bezel: Sandblasting+Hard Anodizing,
UV-protection and Anti-discoloration treatment
Rear housing: powder coated
ColorSilver

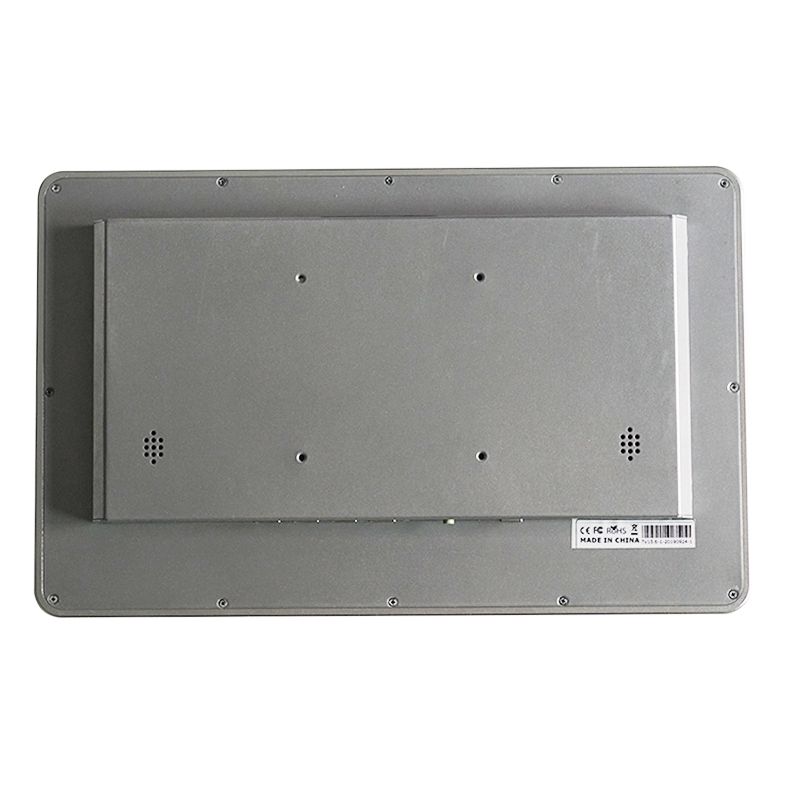

MountingVESA mount 75*75/100*100mm,  Panel mount
IP ratingFront panel IP65
Cooling systemPassive - Fanless
Design3mm bezel design(open frame design optional)
Operating Environment
Temperature RangeOperating: -20 °C ~ 70°C  (-4°F ~158°F)
Storage: -30 °C ~ 80°C  (-22°F ~176°F)
Relative humidityUp to 90% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
ShockGB2423.5
EMCClass B
Packing Details
WeightNet weight 3.4kg   Gross weight 4.9kg
Product Dimension420*267*50mm
Packing info1pcs/ctn  51×17×40cm  5.5kg
2pcs/ctn  51*32*40cm  11kg
AccessoriesPower adapter, power cord, USB touch cable, HDMI/ DP cable, embedded mounting screws, wall mounting brackets
Other
Warranty1 year warranty
CertificatesCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance


How to choose the touchscreen monitors/displays?

If you're thinking about buying one or more touchscreen monitors for your business, there are a few things you'll need to consider.

1.Size

You’ll probably discover that touchscreen monitors are available in a wide variety of sizes.Commonly size is 10.1 inch, 15 inch,15.6 inch and 17 inch. If you’re going to install it in a conference room, perhaps a larger touchscreen monitor would work best. But if you’re going to use it in individual workstations, a smaller monitor will likely suffice.

2.Touch Technology

All touchscreen monitors support touch commands. However, they way in which they identify these commands varies depending on the touch technology powering it. Most touchscreen monitors use either resistive or capacitive touch technology.

3.Aspect Ratio

Aspect ratio refers to the ratio of the monitor’s width to its height. 4:3 was once the dominant aspect ratio for monitors, but most modern monitors — including touchscreen ones — now use an aspect ratio of 16:9.

4.Ports

Check to see what type of ports the touchscreen monitor has and where those ports are located. If you want to connect peripherals to it, you’ll need the appropriate ports, such as an HDMI port.

Contact us to get a professional advice on your touchscreen monitor!


In conclusion, our 15.6 Inch Touch Screen Monitor is more than just a display; it's a gateway to the future of industrial computing. Explore the brilliance of 1000 nits brightness, experience the power of customization, and trust in the legacy of a China Industrial Monitor Manufacturer. Contact us today, and let's illuminate your vision together.

15.6 inch 4K widescreen 1000 nits touchscreen monitor photobooth

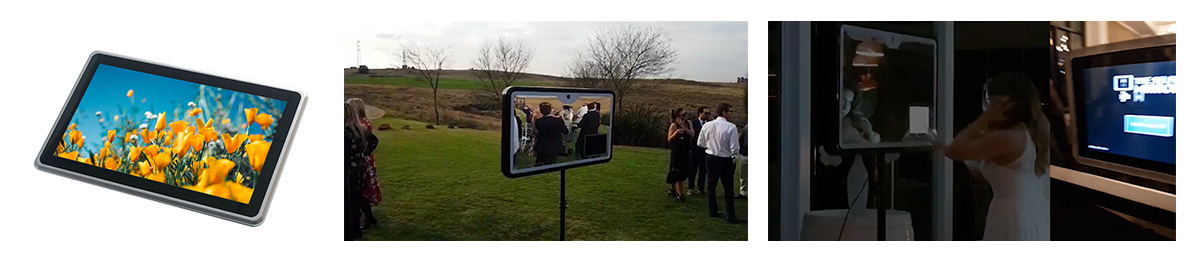

4K high brightness touch monitor for outdoor photobooth
