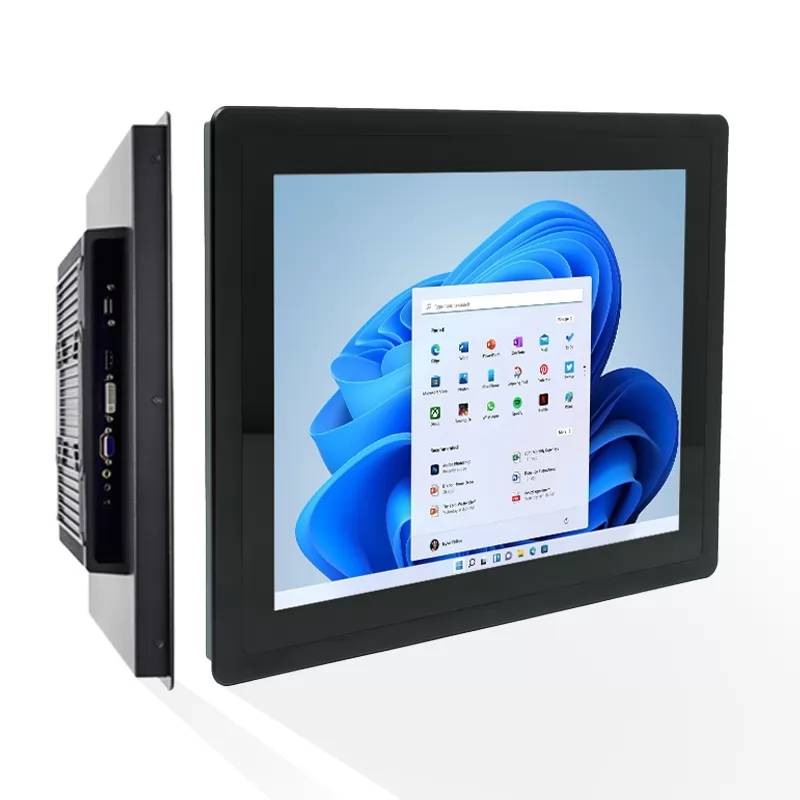

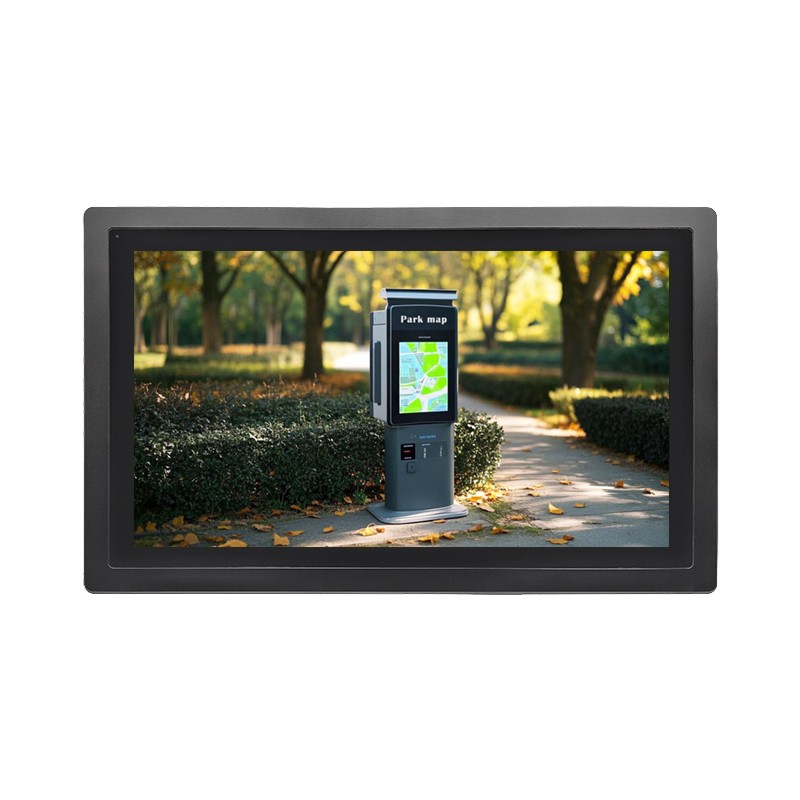

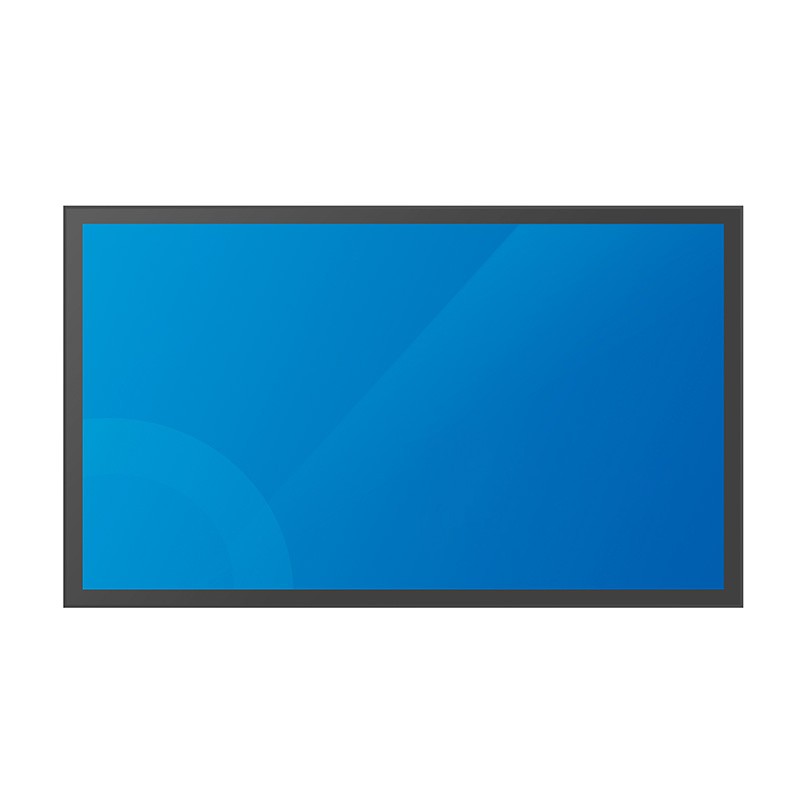

Optical Bonding Touch Screen SL800M Open Frame

Quick Details:

Panel size15.6" ~ 55"Resolution1920*1080
Aspect ratio16:9InterfaceVGA/DVI/HDMI
Brightness250nitsTouchCapacitive
SurfaceEtched with AGFeatureOptical Bonding



Features


  1. Fully enclosed design, the whole monitor is dustproof.

  2. Seamless design, front panel IP65 waterproof.

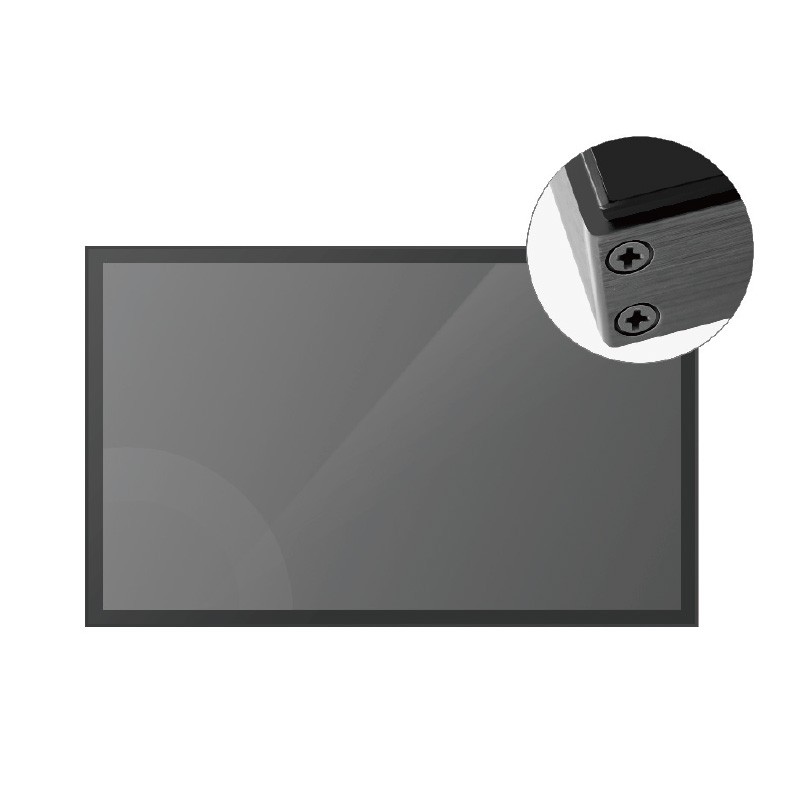

  3. Full Metal shell, good mechanical properties, excellent heat dissipation.

  4. Adopt multi-points PCAP touch panel, covered with 3mm tempered glass Etched with AG surface treatment to prevent glare.

  5. High performance mainboard, 7x24 continuous operation.

  6. VGA+HDMI+DVI interfaces, USB for touch.

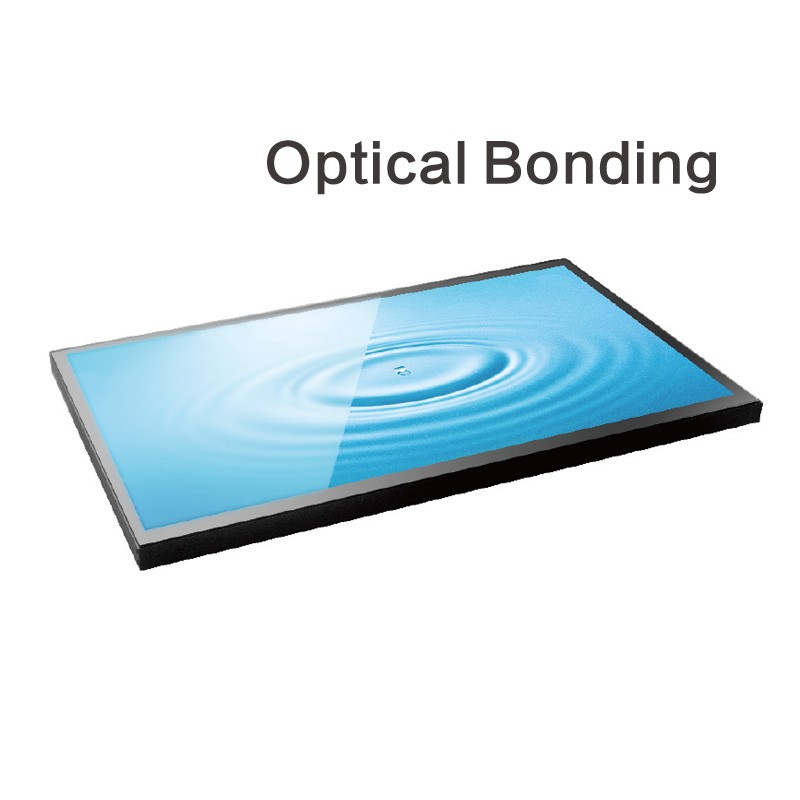

  7. Optical bonding, increase the light transmittance.

  8. Full viewing angle screen, FHD 1920*1080 resolution.

  9. Support wall mounting, desk stand, embedded mounting.


Specification

Model:SL800M
Display Characteristics
Diagonal
15.6" ~ 55"
Panel
LCD, Anti-glare coating
Native resolution
1920(H) ×1080(V) (2.1 megapixel Full HD)
Aspect ratio
16:9
Brightness
250 cd/m
LCD Life Time
50,000 Hour
Contrast Ratio (Center of screen)
3000:1
Response Time
18ms
Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color
16.7M colors
Touch
Touch technology
projective capacitive
Touch points
10
Touch accuracy
±2mm
Touch method
finger, glove (latex), capacitive stylus
Touch interface
USB
Supported operating systems
win7 、win10、 Linux 、android
Through-Glass
3mm
Touch scheme
EETI

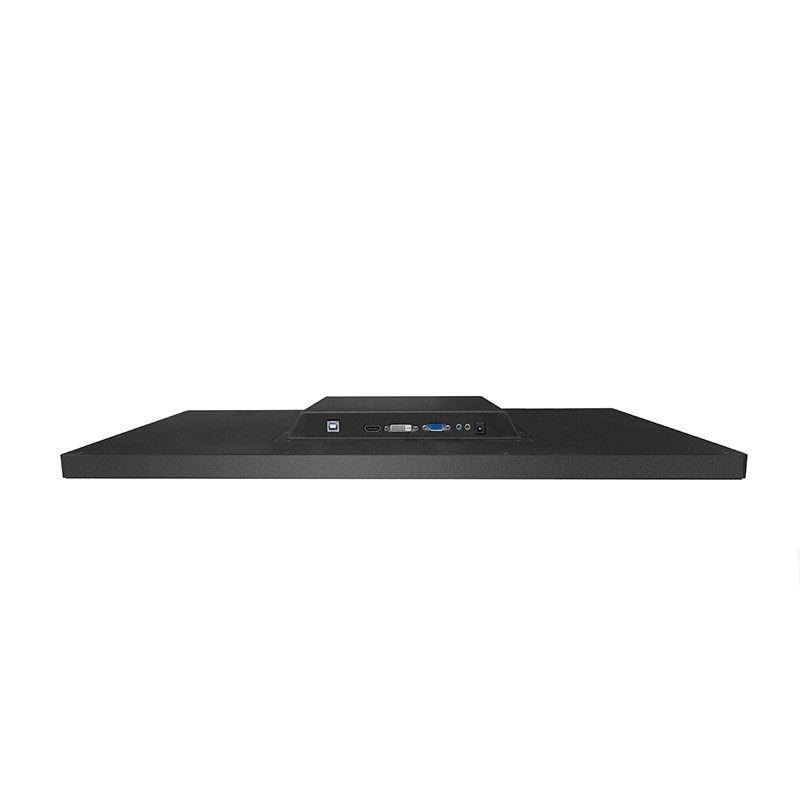

Interfaces / Connectors / Controls
Analog signal input
VGA x1
Digital signal input
HDMI x 1, DVIx1
04
Features
Extra
Anti-glare glass
embeded mode
yes
Max. non-stop operating time
24/7
Glass thickness
3mm
Glass hardness
6H
Ball drop test
yes
Impact testing
IK-7
Water and dust protection
IP65 (front)
Housing (bezel)
metal
Water tight seal
yes(front)
General
OSD languages
EN CN
Control buttons
Power on startup
06
Mechanical
Orientation
landscape, portrait
Fanless design
yes
MTBF
50,000 Hour
Cable management system
yes
Operation temperature
0°C - 50°C
AngeStorage temperature range
- 20°C - 60°C
Accessories Included
Cables
power, USB
Other
Touch Panel Driver
Cable cover
yes
Power Management
Power supply unit
External
Power supply
DC 12V
Rated output current
3A

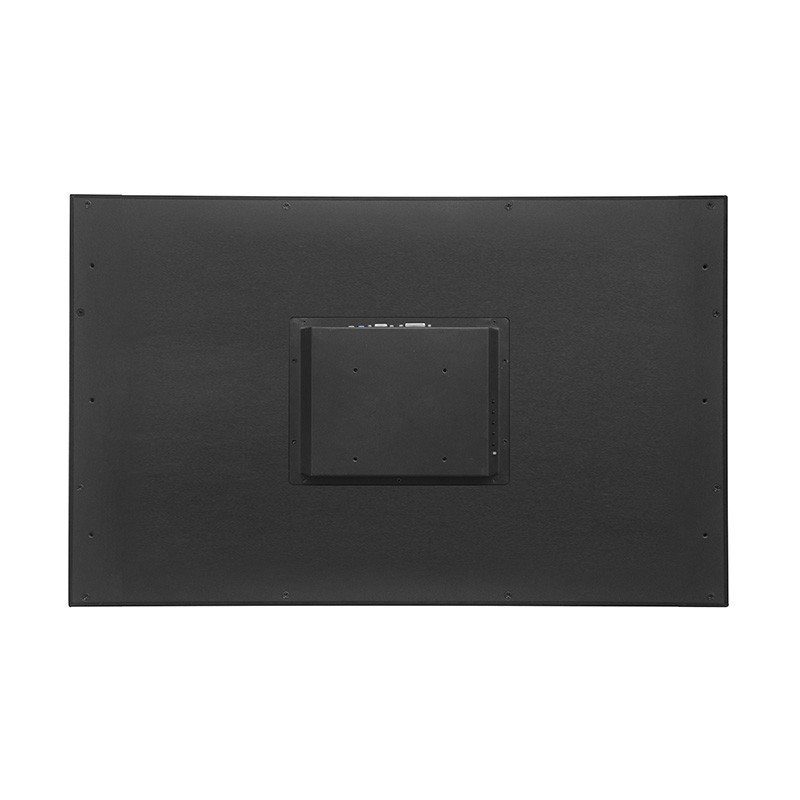

Installation Method
VESA
100mm*100mm




None

None
Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
