Premium Fully Enclosed Dustproof Monitor System
This professional-grade industrial monitor features a comprehensive fully enclosed architecture that delivers complete dust protection, ensuring optimal performance in challenging environments where particulate contamination poses operational risks.
IP65-Certified Waterproof Front Panel with Seamless Bezel Design

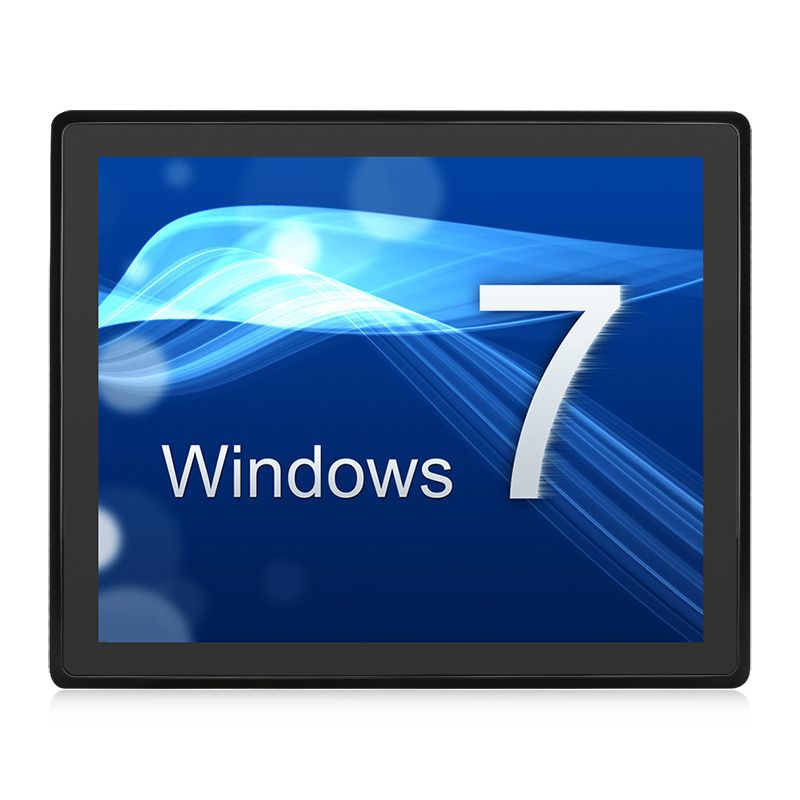

The monitor incorporates a sophisticated seamless flat bezel construction with front panel IP65 waterproof certification, providing robust protection against water ingress and liquid exposure. This advanced sealing technology makes it ideal for environments requiring stringent hygiene standards or exposure to moisture.
Aerospace-Grade Aluminum Alloy Construction

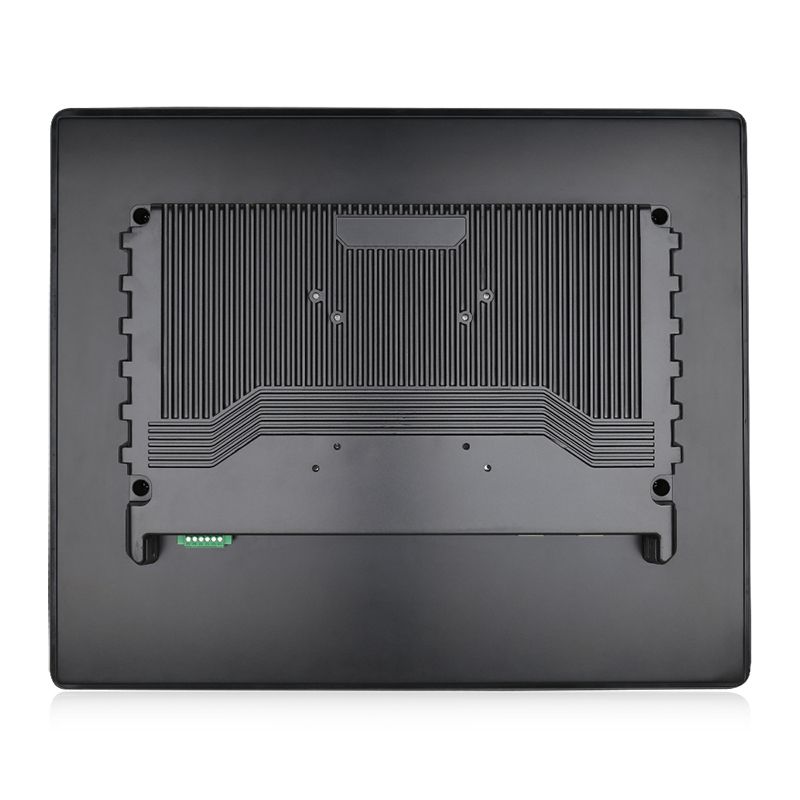

Engineered with high-quality aluminum alloy housing, this display system demonstrates exceptional mechanical properties coupled with superior thermal dissipation capabilities. The advanced heat management design ensures stable operation even during extended deployment periods.
Multi-Point Projected Capacitive (PCAP) Touch Technology
Equipped with state-of-the-art multi-point projected capacitive touch panel technology, the display delivers exceptionally high sensitivity and rapid response times. The touch interface is protected by a 2mm tempered glass overlay, providing vandal-resistant durability without compromising touch accuracy.
Enterprise-Level Performance Specifications
Continuous Operation Rating: 7×24 commercial-grade reliability for mission-critical applications
High-Performance Mainboard: Industrial-grade processing platform optimized for continuous deployment

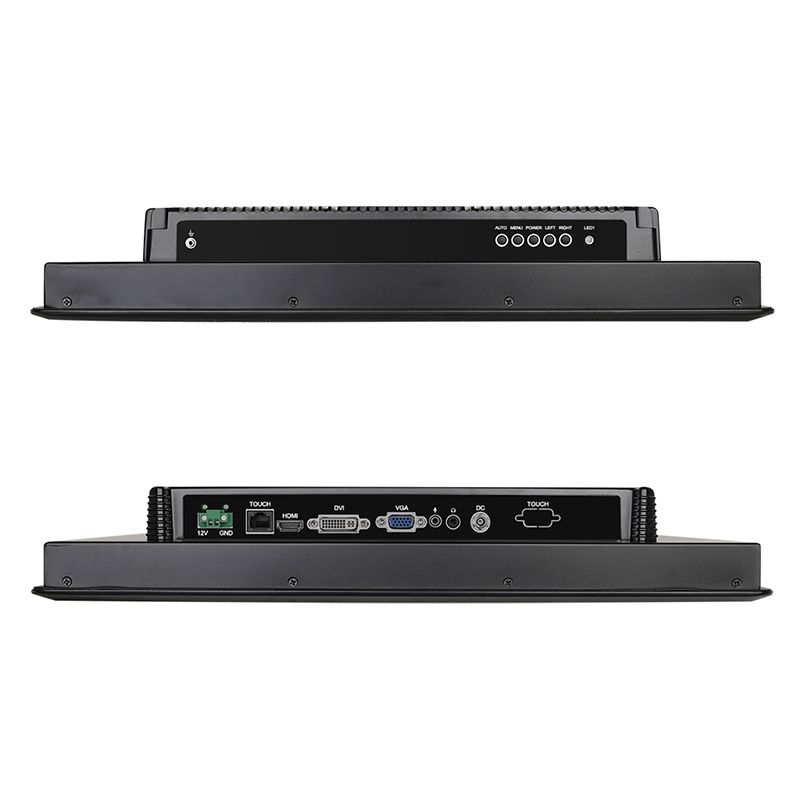

Comprehensive Connectivity: Multiple interface options including VGA, HDMI, and DVI video inputs, with USB touch interface support
Universal Power Compatibility: Wide voltage input range of 9V-36V DC for diverse power infrastructure requirements
Advanced Electromagnetic Compatibility & Protection Standards
This monitor meets rigorous EMI/EMC compliance standards, providing superior anti-electromagnetic interference protection. Built to withstand harsh operational conditions:
Shock Resistance: Compliant with GB2423 shock proof standards
Electrostatic Discharge Protection: 4KV-8KV anti-static rating
Surge Protection: Integrated anti-surge circuitry safeguards against power fluctuations
Versatile Installation Configurations
Designed for maximum deployment flexibility with support for multiple mounting options:
Wall-mounted installation
Desktop stand configuration
Embedded/flush-mount integration
Features
Fully enclosed design, the whole monitor is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance mainboard, 7x24 continuous operation.
VGA+HDMI+DVI interfaces, USB for touch.
9V - 36V wide voltage support.
EMI/ EMC standard Anti-electromagnetic interference.
Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
Support wall mounting, desk stand, embedded mounting.
Specification
| Model:SL700M | |
| LCD panel | |
| Panel size | 7"-21.5" |
| Resolution | 1024*768, 1280*1024, 1366*768, 1280*800, 1440*900, 1920*1080 |
| Aspect ratio | 4:3, 5:4, 16:9, 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 cd/m2 |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/80°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V - 24V |
| Power consumption | ≤24W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, Storage: -20 to 70°C |
| Relative humidity | Operating: 10% to 80%, Storage: 5% to 90% |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
