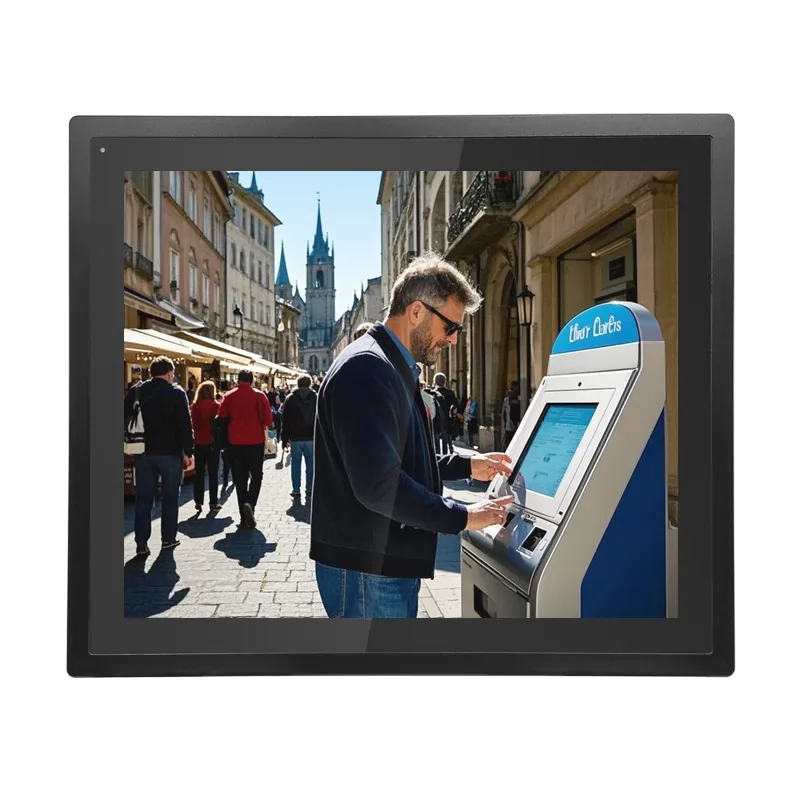

Touch Monitor SL103M

Quick Details:

Panel size10.1"-21.5"Brightness400nits
Touch TypeCapacitive TouchInterfaceVGA+DVI+HDMI
View angle80°/80°/80°/80°Power SupplyAC 100-240V, DC 12V
MaterialAluminum AlloyIP GradeFront IP65



Features:

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.

2. Industrial LCD panel, wide viewing angle, high nits, true color.

3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

4. High performance mainboard, 7x24 continuous operation.

5. Ultra-thin front bezel 3mm,  ideal for embedded mounting.


Specification:

LCD panel
Panel size10.1"-21.5"
Support Color16.7M colors
Brightness (cd/m²)400+
Backlight typeLED
Backlight life time≥50K hours
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Touch options5 wires restive touch
Signal Ports
VGA1×VGA
DVI1×DVI
HDMI1×HDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android   ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltageDC 12V
Enclosure
MaterialAluminum Alloy
ColorBlack, white, Silver, color can be customized
VESA mounting75×75mm/100×100mm
IP gradefront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Other
Mountingembedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
AccessoriesPower adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Warranty1 year warranty
CertificatesCE, FCC, RoHS

Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1366*76816:9no touch/capacitive/resistive
10.4"1024*7684:3no touch/capacitive/resistive
11.6"1920*108016:9no touch/capacitive
12.1"1024*7684:3no touch/capacitive/resistive
12.1"1280*80016:10no touch/capacitive
15"1024*7684:3no touch/capacitive/resistive
15.6"1920*108016:9no touch/capacitive/resistive
17"1280*10245:4no touch/capacitive/resistive
17.3"1920*108016:9no touch/capacitive/resistive
19"1280*10245:4no touch/capacitive/resistive
19"1440*90016:10no touch/capacitive/resistive
21.5"1920*108016:9no touch/capacitive/resistive
