Features:
2x DDR5L SODIMM slot, supports up to 64GB
DP1.4a + HDMI 2.1
Dual storage, 1x 2.5" HDD interface, 2x M.2 interface
Turbine heat dissipation
Specification
| NUC PC | |
| CPU Optional | Intel® Core i3-1215U, 6 Cores(Performance-core 2, Efficient-core 4), 8 Threads, Turbo frequency 4.4 GHz |
| CPU Optional | Intel® Core i5-1245U/1235U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz |
| CPU Optional | Intel® Core i7-1255U/1265U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.8 GHz |
| CPU Optional | Intel® Core i7-1335U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz |
| CPU Optional | Intel® Core i5-1340P/1350P, 12 Cores(Performance-core 4, Efficient-core 8), 16 Threads, Turbo frequency 4.6 GHz |
| CPU Optional | Intel® Core i7-1360P/1370P, 12 Cores(Performance-core 4, Efficient-core 8), 16 Threads, Turbo frequency 5.0 GHz |
| Memory | 2x DDR5L SODIMM slot, supports up to 64GB |
| Storage | 2x M.22280 NVME |
| Display | 1x DP, 1x HDMI (Support synchronous display or asynchronous display) |
| Network | 2 x GbE RJ45 Realtek 8111H |

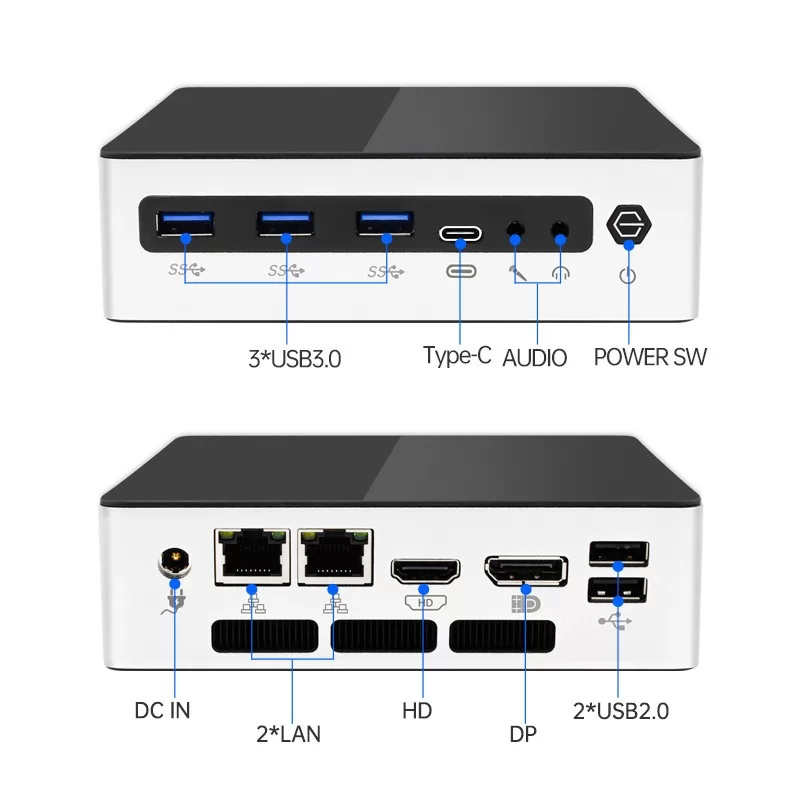

| I/O | 2x USB2.0, 3x USB3.0 1 x Audio Line-out,1 x Audio Mic-in, 1 x Power Button 1 x Power input, 1 x USB Type-C 1x DP 1 x HDMI |
| Expansion Slot | 1x M.2 2232, support WIFI Bluetooth |
| BIOS | AMI EFI BIOS |
| Operation System | Windows® 10/11, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy+Plastic |
| Color | Black silver |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Net weight | 0.64 kg |
| Gross weight | 1.5 kg |

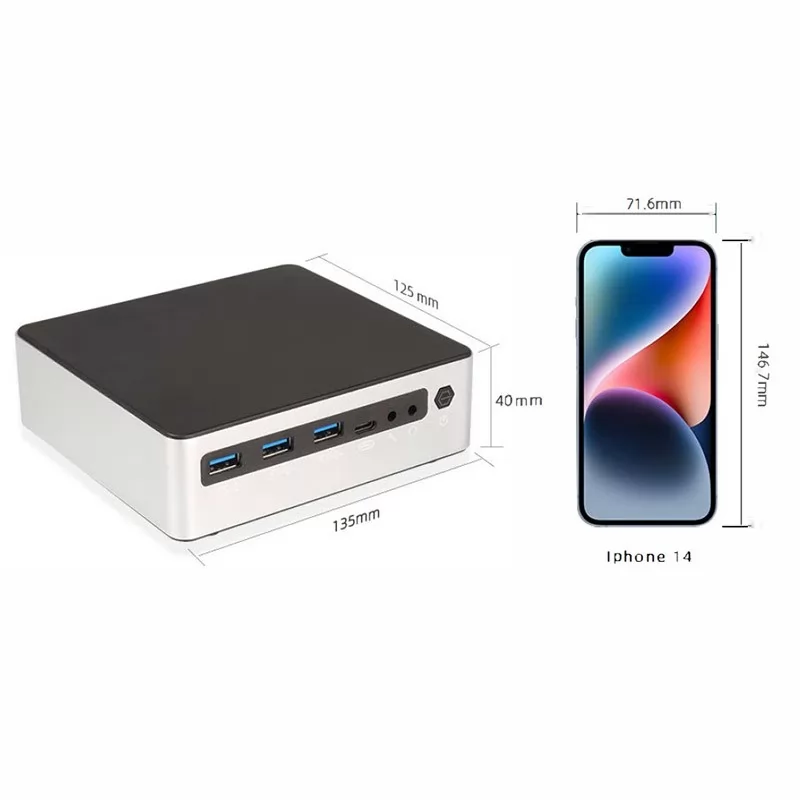

| Product Dimension | 135 x125x49 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Power plug |
| Other | |
| Mounting (options) | Wall mounting |
| Desktop installation | |
| Warranty | 2 years warranty |
